ABDVerification Test

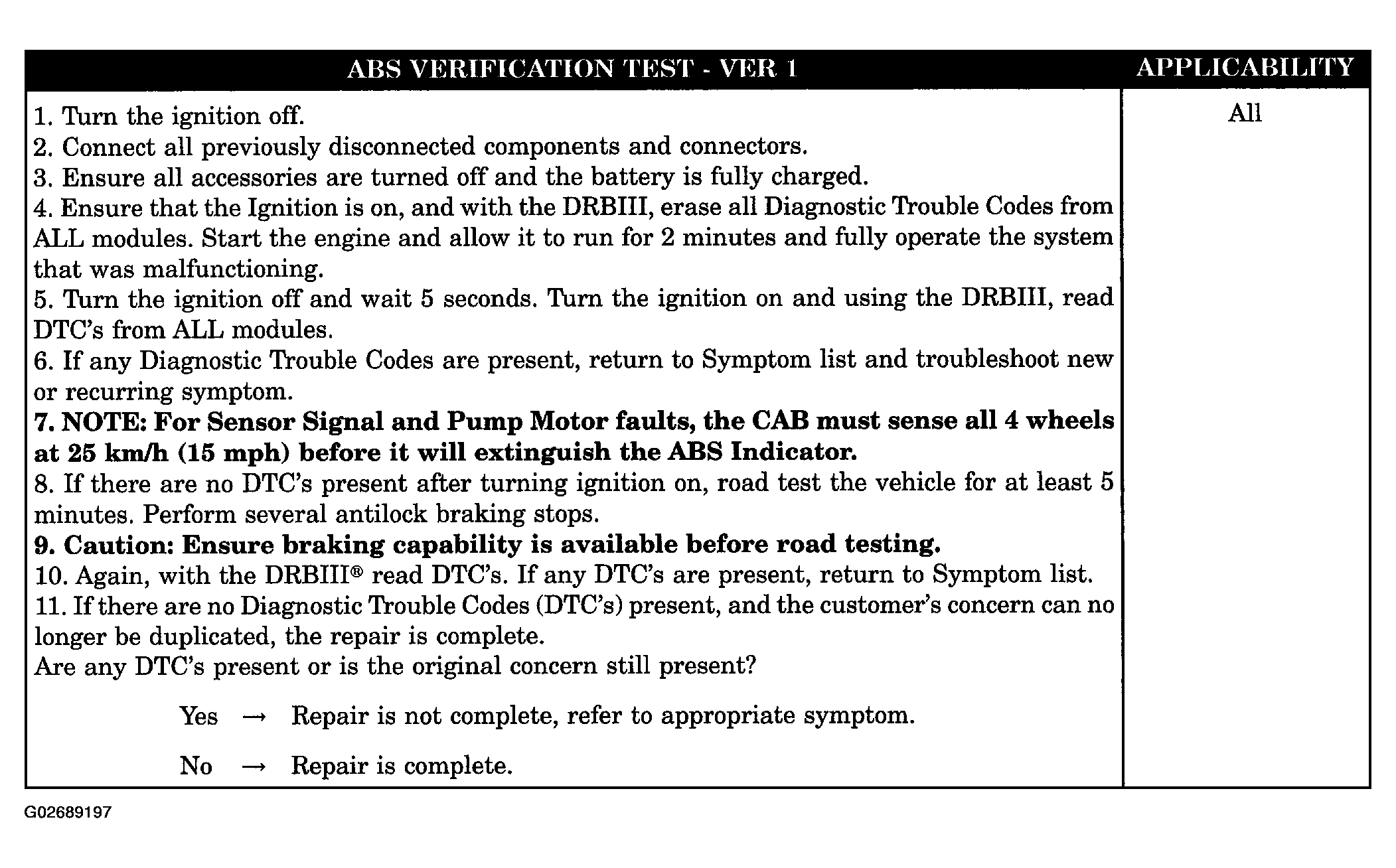

Fig 1: ABS Verification Tests - VER 1
G02689197Courtesy of DAIMLERCHRYSLER CORP.
