Connector PINOUTS

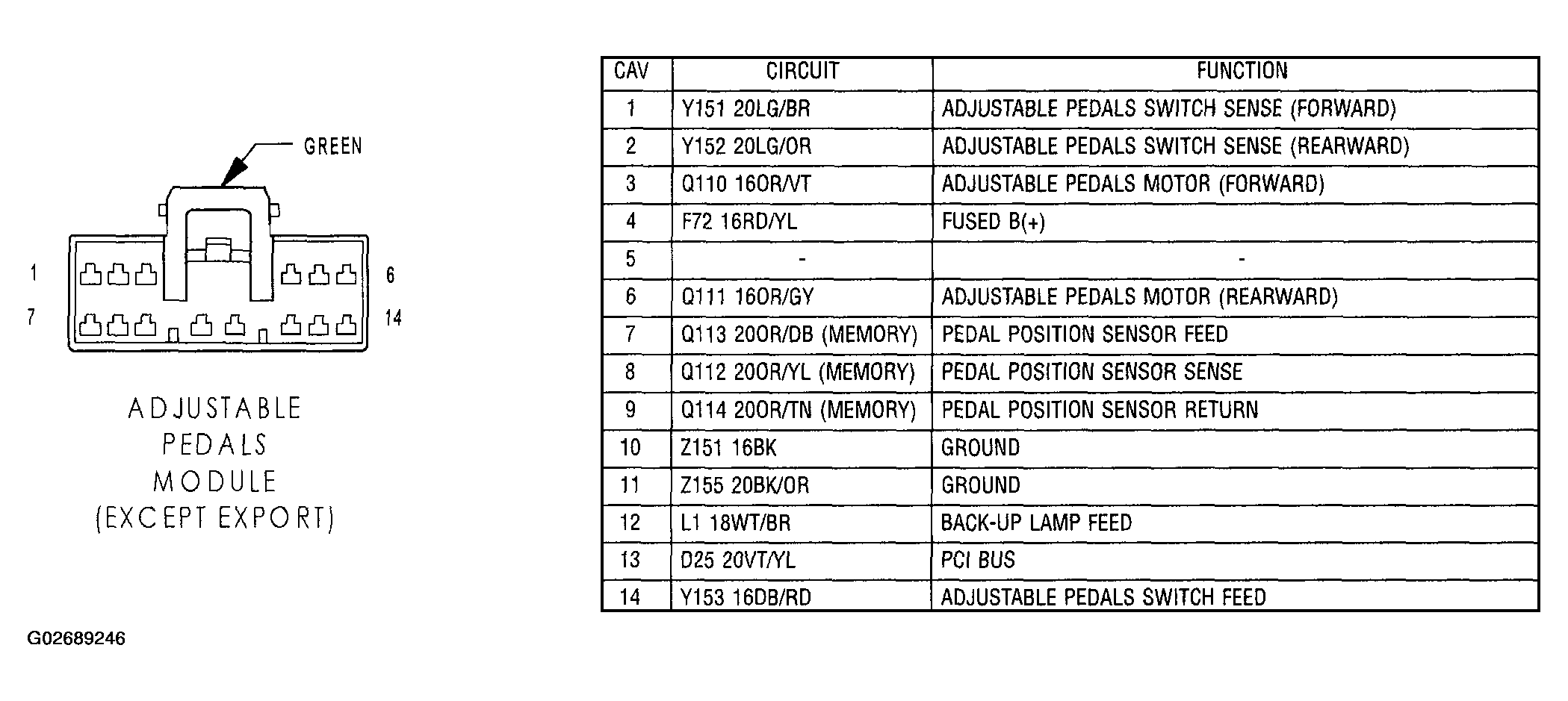

Fig 1: Identifying Adjustable Pedals Module (Except Export) Connector Pinouts

G02689246

Courtesy of DAIMLERCHRYSLER CORP.

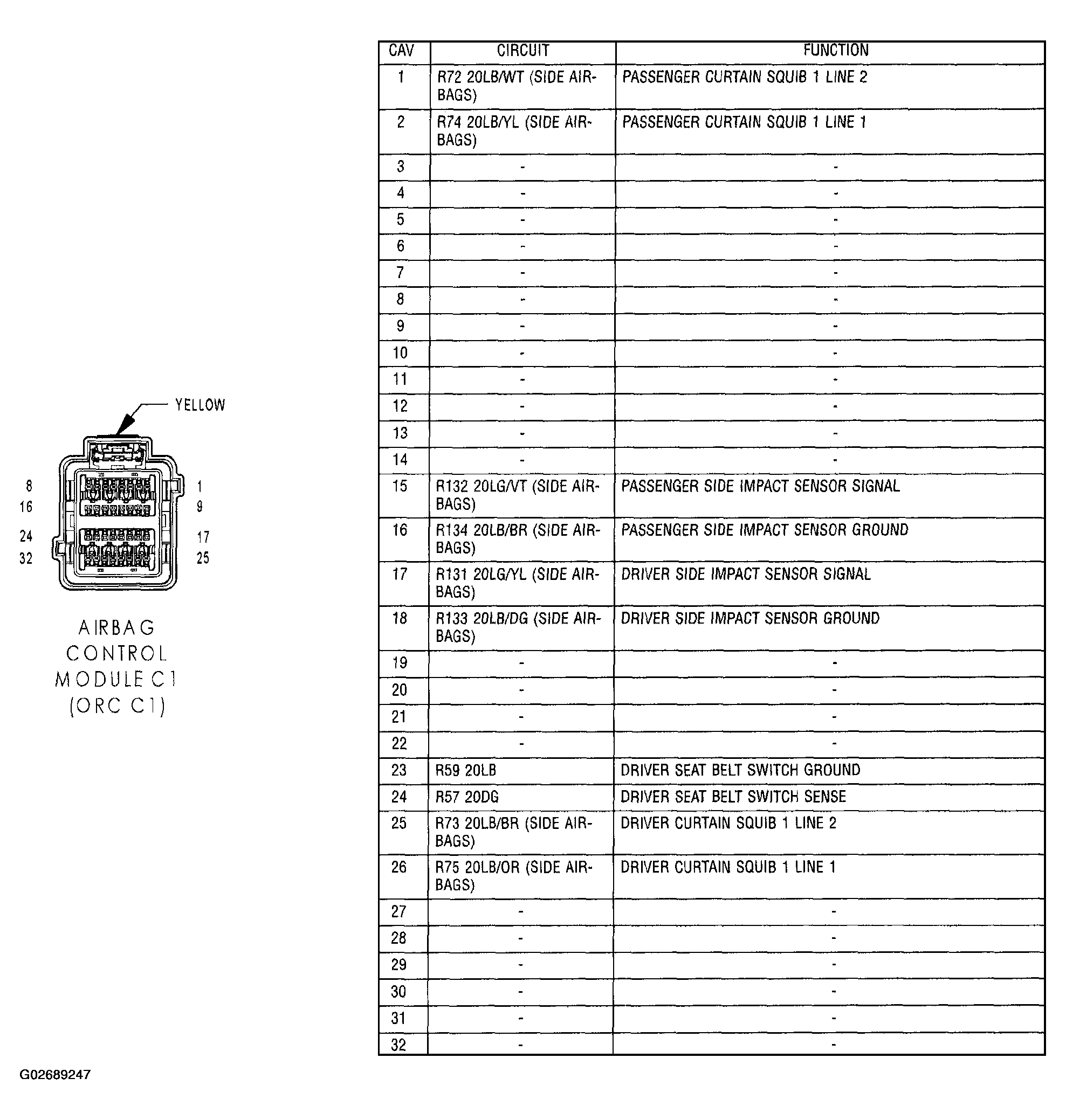

Fig 2: Identifying Airbag Control Module C1 (OBC C1) Connector Pinouts

G02689247

Courtesy of DAIMLERCHRYSLER CORP.

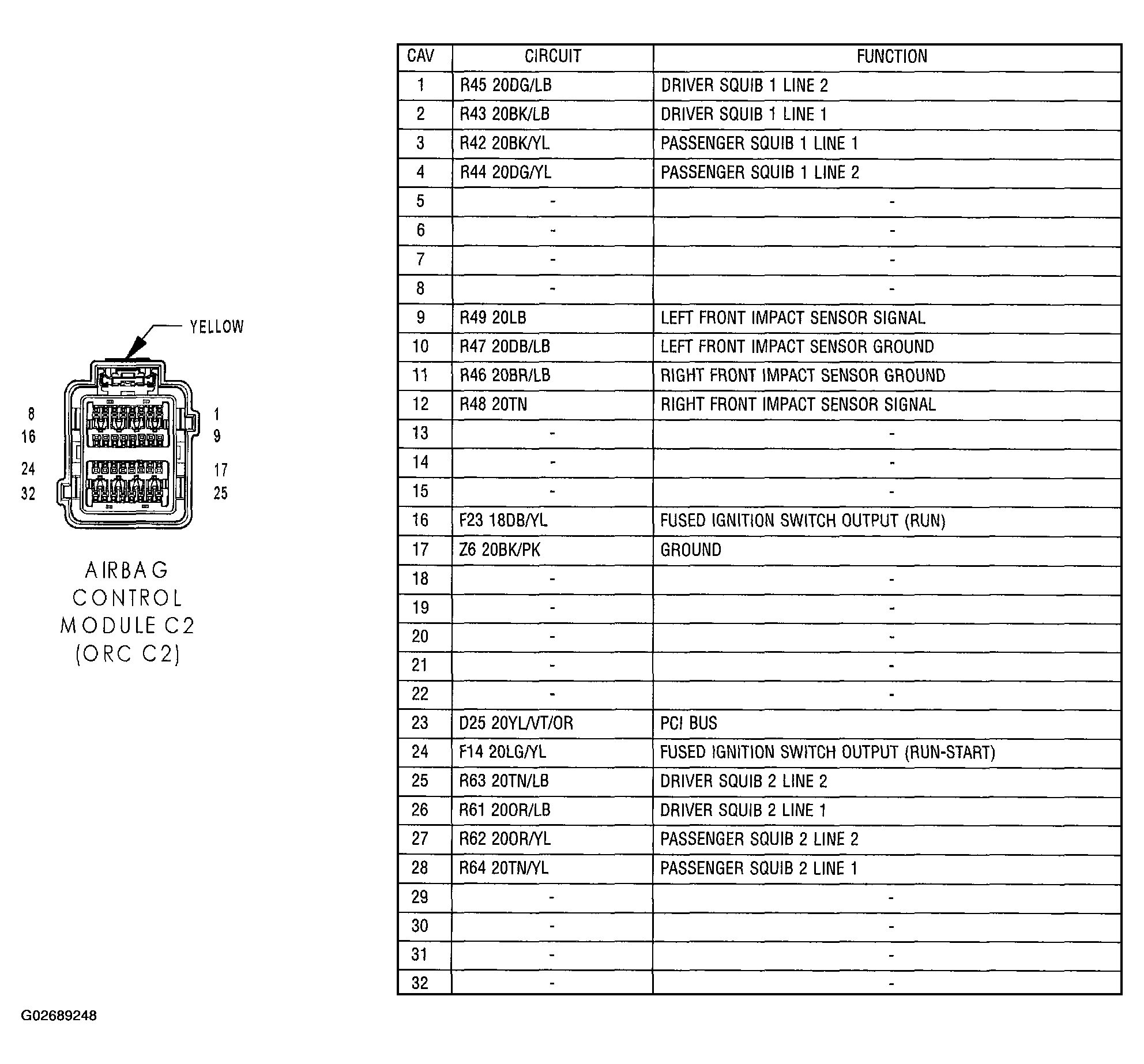

Fig 3: Identifying Airbag Control Module C2 (ORC C2) Connector Pinouts

G02689248

Courtesy of DAIMLERCHRYSLER CORP.

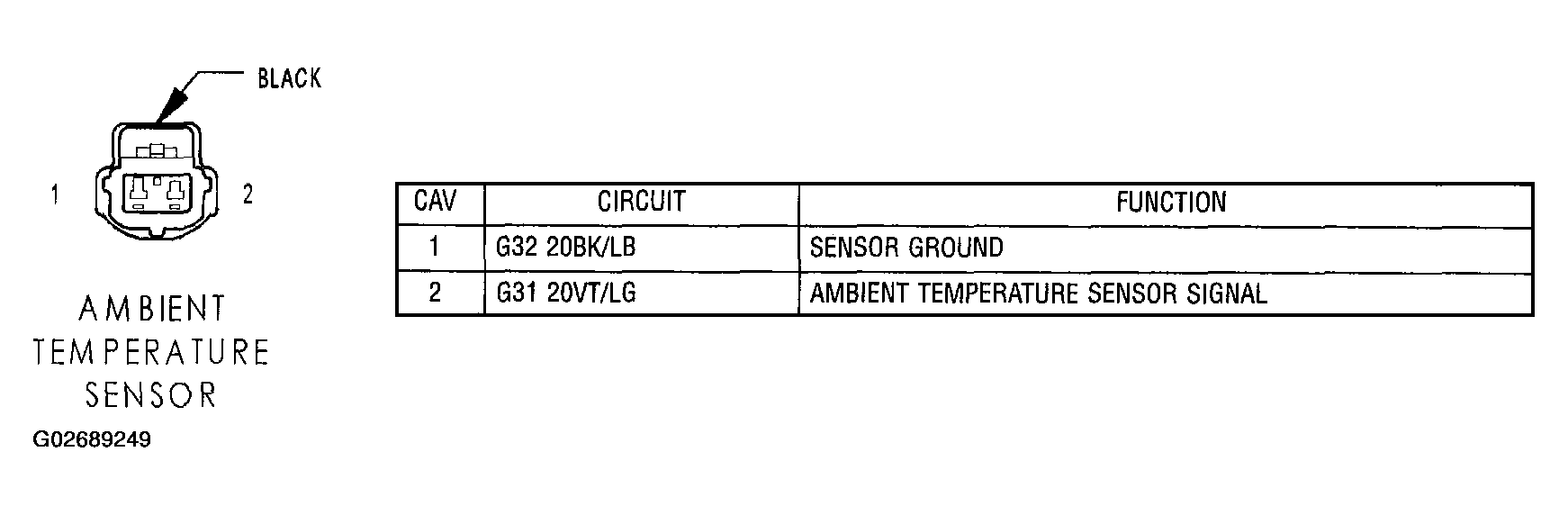

Fig 4: Identifying Ambient Temperature Sensor Connector Pinouts

G02689249

Courtesy of DAIMLERCHRYSLER CORP.

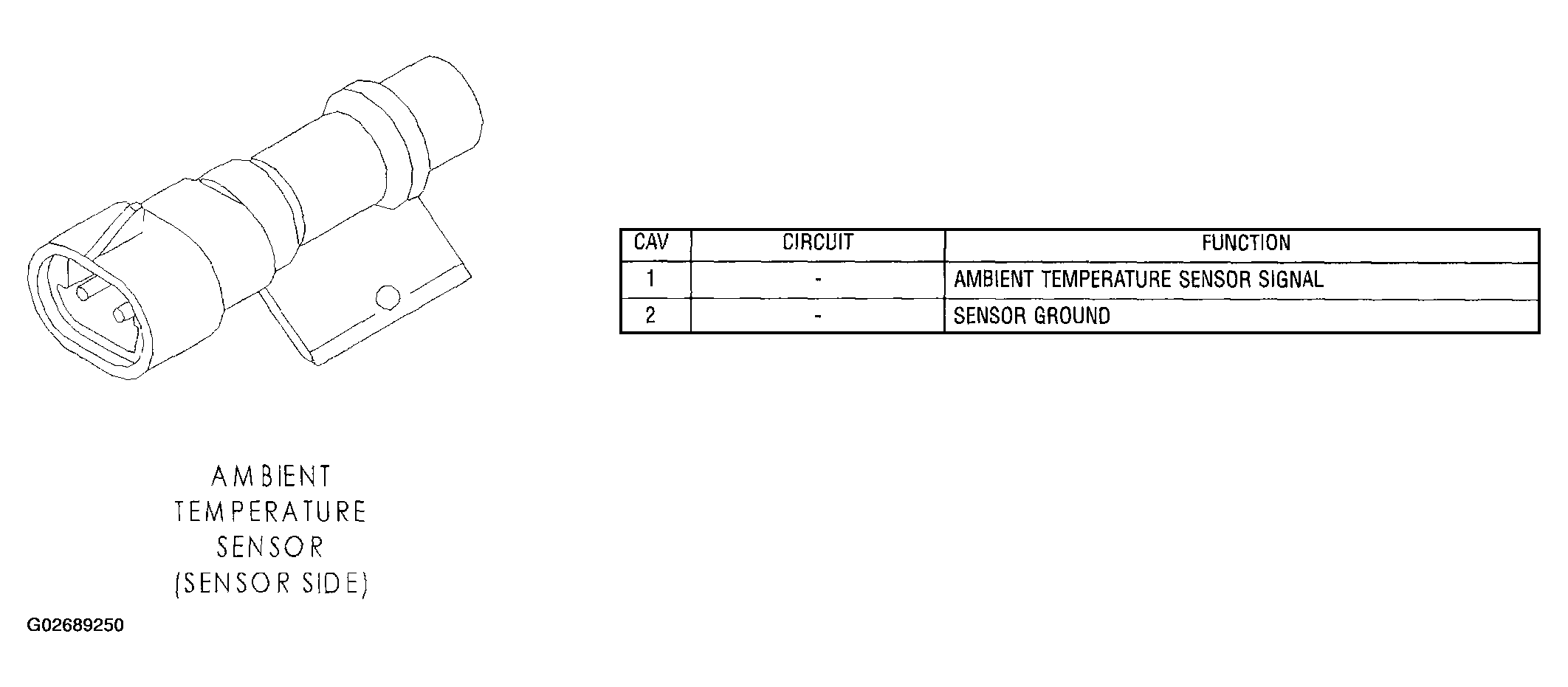

Fig 5: Identifying Ambient Temperature Sensor (Sensor Side) Connector Pinouts

G02689250

Courtesy of DAIMLERCHRYSLER CORP.

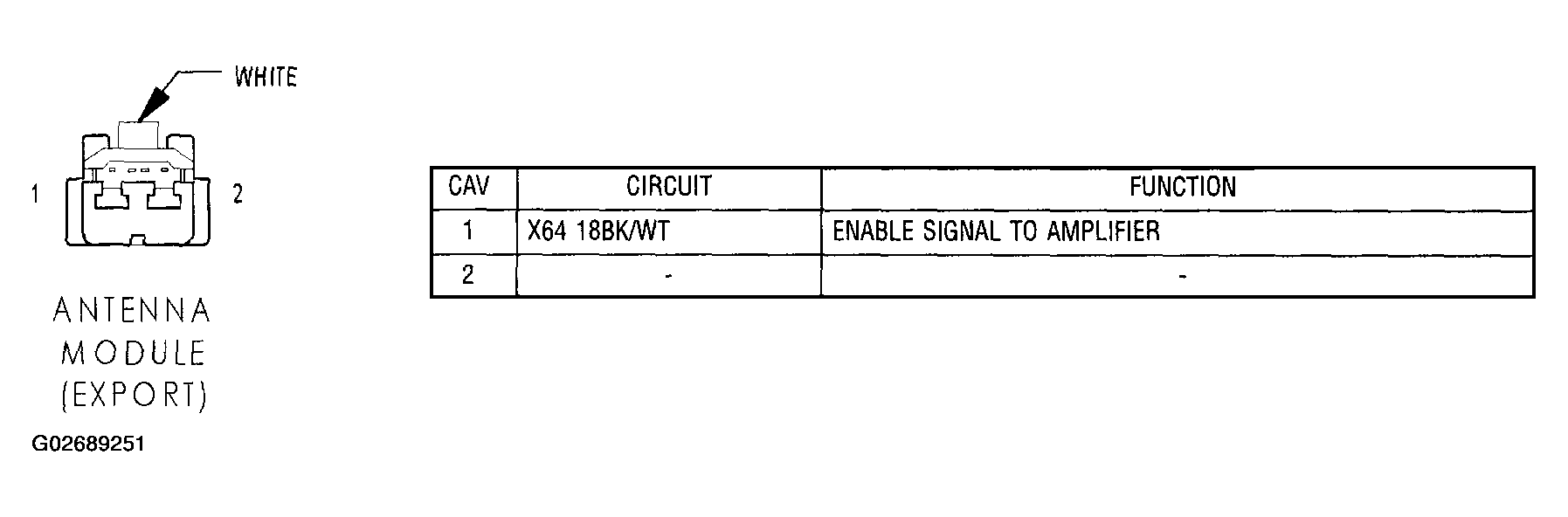

Fig 6: Identifying Antenna Module (Export) Connector Pinouts

G02689251

Courtesy of DAIMLERCHRYSLER CORP.

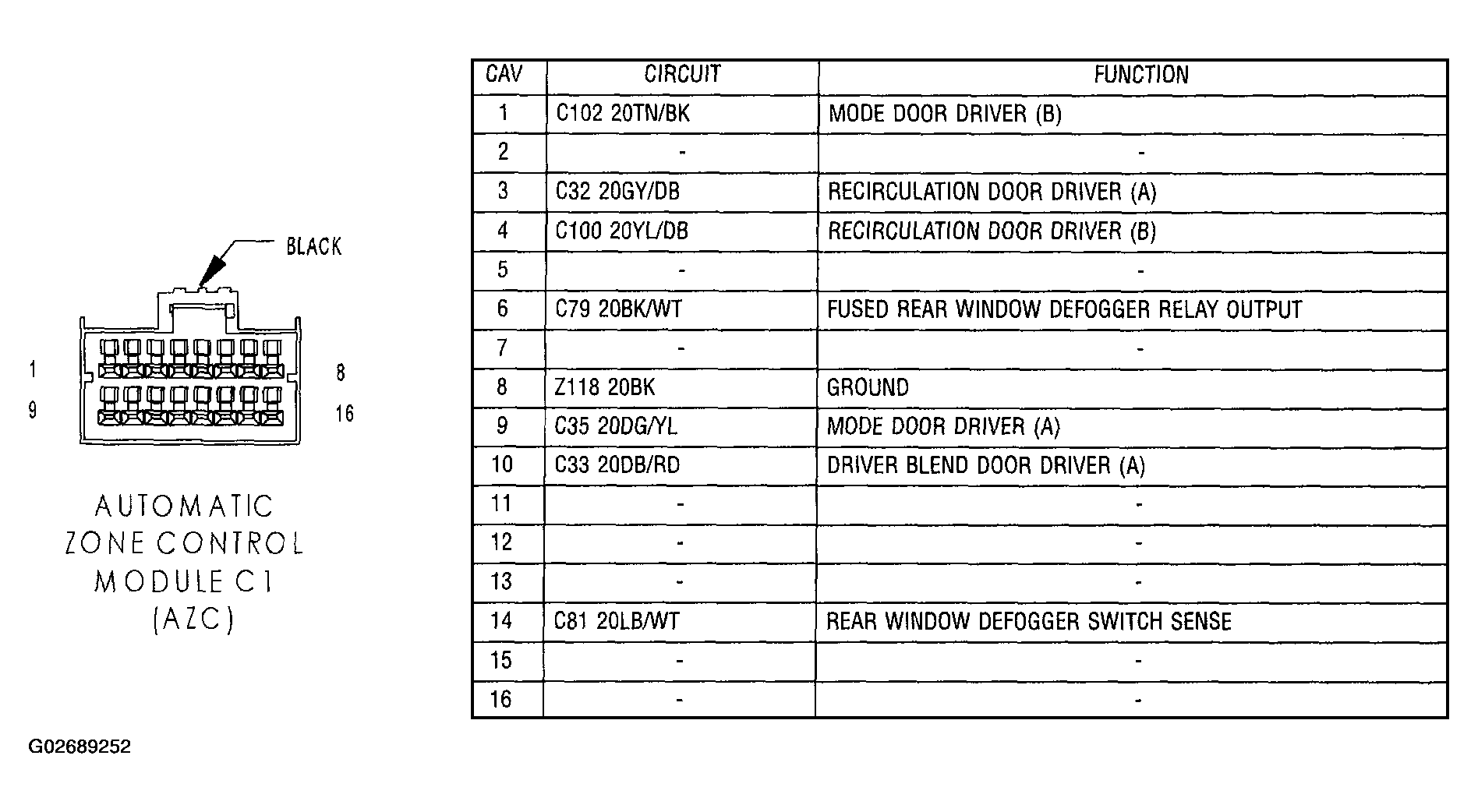

Fig 7: Identifying Automatic Zone Control Module C1 (AZC) Connector Pinouts

G02689252

Courtesy of DAIMLERCHRYSLER CORP.

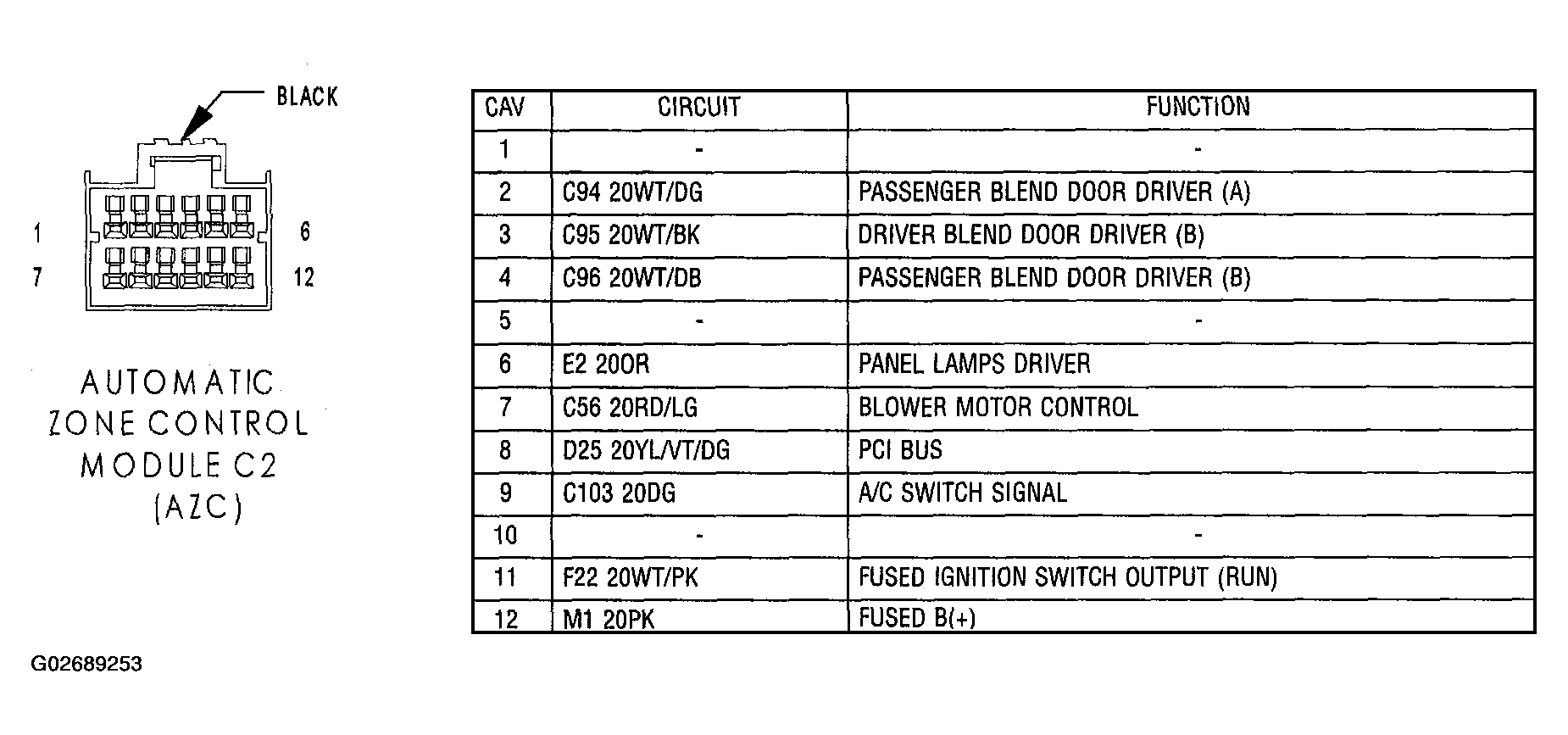

Fig 8: Identifying Automatic Zone Control Module C2 (AZC) Connector Pinouts

G02689253

Courtesy of DAIMLERCHRYSLER CORP.

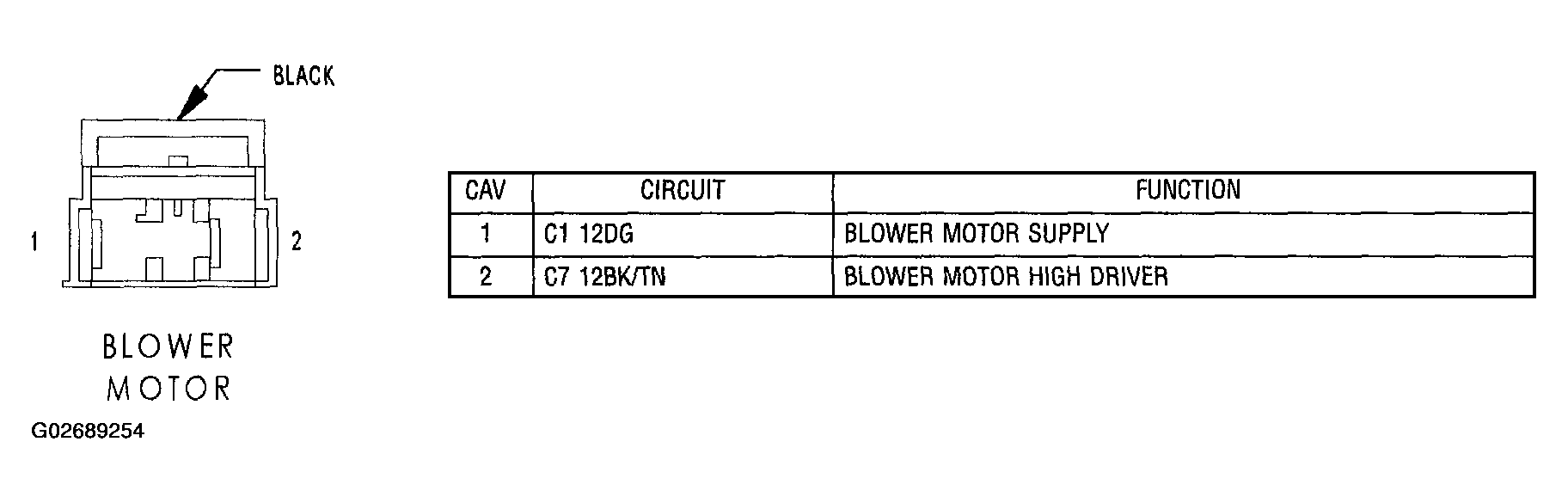

Fig 9: Identifying Blower Motor Connector Pinouts

G02689254

Courtesy of DAIMLERCHRYSLER CORP.

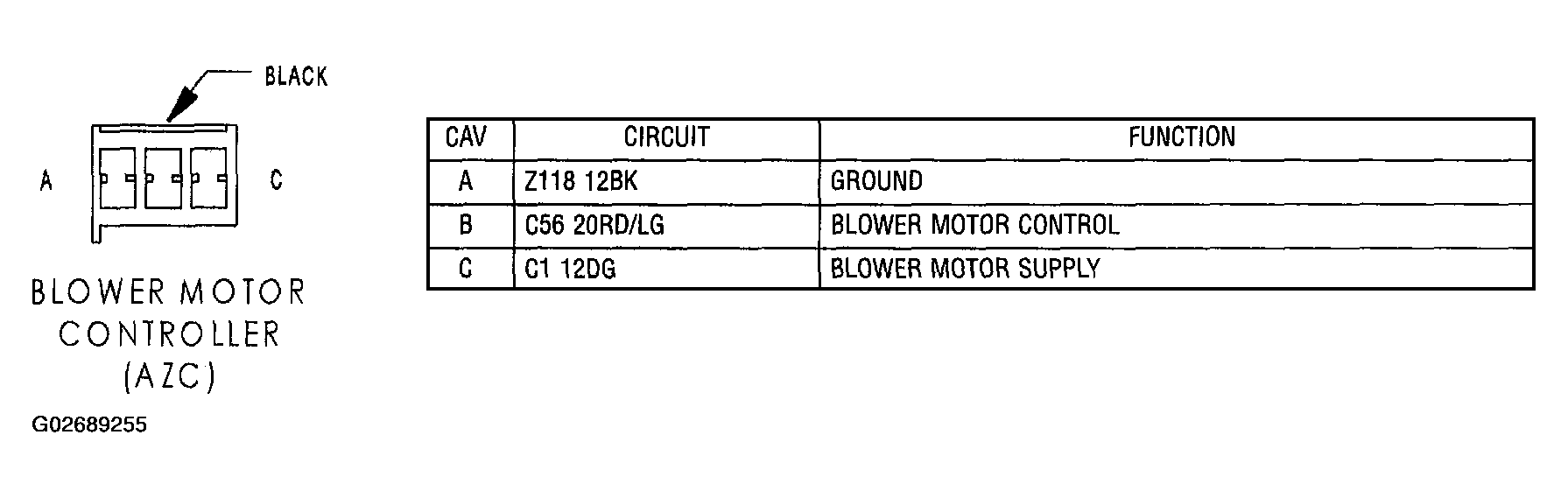

Fig 10: Identifying Blower Motor Controller (AZC) Connector Pinouts

G02689255

Courtesy of DAIMLERCHRYSLER CORP.

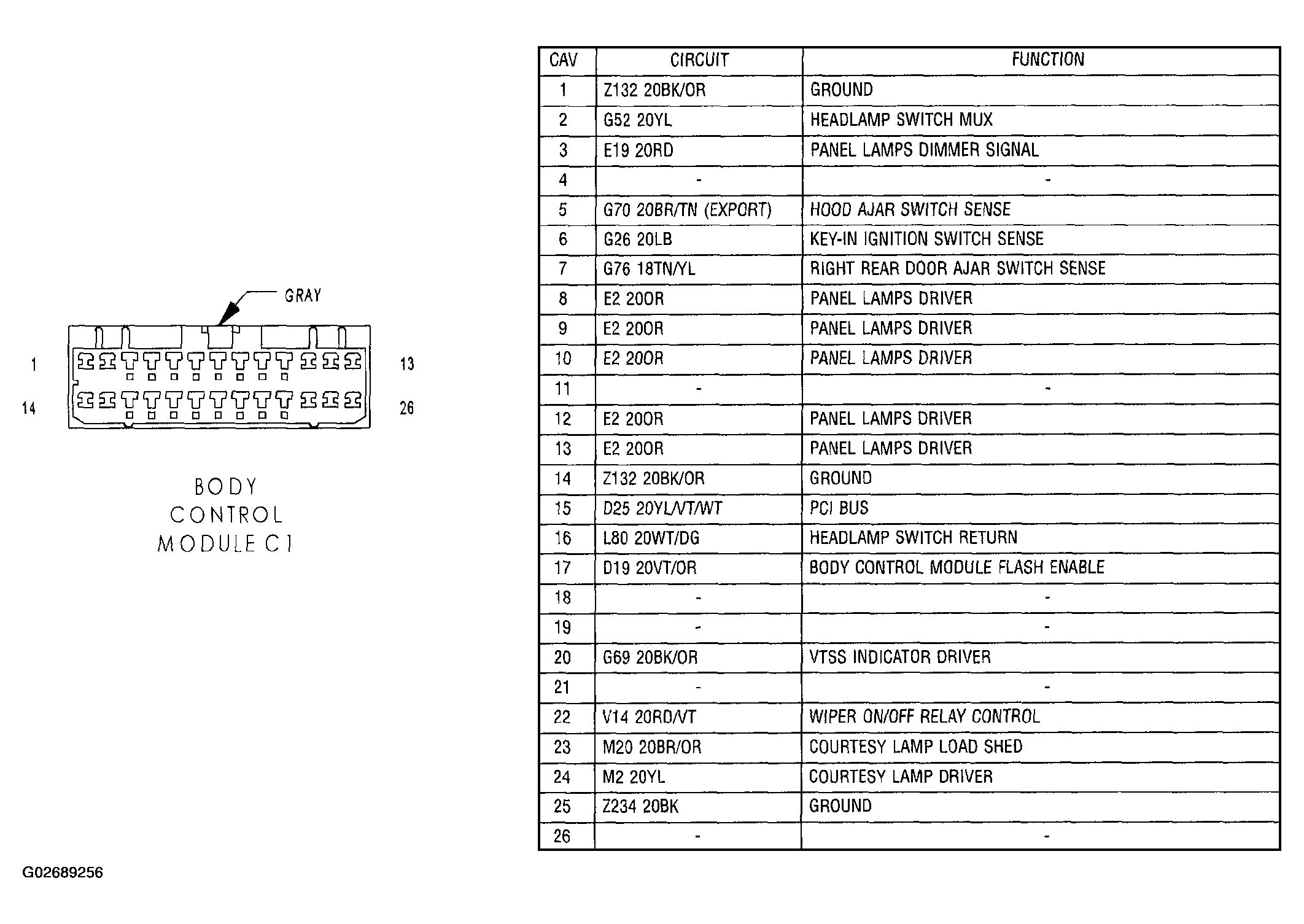

Fig 11: Identifying Body Control Module C1 Connector Pinouts

G02689256

Courtesy of DAIMLERCHRYSLER CORP.

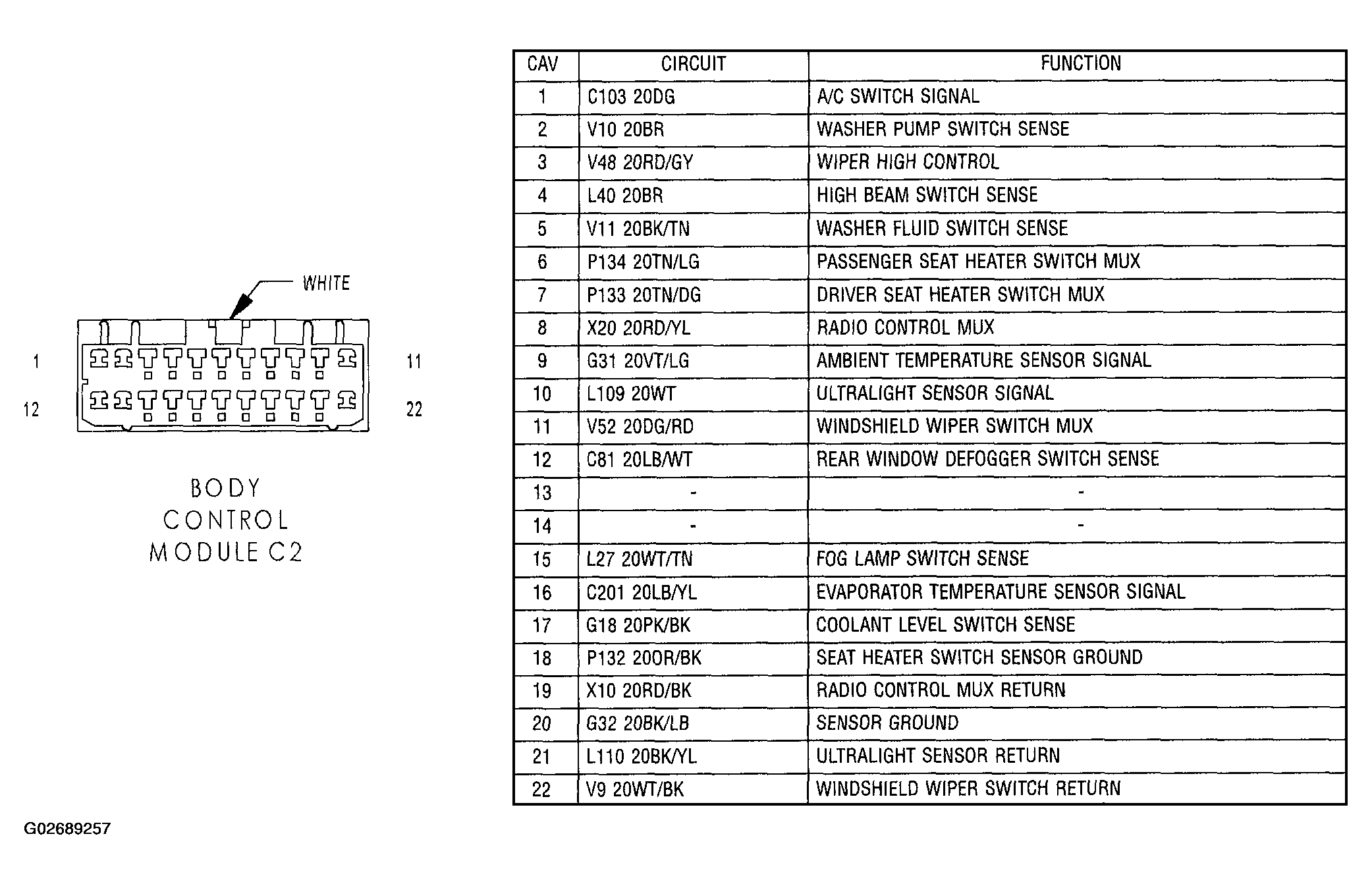

Fig 12: Identifying Body Control Module C2 Connector Pinouts

G02689257

Courtesy of DAIMLERCHRYSLER CORP.

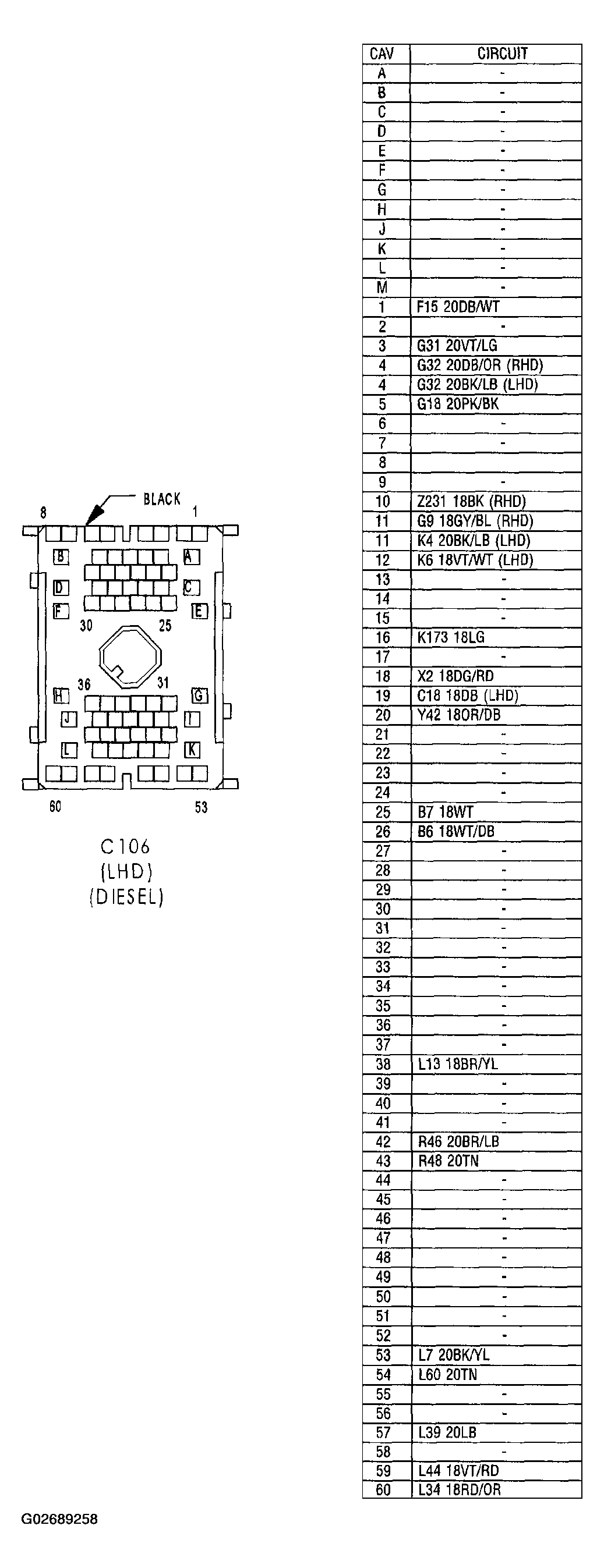

Fig 13: Identifying C106 (Diesel) Connector Pinouts (1 Of 2)

G02689258

Courtesy of DAIMLERCHRYSLER CORP.

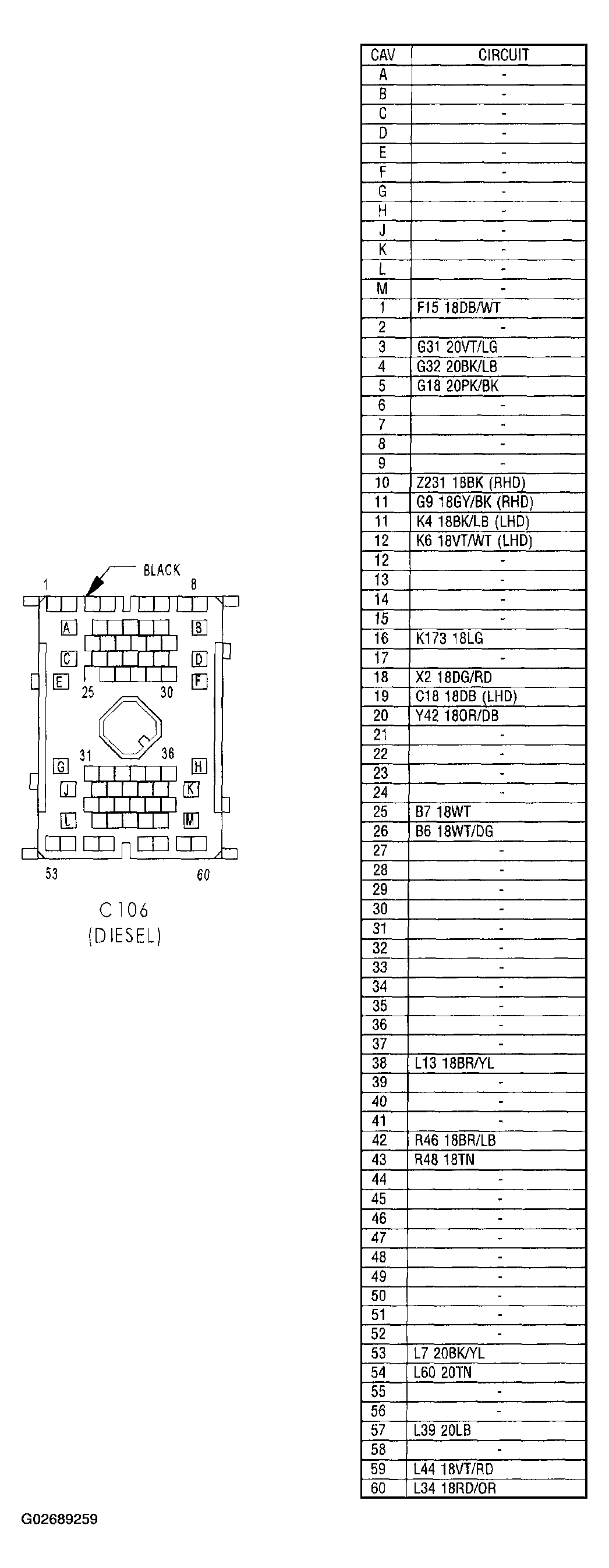

Fig 14: Identifying C106 (Diesel) Connector Pinouts (2 Of 2)

G02689259

Courtesy of DAIMLERCHRYSLER CORP.

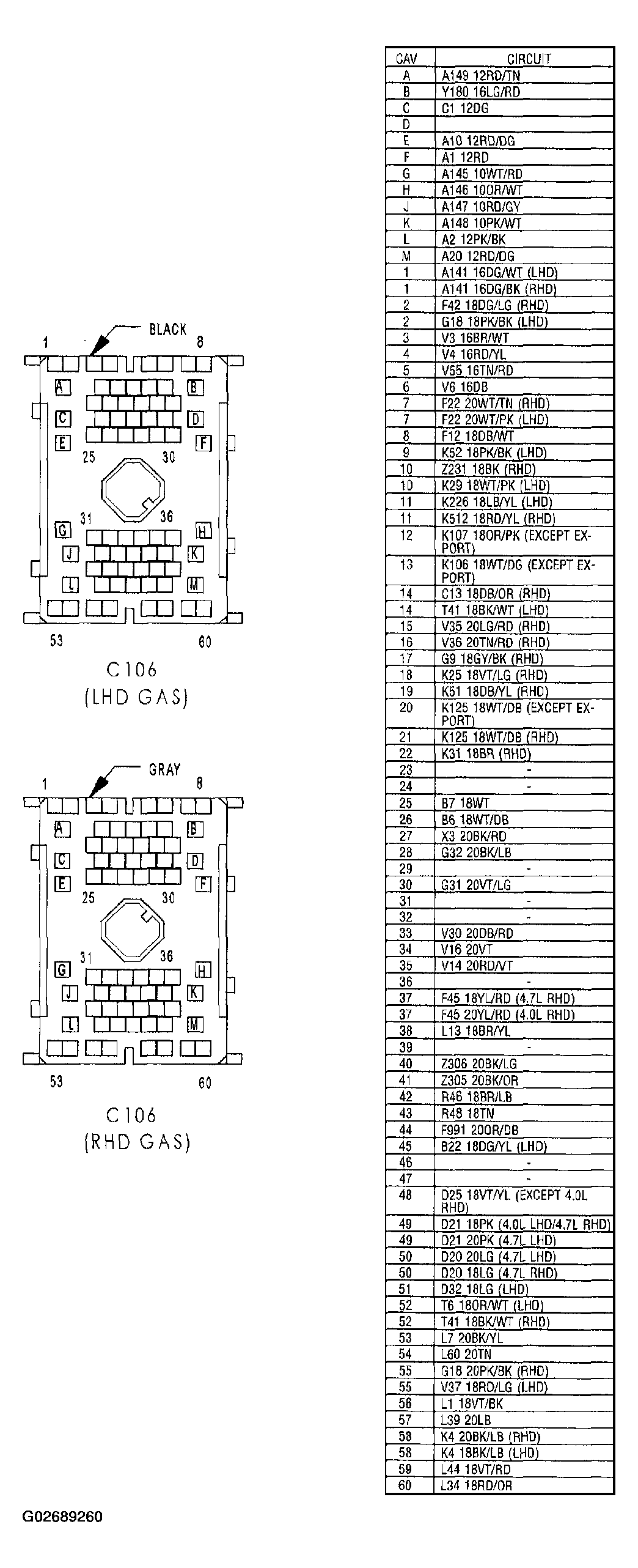

Fig 15: Identifying C106 (Gas) Connector Pinouts (1 Of 2)

G02689260

Courtesy of DAIMLERCHRYSLER CORP.

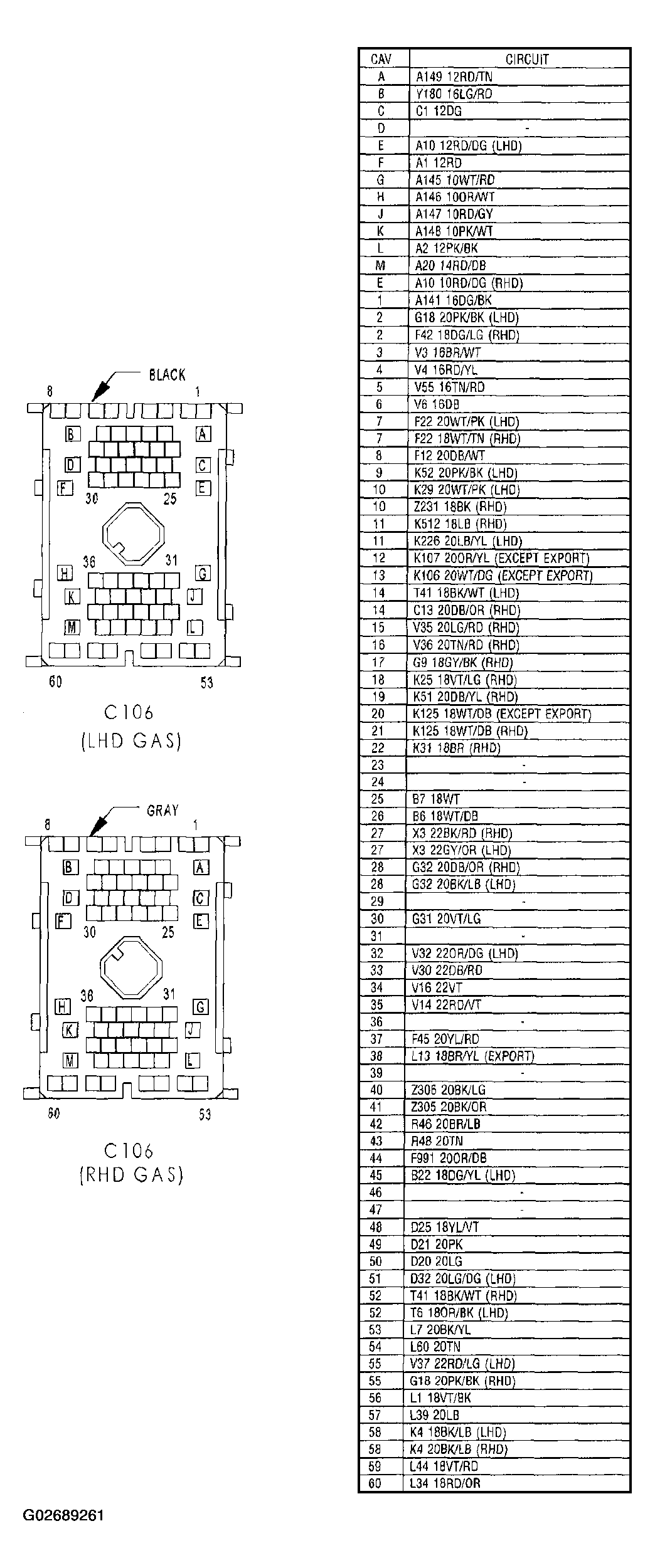

Fig 16: Identifying C106 (Gas) Connector Pinouts (2 Of 2)

G02689261

Courtesy of DAIMLERCHRYSLER CORP.

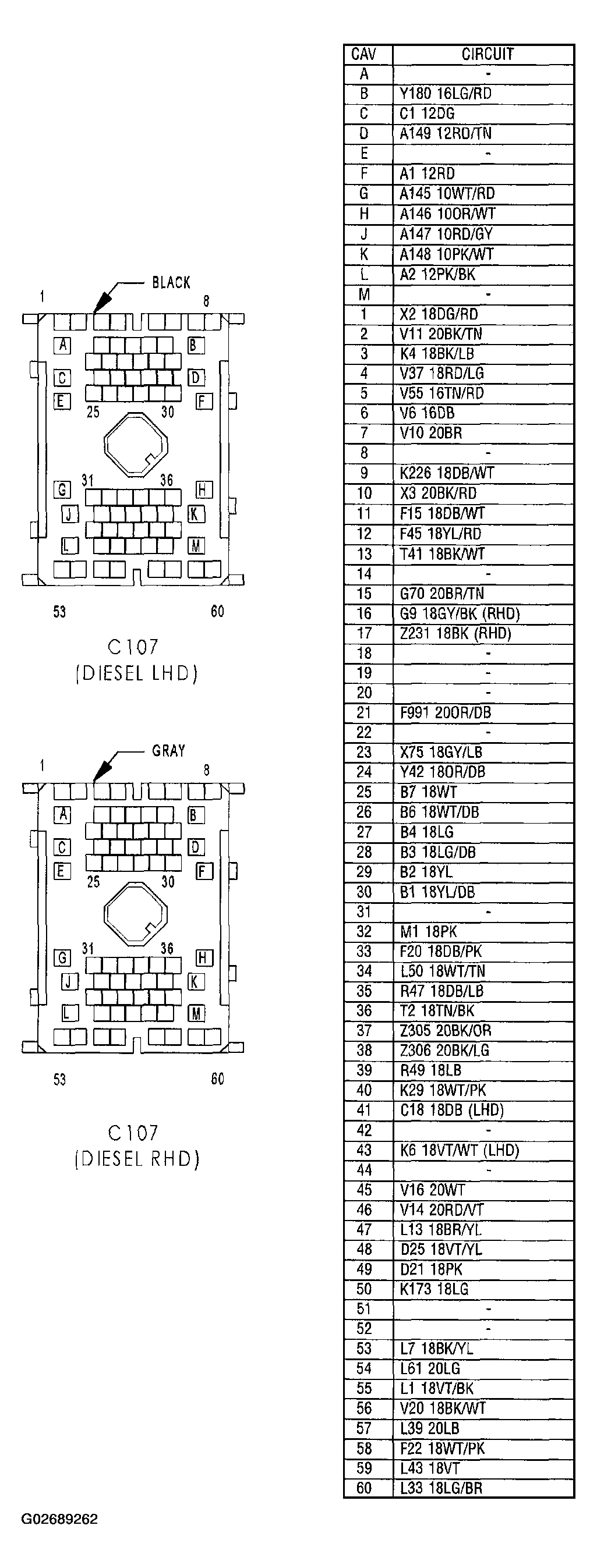

Fig 17: Identifying C107 (Diesel) Connector Pinouts (1 Of 2)

G02689262

Courtesy of DAIMLERCHRYSLER CORP.

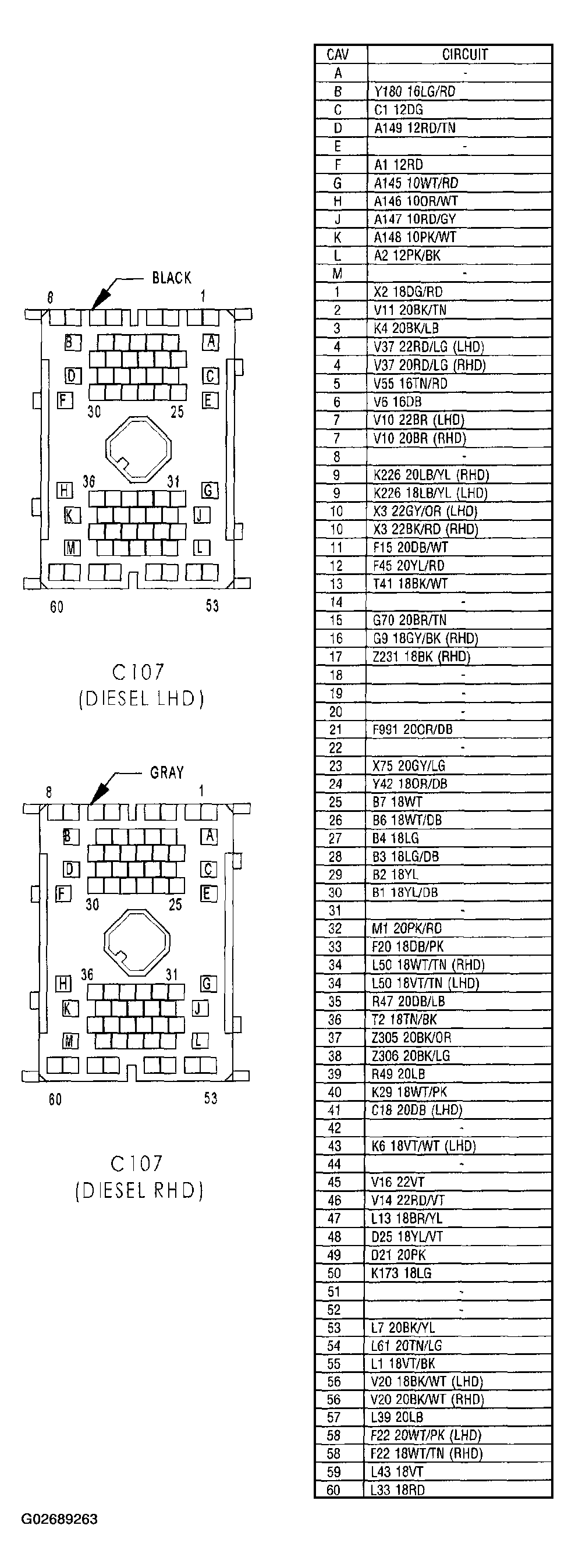

Fig 18: Identifying C107 (Diesel) Connector Pinouts (2 Of 2)

G02689263

Courtesy of DAIMLERCHRYSLER CORP.

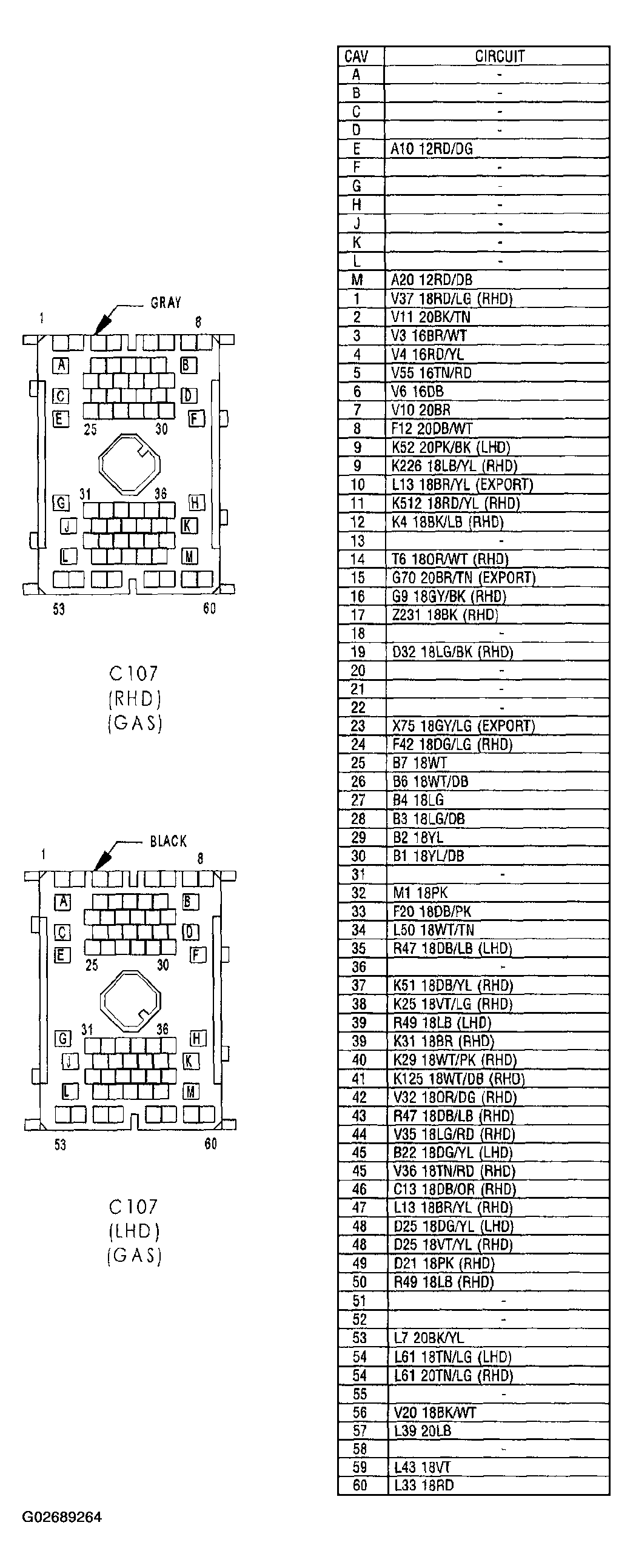

Fig 19: Identifying C107 (Gas) Connector Pinouts (1 Of 2)

G02689264

Courtesy of DAIMLERCHRYSLER CORP.

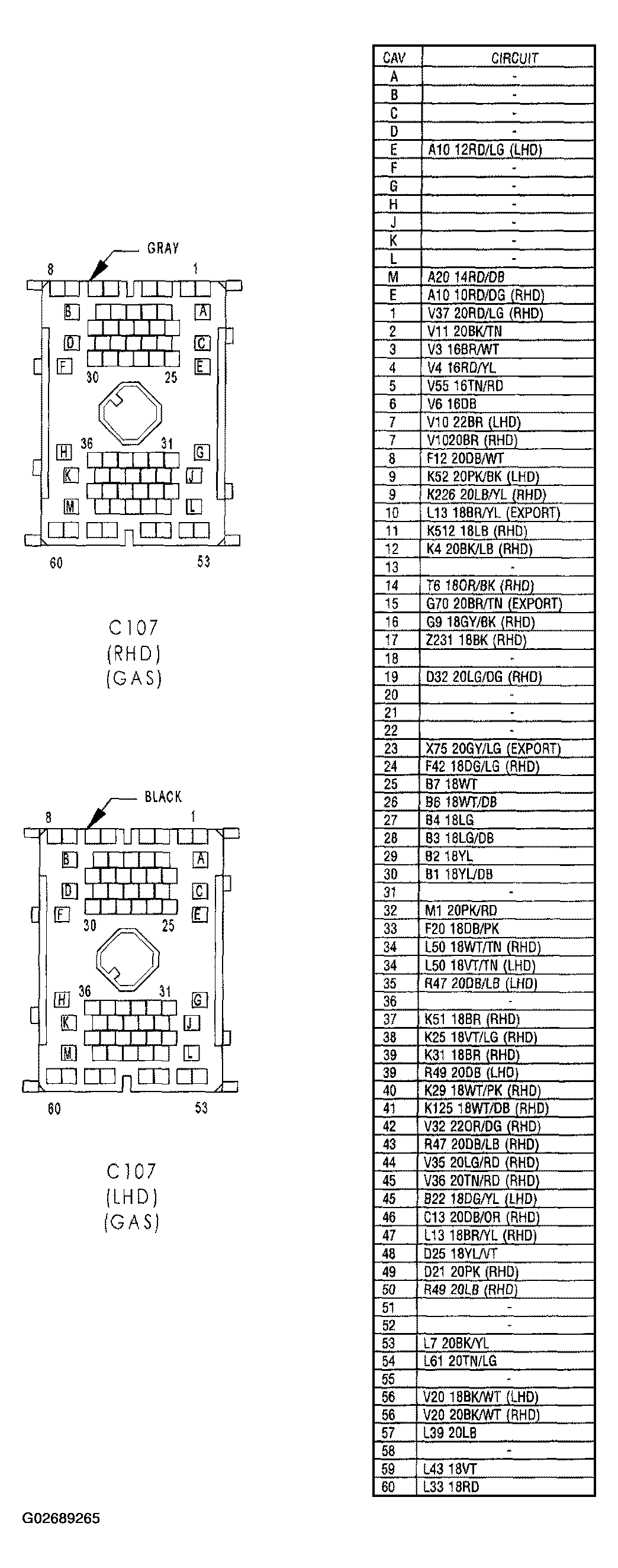

Fig 20: Identifying C107 (Gas) Connector Pinouts (2 Of 2)

G02689265

Courtesy of DAIMLERCHRYSLER CORP.

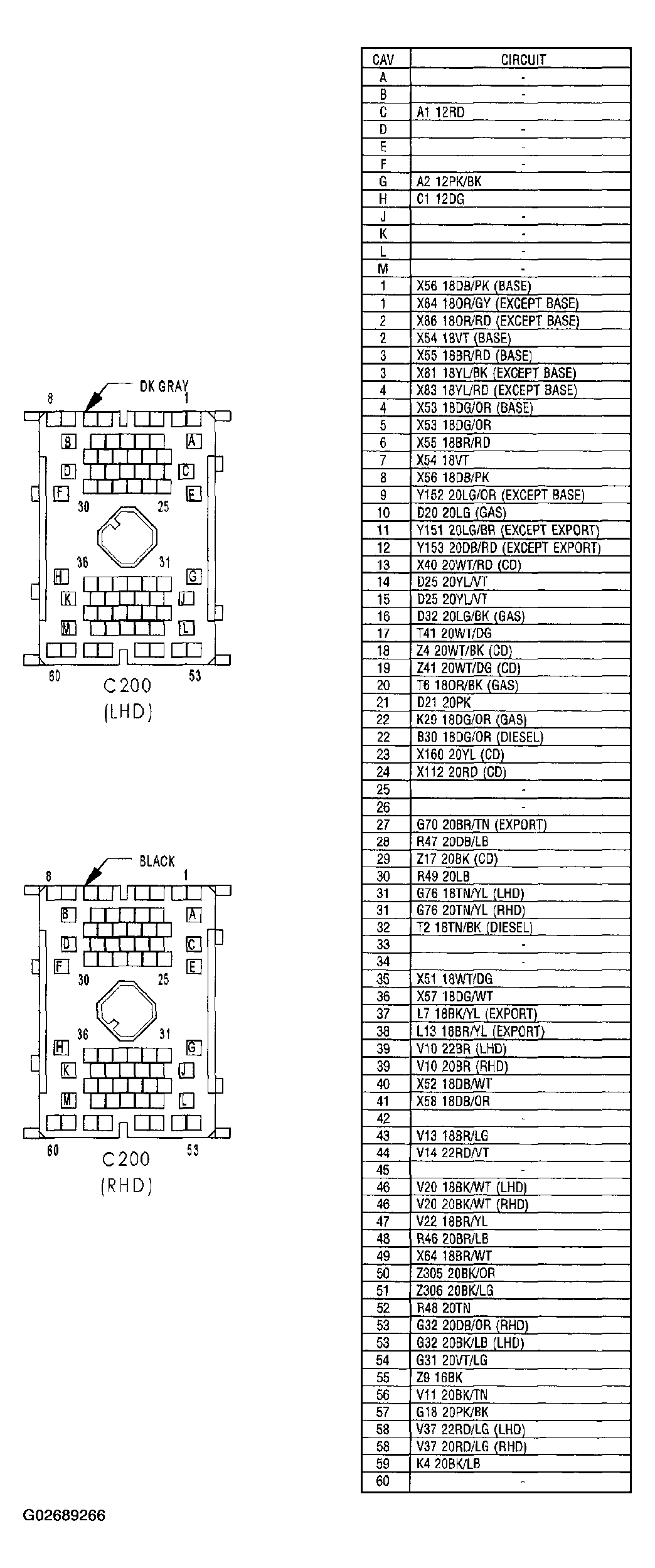

Fig 21: Identifying C200 Connector Pinouts (1 Of 2)

G02689266

Courtesy of DAIMLERCHRYSLER CORP.

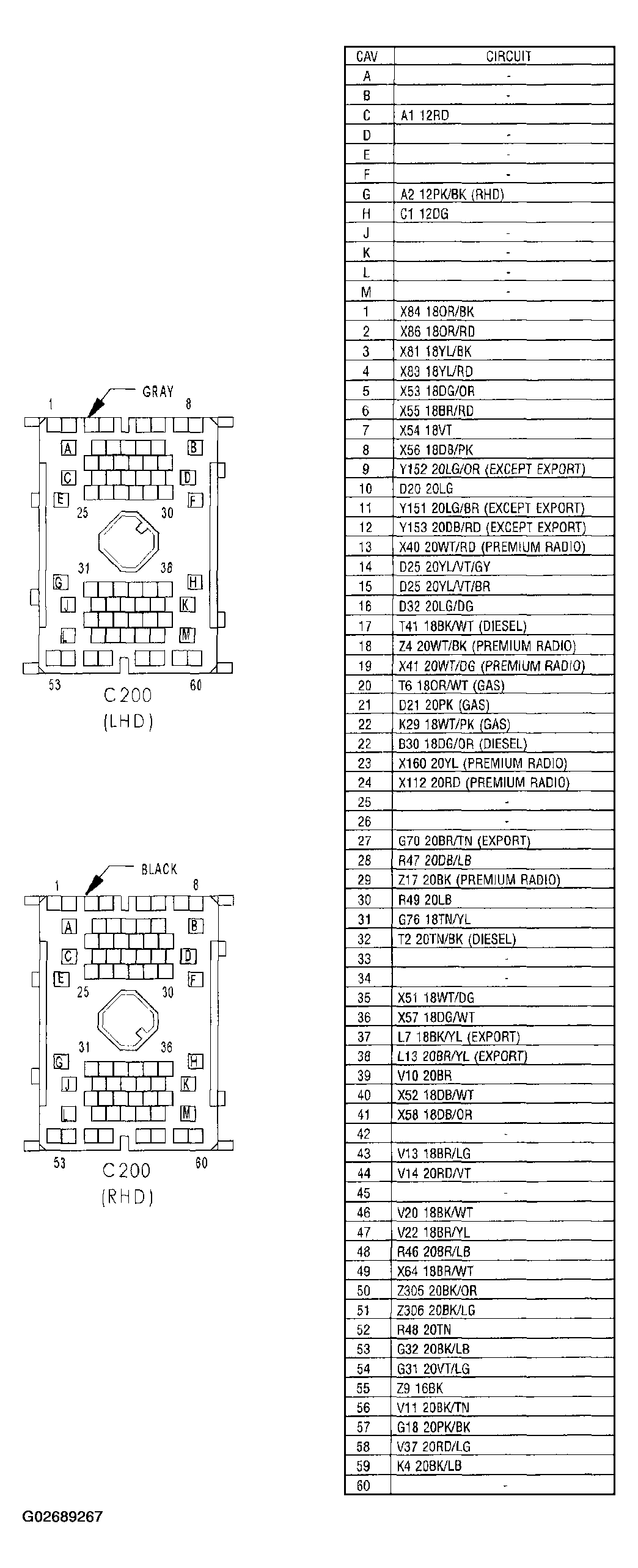

Fig 22: Identifying C200 Connector Pinouts (2 Of 2)

G02689267

Courtesy of DAIMLERCHRYSLER CORP.

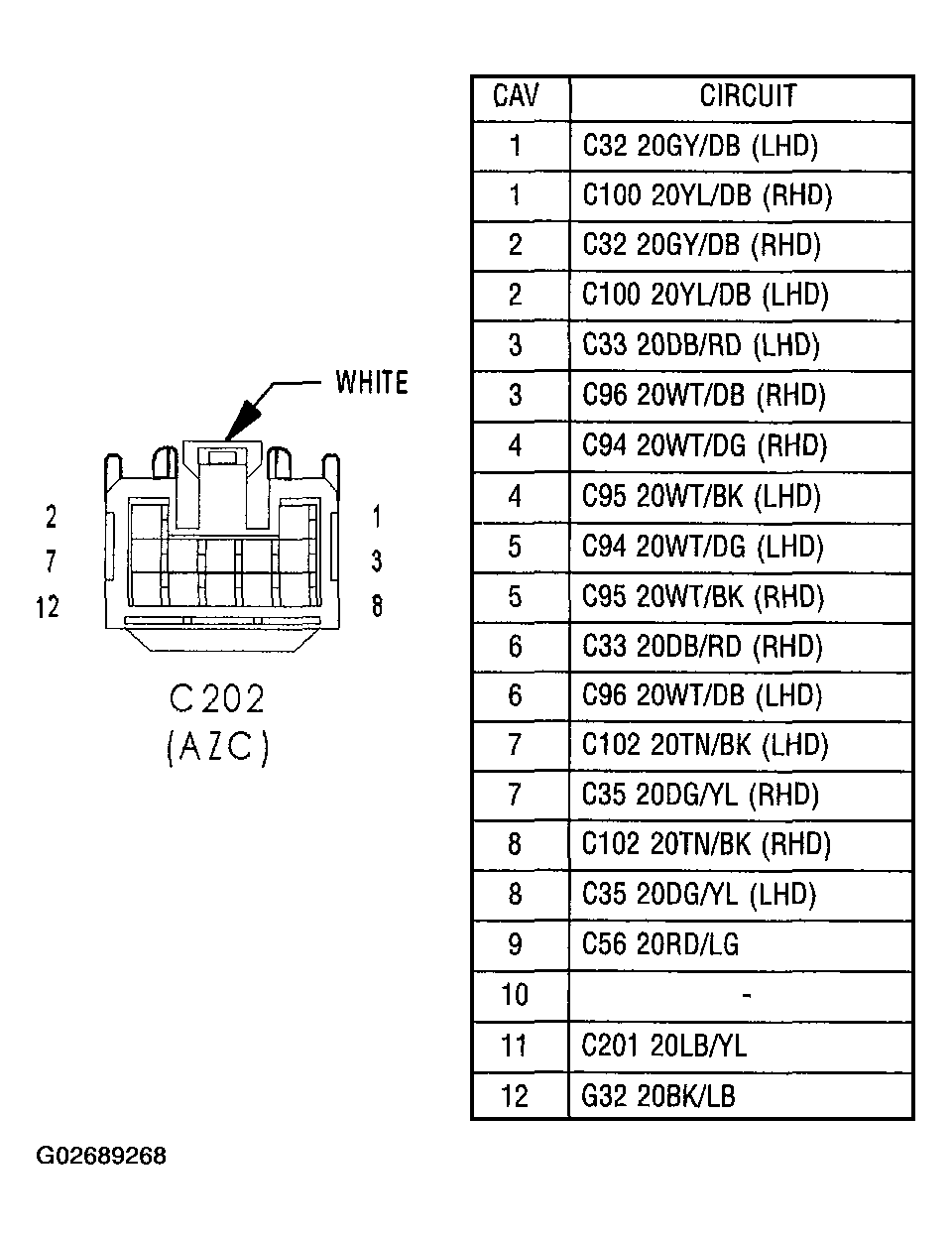

Fig 23: Identifying C202 (AZC) Connector Pinouts (1 Of 2)

G02689268

Courtesy of DAIMLERCHRYSLER CORP.

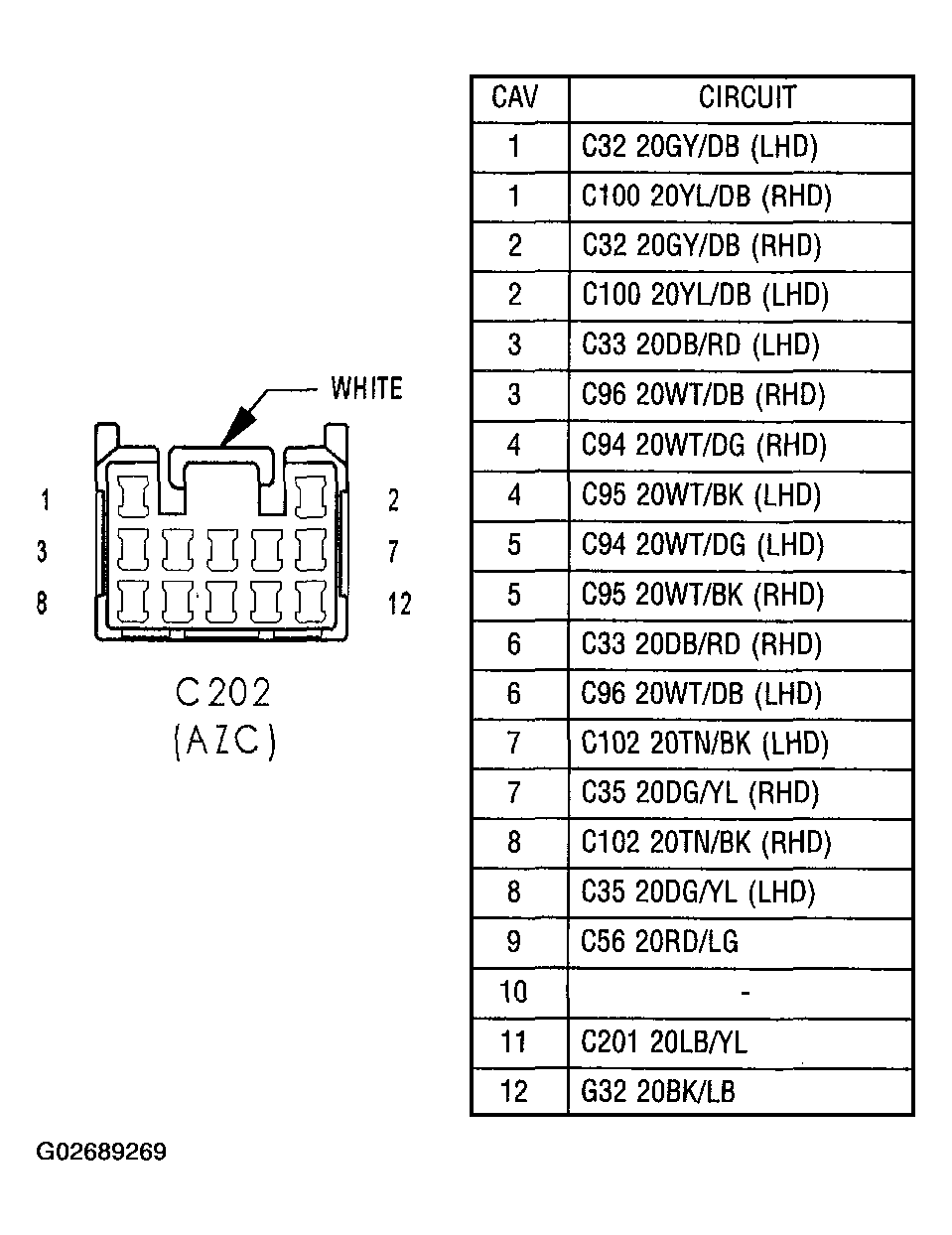

Fig 24: Identifying C202 (AZC) Connector Pinouts (2 Of 2)

G02689269

Courtesy of DAIMLERCHRYSLER CORP.

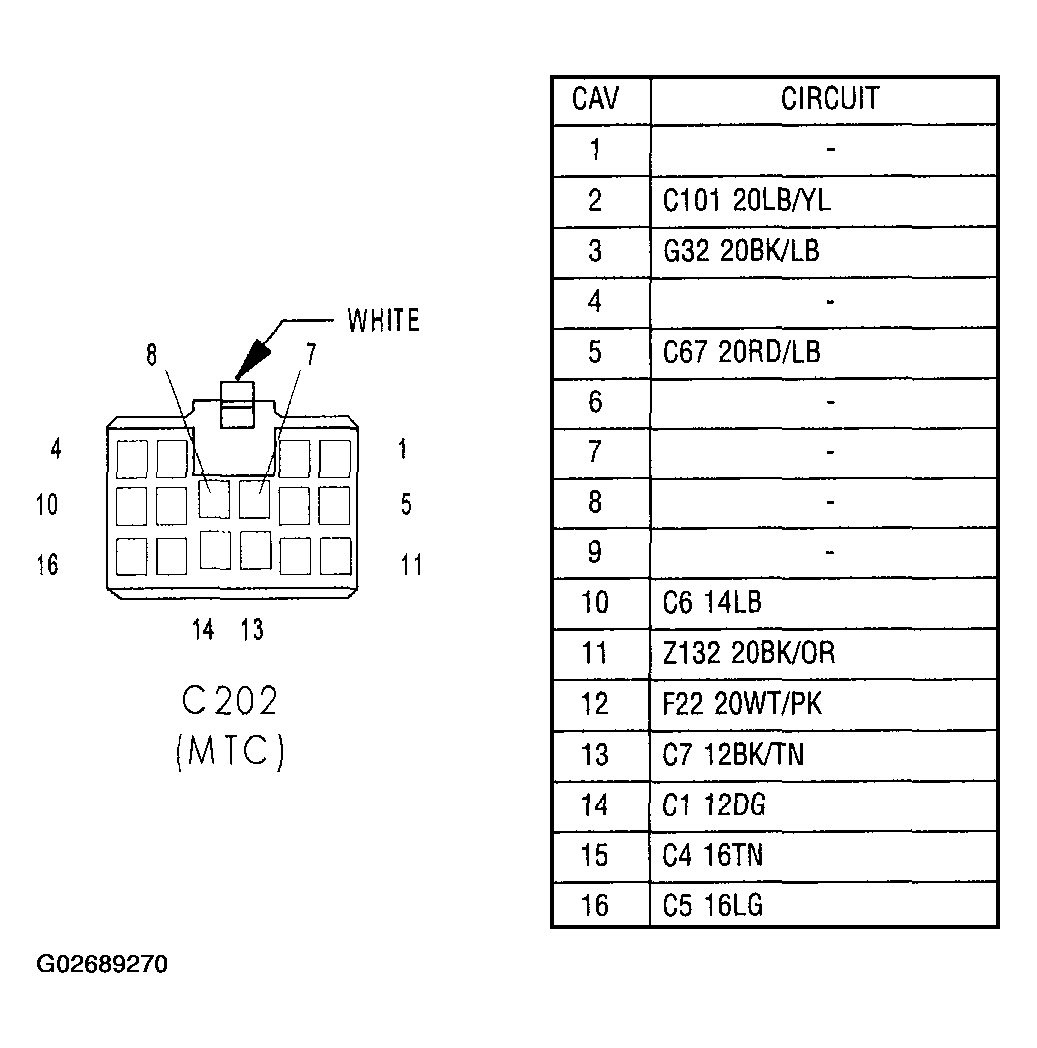

Fig 25: Identifying C202 (MTC) Connector Pinouts (1 Of 2)

G02689270

Courtesy of DAIMLERCHRYSLER CORP.

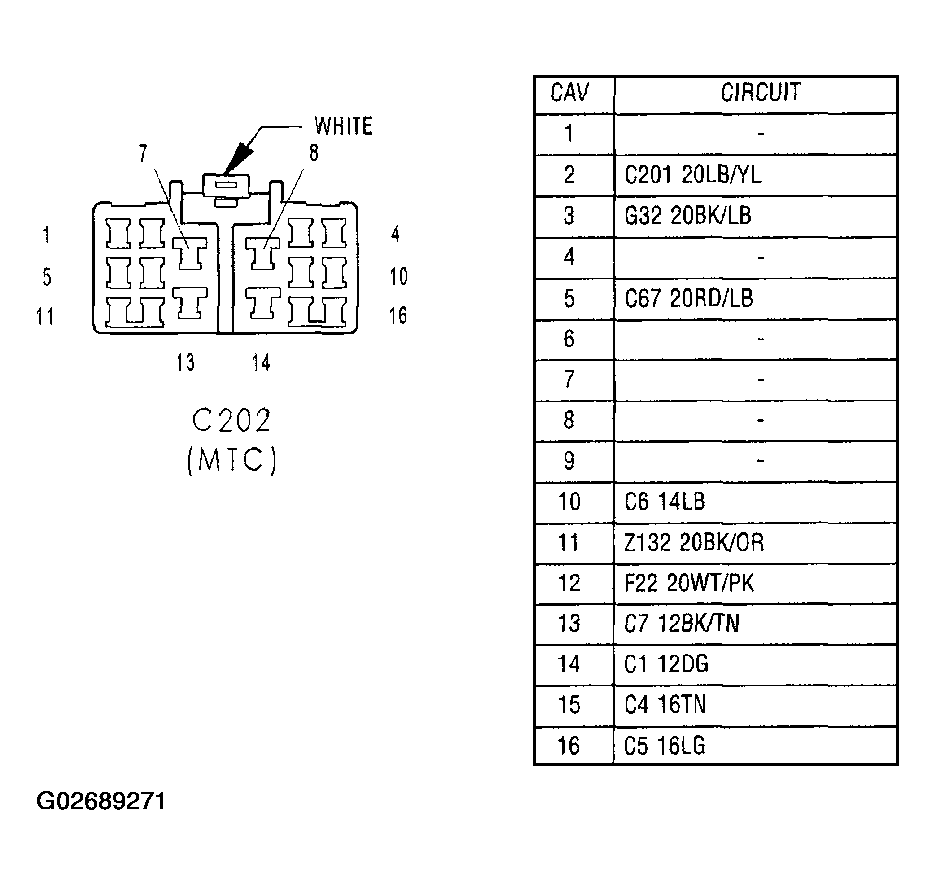

Fig 26: Identifying C202 (MTC) Connector Pinouts (2 Of 2)

G02689271

Courtesy of DAIMLERCHRYSLER CORP.

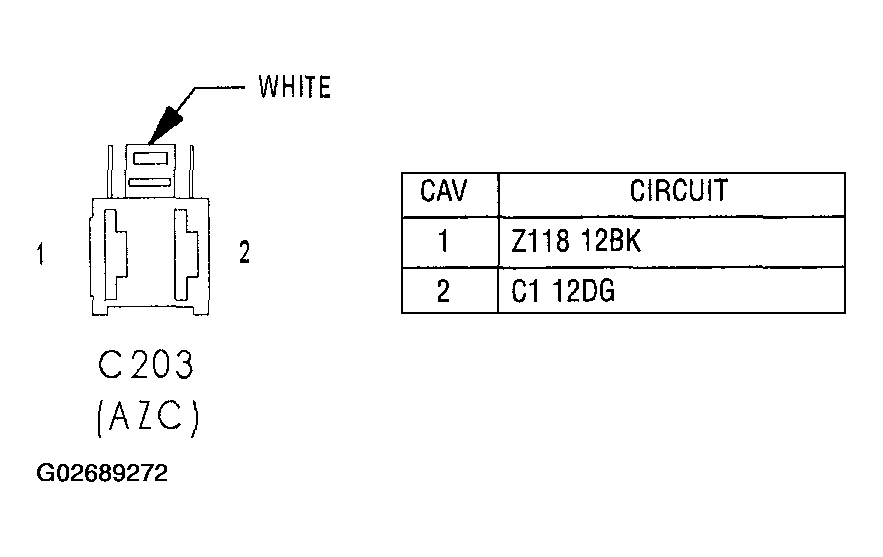

Fig 27: Identifying C203 (AZC) Connector Pinouts (1 Of 2)

G02689272

Courtesy of DAIMLERCHRYSLER CORP.

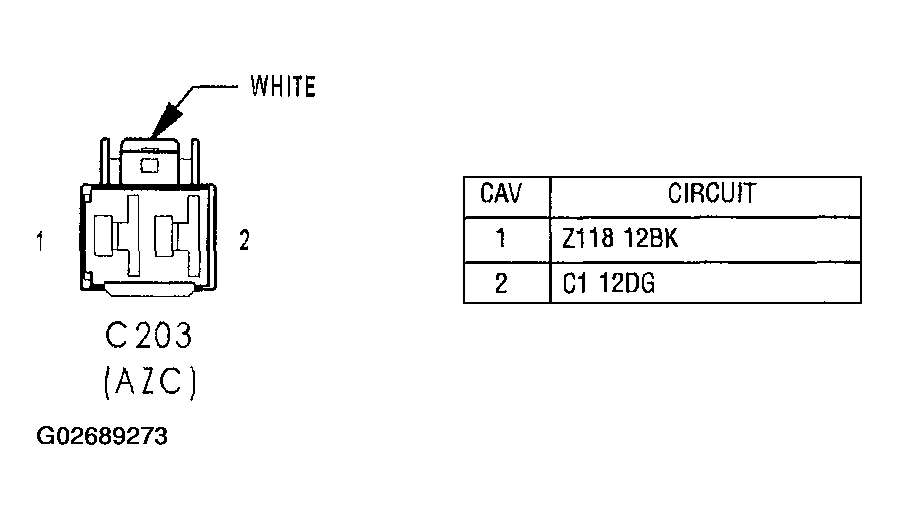

Fig 28: Identifying C203 (AZC) Connector Pinouts (2 Of 2)

G02689273

Courtesy of DAIMLERCHRYSLER CORP.

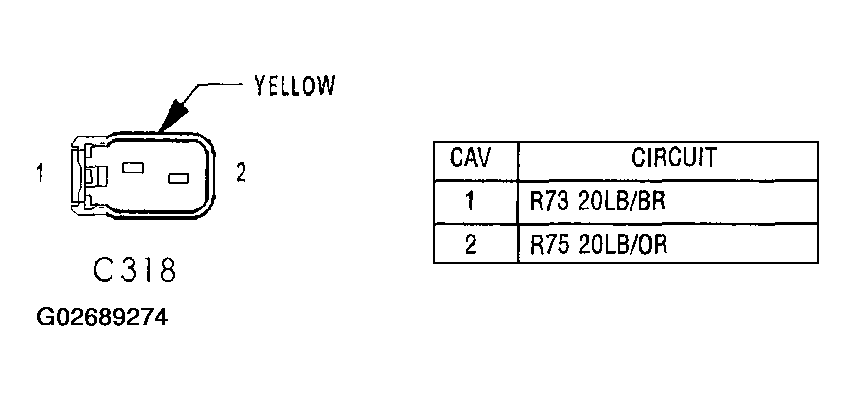

Fig 29: Identifying C318 Connector Pinouts (1 Of 2)

G02689274

Courtesy of DAIMLERCHRYSLER CORP.

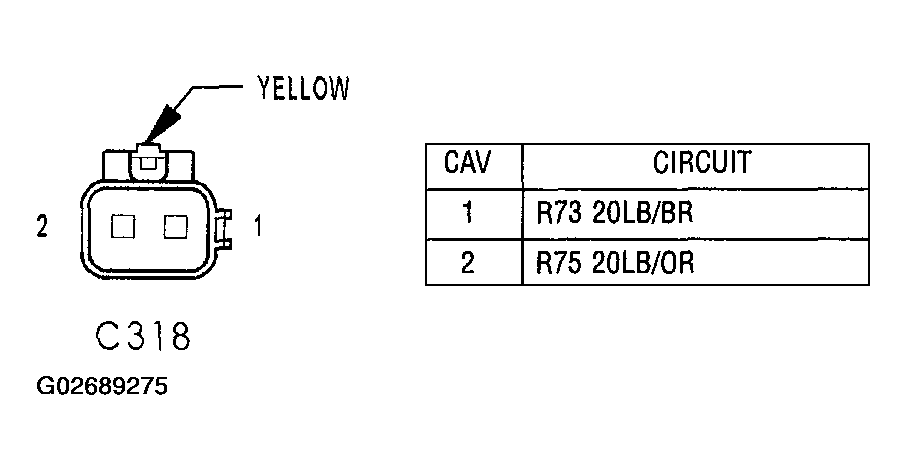

Fig 30: Identifying C318 Connector Pinouts (2 Of 2)

G02689275

Courtesy of DAIMLERCHRYSLER CORP.

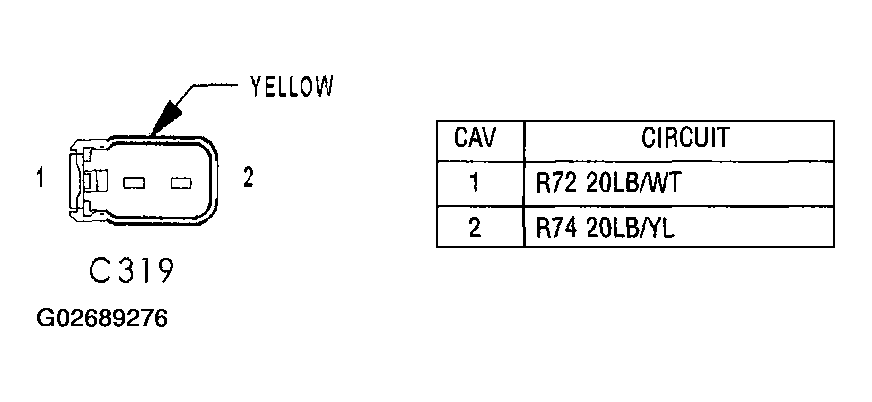

Fig 31: Identifying C319 Connector Pinouts (1 Of 2)

G02689276

Courtesy of DAIMLERCHRYSLER CORP.

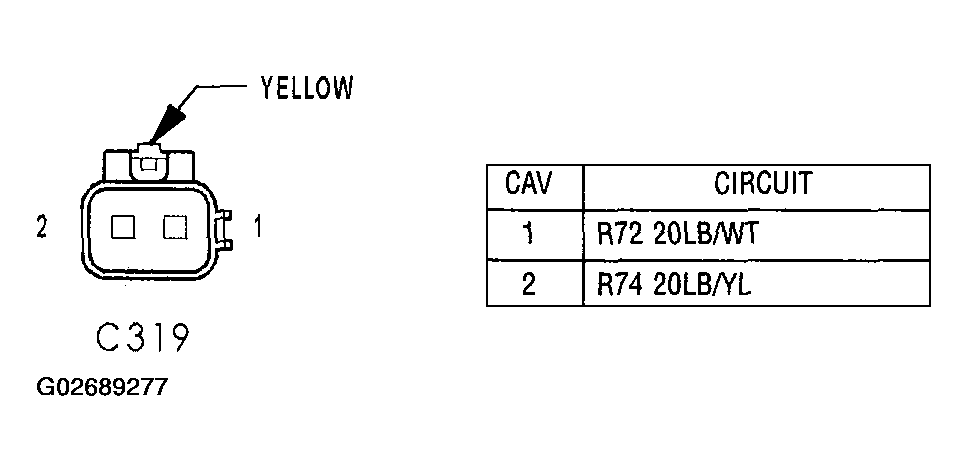

Fig 32: Identifying C319 Connector Pinouts (2 Of 2)

G02689277

Courtesy of DAIMLERCHRYSLER CORP.

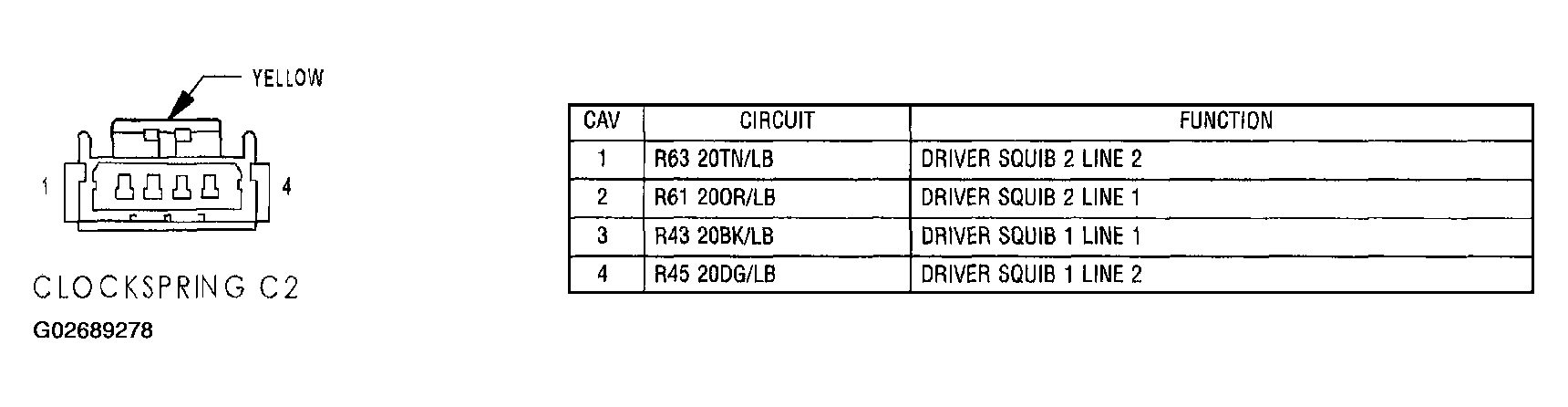

Fig 33: Identifying Clockspring C2 Connector Pinouts

G02689278

Courtesy of DAIMLERCHRYSLER CORP.

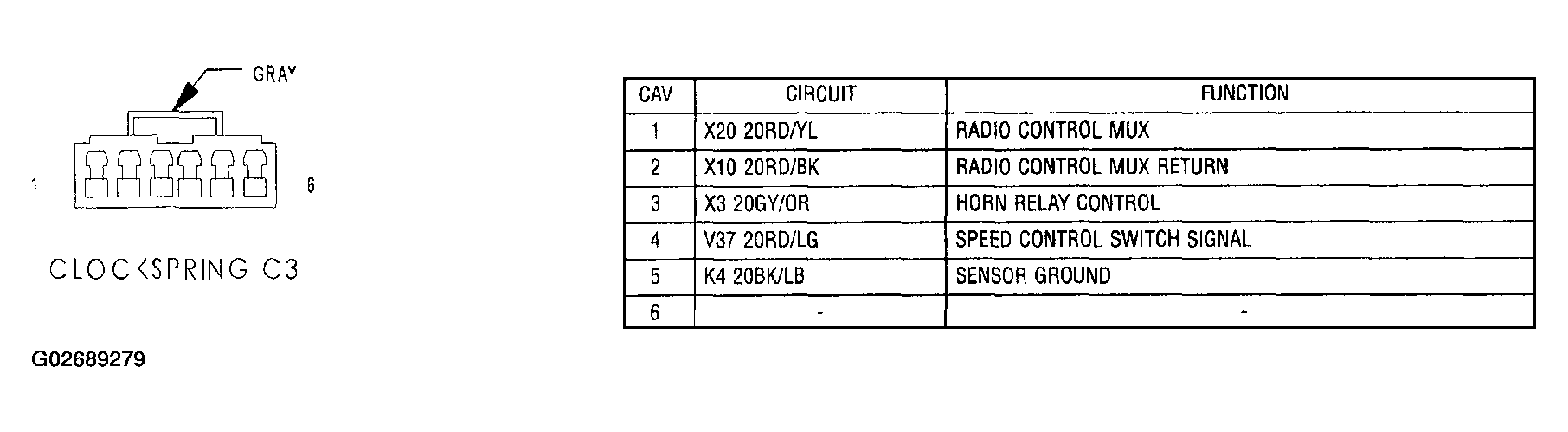

Fig 34: Identifying Clockspring C3 Connector Pinouts

G02689279

Courtesy of DAIMLERCHRYSLER CORP.

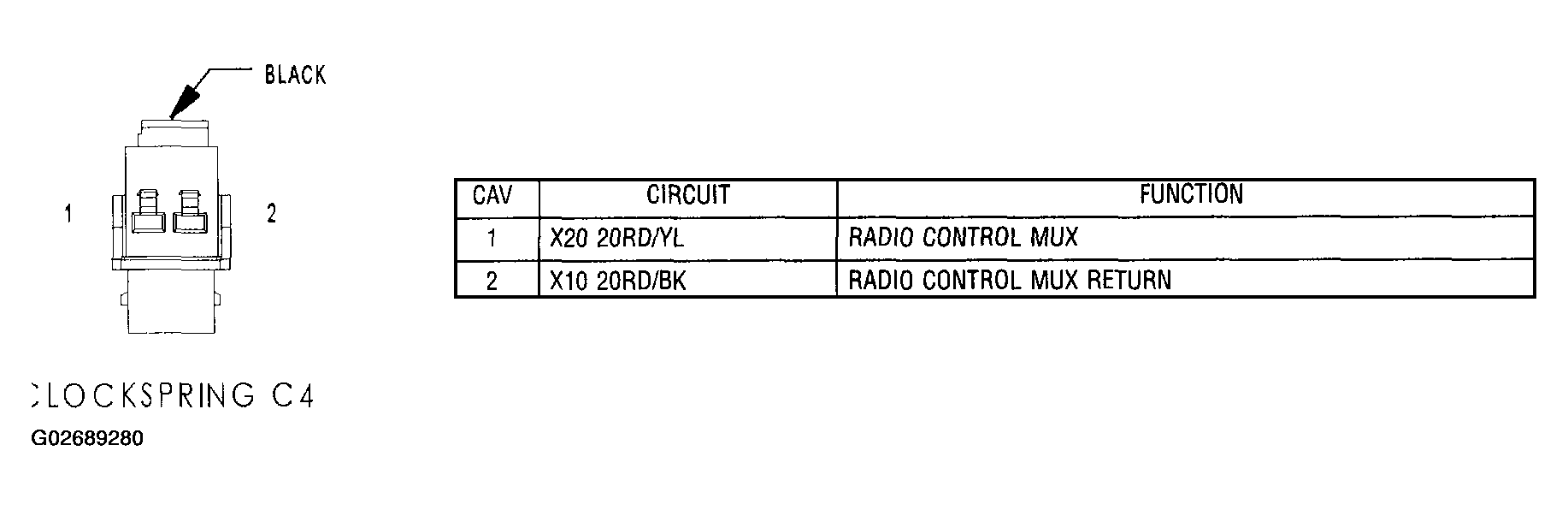

Fig 35: Identifying Clockspring C4 Connector Pinouts

G02689280

Courtesy of DAIMLERCHRYSLER CORP.

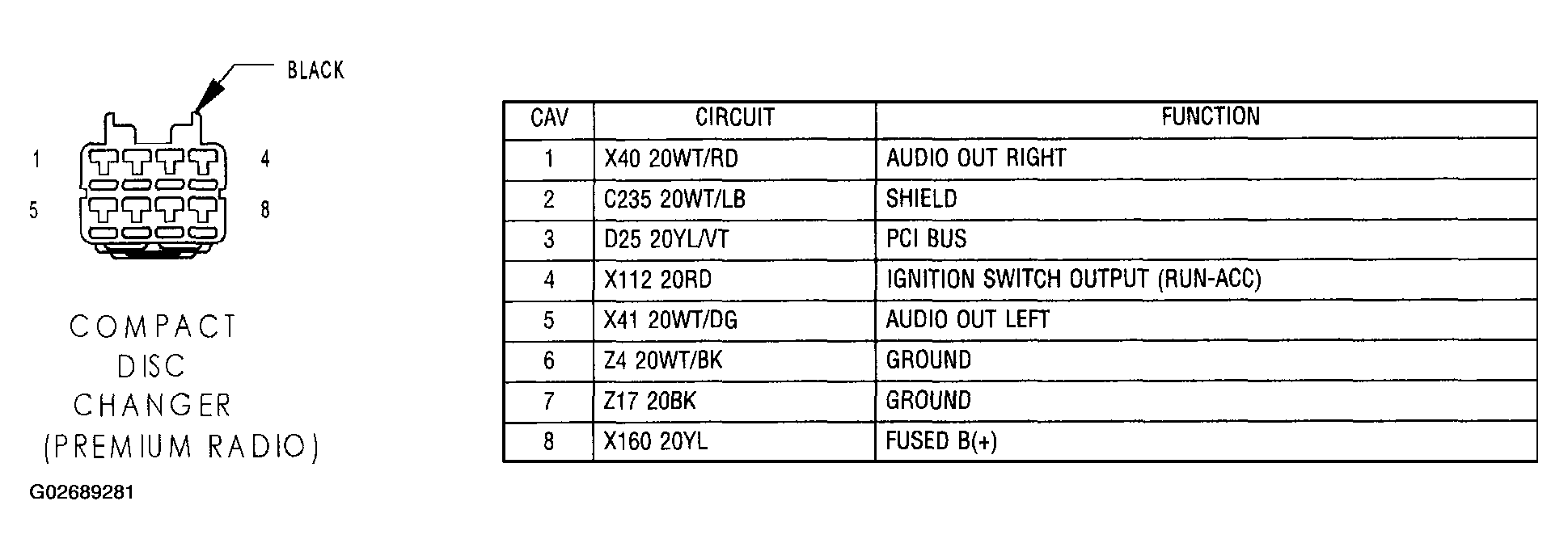

Fig 36: Identifying Compact DISC Changer (Premium Radio) Connector Pinouts

G02689281

Courtesy of DAIMLERCHRYSLER CORP.

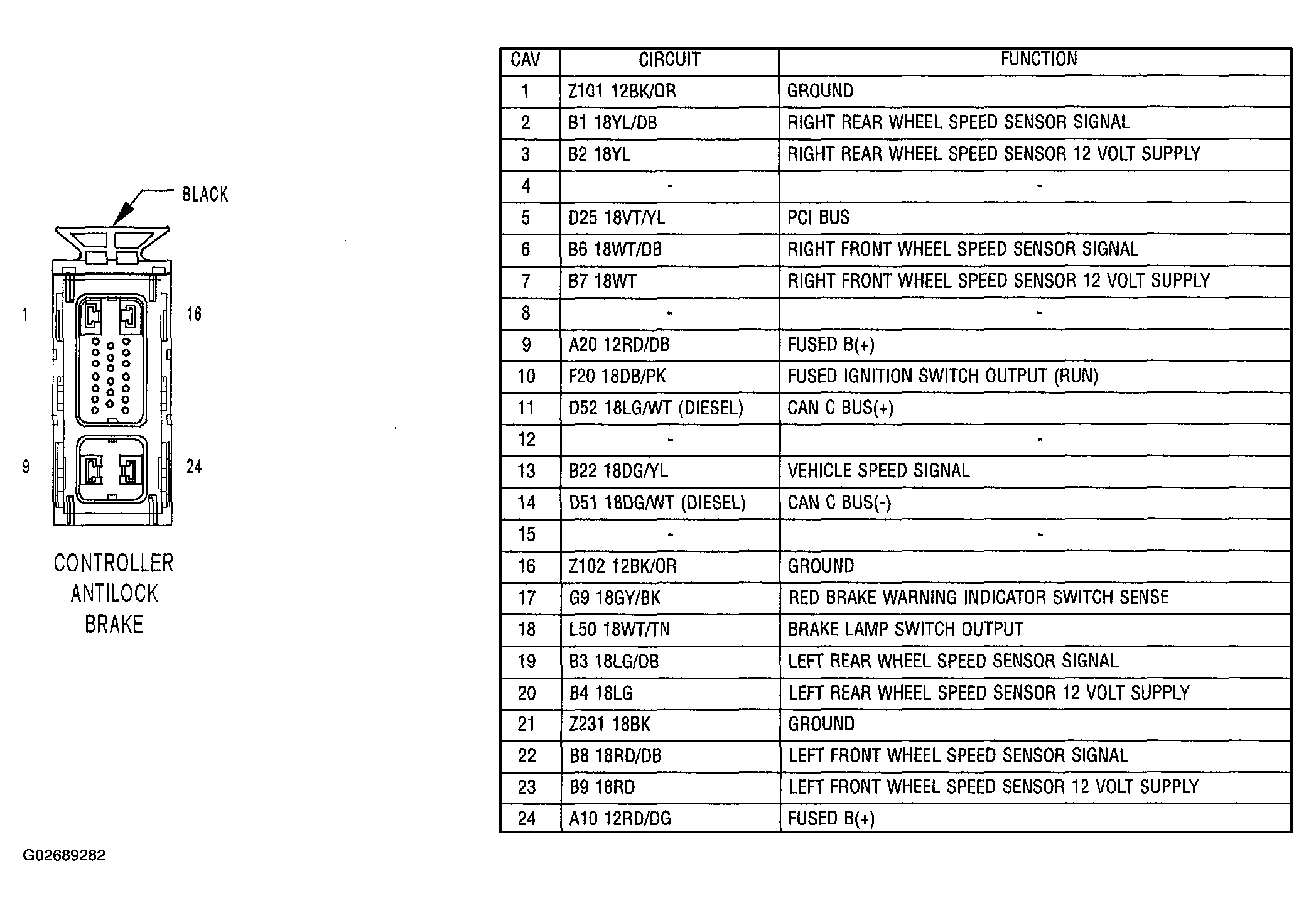

Fig 37: Identifying Controller Antilock Brake Connector Pinouts

G02689282

Courtesy of DAIMLERCHRYSLER CORP.

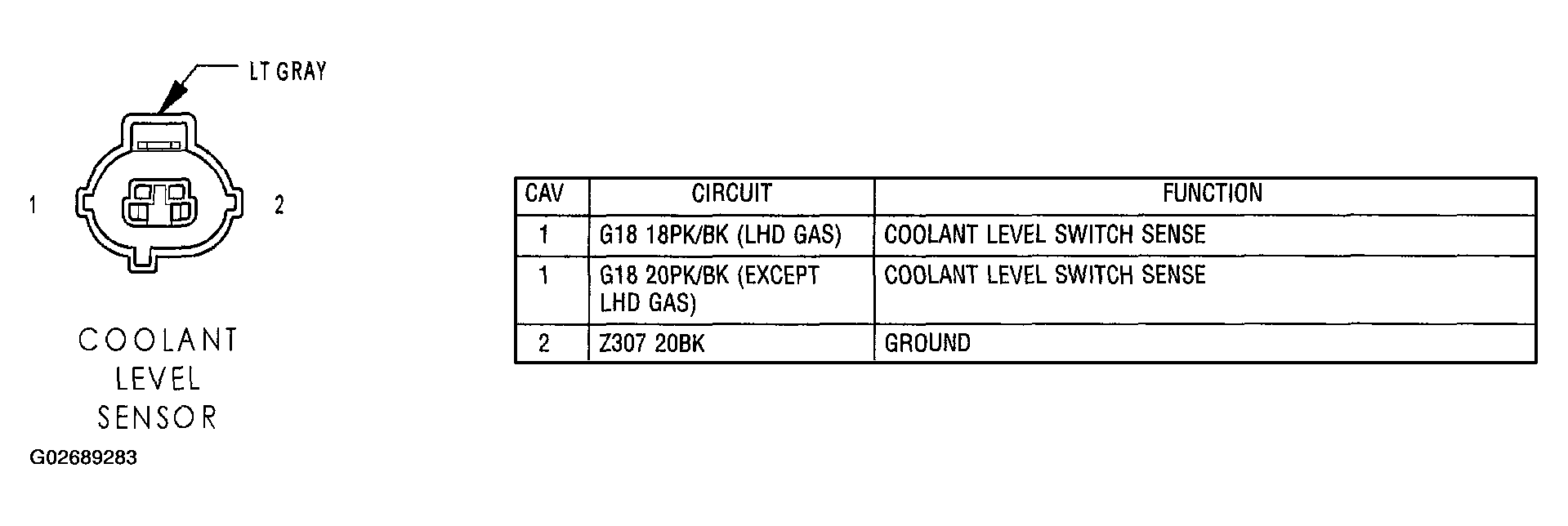

Fig 38: Identifying Coolant Level Sensor Connector Pinouts

G02689283

Courtesy of DAIMLERCHRYSLER CORP.

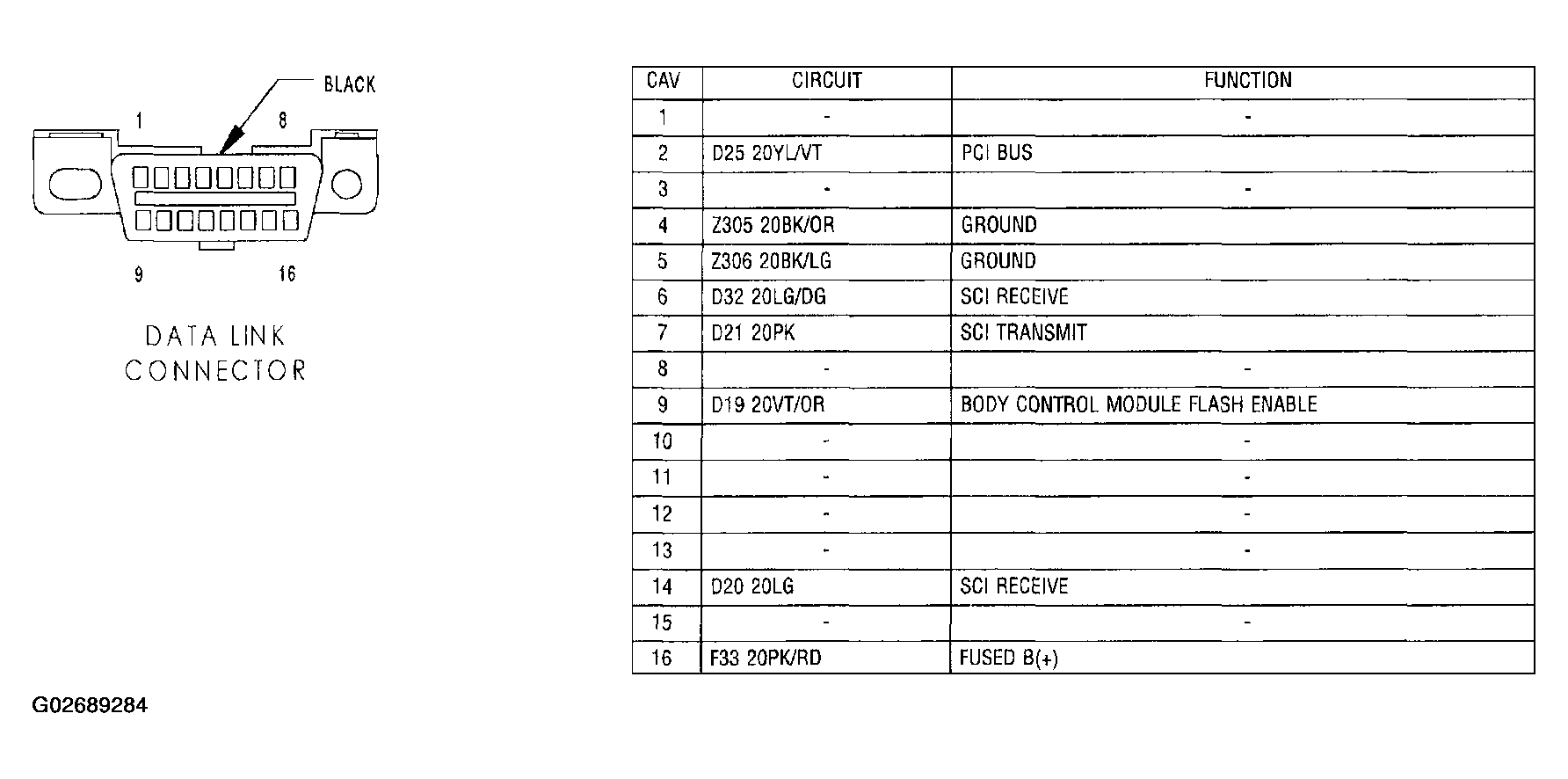

Fig 39: Identifying Data Link Connector Pinouts

G02689284

Courtesy of DAIMLERCHRYSLER CORP.

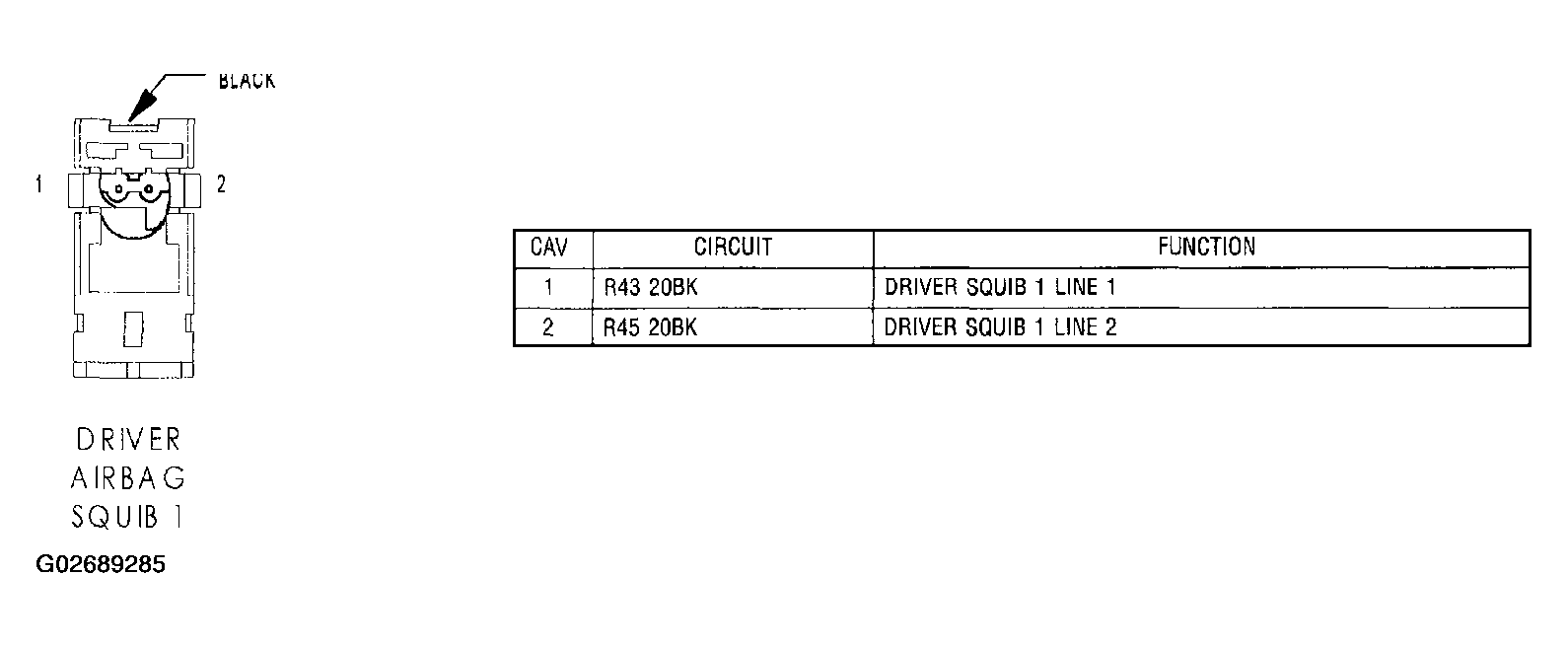

Fig 40: Identifying Driver Airbag Squib 1 Connector Pinouts

G02689285

Courtesy of DAIMLERCHRYSLER CORP.

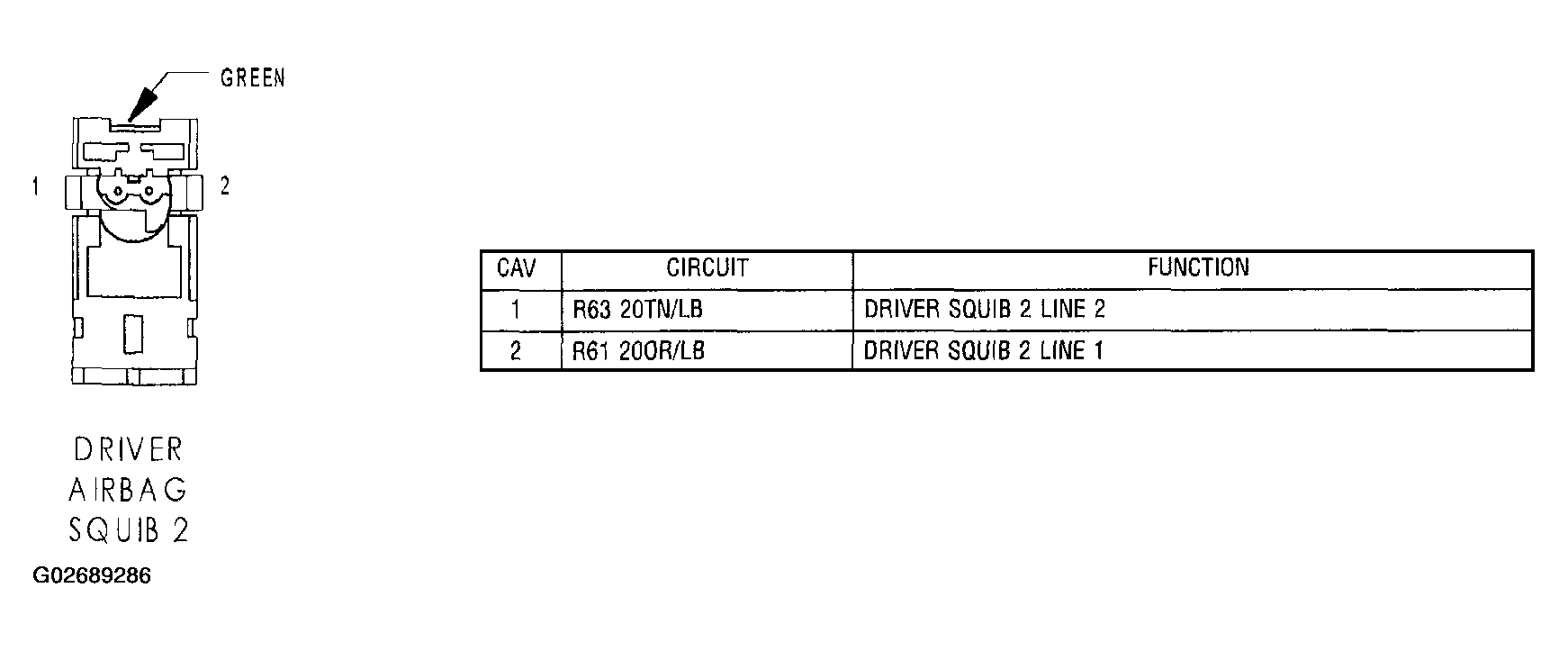

Fig 41: Identifying Driver Airbag Squib 2 Connector Pinouts

G02689286

Courtesy of DAIMLERCHRYSLER CORP.

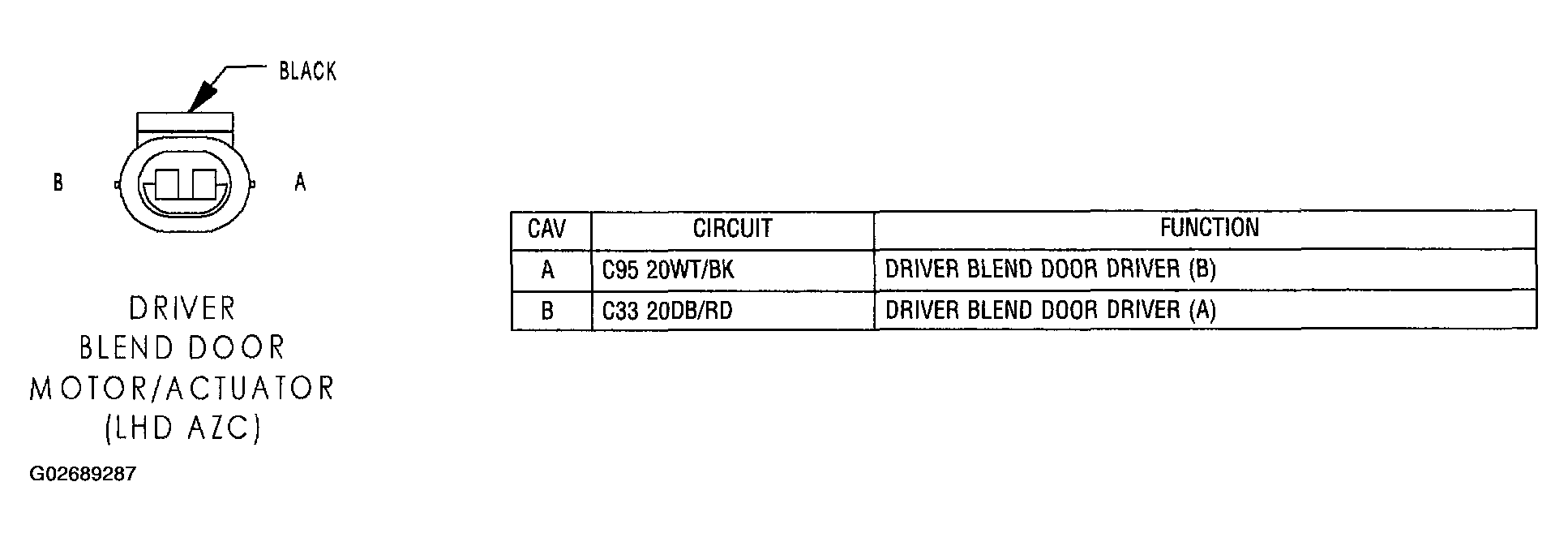

Fig 42: Identifying Driver Blend Door Motor/Actuator (LHP AZC) Connector Pinouts

G02689287

Courtesy of DAIMLERCHRYSLER CORP.

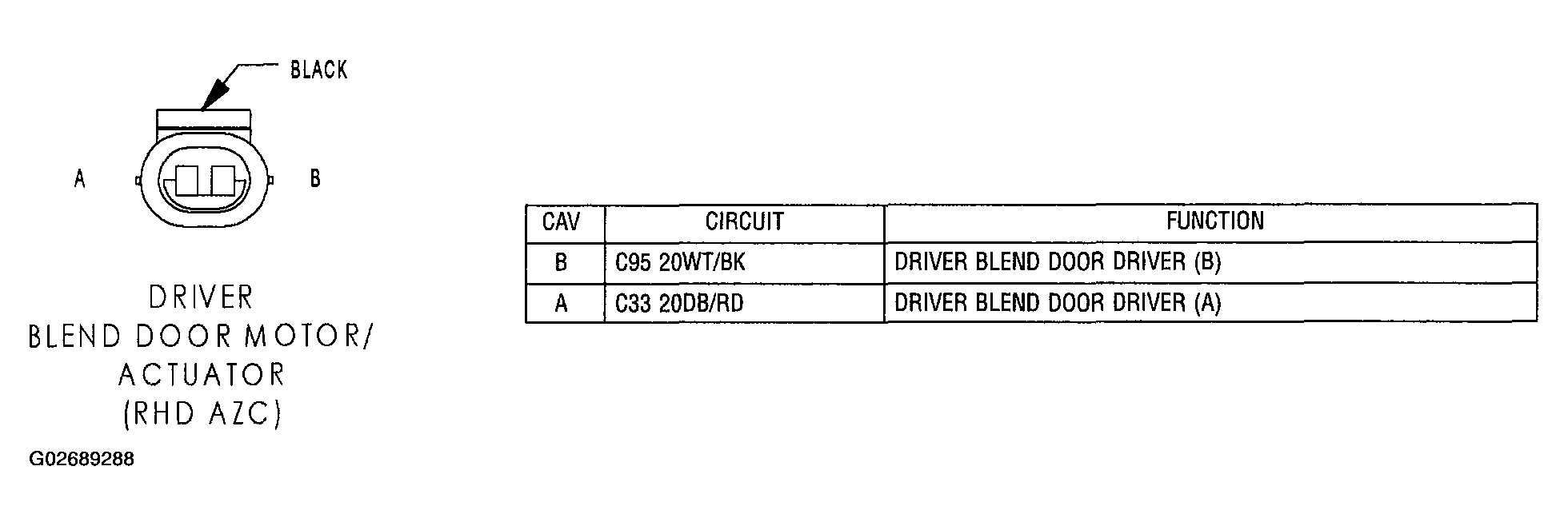

Fig 43: Identifying Driver Blend Door Motor/Actuator (RHP AZC) Connector Pinouts

G02689288

Courtesy of DAIMLERCHRYSLER CORP.

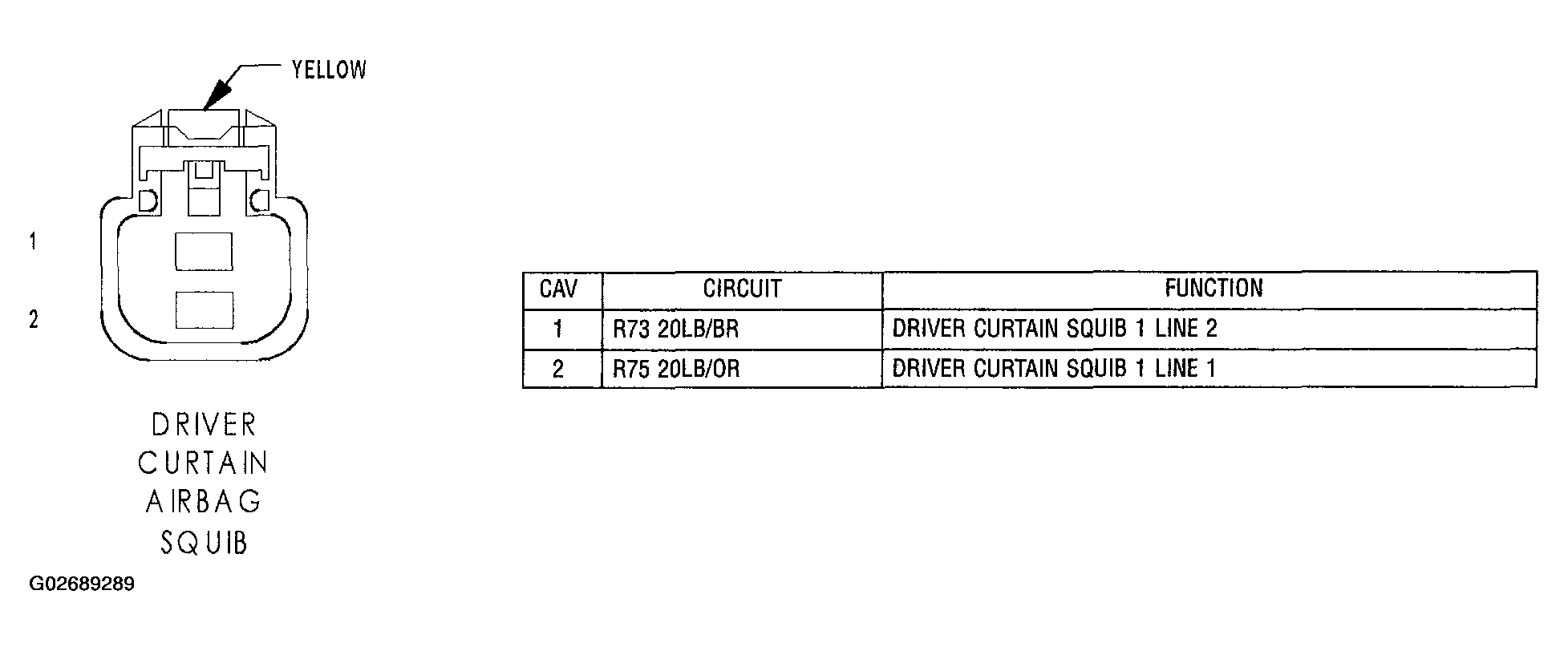

Fig 44: Identifying Driver Curtain Airbag Squib Connector Pinouts

G02689289

Courtesy of DAIMLERCHRYSLER CORP.

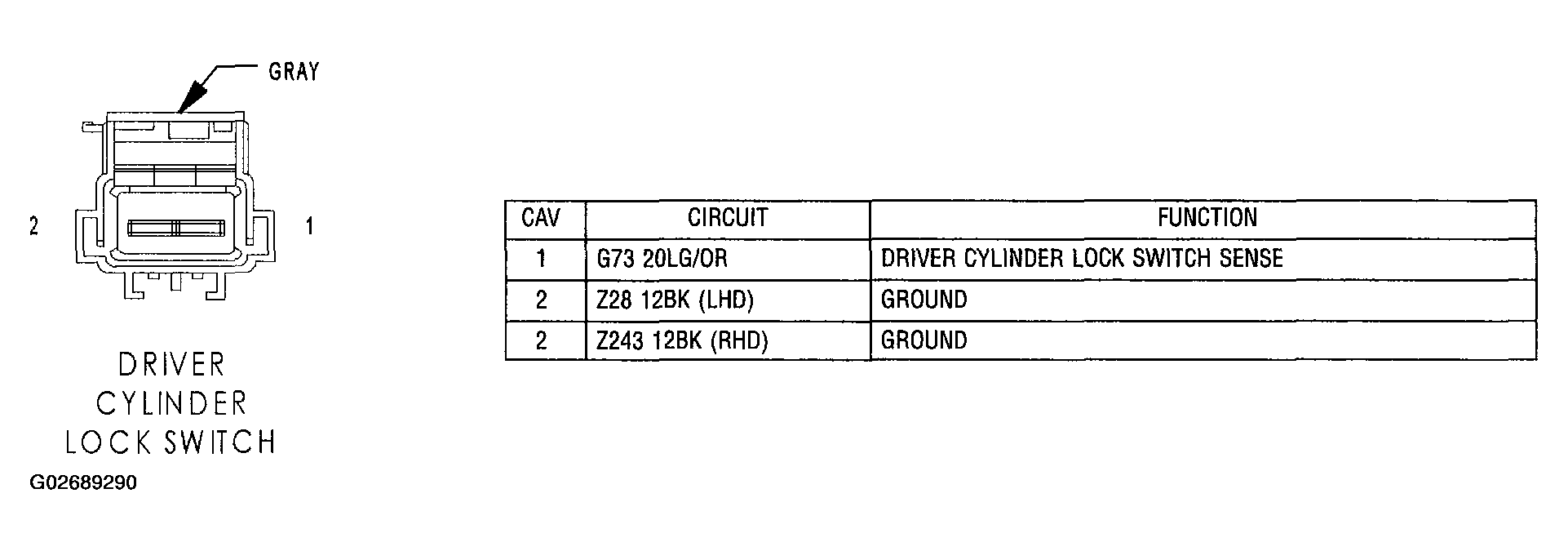

Fig 45: Identifying Driver Cylinder Lock Switch Connector Pinouts

G02689290

Courtesy of DAIMLERCHRYSLER CORP.

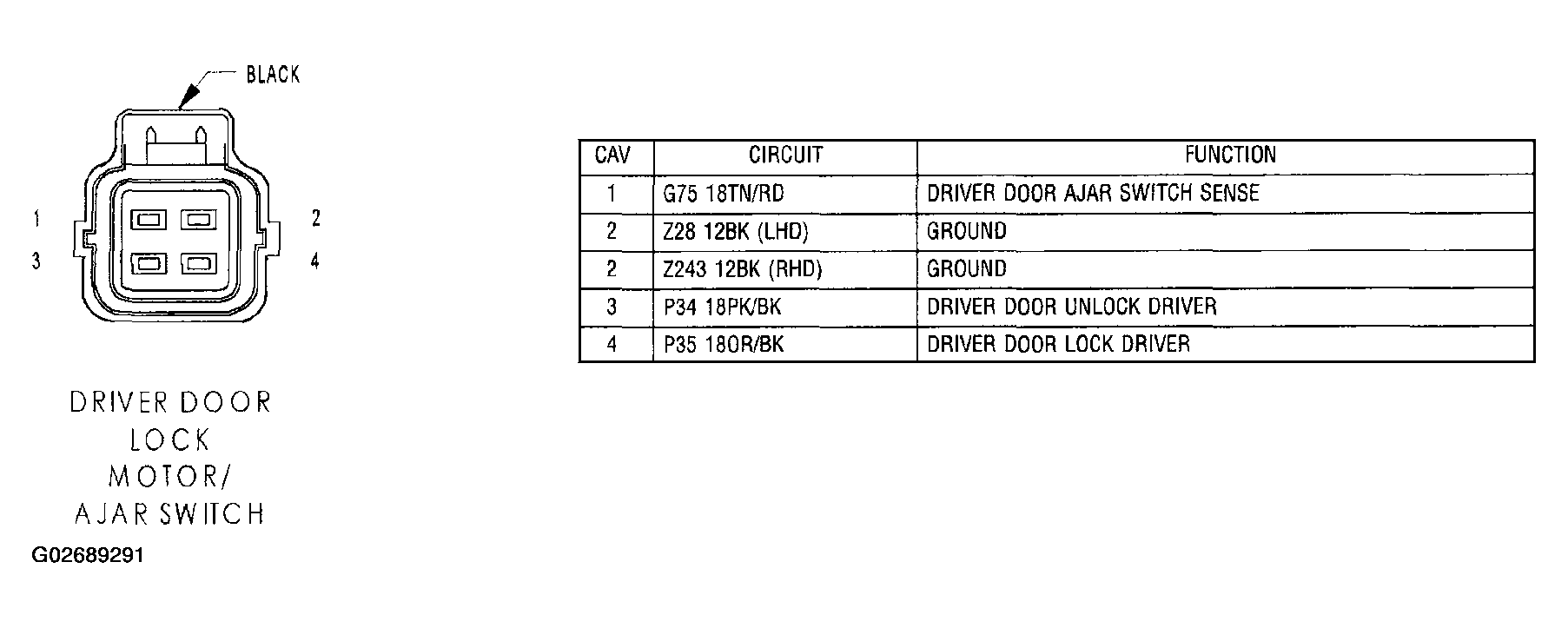

Fig 46: Identifying Driver Door Lock Motor/Ajar Switch Connector Pinouts

G02689291

Courtesy of DAIMLERCHRYSLER CORP.

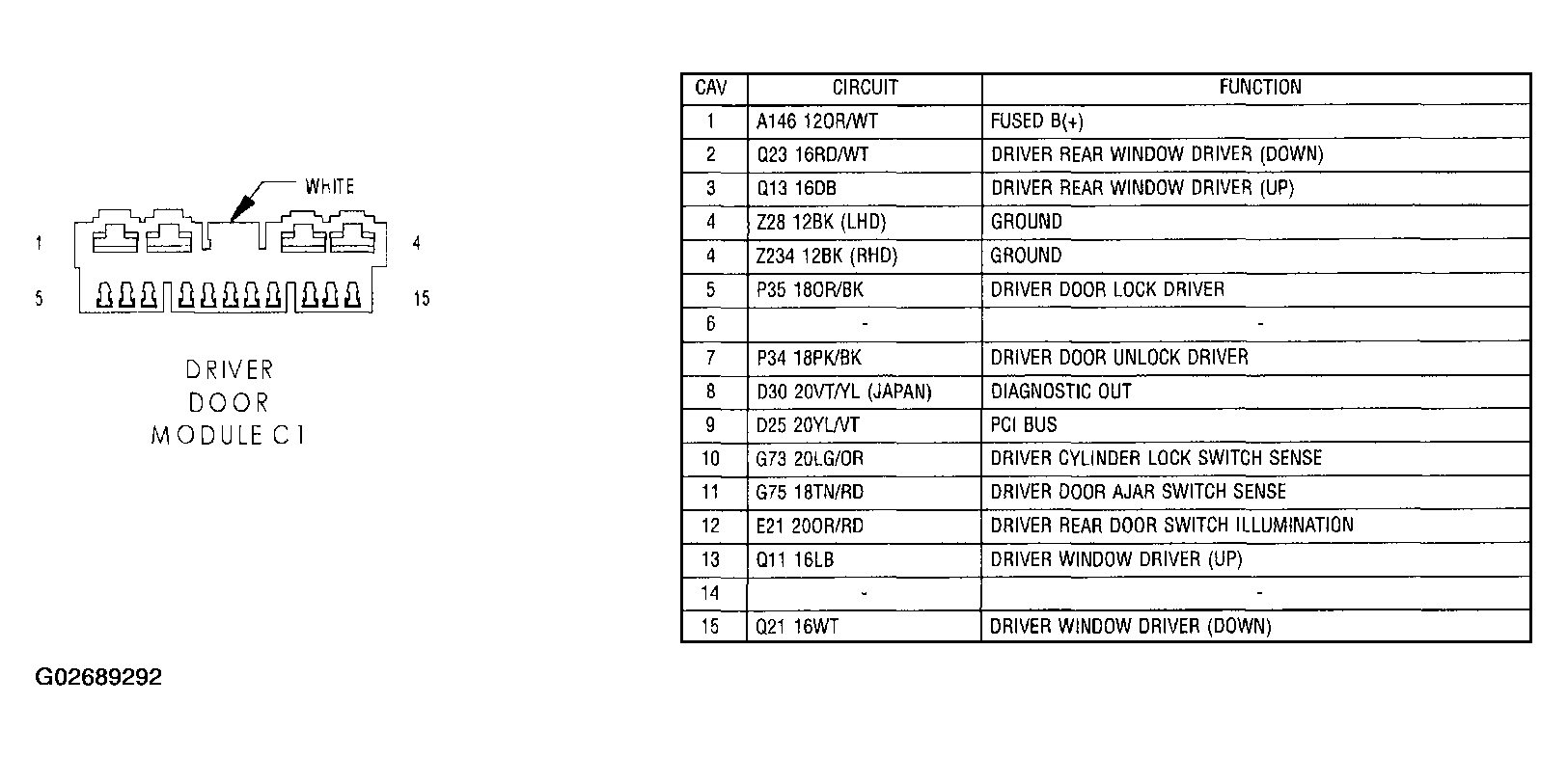

Fig 47: Identifying Driver Door Module C1 Connector Pinouts

G02689292

Courtesy of DAIMLERCHRYSLER CORP.

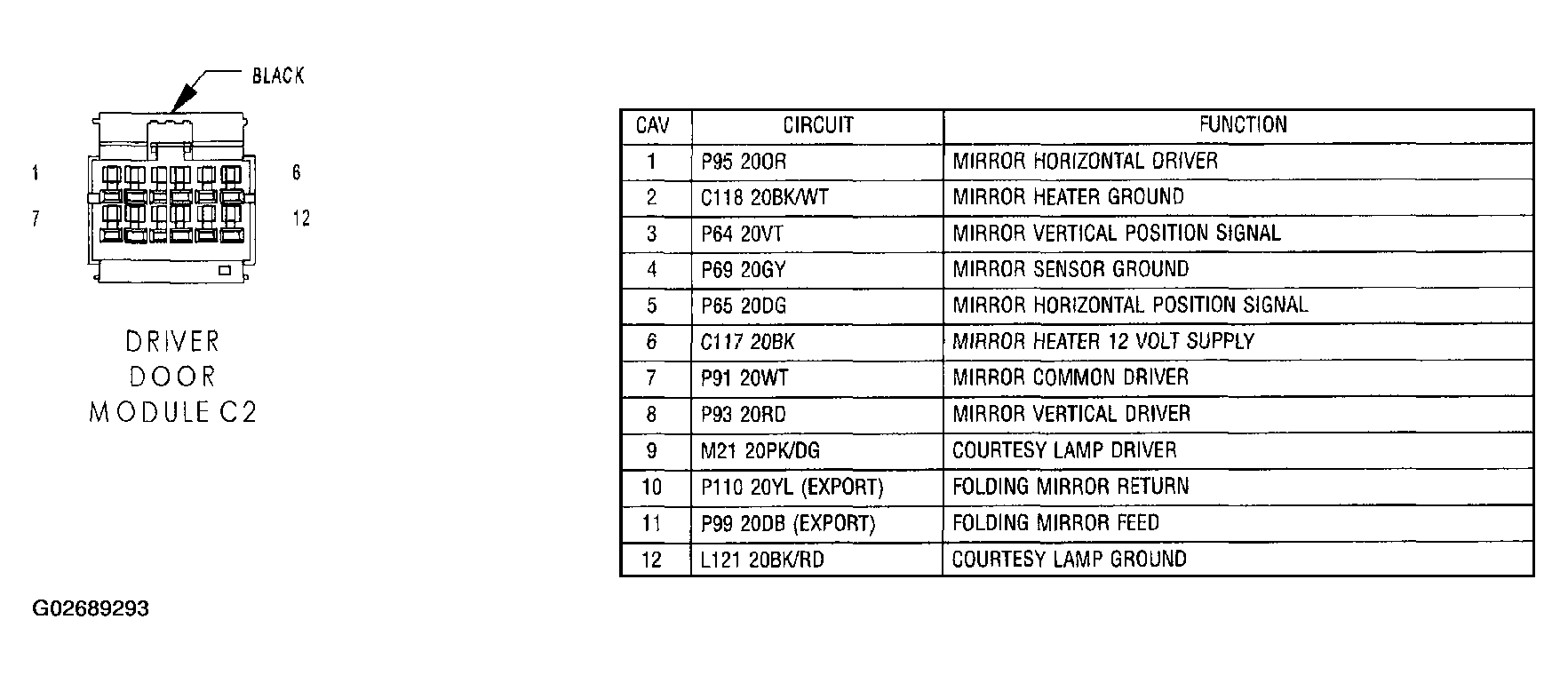

Fig 48: Identifying Driver Door Module C2 Connector Pinouts

G02689293

Courtesy of DAIMLERCHRYSLER CORP.

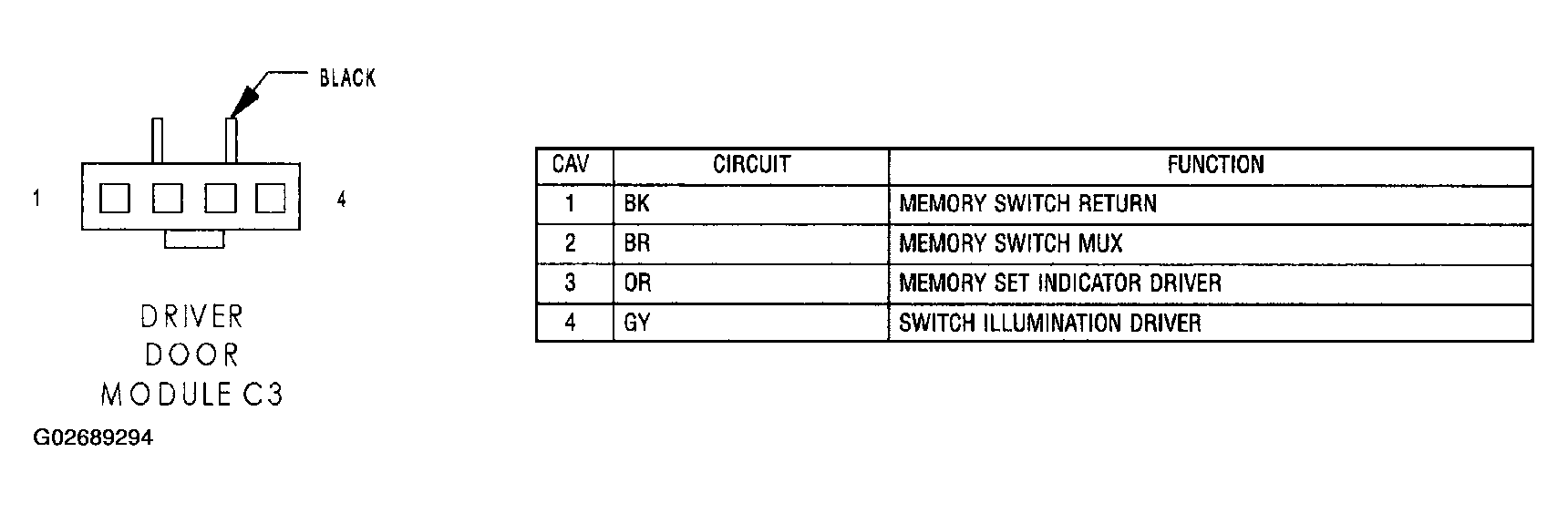

Fig 49: Identifying Driver Door Module C3 Connector Pinouts

G02689294

Courtesy of DAIMLERCHRYSLER CORP.

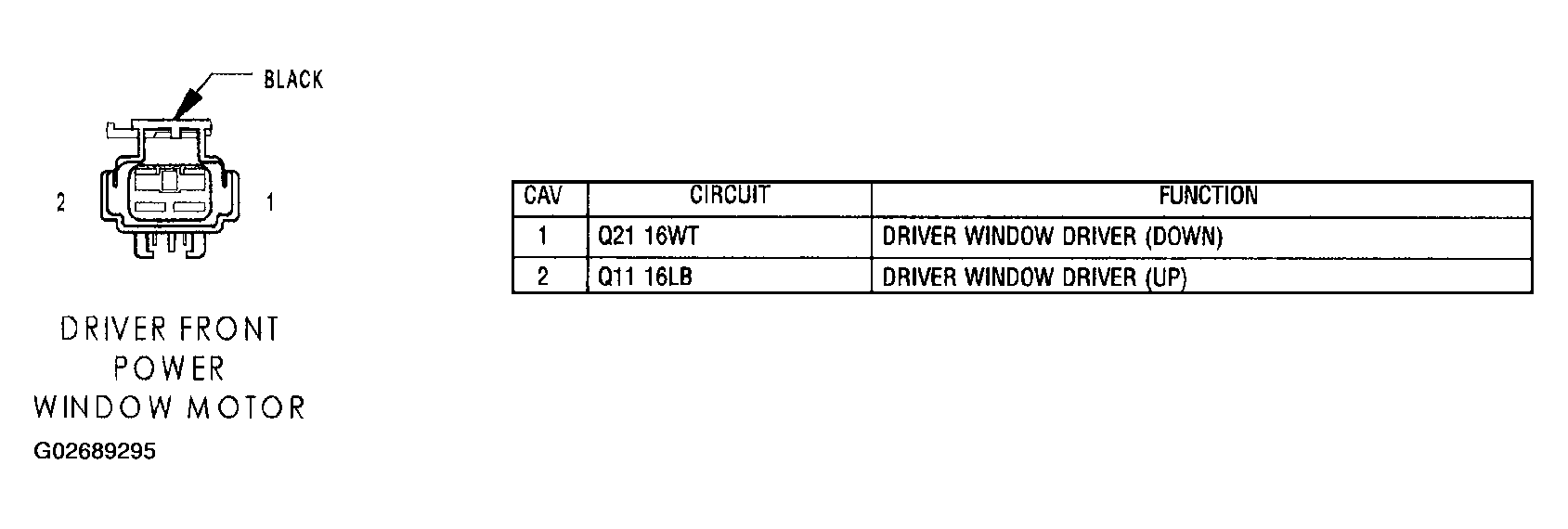

Fig 50: Identifying Driver Front Power Window Motor Connector Pinouts

G02689295

Courtesy of DAIMLERCHRYSLER CORP.

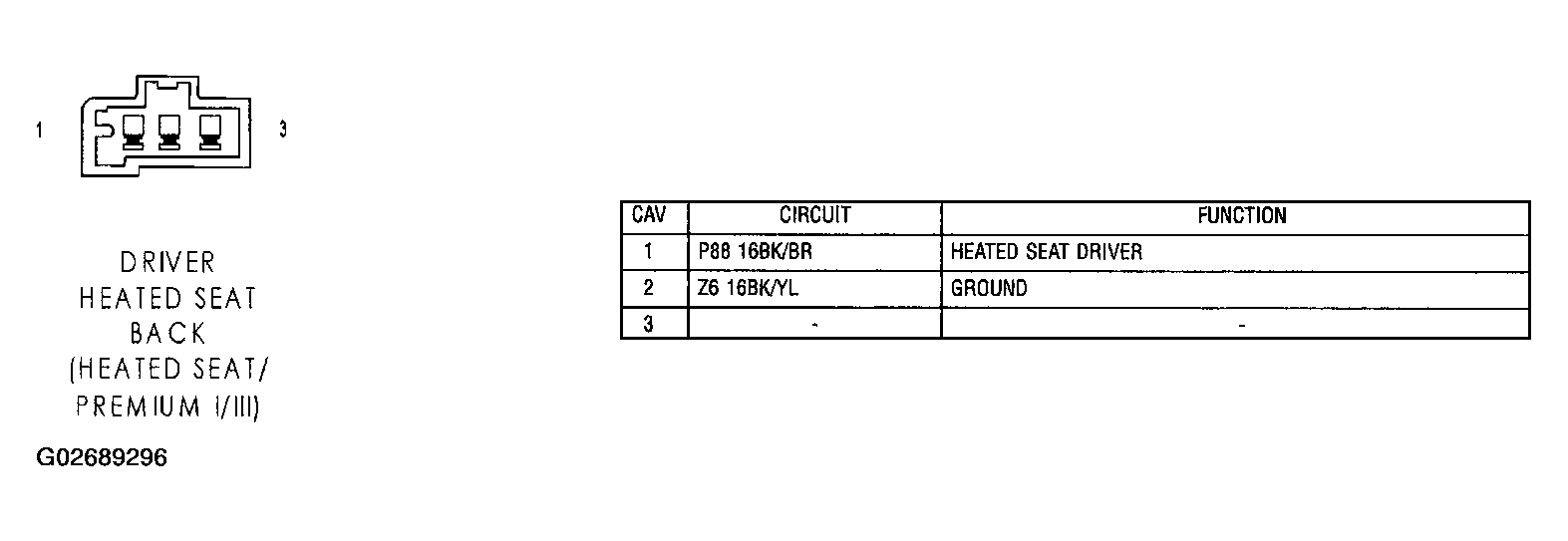

Fig 51: Identifying Driver Heated Seat Back (Heated Seat/Premium I/III) Connector Pinouts

G02689296

Courtesy of DAIMLERCHRYSLER CORP.

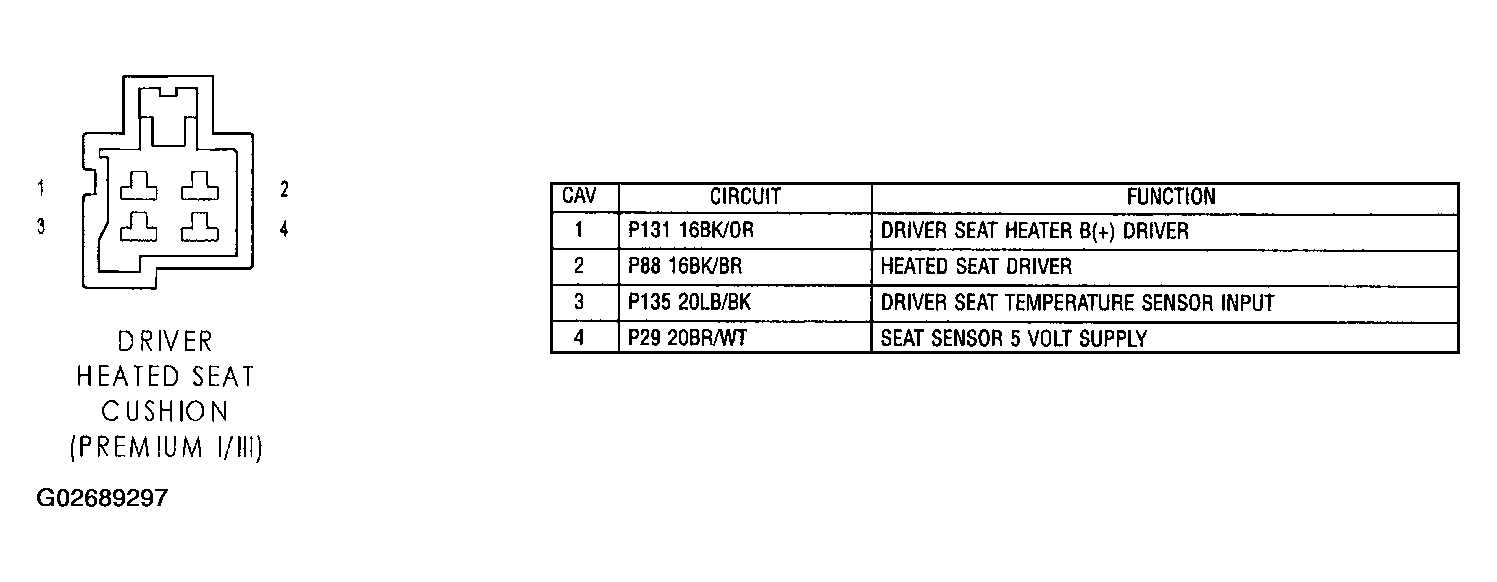

Fig 52: Identifying Driver Heated Seat Cushion (Premium I/III) Connector Pinouts

G02689297

Courtesy of DAIMLERCHRYSLER CORP.

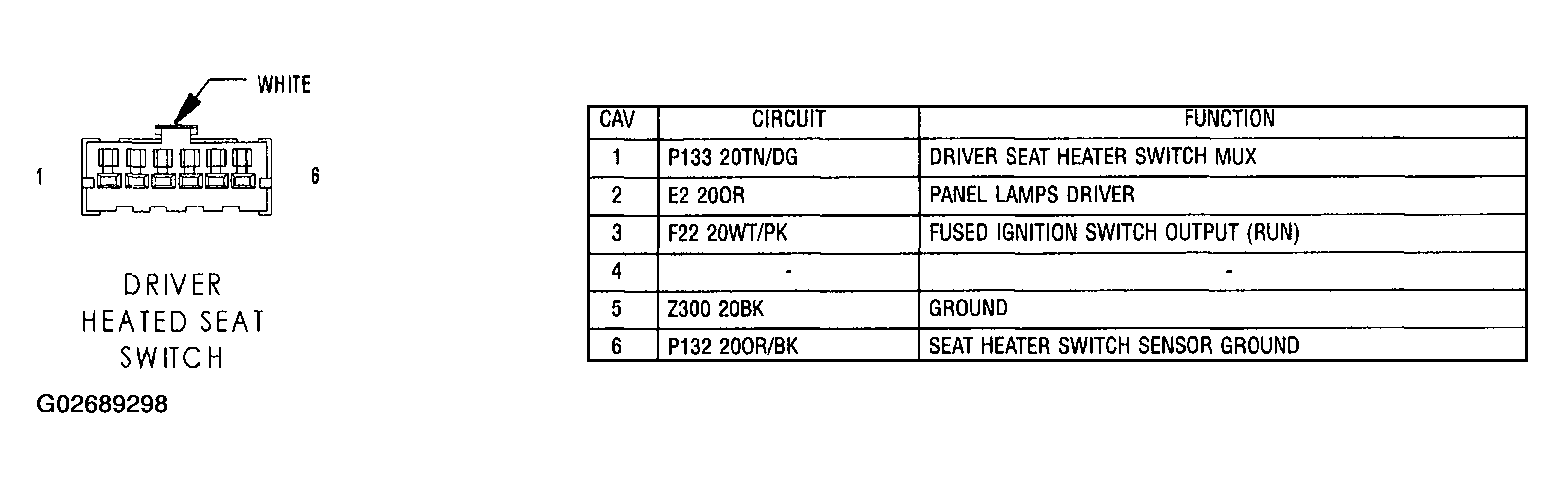

Fig 53: Identifying Driver Heated Seat Switch Connector Pinouts

G02689298

Courtesy of DAIMLERCHRYSLER CORP.

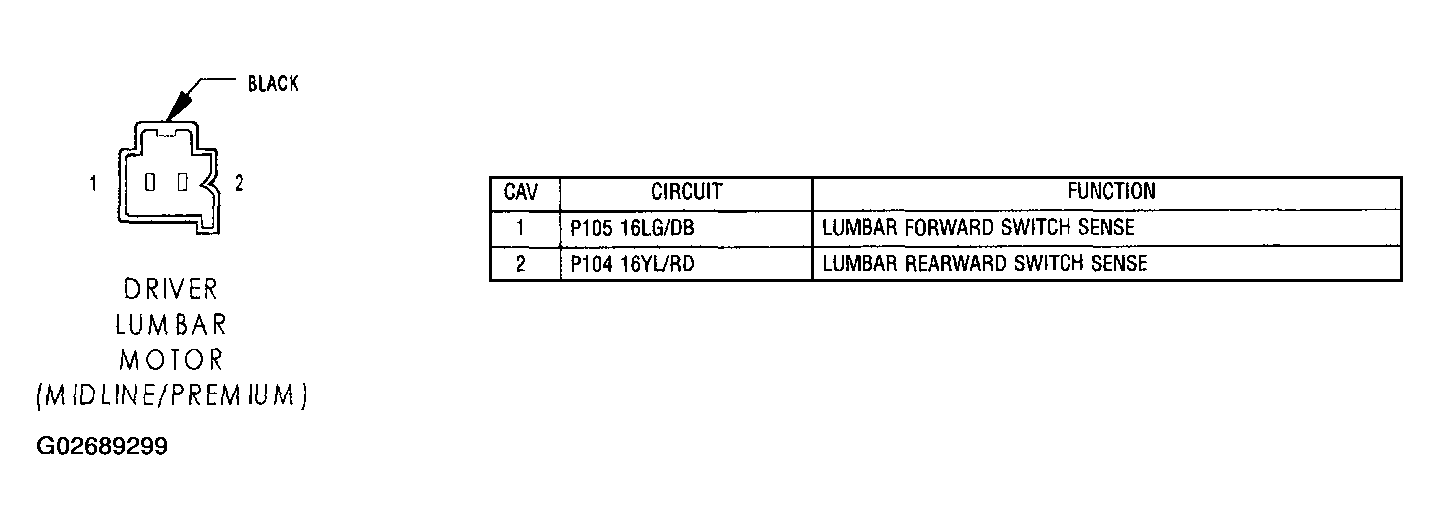

Fig 54: Identifying Driver Lumbar Motor (Midline/Premium) Connector Pinouts

G02689299

Courtesy of DAIMLERCHRYSLER CORP.

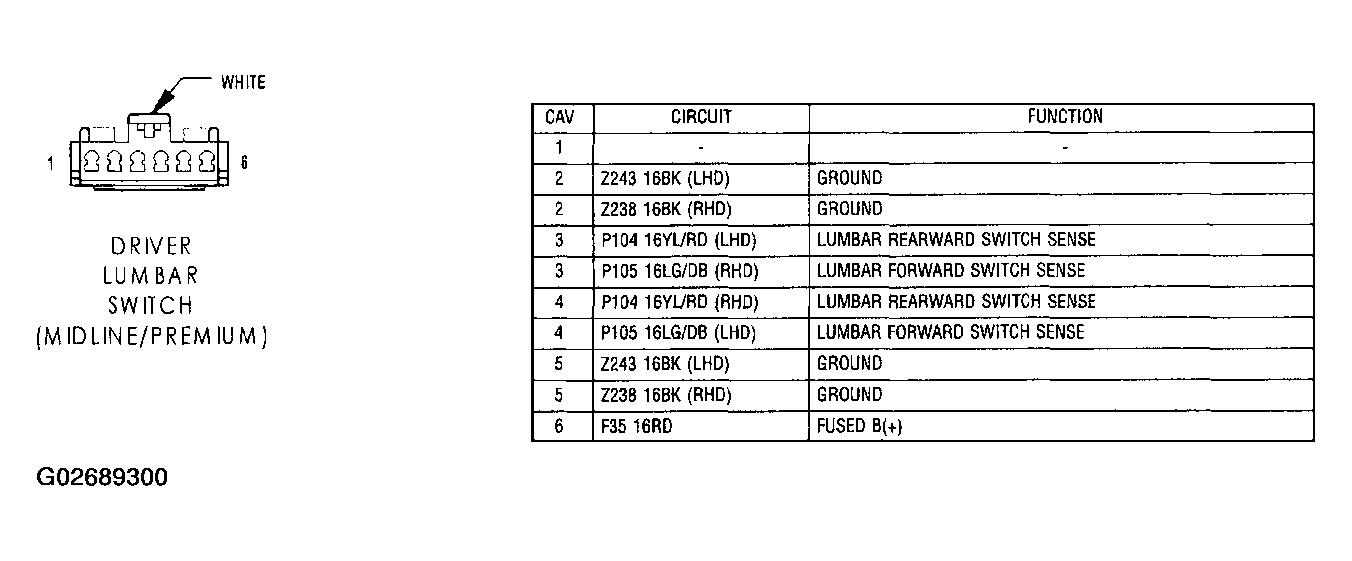

Fig 55: Identifying Driver Lumbar Switch (Midline/Premium) Connector Pinouts

G02689300

Courtesy of DAIMLERCHRYSLER CORP.

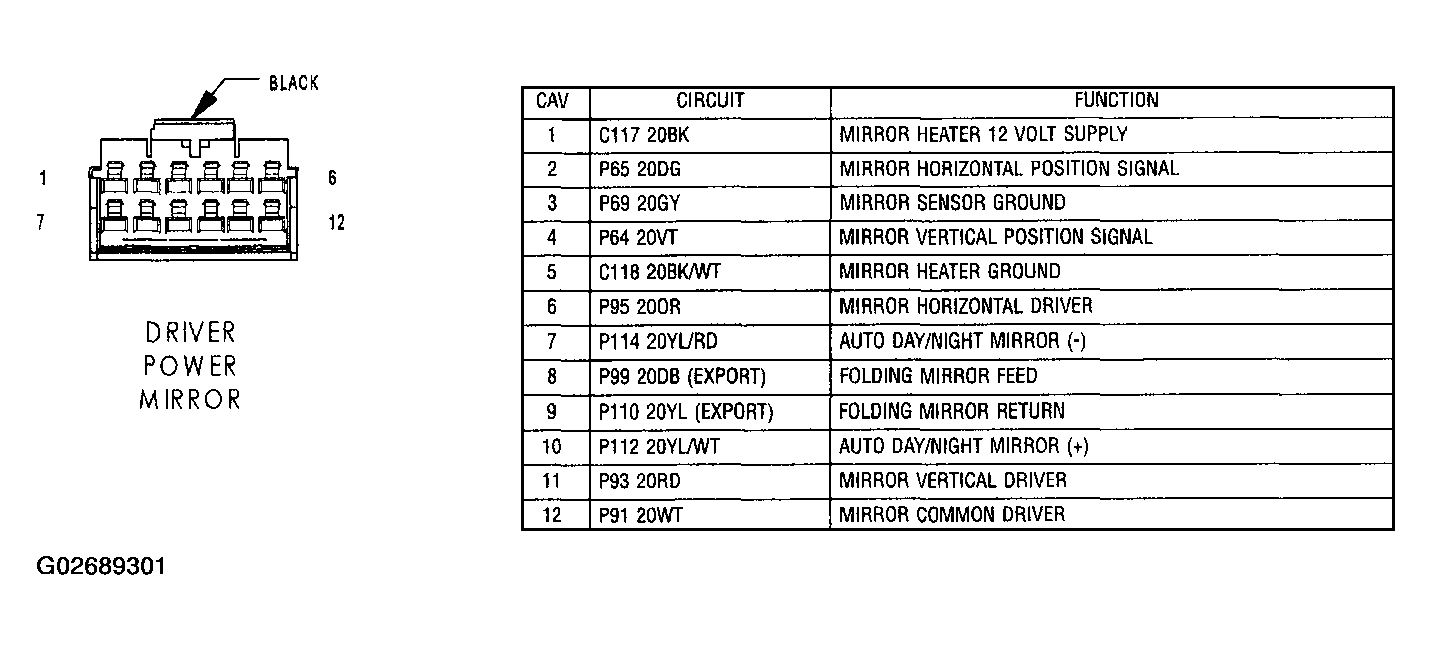

Fig 56: Identifying Driver Power Mirror Connector Pinouts

G02689301

Courtesy of DAIMLERCHRYSLER CORP.

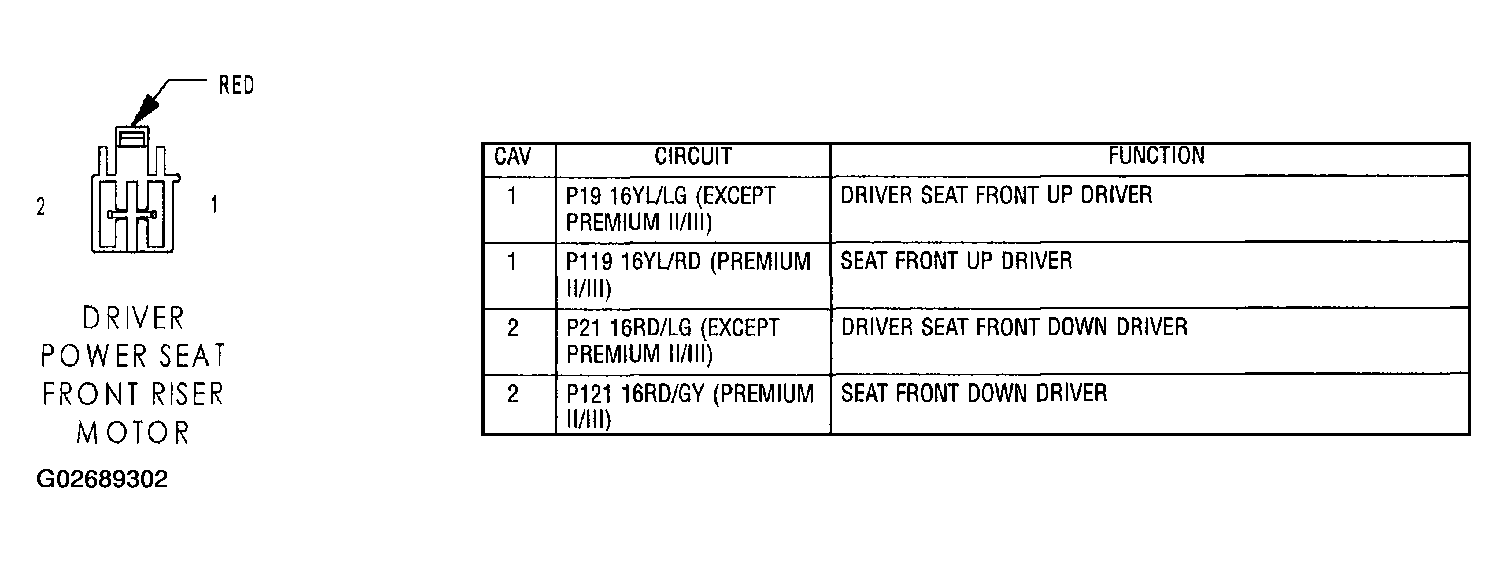

Fig 57: Identifying Driver Power Seat Front Riser Motor Connector Pinouts

G02689302

Courtesy of DAIMLERCHRYSLER CORP.

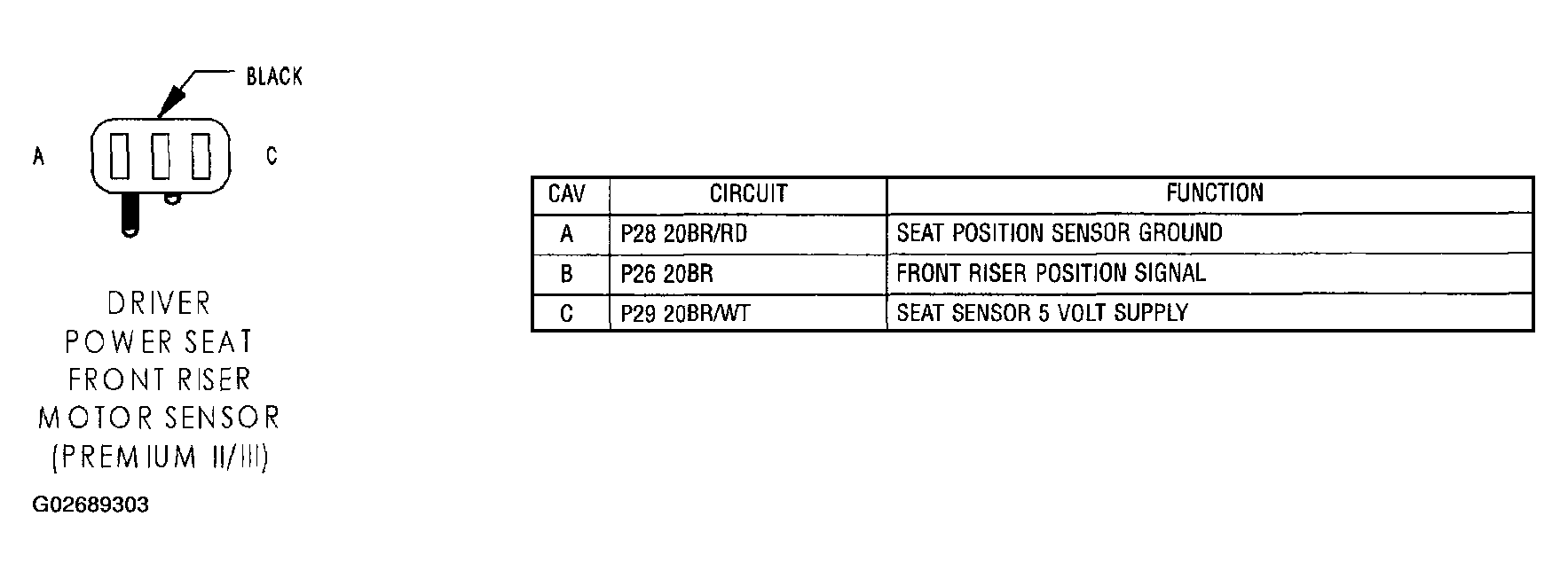

Fig 58: Identifying Driver Power Seat Front Riser Motor Sensor (Premium II/III) Connector Pinouts

G02689303

Courtesy of DAIMLERCHRYSLER CORP.

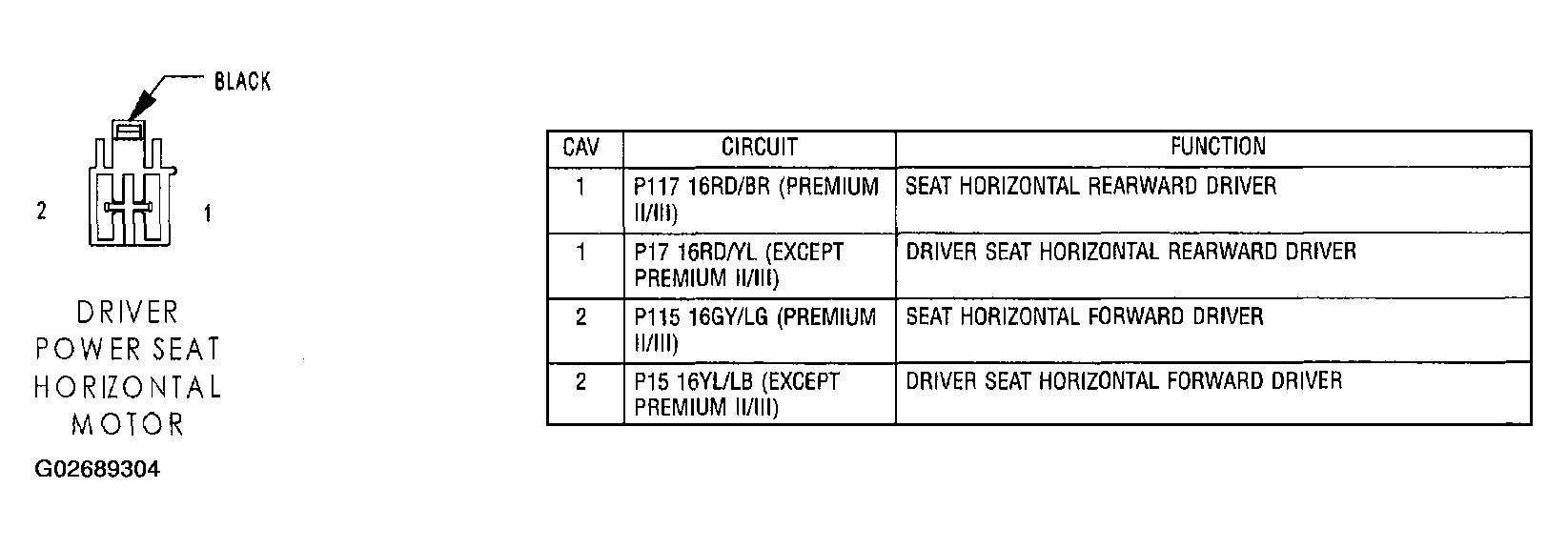

Fig 59: Identifying Driver Power Seat Horizontal Motor Connector Pinouts

G02689304

Courtesy of DAIMLERCHRYSLER CORP.

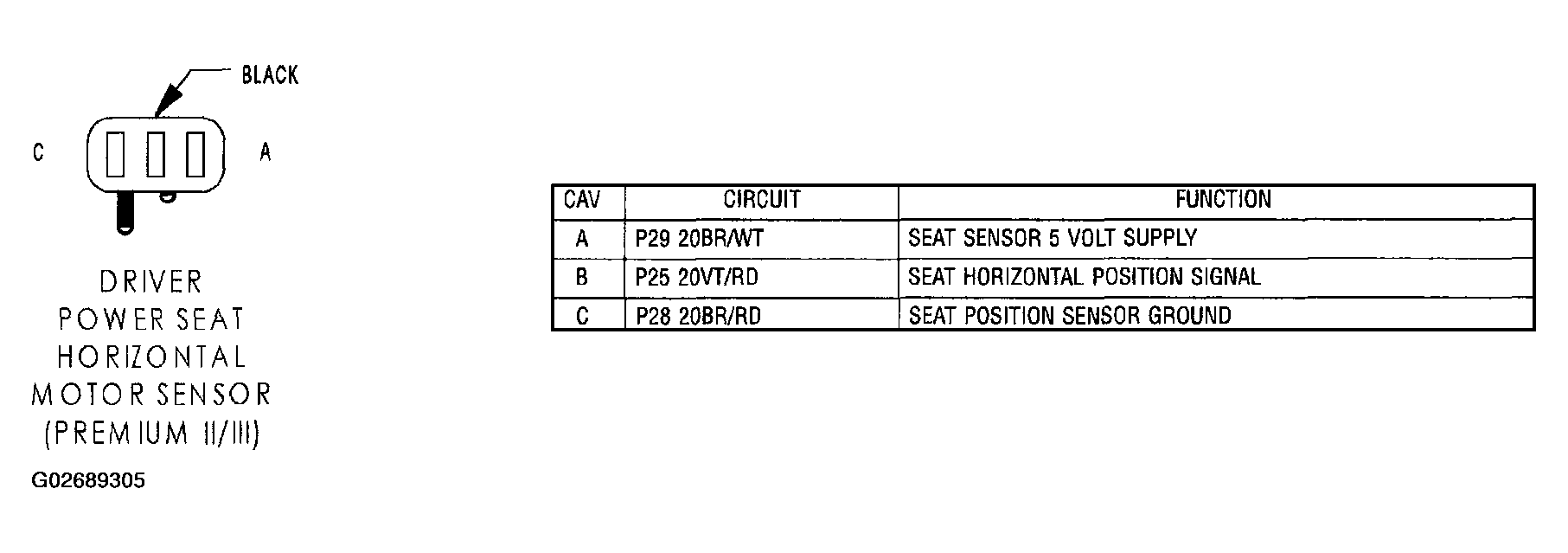

Fig 60: Identifying Driver Power Seat Horizontal Motor Sensor (PREMIUM II/III) Connector Pinouts

G02689305

Courtesy of DAIMLERCHRYSLER CORP.

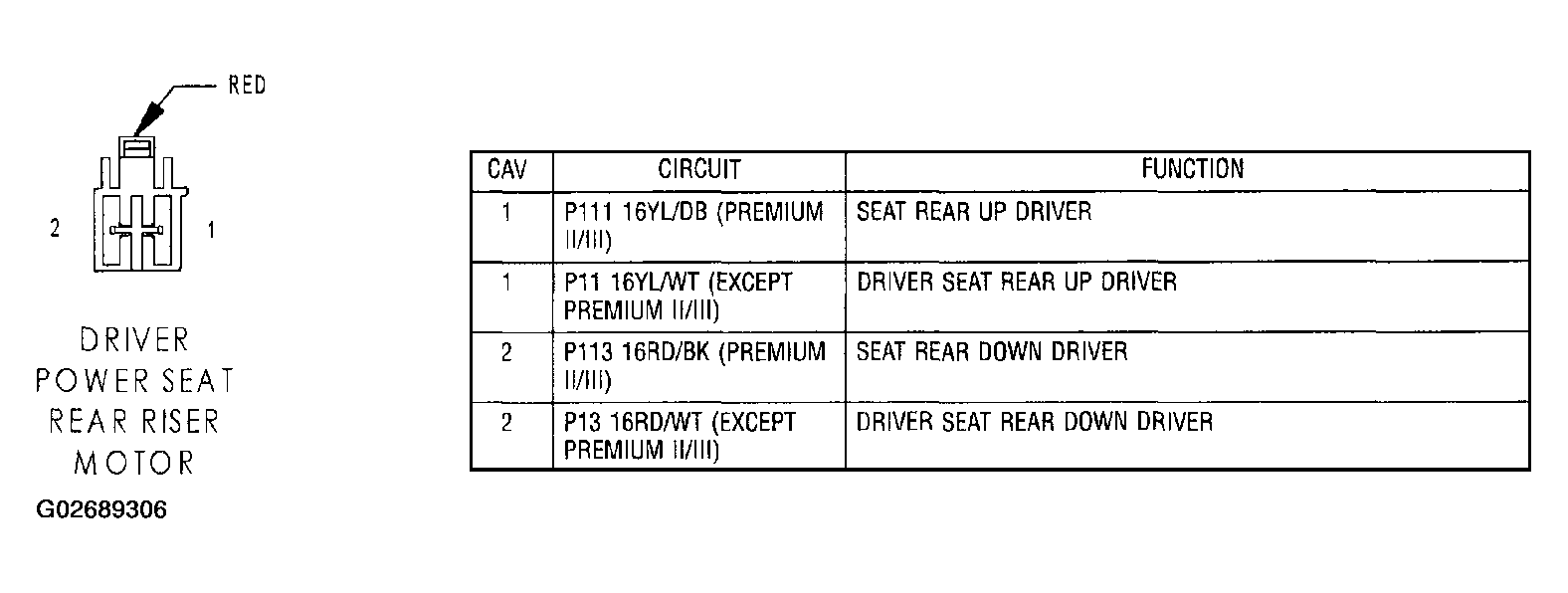

Fig 61: Identifying Driver Power Seat Rear Riser Motor Connector Pinouts

G02689306

Courtesy of DAIMLERCHRYSLER CORP.

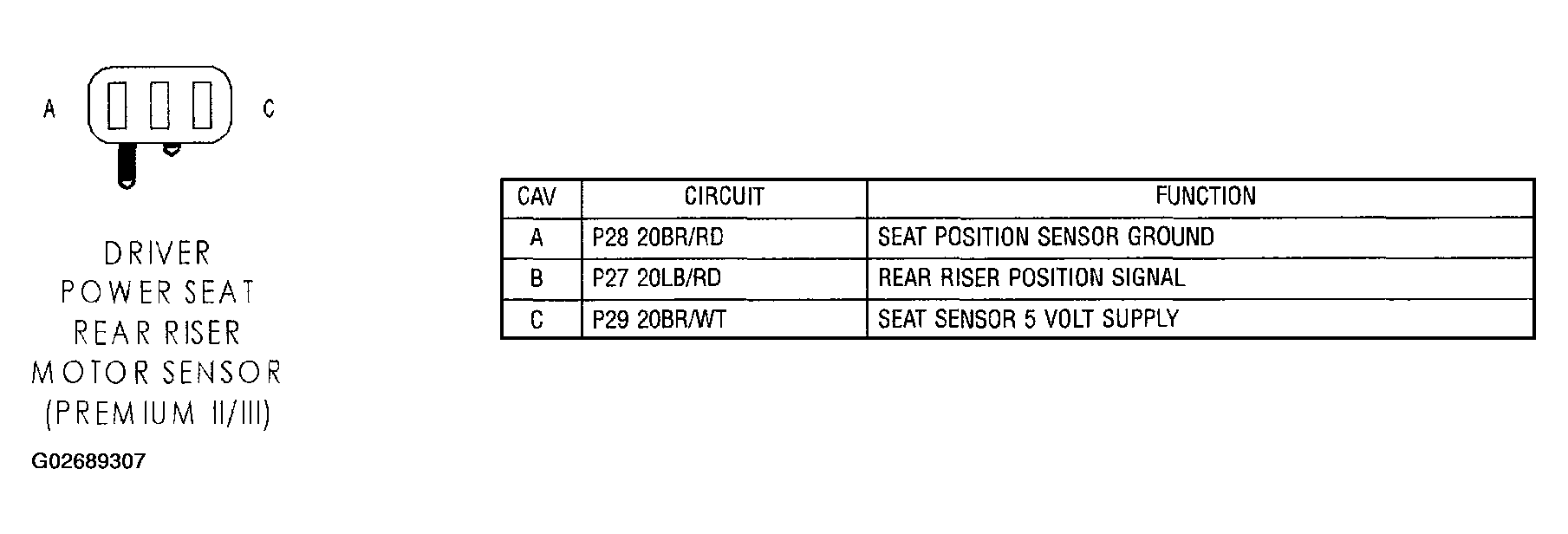

Fig 62: Identifying Driver Power Seat Rear Riser Motor Sensor (Premium II/III) Connector Pinouts

G02689307

Courtesy of DAIMLERCHRYSLER CORP.

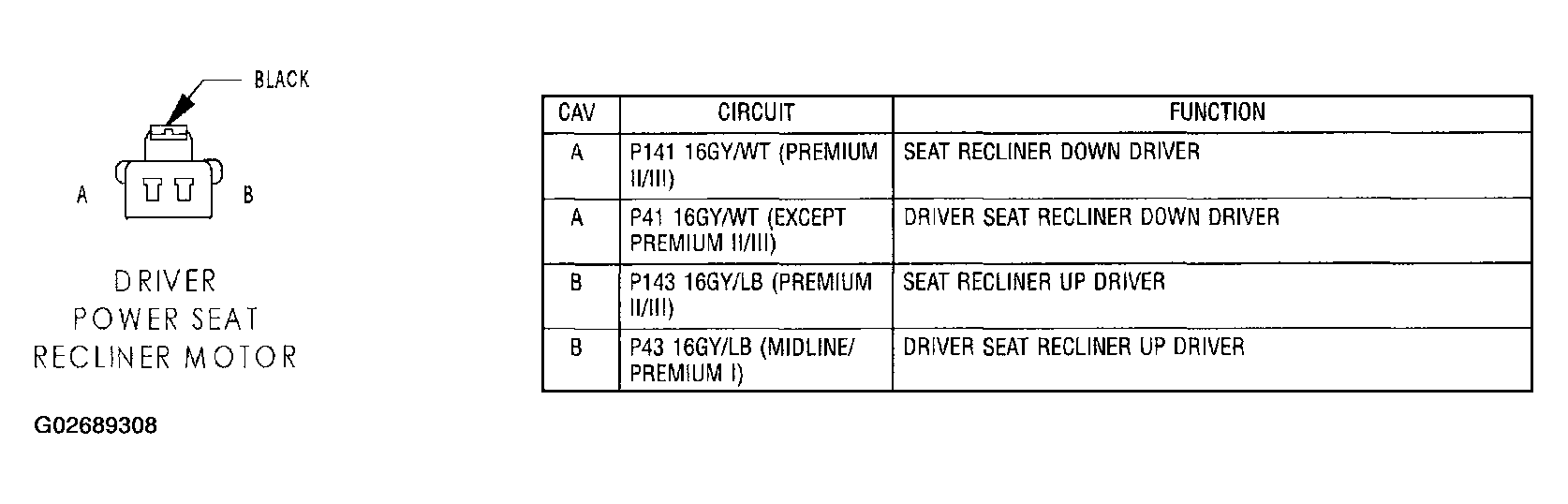

Fig 63: Identifying Driver Power Seat Recliner Motor Connector Pinouts

G02689308

Courtesy of DAIMLERCHRYSLER CORP.

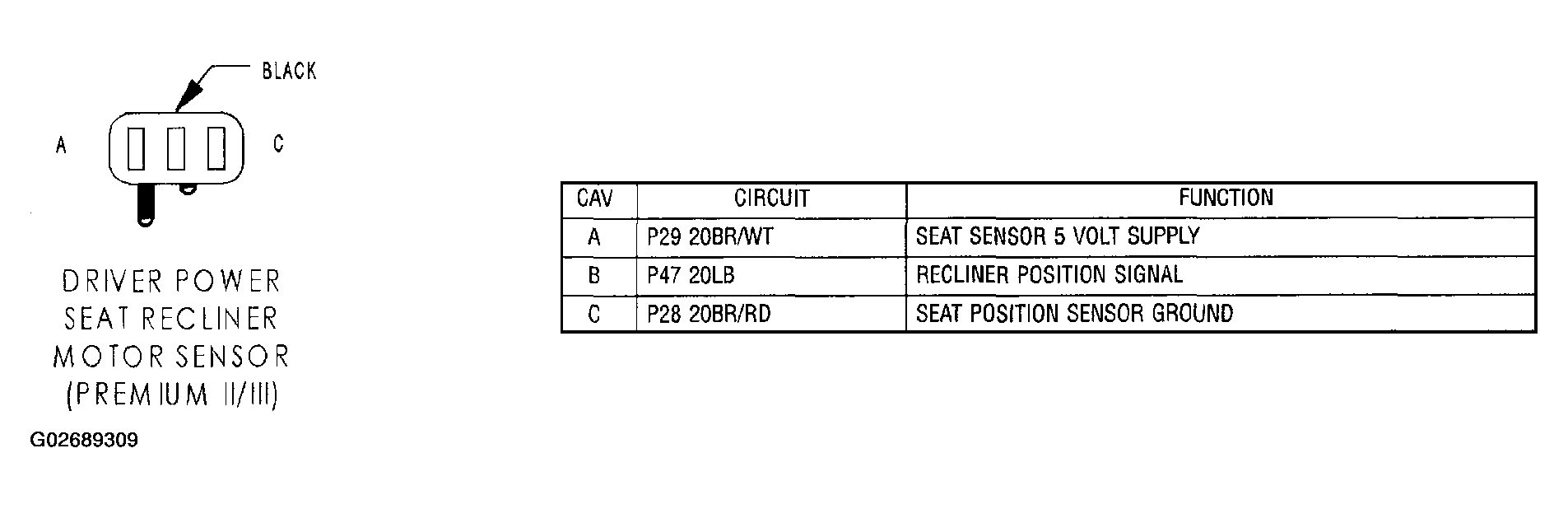

Fig 64: Identifying Driver Power Seat Recliner Motor Sensor (Premium II/III) Connector Pinouts

G02689309

Courtesy of DAIMLERCHRYSLER CORP.

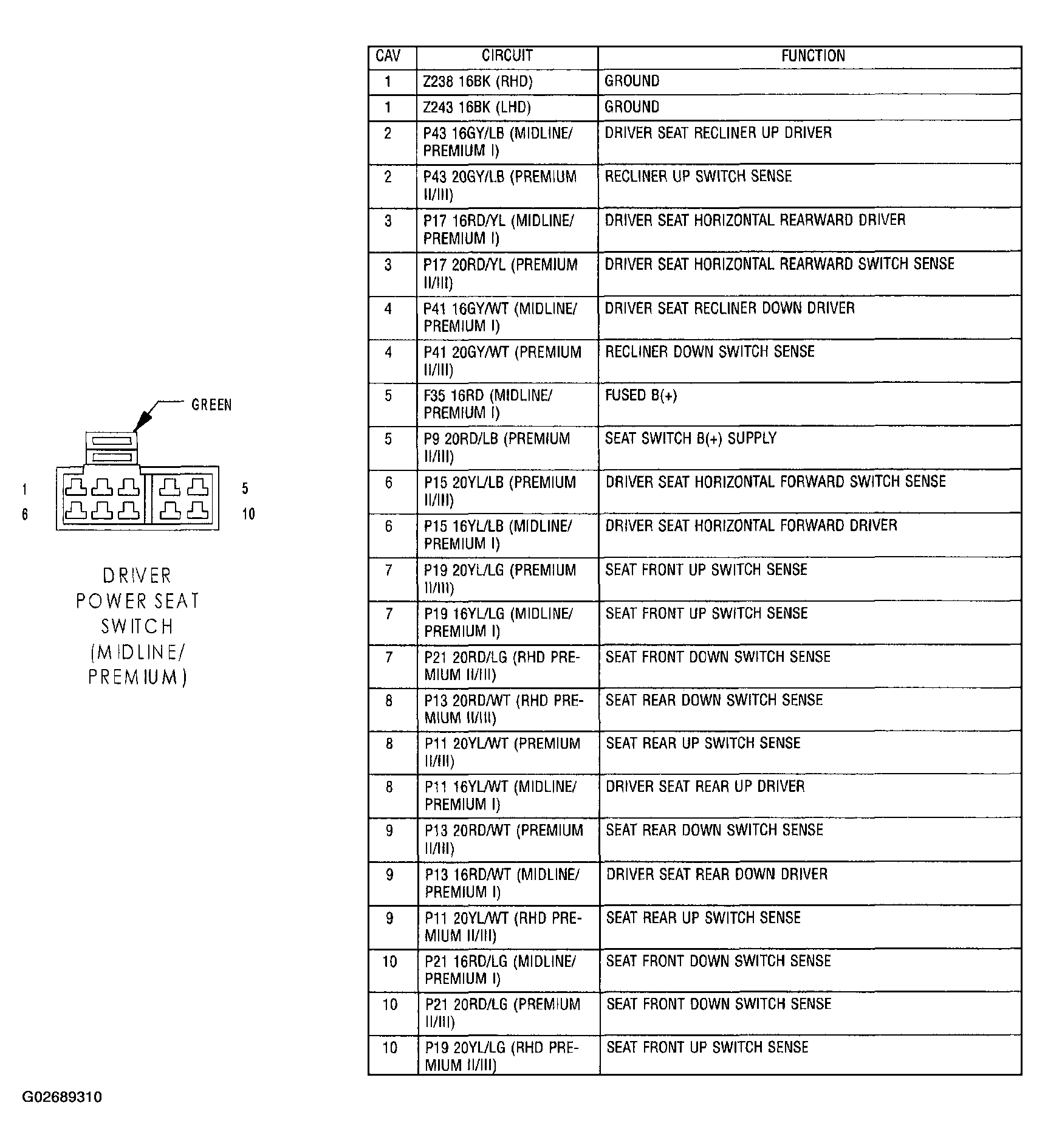

Fig 65: Identifying Driver Power Seat Switch (Midline/Premium) Connector Pinouts

G02689310

Courtesy of DAIMLERCHRYSLER CORP.

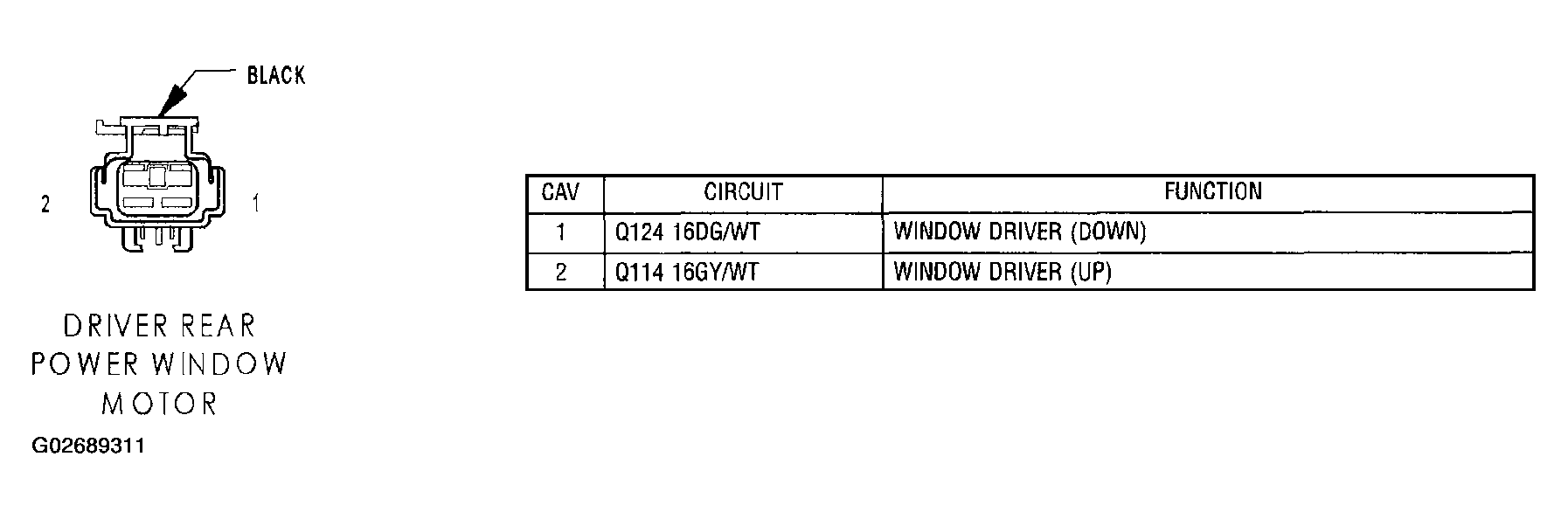

Fig 66: Identifying Driver Rear Power Window Motor Connector Pinouts

G02689311

Courtesy of DAIMLERCHRYSLER CORP.

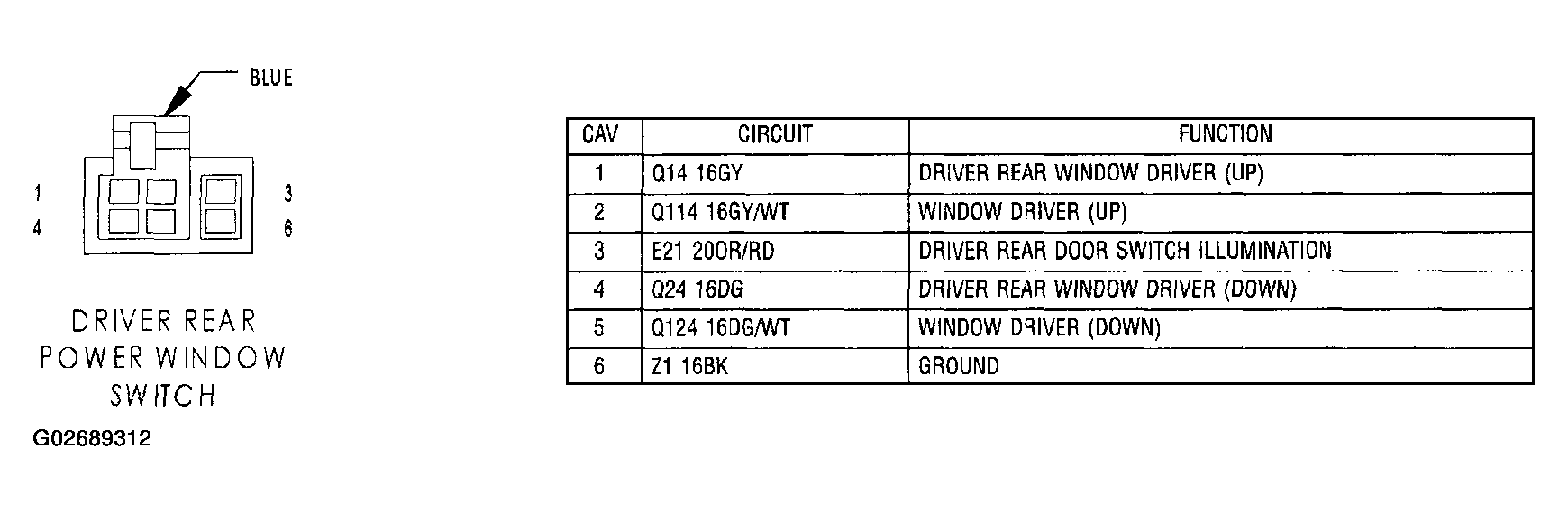

Fig 67: Identifying Driver Rear Power Window Switch Connector Pinouts

G02689312

Courtesy of DAIMLERCHRYSLER CORP.

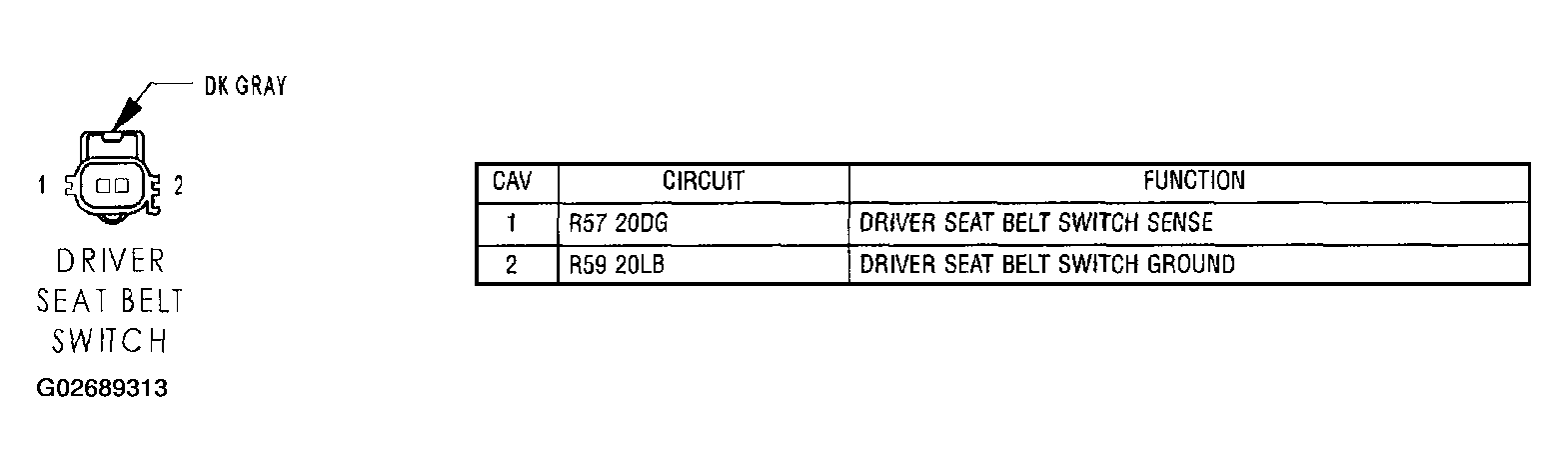

Fig 68: Identifying Driver Seat Belt Switch Connector Pinouts

G02689313

Courtesy of DAIMLERCHRYSLER CORP.

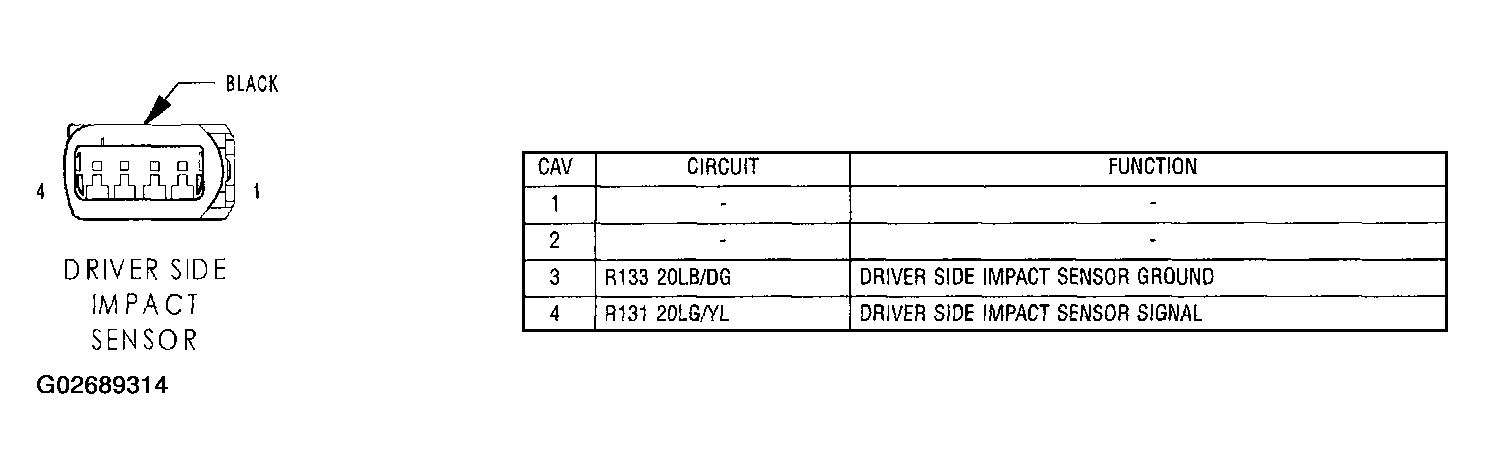

Fig 69: Identifying Driver Side Impact Sensor Connector Pinouts

G02689314

Courtesy of DAIMLERCHRYSLER CORP.

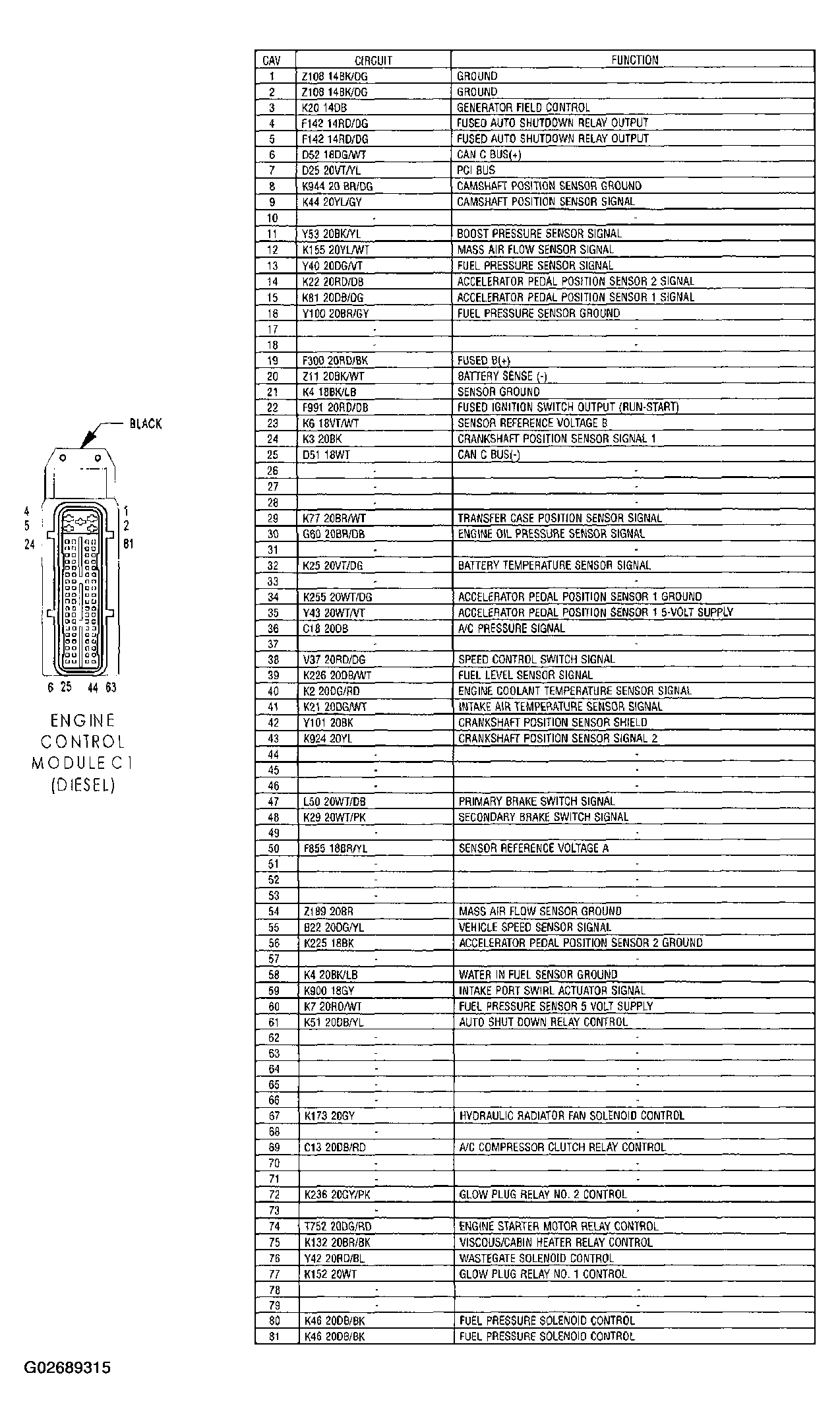

Fig 70: Identifying Engine Control Module C1 (Diesel) Connector Pinouts

G02689315

Courtesy of DAIMLERCHRYSLER CORP.

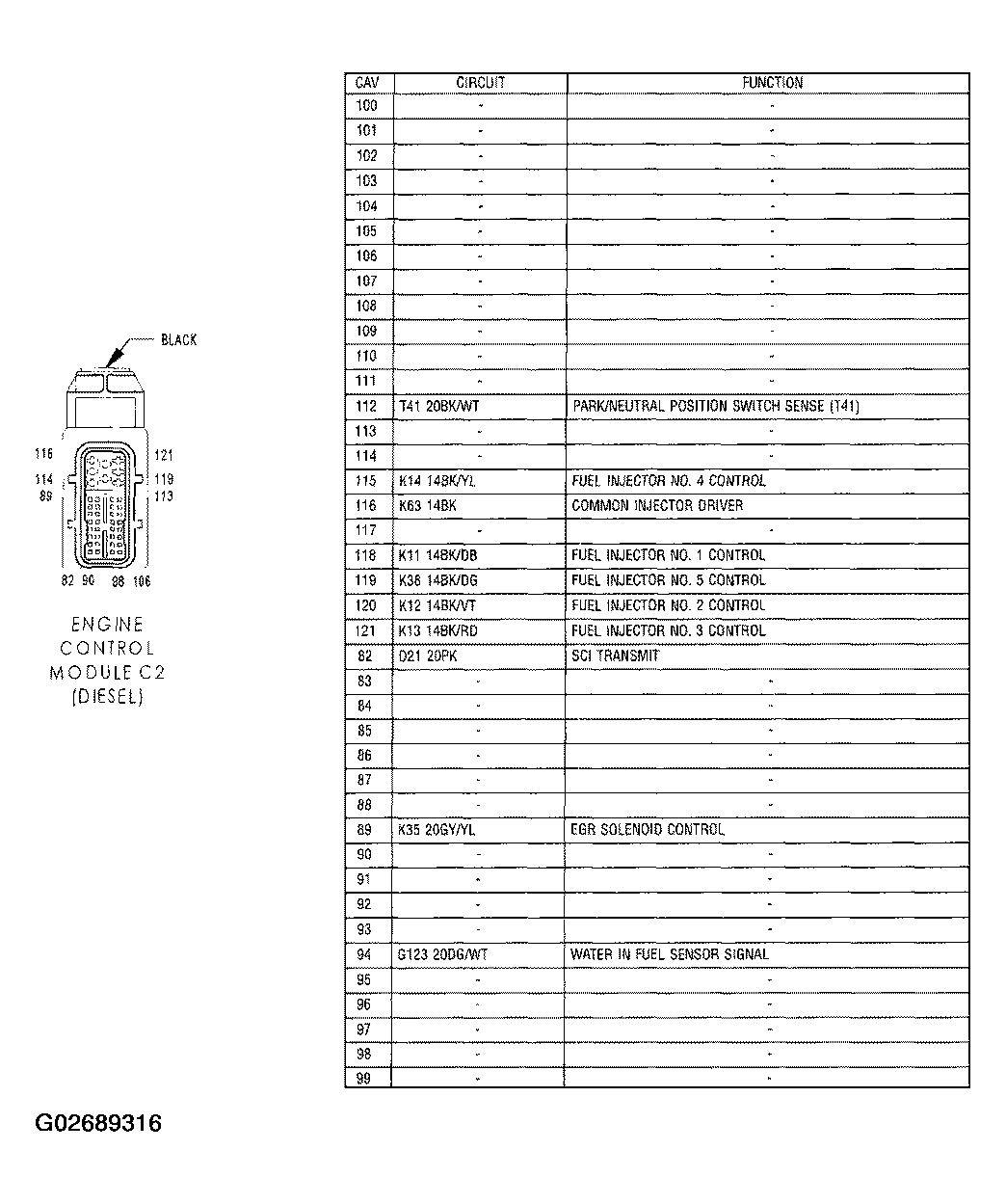

Fig 71: Identifying Engine Control Module C2 (Diesel) Connector Pinouts

G02689316

Courtesy of DAIMLERCHRYSLER CORP.

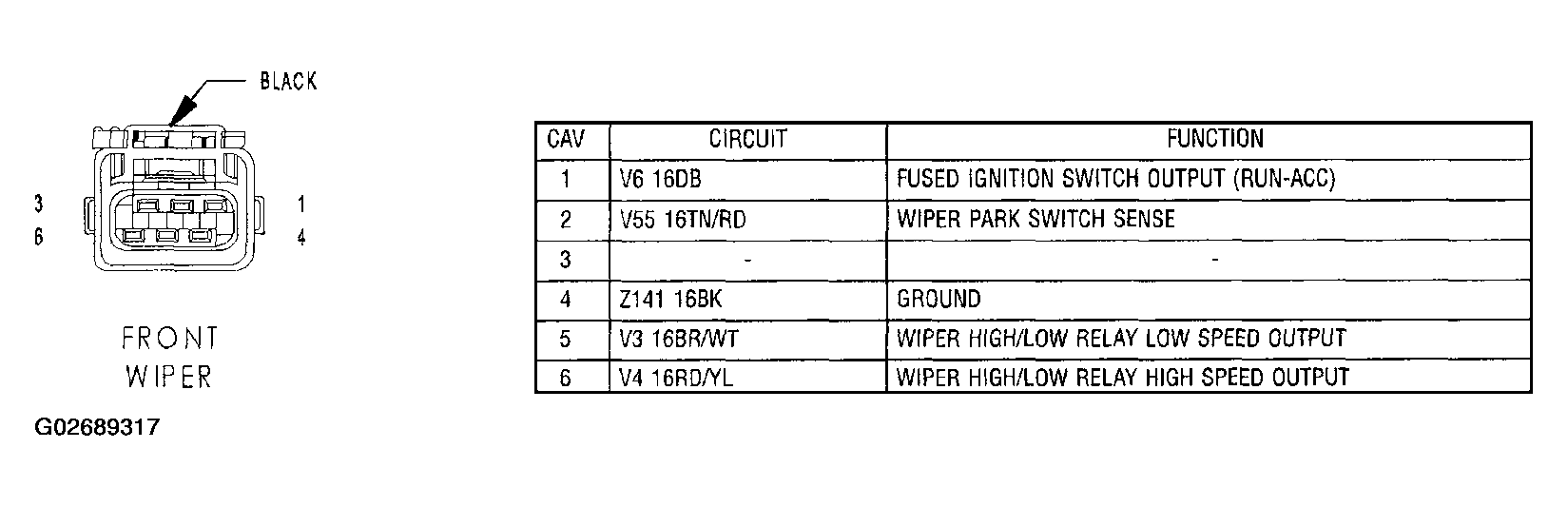

Fig 72: Identifying Front Wiper Motor Connector Pinouts

G02689317

Courtesy of DAIMLERCHRYSLER CORP.

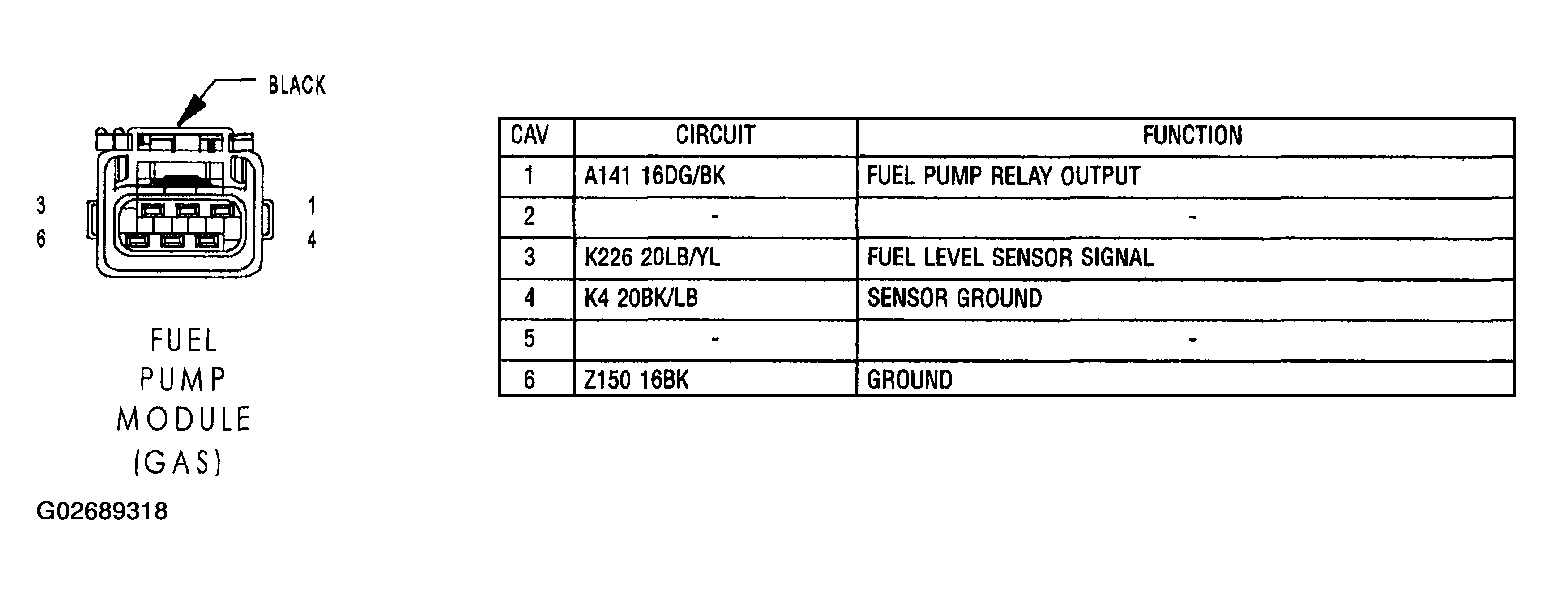

Fig 73: Identifying Fuel Pump Module (Gas) Connector Pinouts

G02689318

Courtesy of DAIMLERCHRYSLER CORP.

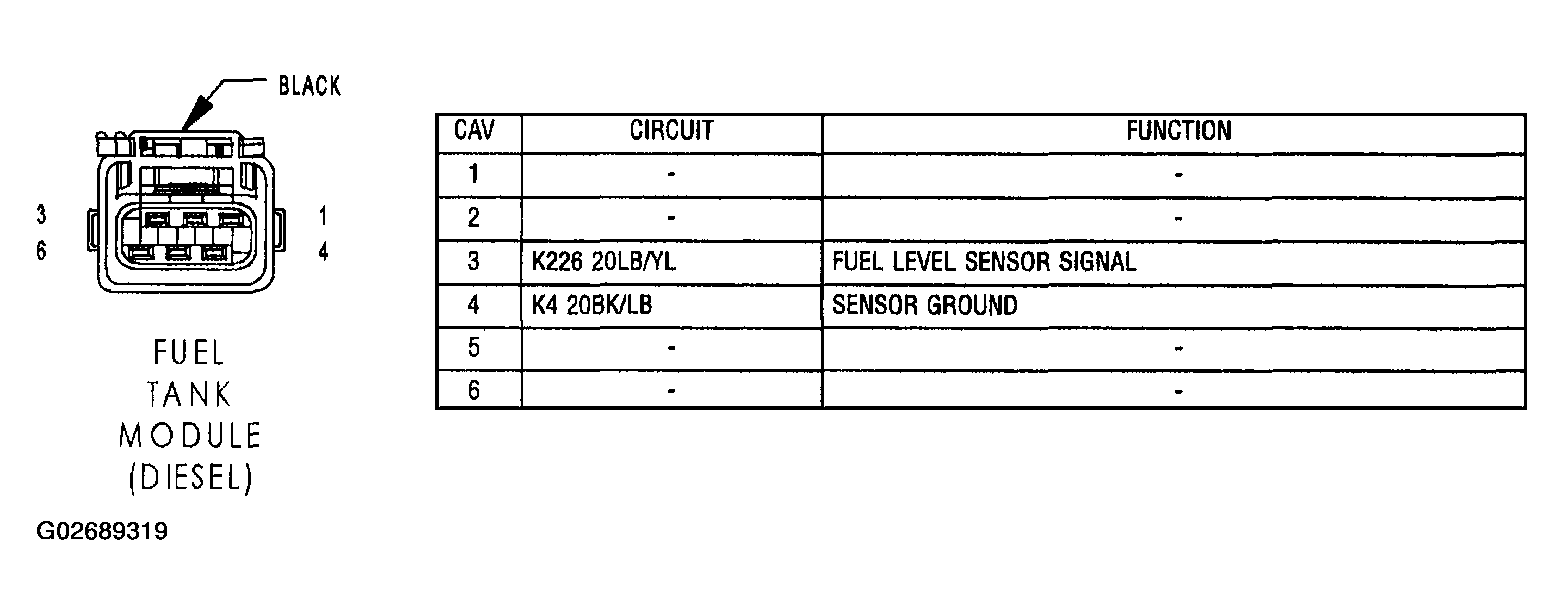

Fig 74: Identifying Fuel Tank Module (Diesel) Connector Pinouts

G02689319

Courtesy of DAIMLERCHRYSLER CORP.

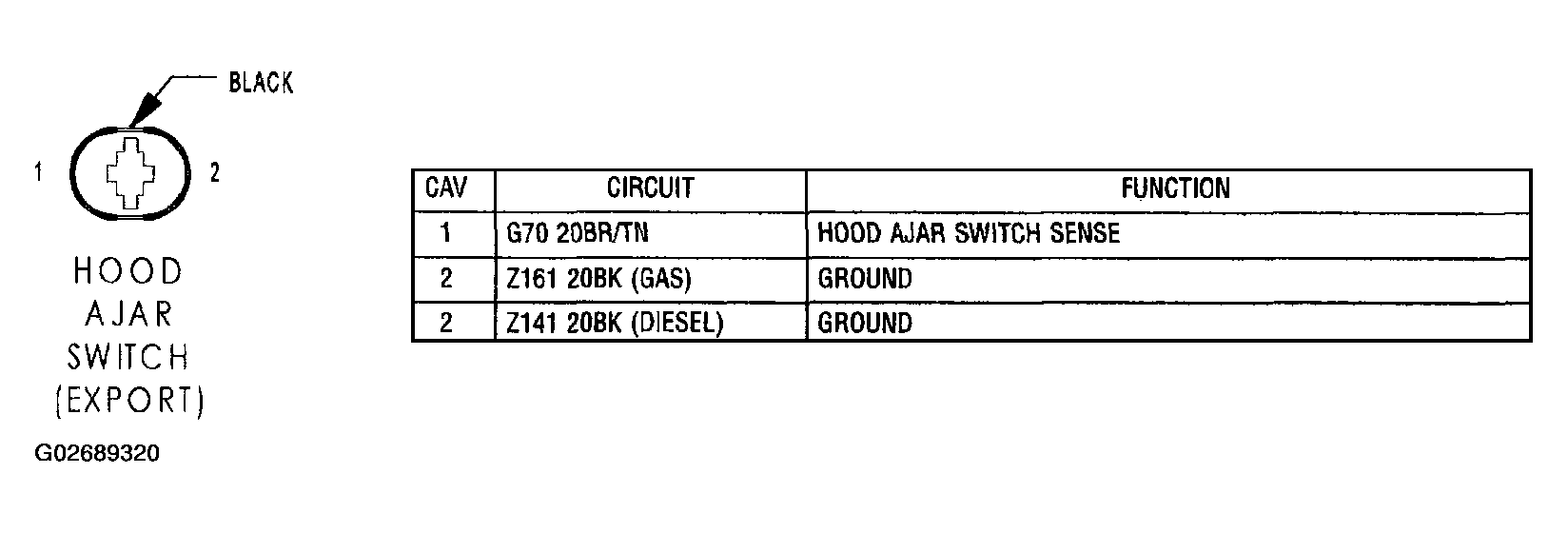

Fig 75: Identifying Hood Ajar Switch (Export) Connector Pinouts

G02689320

Courtesy of DAIMLERCHRYSLER CORP.

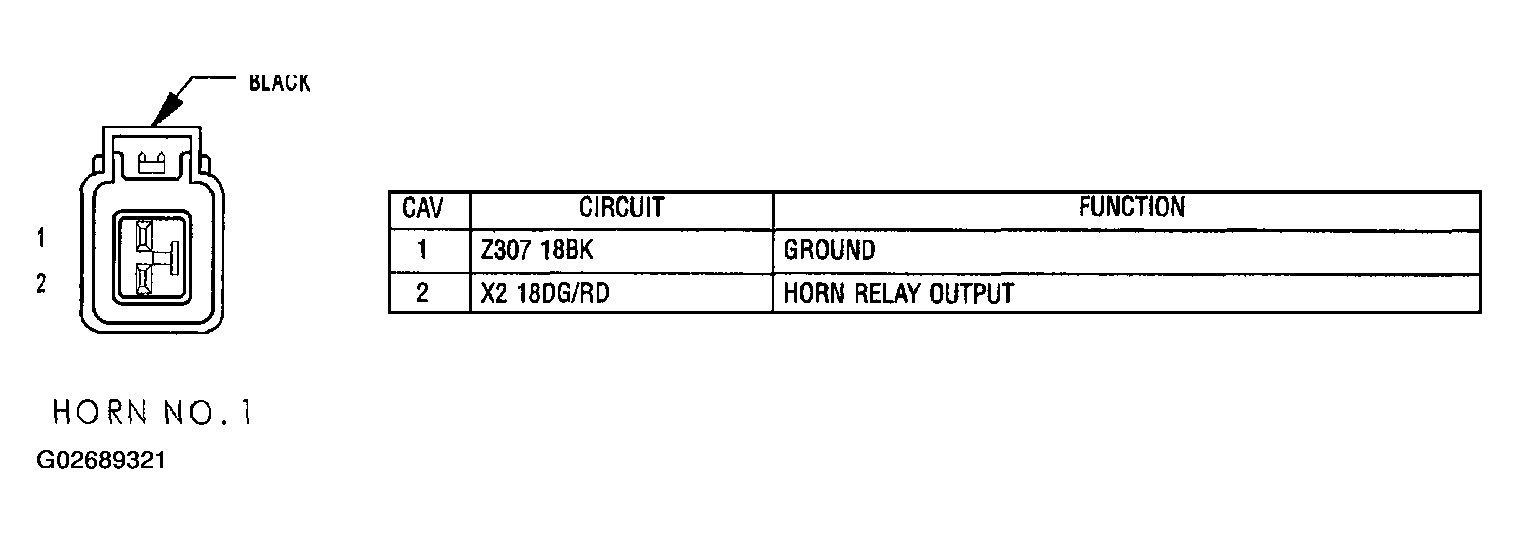

Fig 76: Identifying Horn No. 1 Connector Pinouts

G02689321

Courtesy of DAIMLERCHRYSLER CORP.

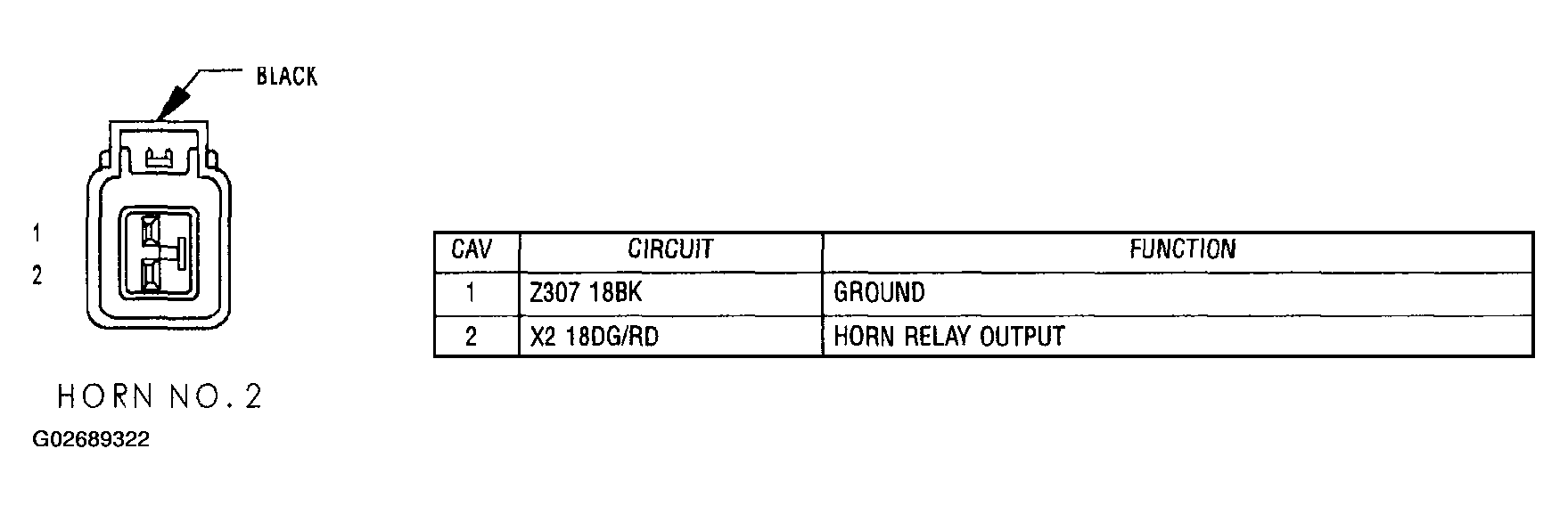

Fig 77: Identifying Horn No. 2 Connector Pinouts

G02689322

Courtesy of DAIMLERCHRYSLER CORP.

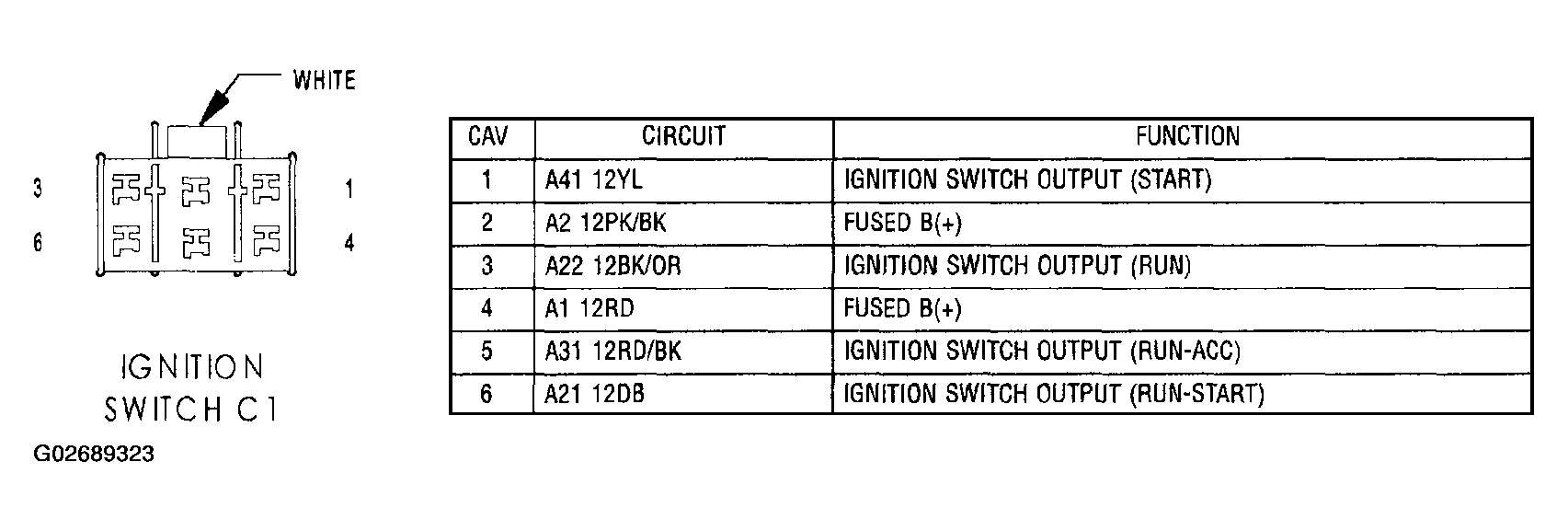

Fig 78: Identifying Ignition Switch C1 Connector Pinouts

G02689323

Courtesy of DAIMLERCHRYSLER CORP.

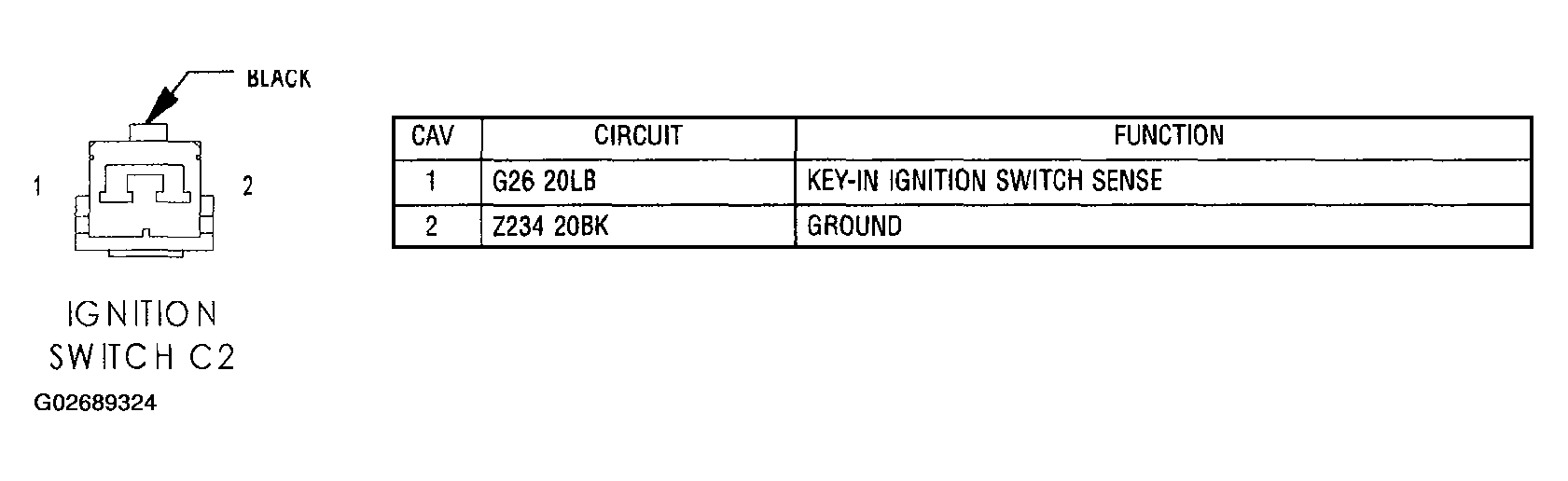

Fig 79: Identifying Ignition Switch C2 Connector Pinouts

G02689324

Courtesy of DAIMLERCHRYSLER CORP.

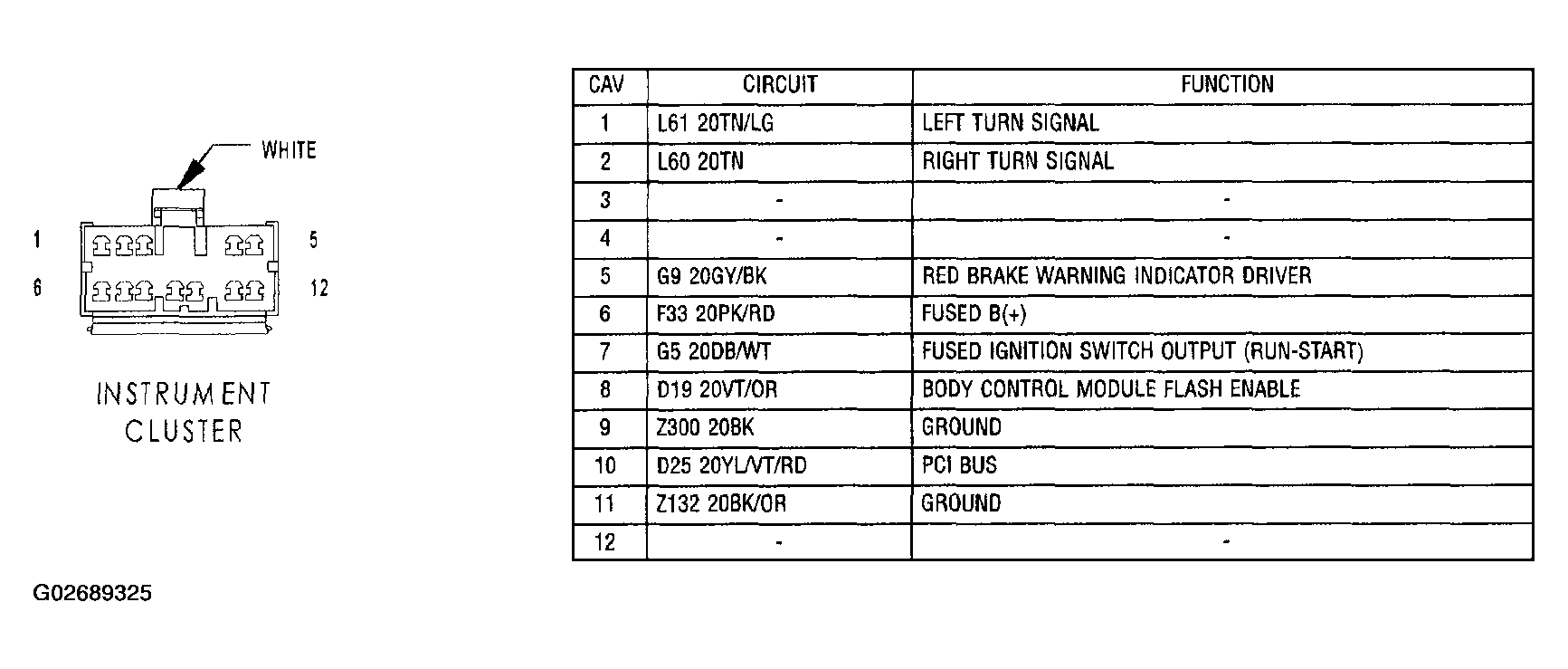

Fig 80: Identifying Instrument Cluster Connector Pinouts

G02689325

Courtesy of DAIMLERCHRYSLER CORP.

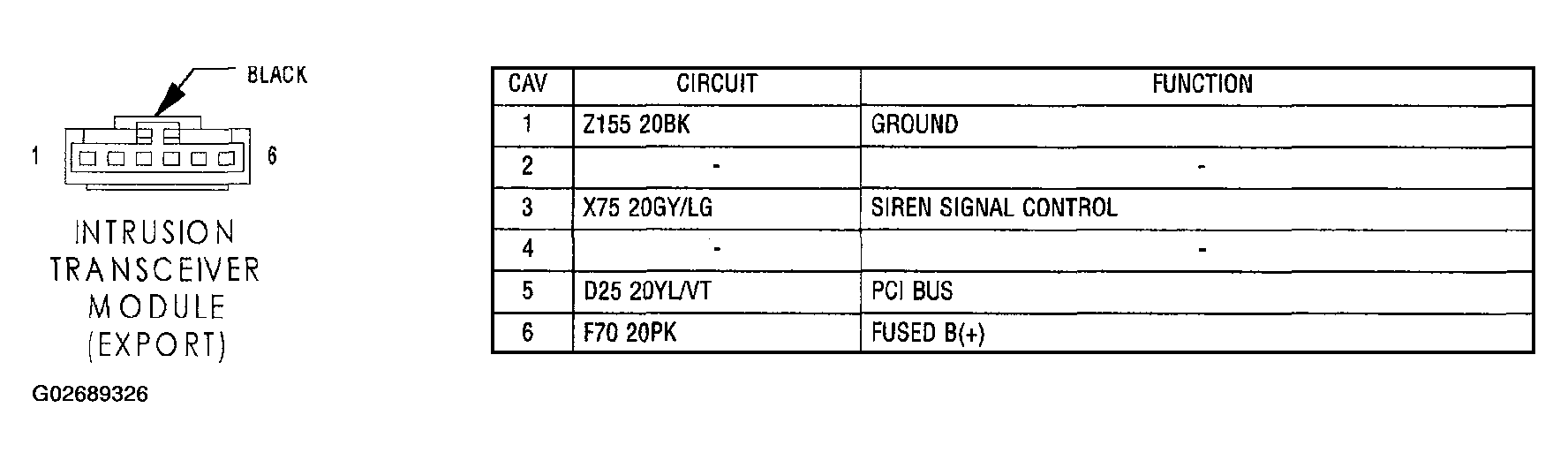

Fig 81: Identifying Intrusion Transceiver Module (Export) Connector Pinouts

G02689326

Courtesy of DAIMLERCHRYSLER CORP.

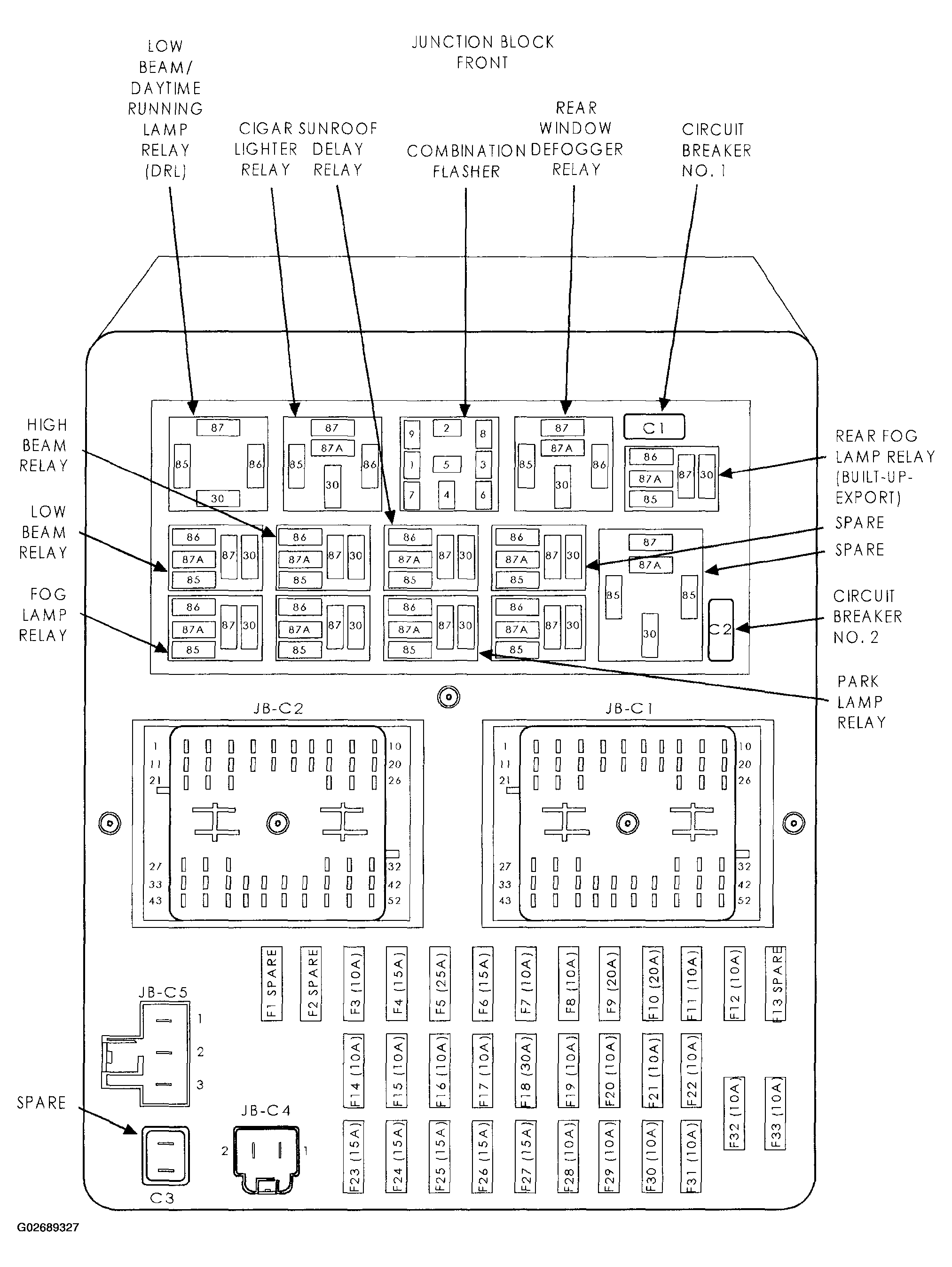

Fig 82: Identifying Junction Block Front Connector Pinouts

G02689327

Courtesy of DAIMLERCHRYSLER CORP.

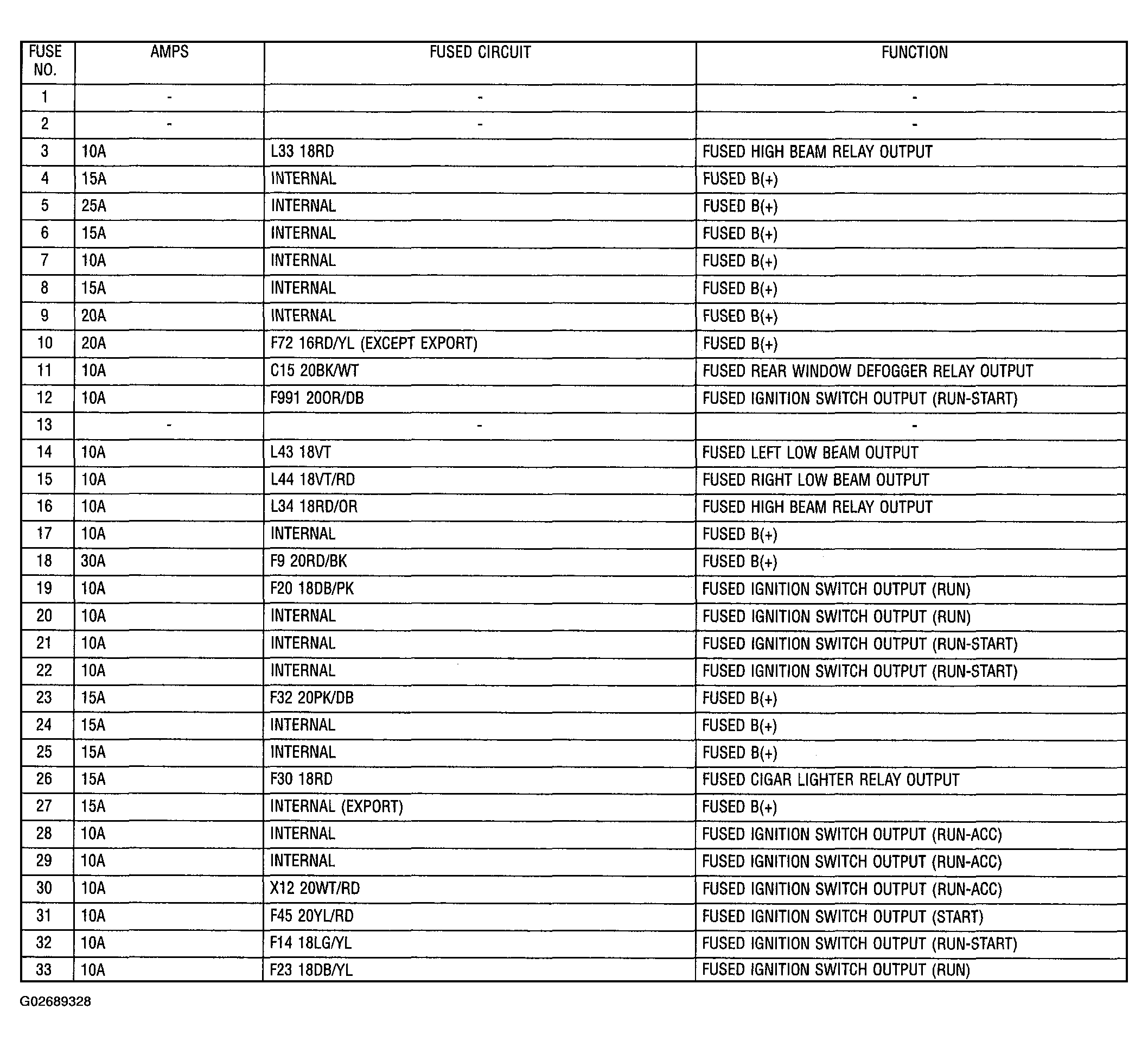

Fig 83: Identifying Fuses (JB) Connector Pinouts function reference

G02689328

Courtesy of DAIMLERCHRYSLER CORP.

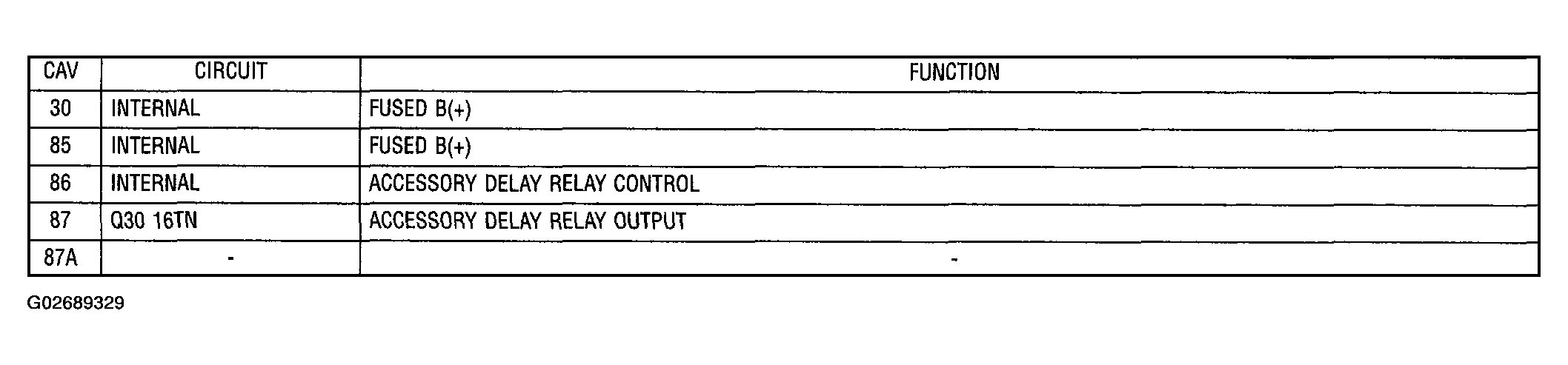

Fig 84: Identifying Accessory Delay Relay Connector Pinouts Function Reference

G02689329

Courtesy of DAIMLERCHRYSLER CORP.

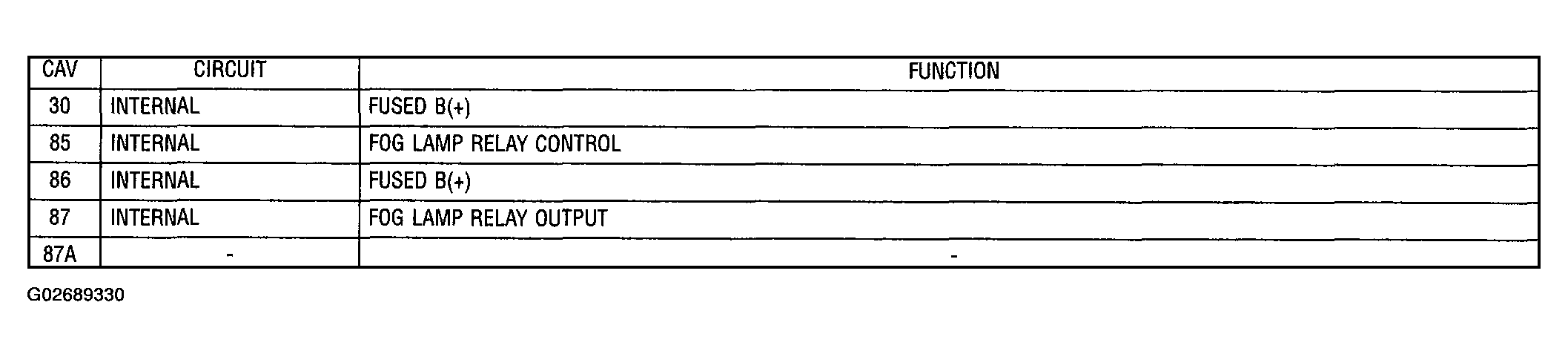

Fig 85: Identifying Fog Lamp Relay Connector Pinouts Function Reference

G02689330

Courtesy of DAIMLERCHRYSLER CORP.

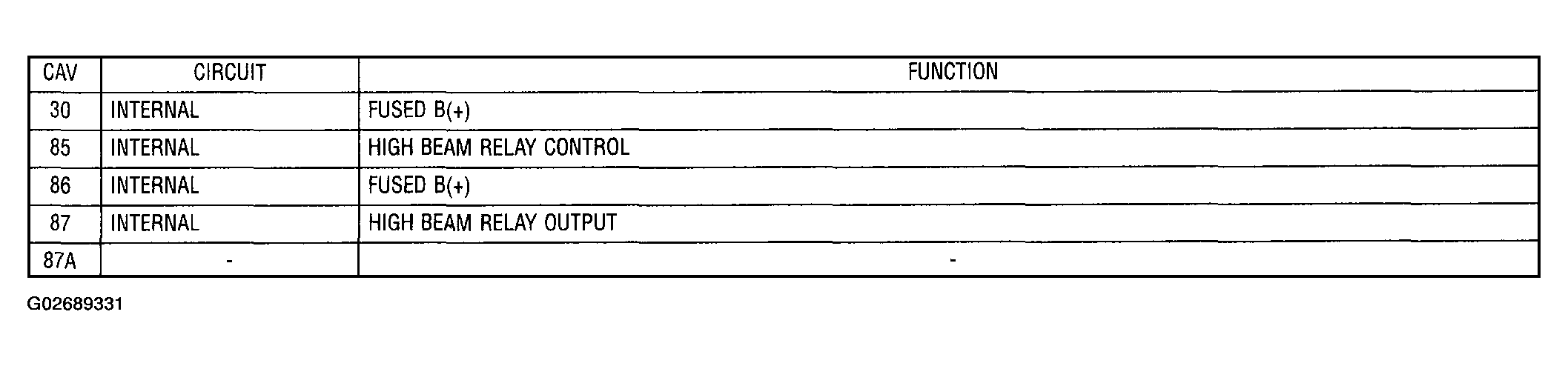

Fig 86: Identifying High Beam Relay Connector Pinouts Function Reference

G02689331

Courtesy of DAIMLERCHRYSLER CORP.

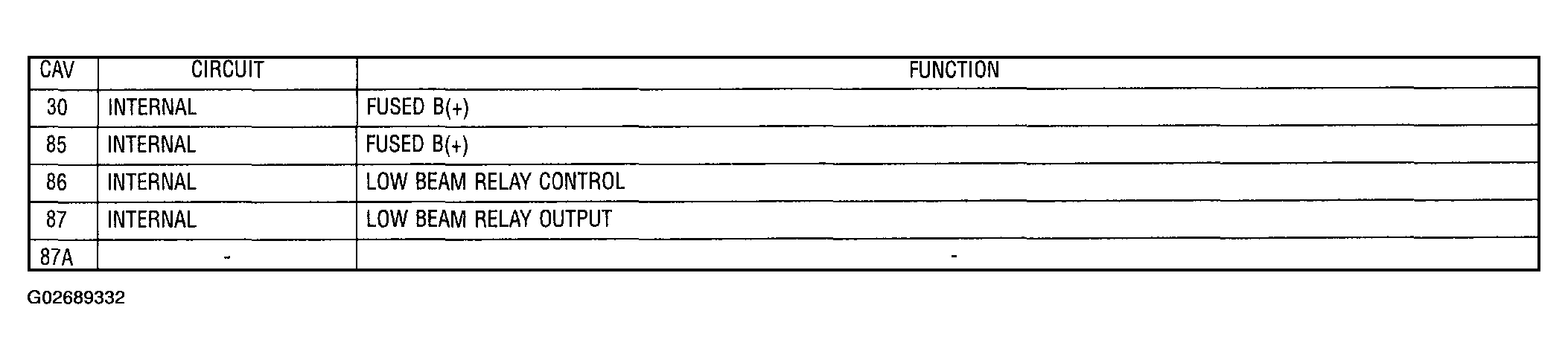

Fig 87: Identifying Low Beam Relay Connector Pinouts Function Reference

G02689332

Courtesy of DAIMLERCHRYSLER CORP.

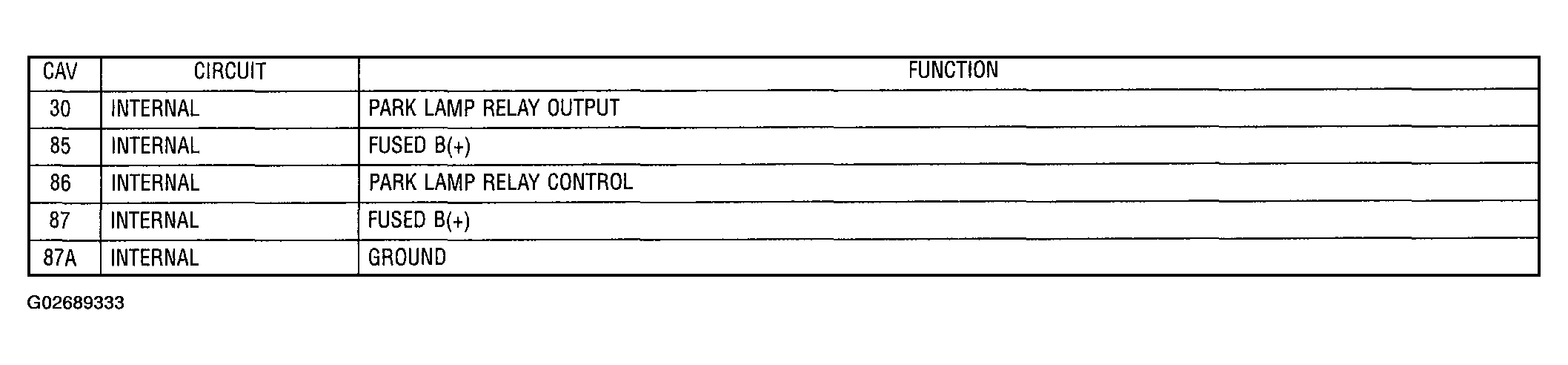

Fig 88: Identifying Park Lamp Relay Connector Pinouts Function Reference

G02689333

Courtesy of DAIMLERCHRYSLER CORP.

Fig 89: Identifying Rear Fog Lamp Relay (Export) Connector Pinouts Function Reference

G02689334

Courtesy of DAIMLERCHRYSLER CORP.

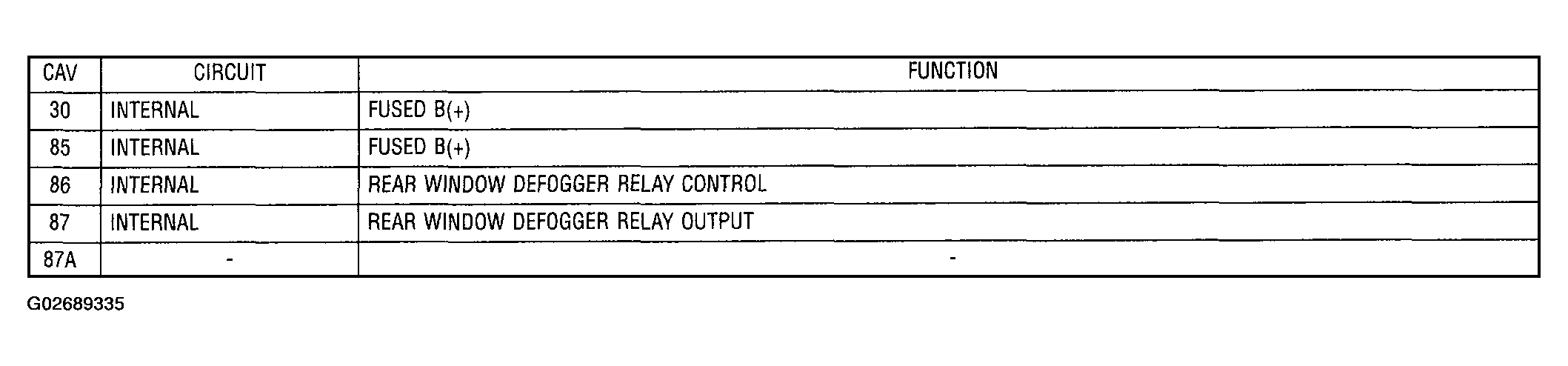

Fig 90: Identifying Rear Window Defogger Relay Connector Pinouts Function Reference

G02689335

Courtesy of DAIMLERCHRYSLER CORP.

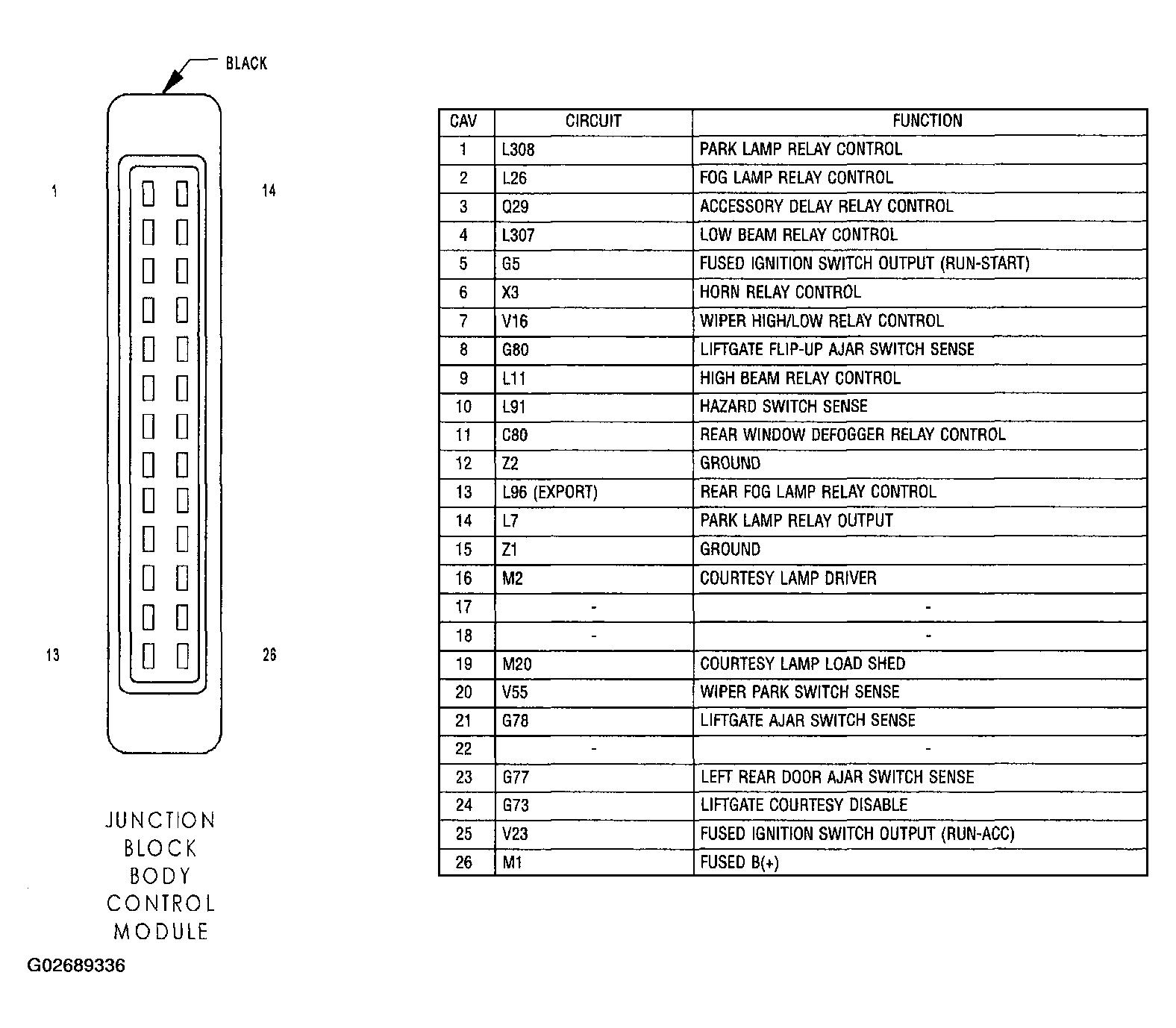

Fig 91: Identifying Junction Block Body Control Module Connector Pinouts

G02689336

Courtesy of DAIMLERCHRYSLER CORP.

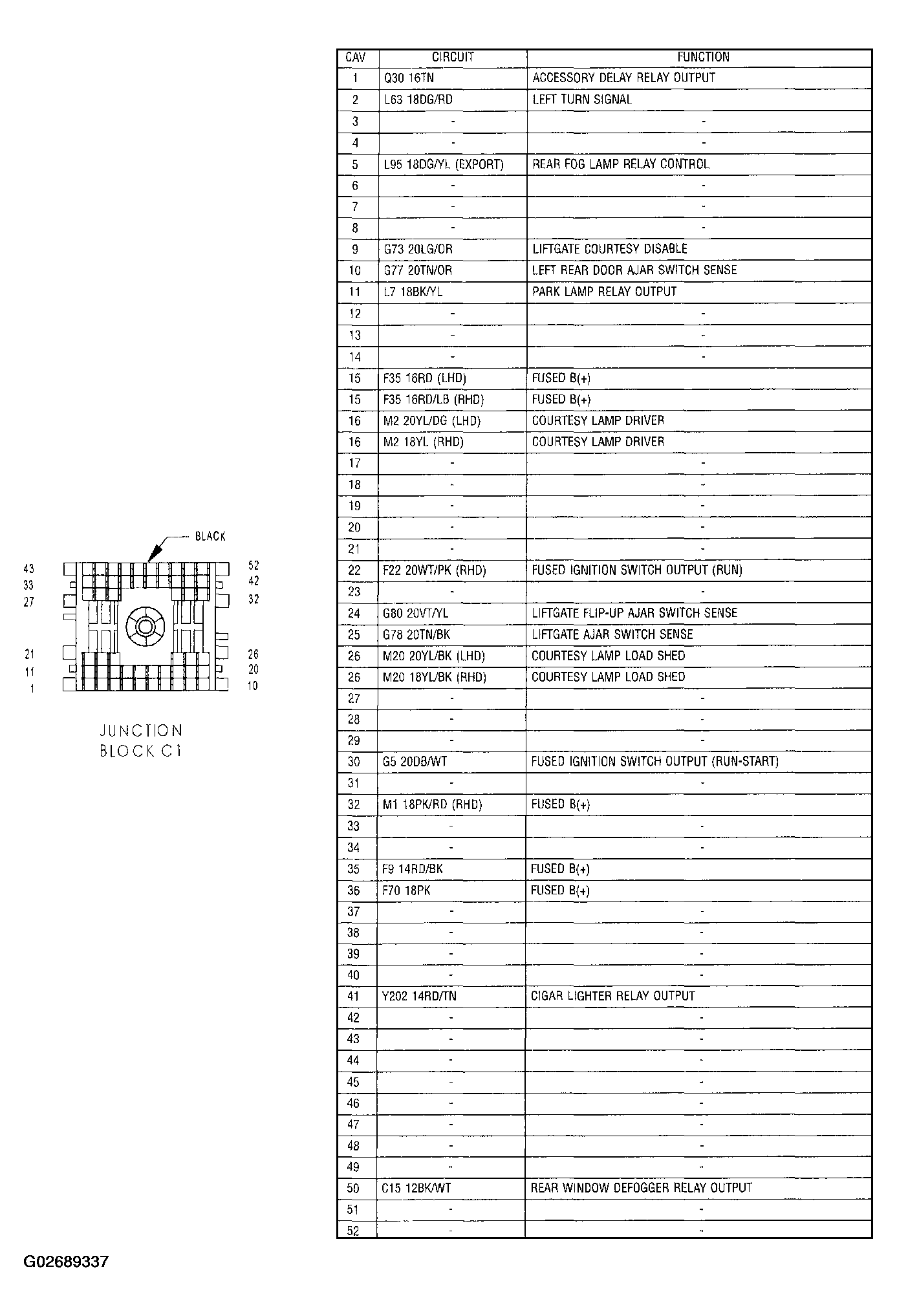

Fig 92: Identifying Junction Block C1 Connector Pinouts

G02689337

Courtesy of DAIMLERCHRYSLER CORP.

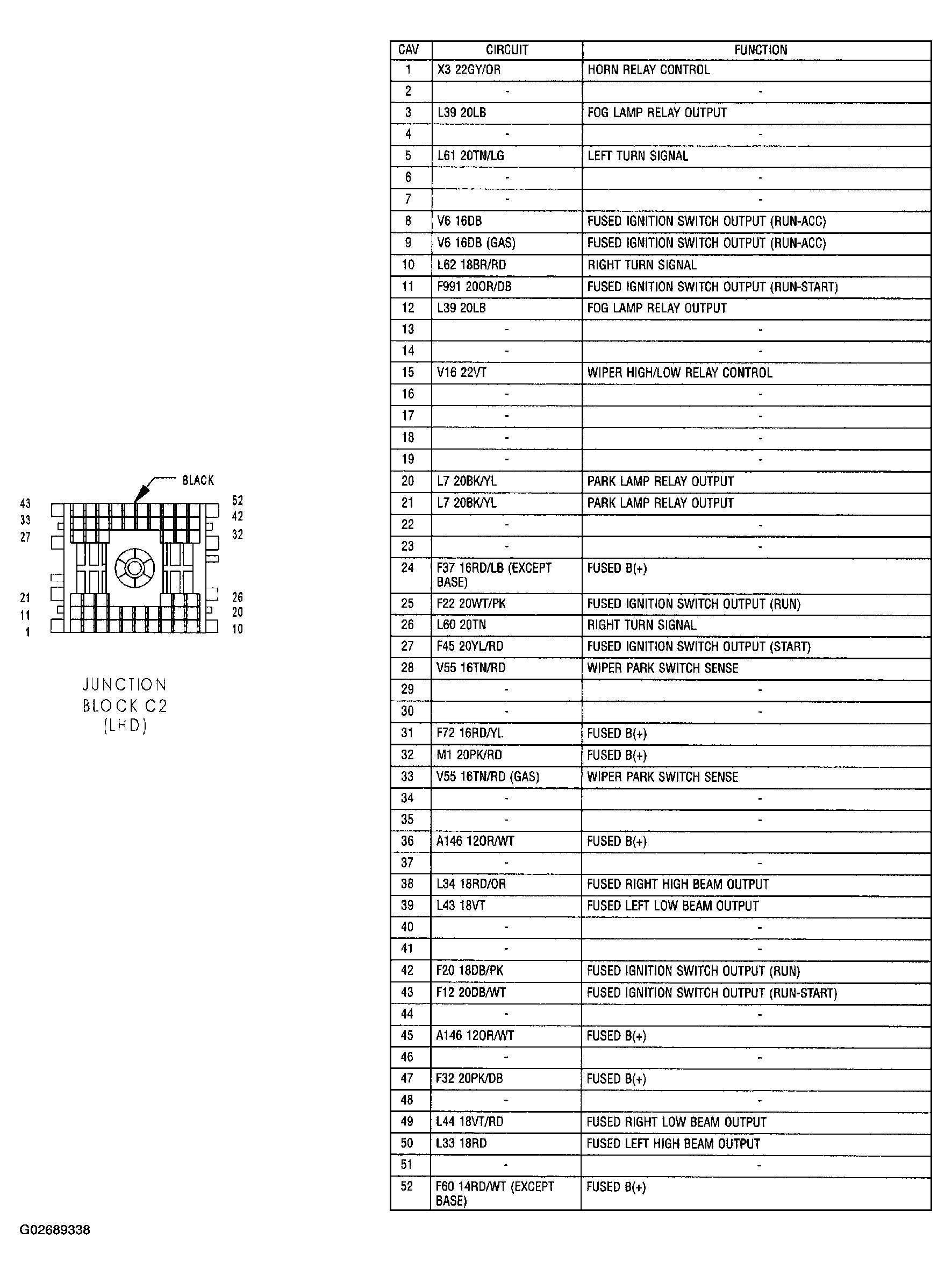

Fig 93: Identifying Junction Block C2 (LHP) Connector Pinouts

G02689338

Courtesy of DAIMLERCHRYSLER CORP.

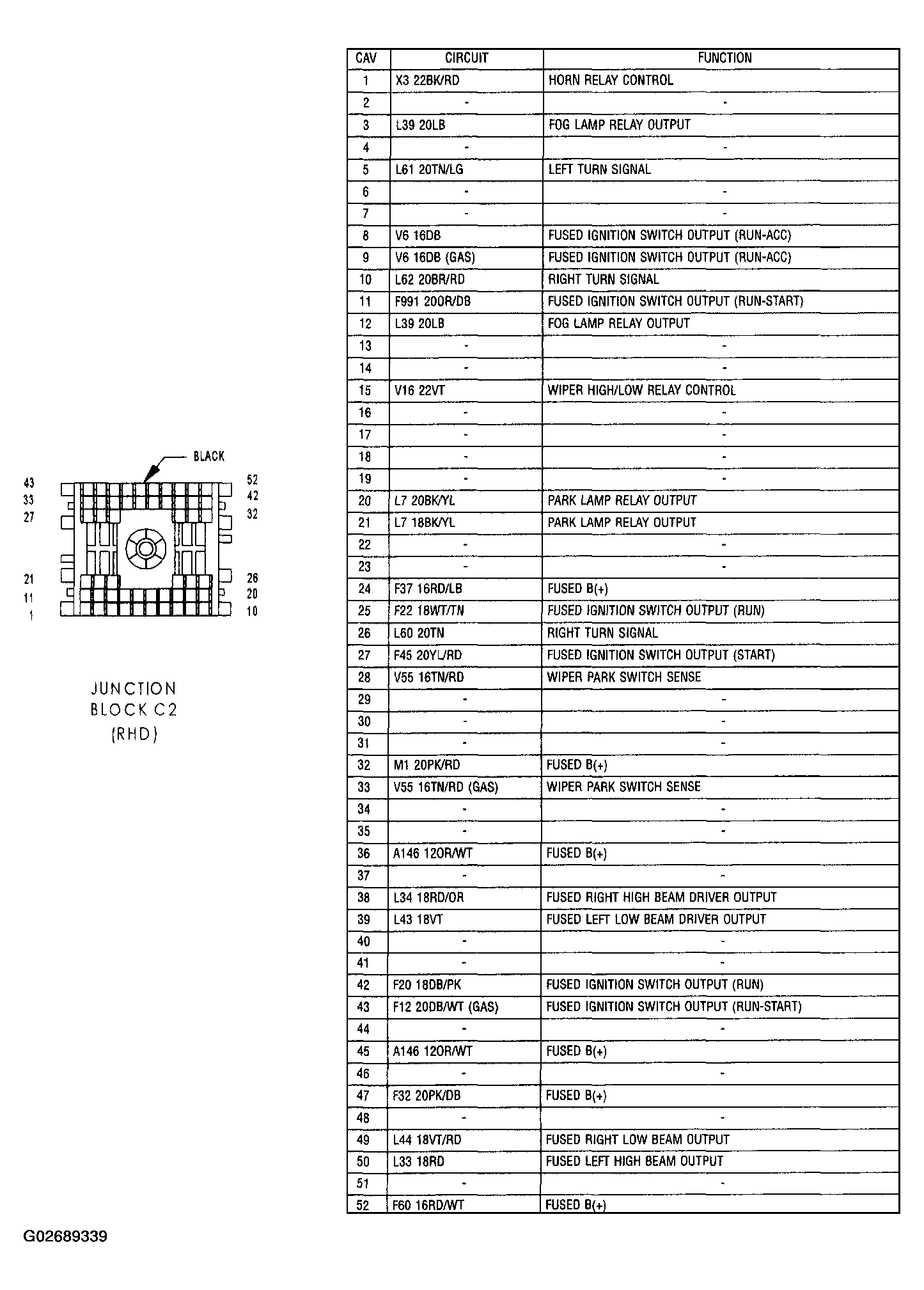

Fig 94: Identifying Junction Block C2 (RHD) Connector Pinouts

G02689339

Courtesy of DAIMLERCHRYSLER CORP.

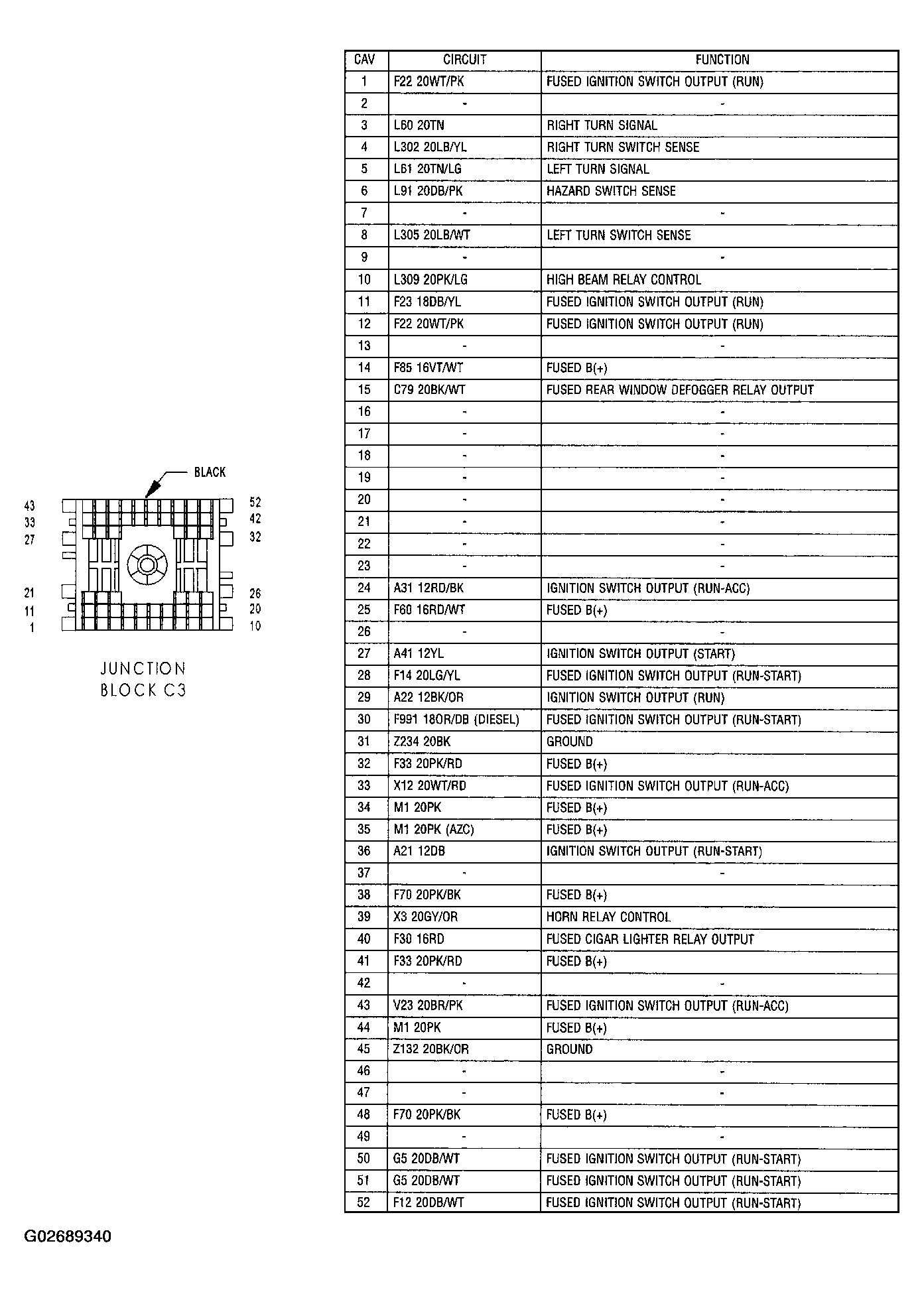

Fig 95: Identifying Junction Block C3 Connector Pinouts

G02689340

Courtesy of DAIMLERCHRYSLER CORP.

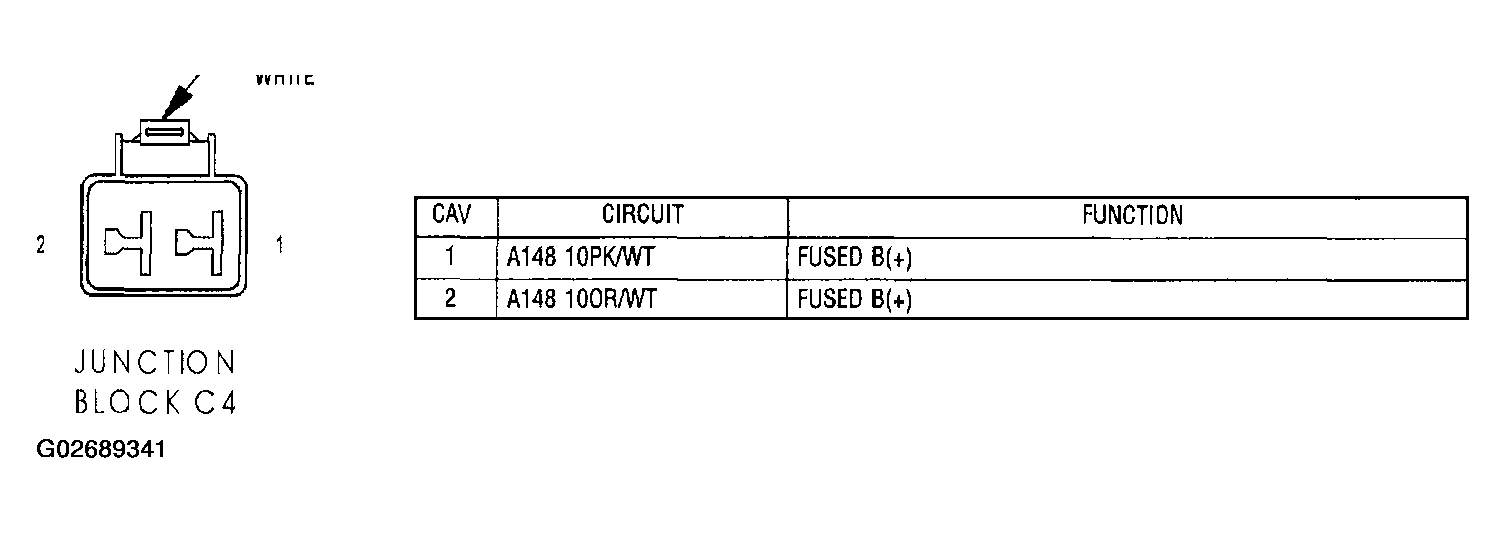

Fig 96: Identifying Junction Block C4 Connector Pinouts

G02689341

Courtesy of DAIMLERCHRYSLER CORP.

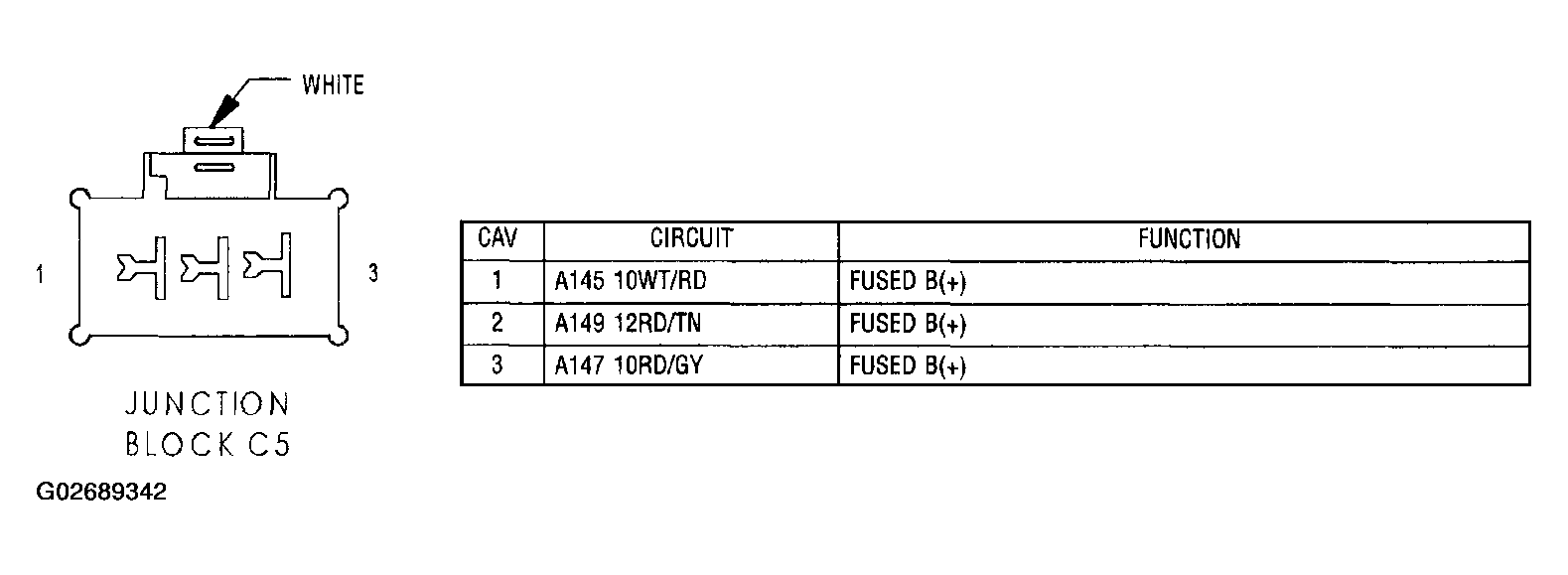

Fig 97: Identifying Junction Block C5 Connector Pinouts

G02689342

Courtesy of DAIMLERCHRYSLER CORP.

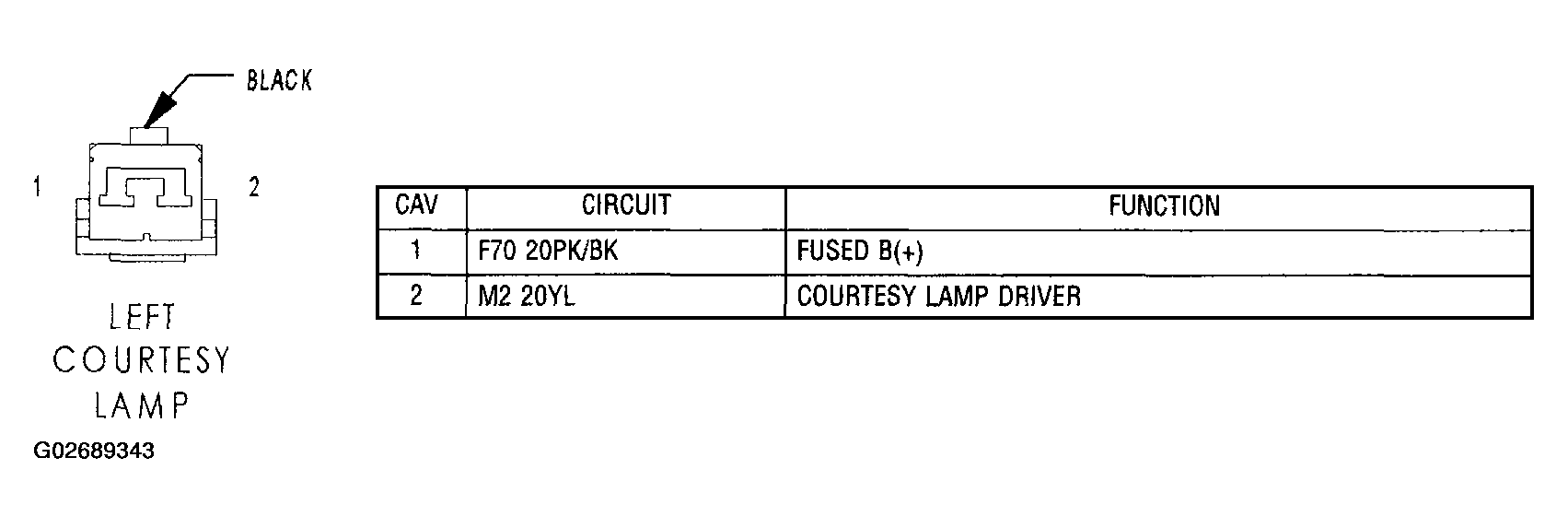

Fig 98: Identifying Left Courtesy Lamp Connector Pinouts

G02689343

Courtesy of DAIMLERCHRYSLER CORP.

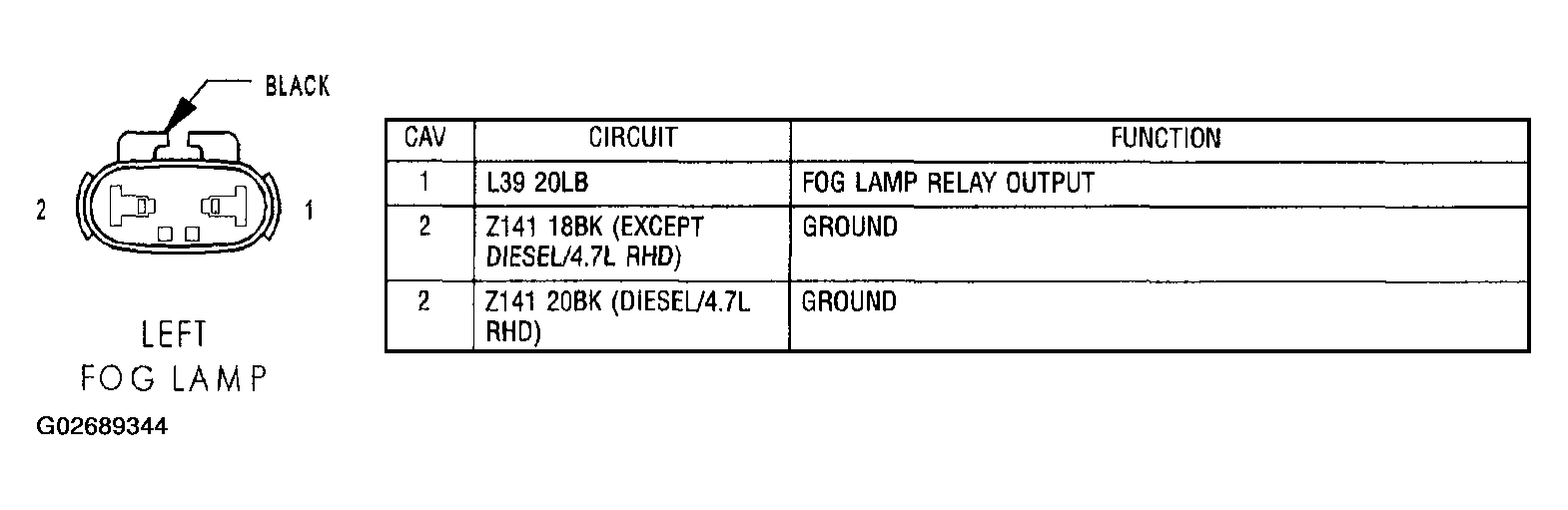

Fig 99: Identifying Connector Pinouts Left Fog Lamp Connector Pinouts

G02689344

Courtesy of DAIMLERCHRYSLER CORP.

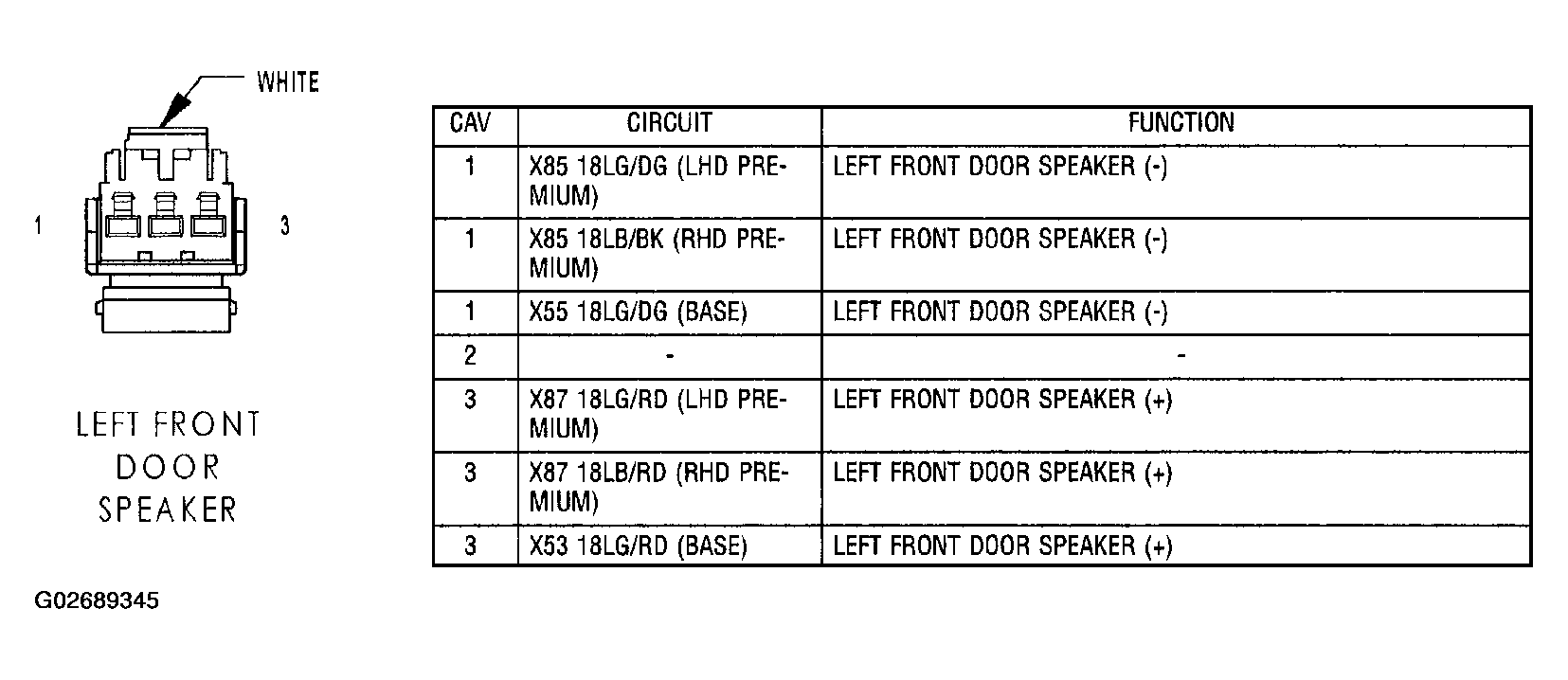

Fig 100: Identifying Connector Left Front Door Speaker Connector Pinouts

G02689345

Courtesy of DAIMLERCHRYSLER CORP.

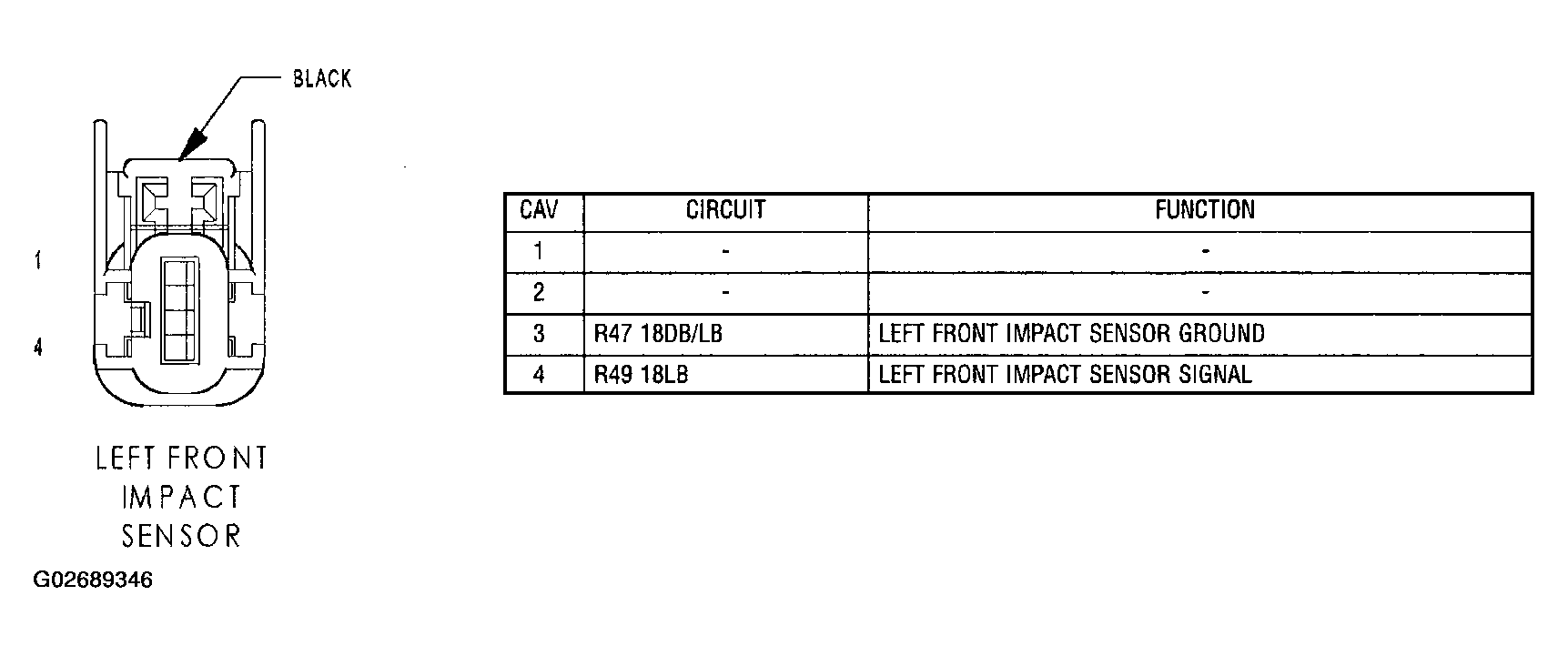

Fig 101: Identifying Connector Left Front Impact Sensor Connector Pinouts

G02689346

Courtesy of DAIMLERCHRYSLER CORP.

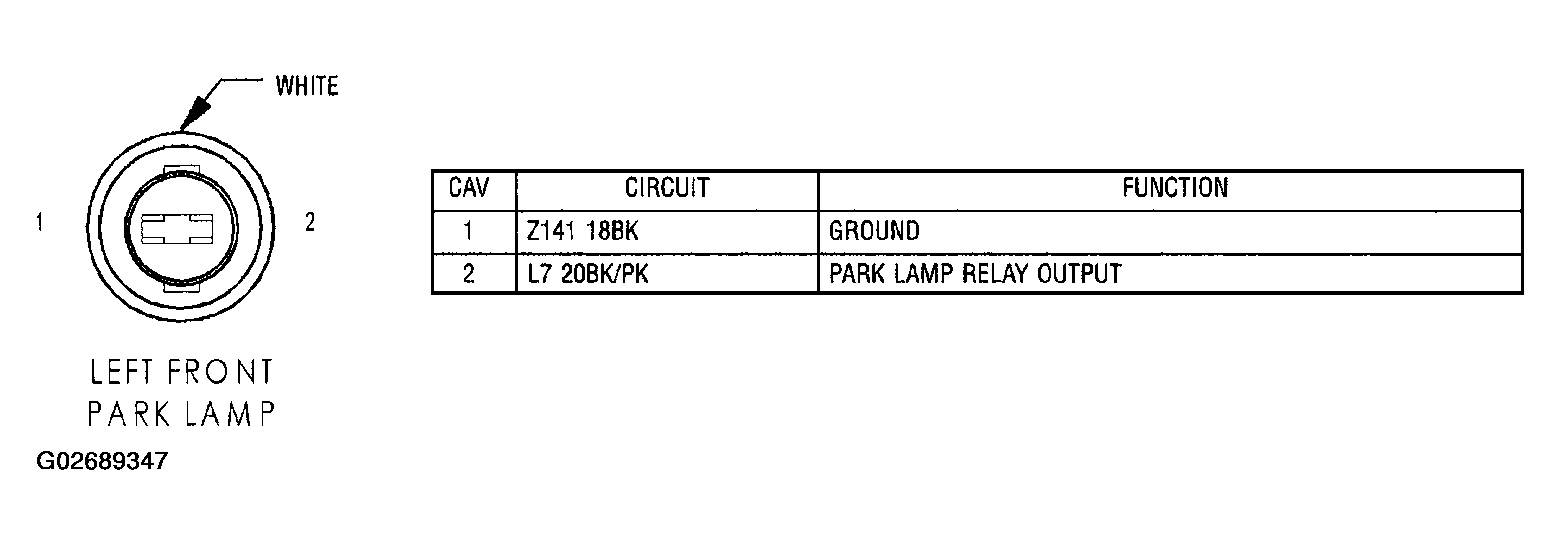

Fig 102: Identifying Left Front Park Lamp Connector Pinouts

G02689347

Courtesy of DAIMLERCHRYSLER CORP.

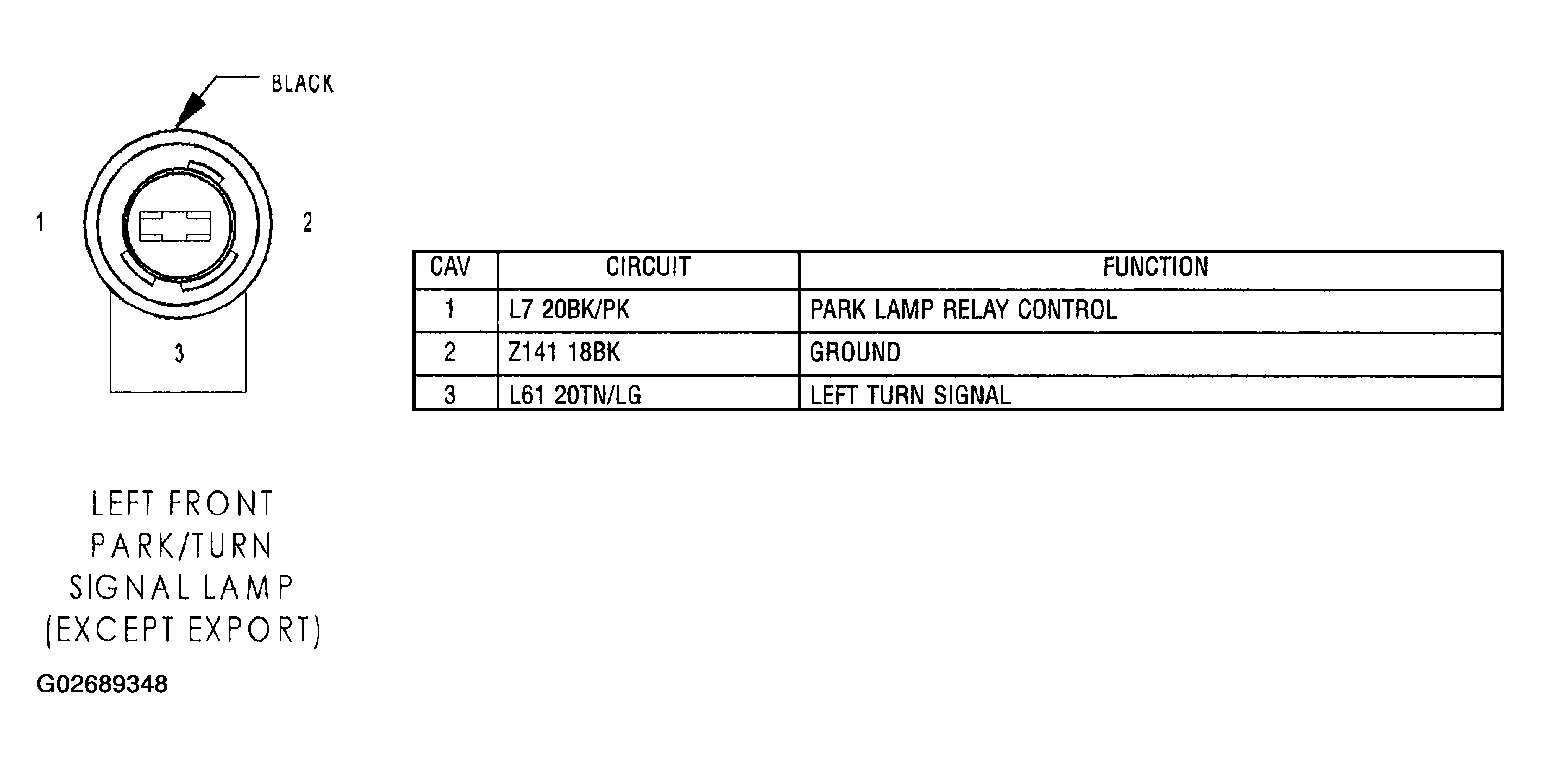

Fig 103: Identifying Left Front Park/Turn Signal Lamp (Except Export) Connector Pinouts

G02689348

Courtesy of DAIMLERCHRYSLER CORP.

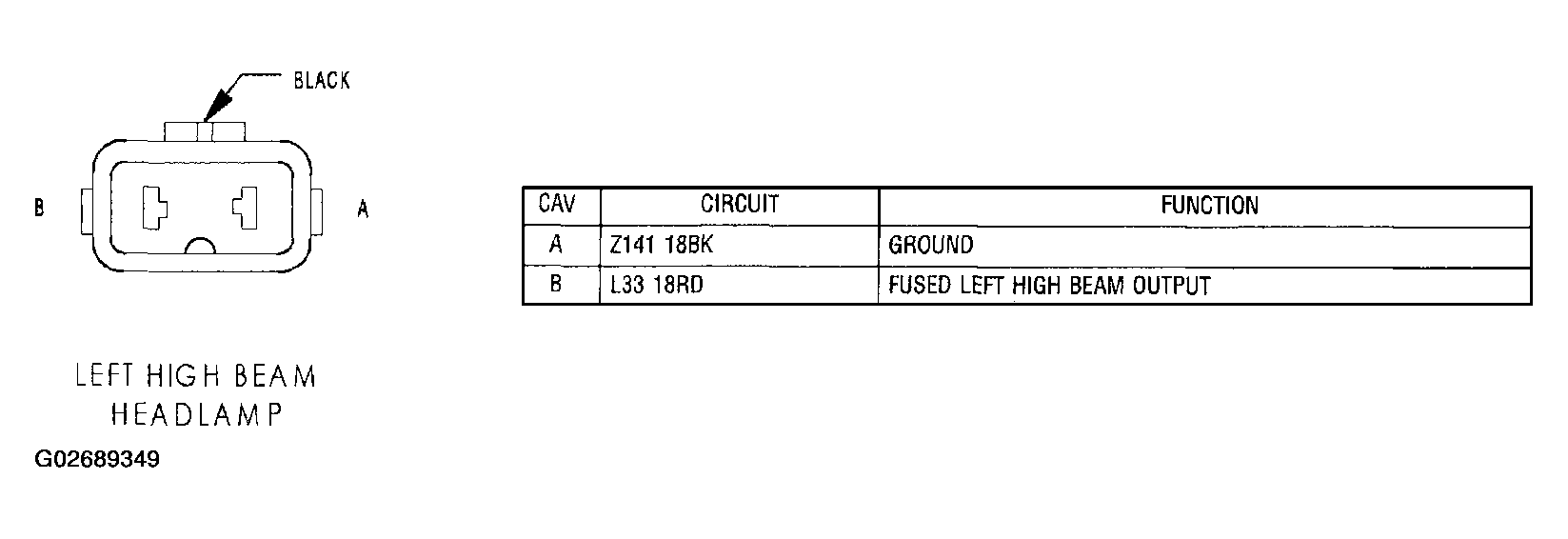

Fig 104: Identifying Left High Beam Headlamp Connector Pinouts

G02689349

Courtesy of DAIMLERCHRYSLER CORP.

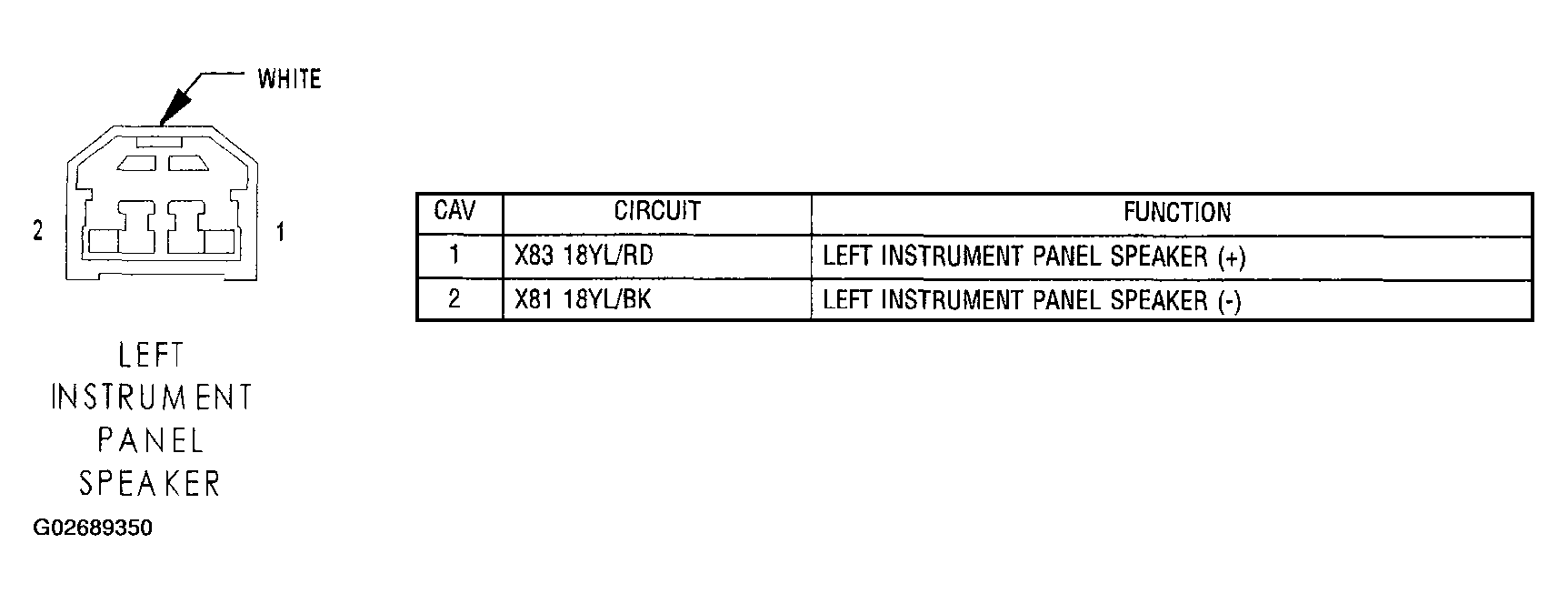

Fig 105: Identifying Left Instrument Panel Speaker Connector Pinouts

G02689350

Courtesy of DAIMLERCHRYSLER CORP.

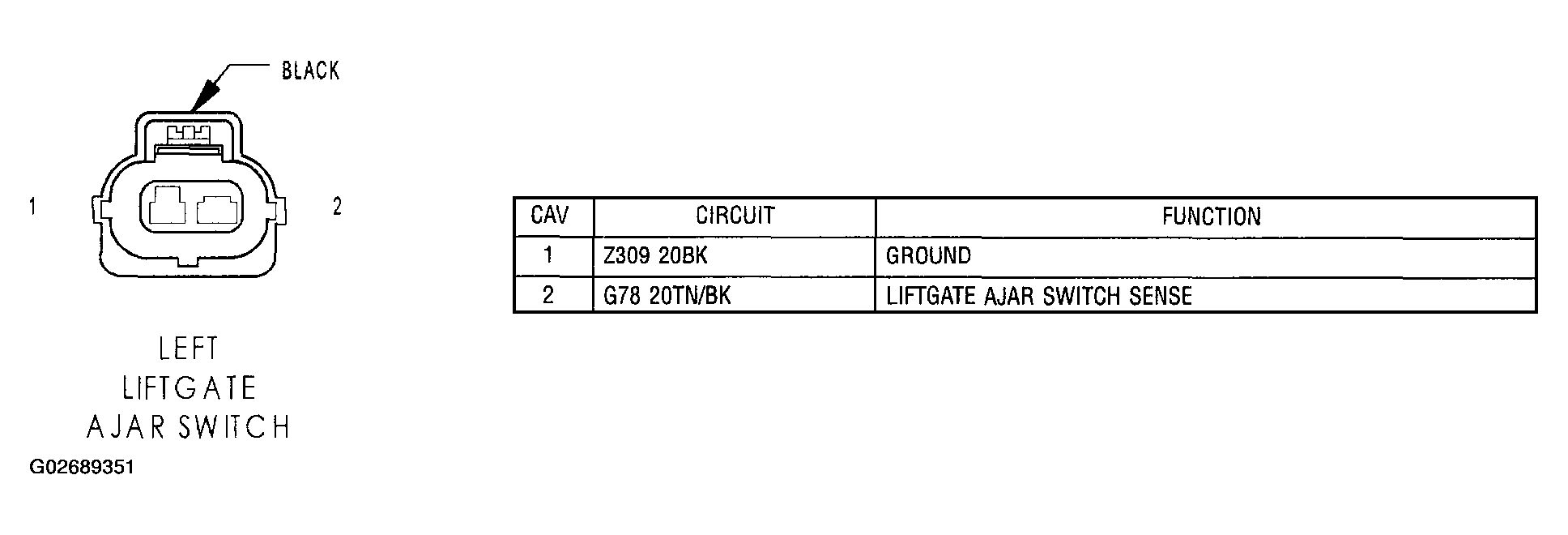

Fig 106: Identifying Left Liftgate Ajar Switch Connector Pinouts

G02689351

Courtesy of DAIMLERCHRYSLER CORP.

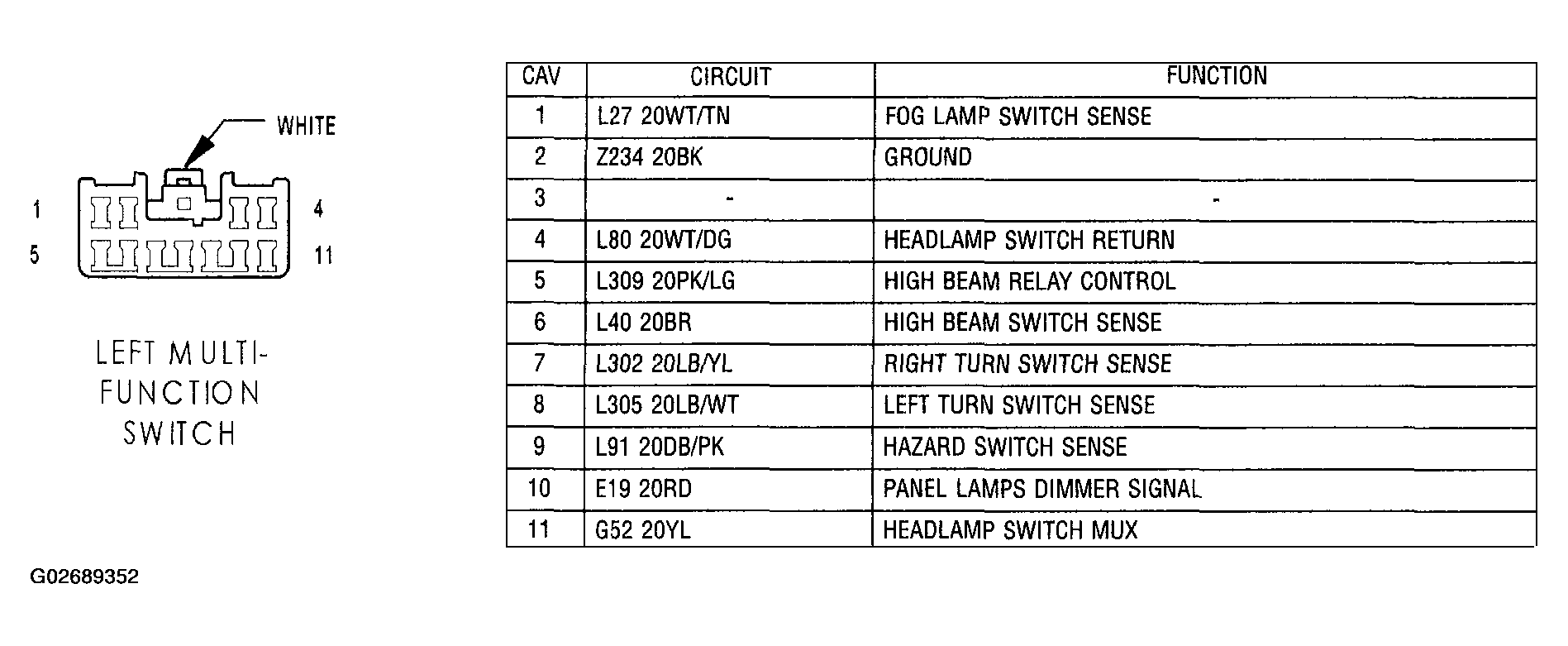

Fig 107: Identifying Left Multi-Function Switch Connector Pinouts

G02689352

Courtesy of DAIMLERCHRYSLER CORP.

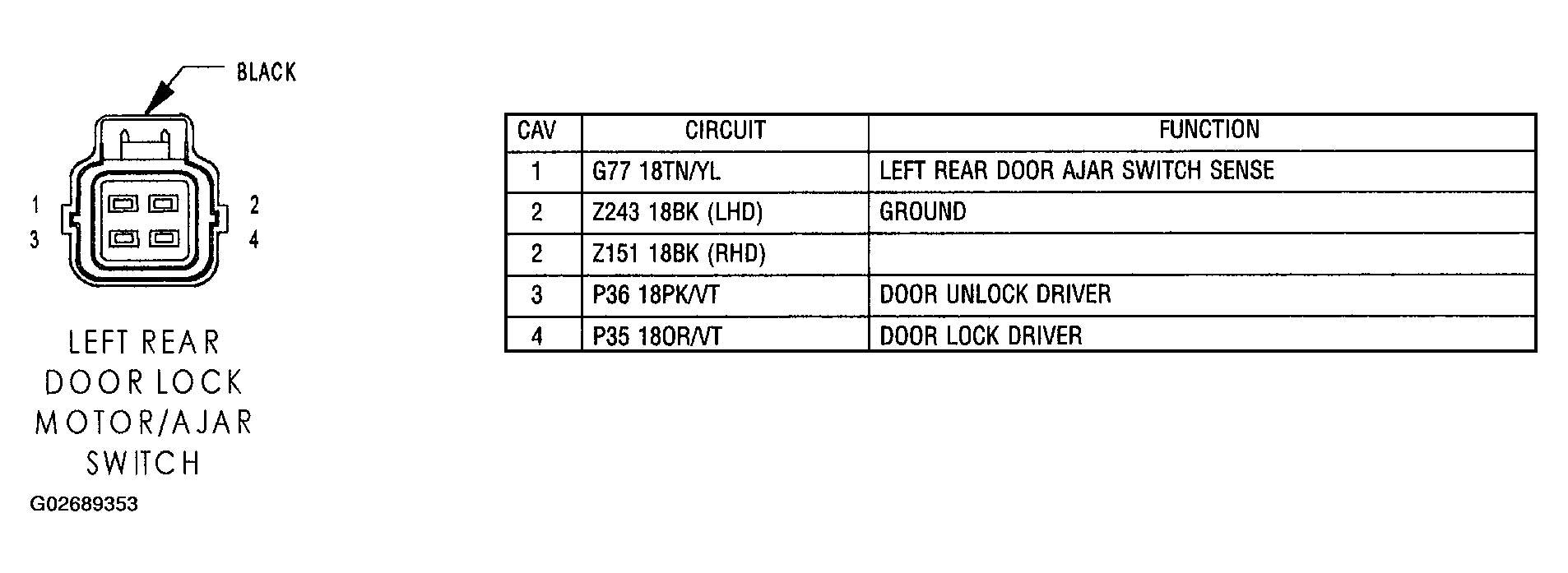

Fig 108: Identifying Left Rear Door Lock Motor/Ajar Switch Connector Pinouts

G02689353

Courtesy of DAIMLERCHRYSLER CORP.

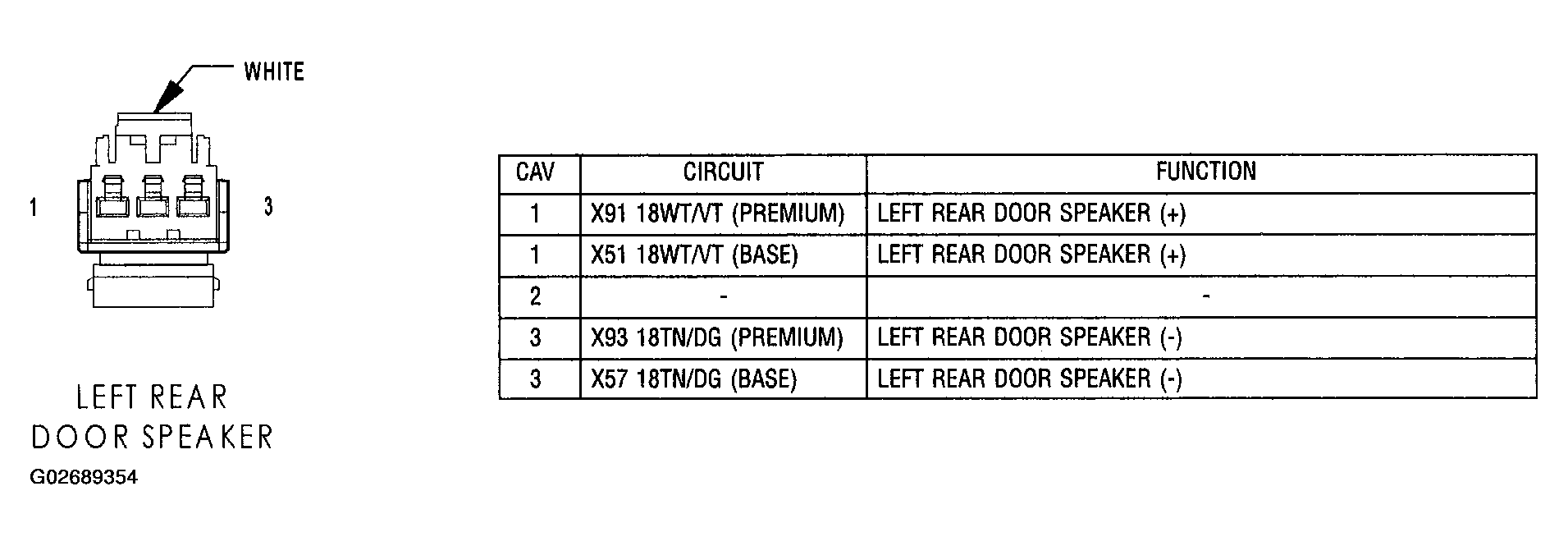

Fig 109: Identifying Left Rear Door Speaker Connector Pinouts

G02689354

Courtesy of DAIMLERCHRYSLER CORP.

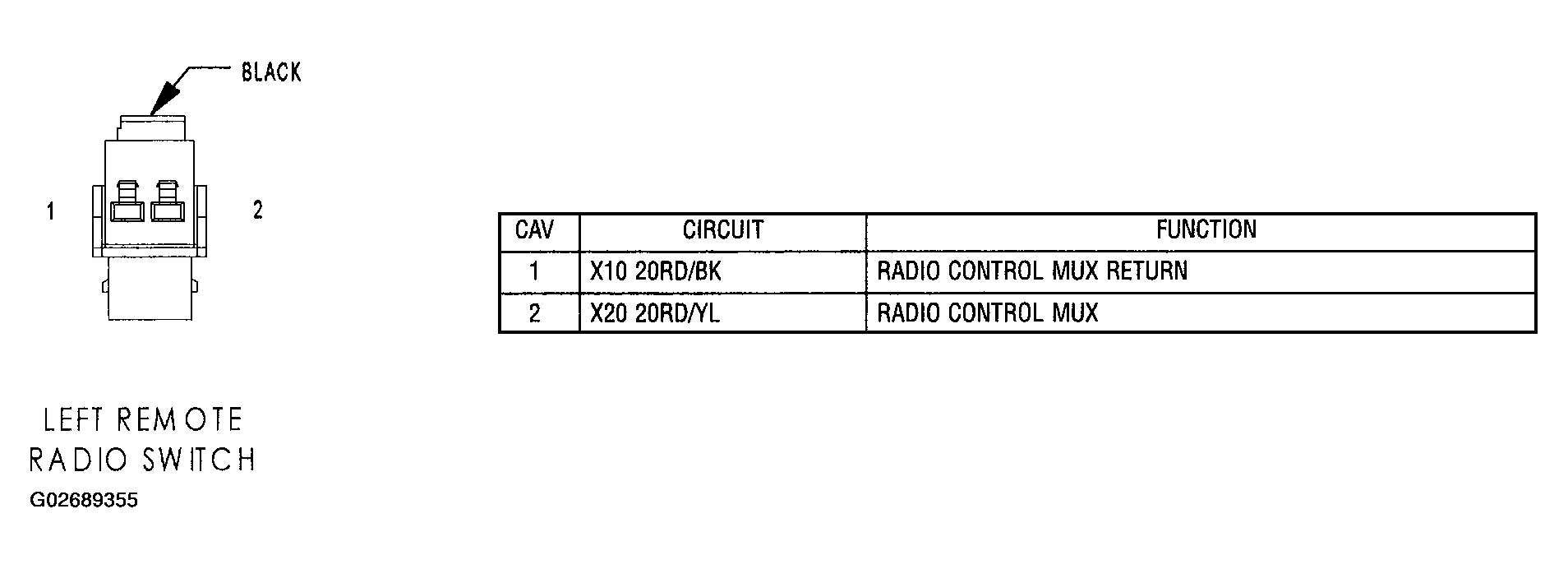

Fig 110: Identifying Left Remote Radio Switch Connector Pinouts

G02689355

Courtesy of DAIMLERCHRYSLER CORP.

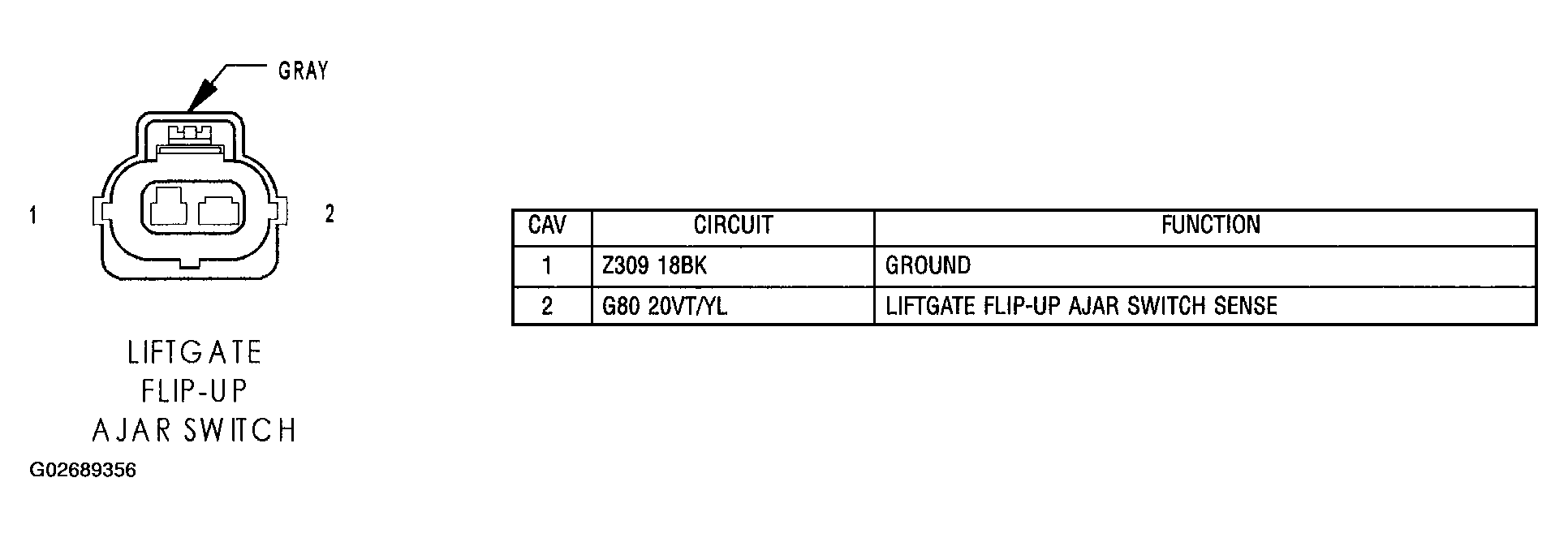

Fig 111: Identifying Liftgate Flip-Up Ajar Switch Connector Pinouts

G02689356

Courtesy of DAIMLERCHRYSLER CORP.

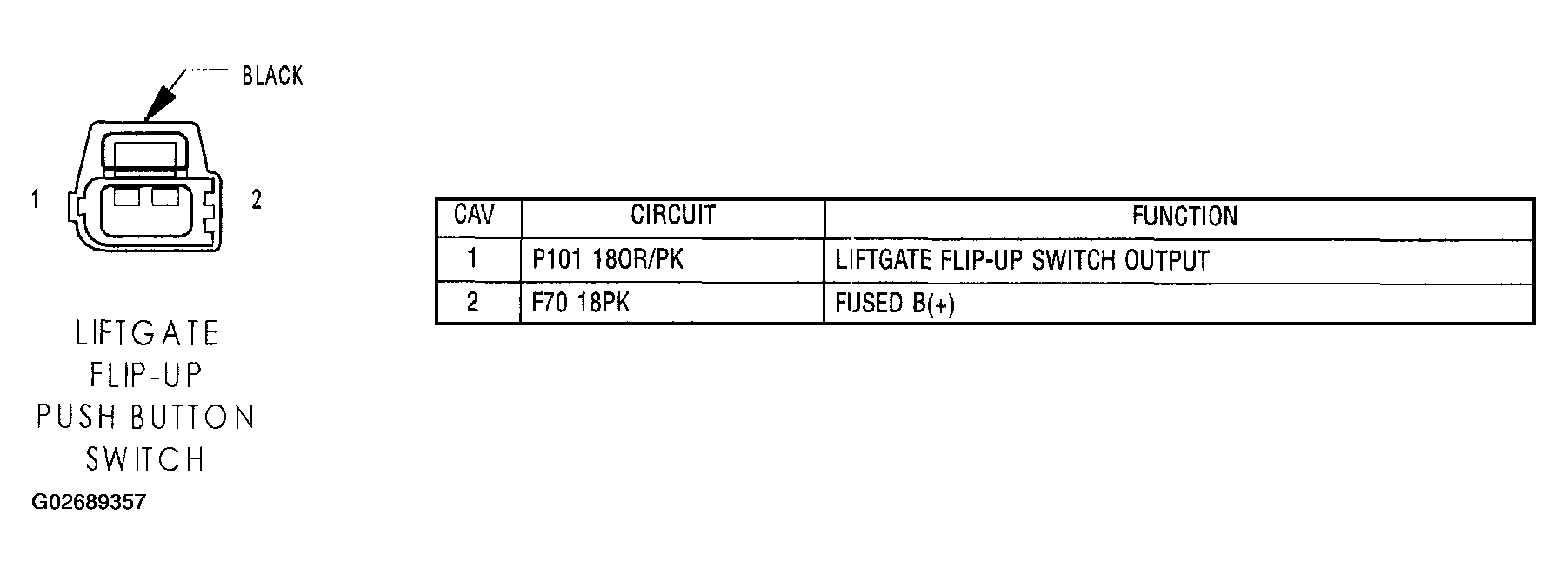

Fig 112: Identifying Liftgate Flip-Up Push Button Switch Connector Pinouts

G02689357

Courtesy of DAIMLERCHRYSLER CORP.

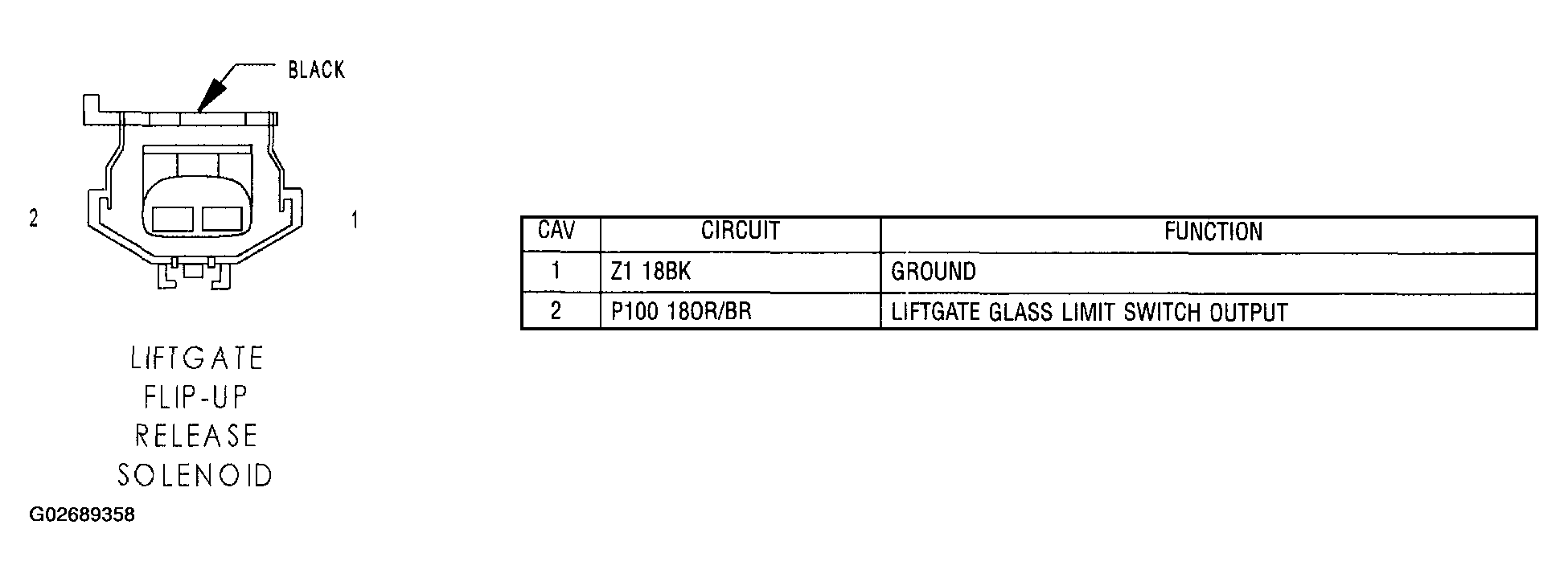

Fig 113: Identifying Liftgate Flip-Up Release Solenoid Connector Pinouts

G02689358

Courtesy of DAIMLERCHRYSLER CORP.

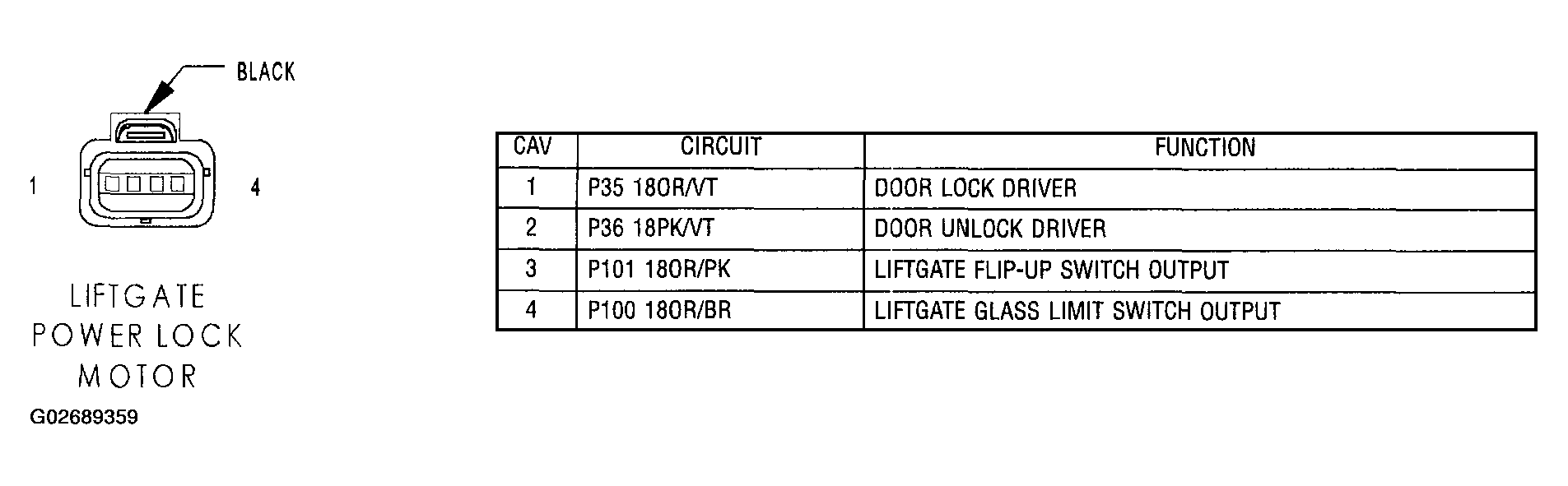

Fig 114: Identifying Liftgate Power Lock Motor Connector Pinouts

G02689359

Courtesy of DAIMLERCHRYSLER CORP.

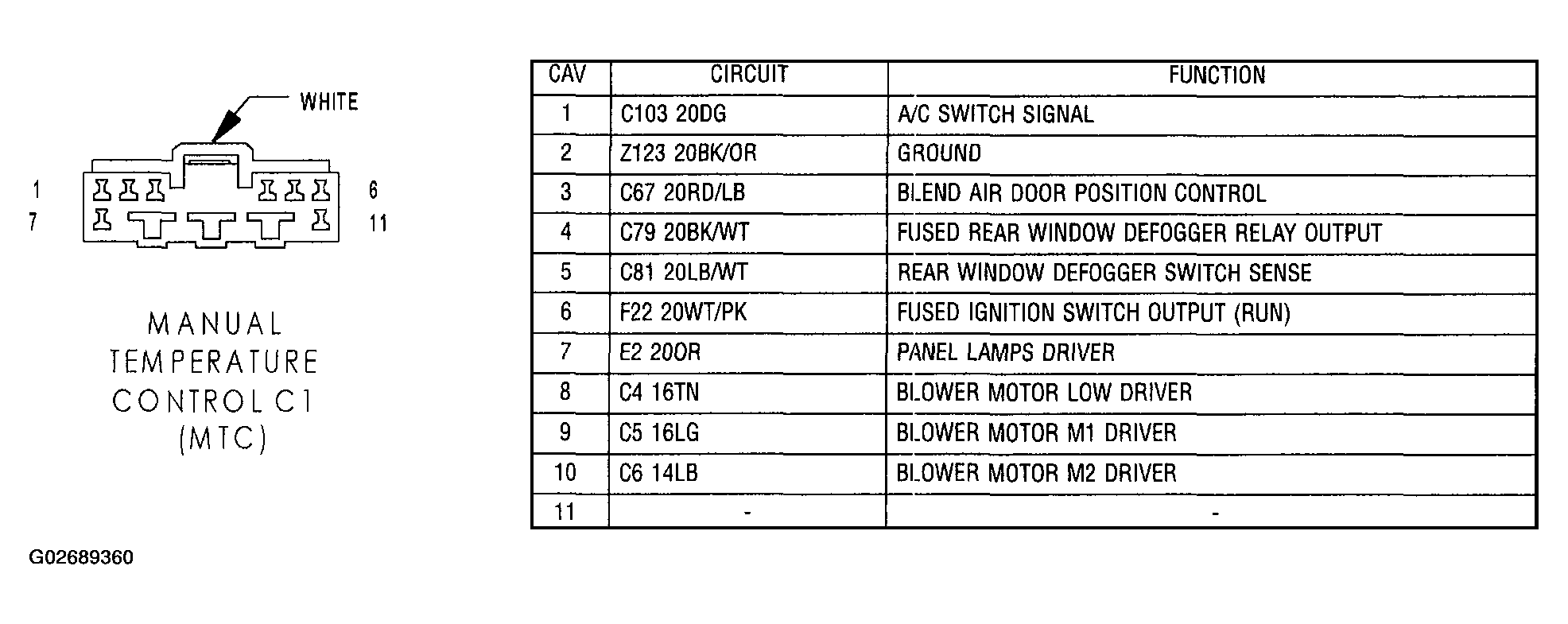

Fig 115: Identifying Manual Temperature Control C1 (MTC) Connector Pinouts

G02689360

Courtesy of DAIMLERCHRYSLER CORP.

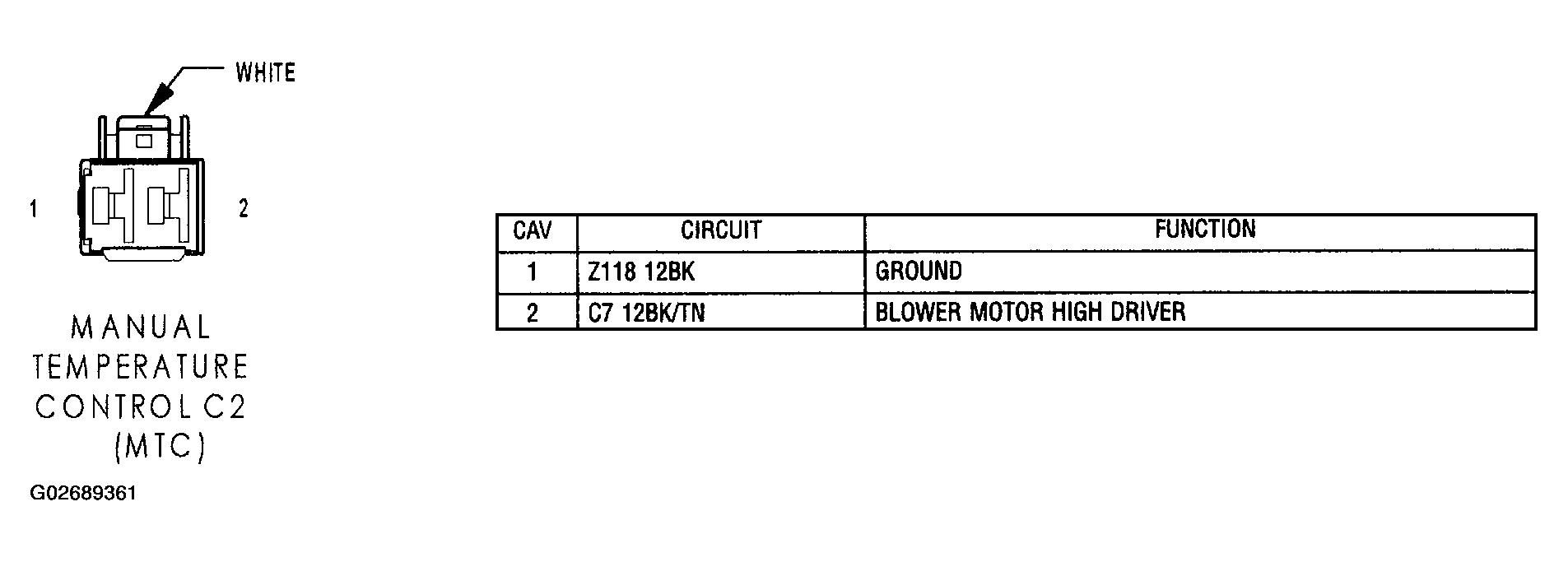

Fig 116: Identifying Manual Temperature Control C2 (MTC) Connector Pinouts

G02689361

Courtesy of DAIMLERCHRYSLER CORP.

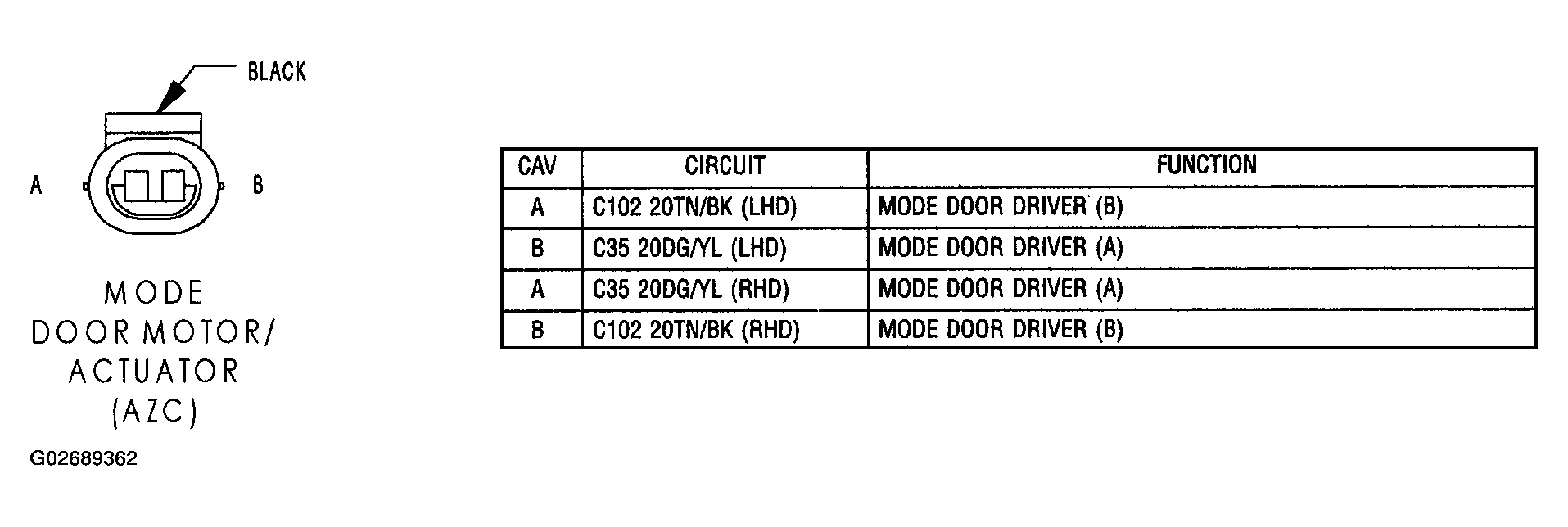

Fig 117: Identifying Mode Door Motor/Actuator (AZC) Connector Pinouts

G02689362

Courtesy of DAIMLERCHRYSLER CORP.

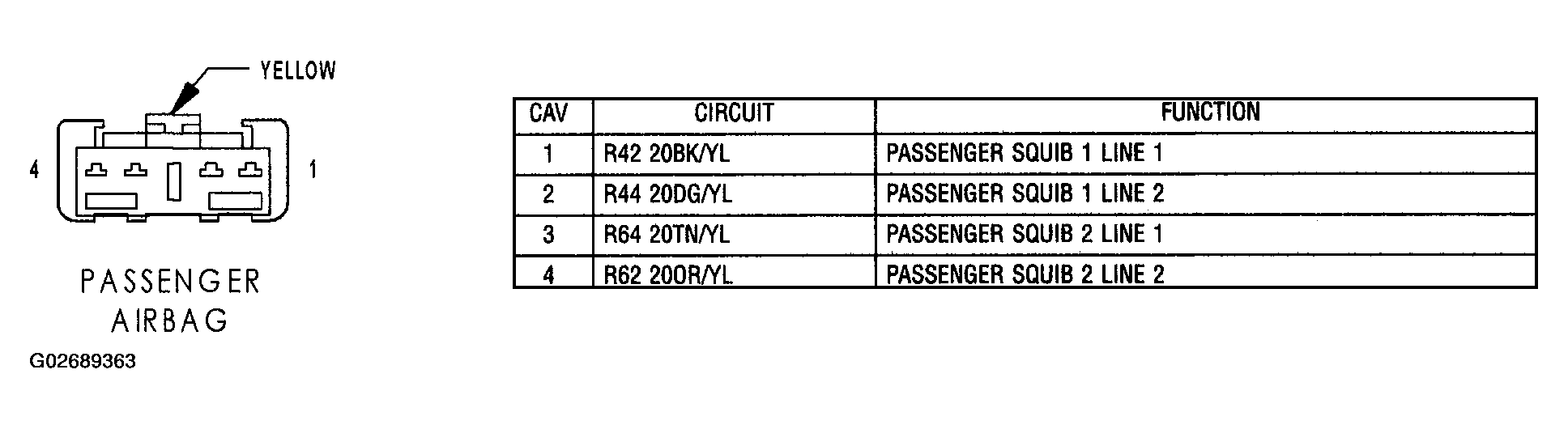

Fig 118: Identifying Passenger Airbag Connector Pinouts

G02689363

Courtesy of DAIMLERCHRYSLER CORP.

Fig 119: Identifying Passenger Blend Door Motor/Actuator (LHP AZC) Connector Pinouts

G02689364

Courtesy of DAIMLERCHRYSLER CORP.

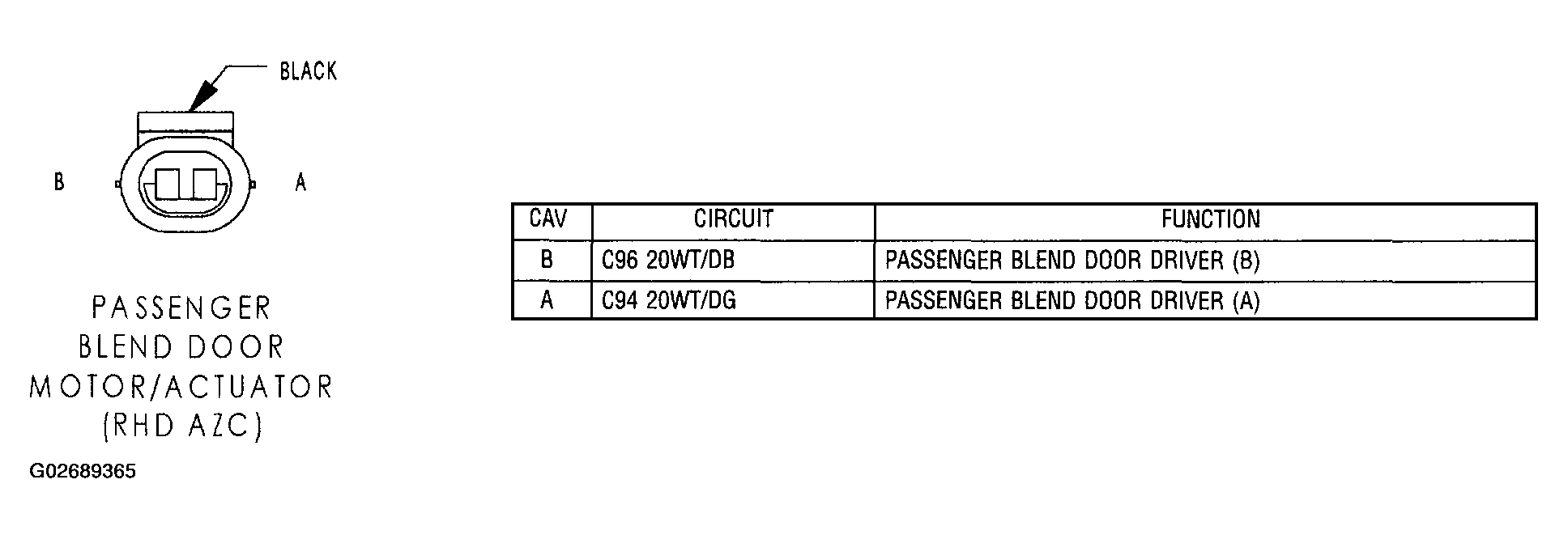

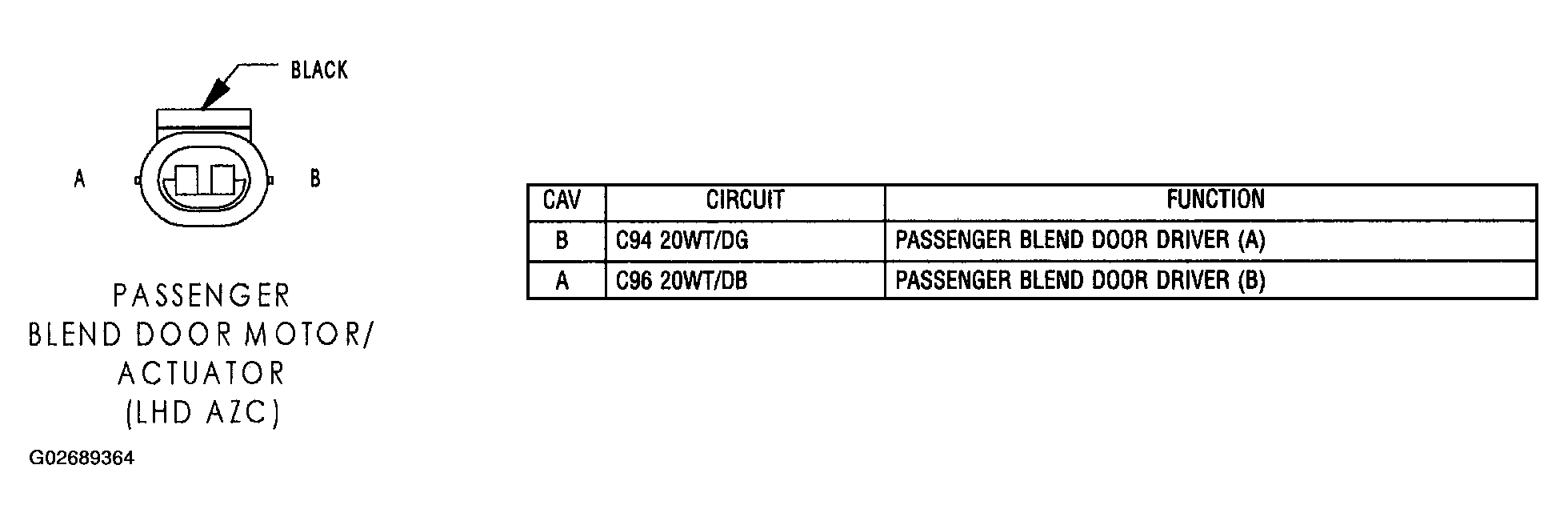

Fig 120: Identifying Passenger Blend Door Motor/Actuator (RHP AZC) Connector Pinouts

G02689365

Courtesy of DAIMLERCHRYSLER CORP.

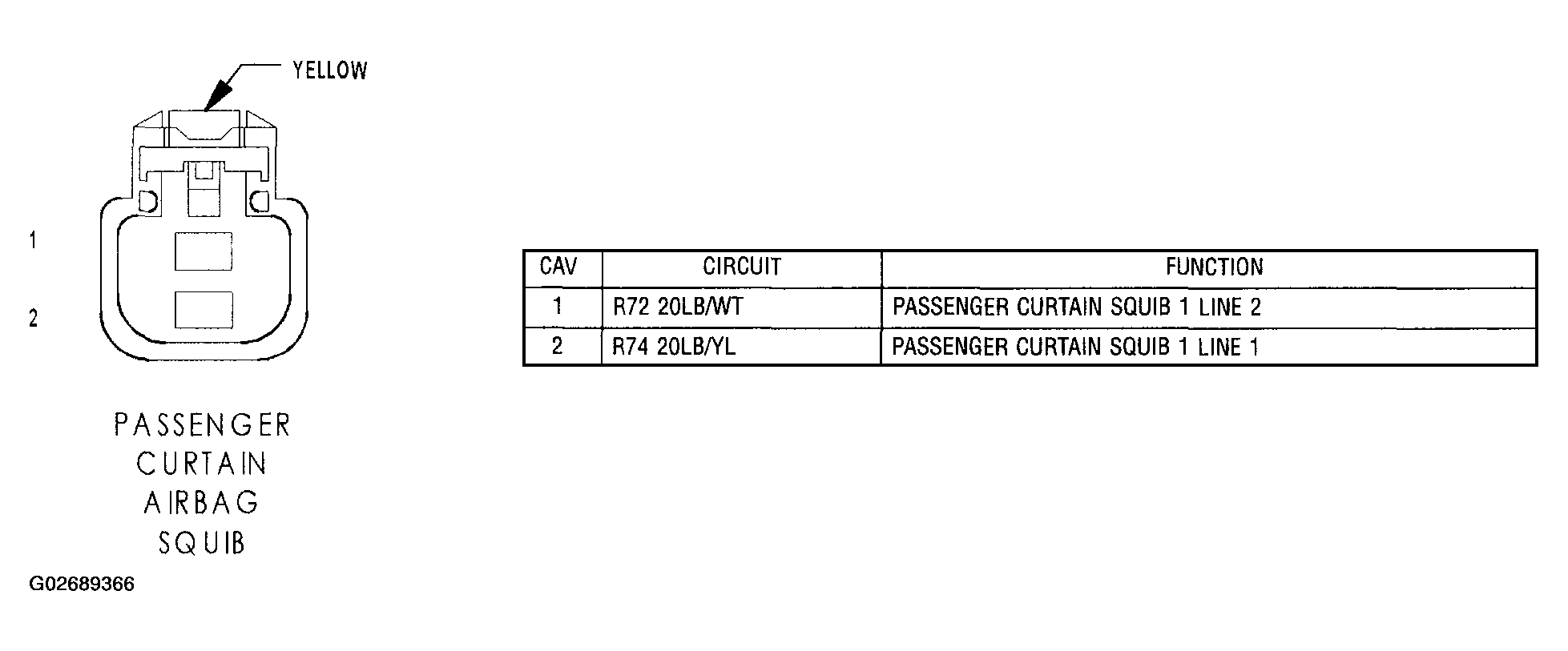

Fig 121: Identifying Passenger Curtain Airbag Squib Connector Pinouts

G02689366

Courtesy of DAIMLERCHRYSLER CORP.

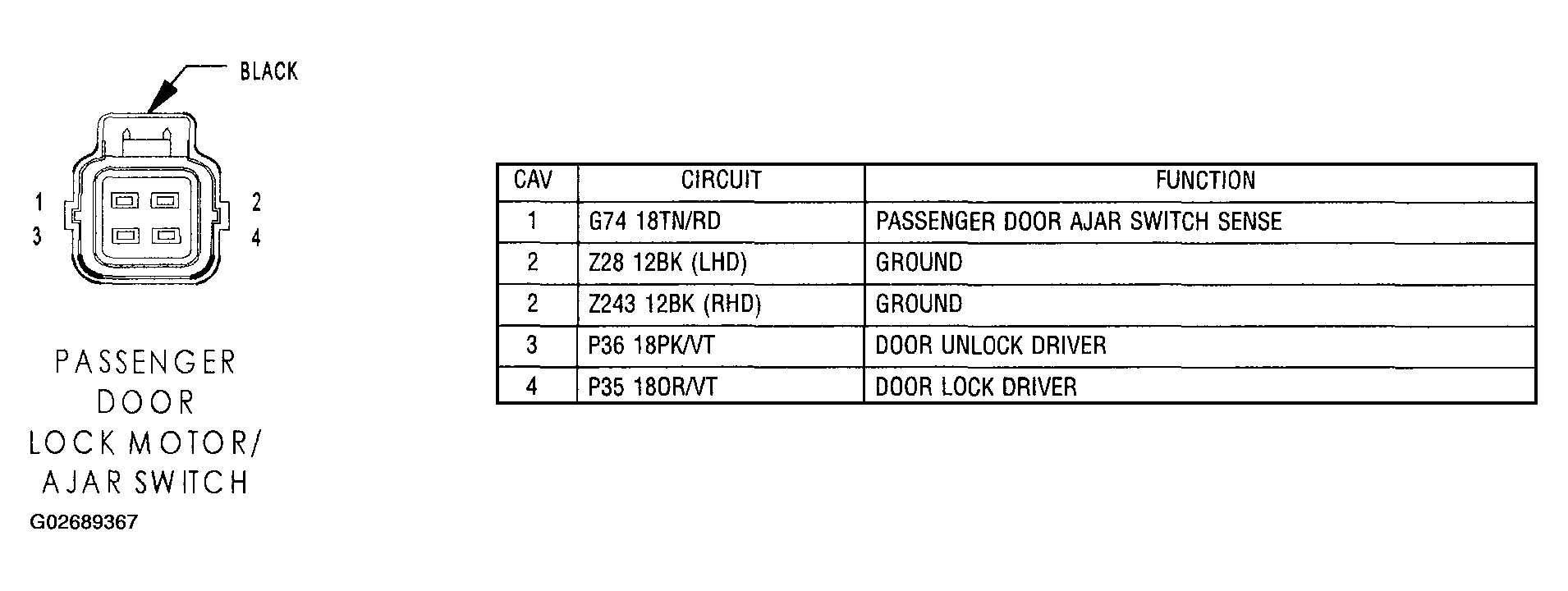

Fig 122: Identifying Passenger Door Lock Motor/Ajar Switch Connector Pinouts

G02689367

Courtesy of DAIMLERCHRYSLER CORP.

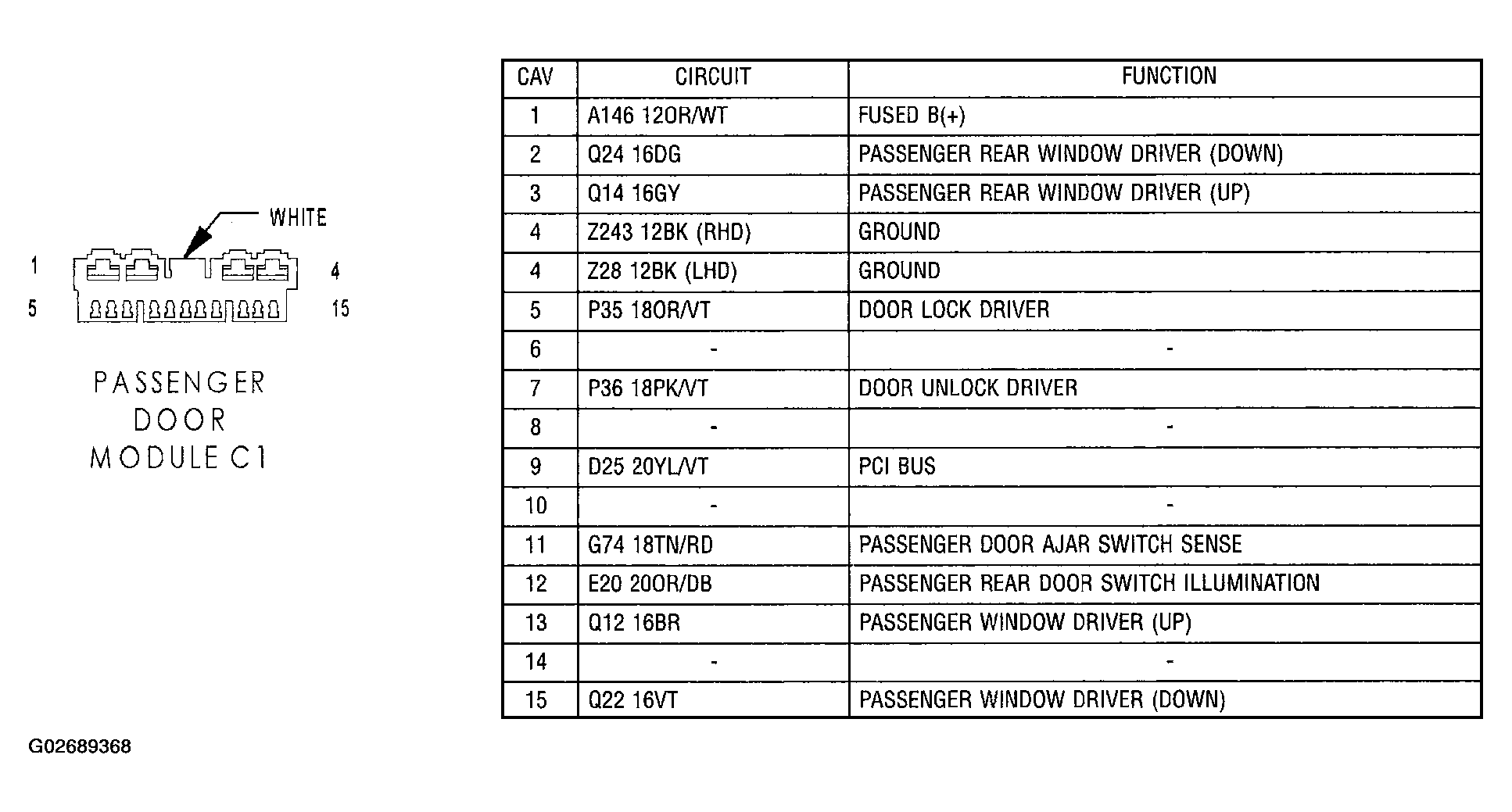

Fig 123: Identifying Passenger Door Module C1 Connector Pinouts

G02689368

Courtesy of DAIMLERCHRYSLER CORP.

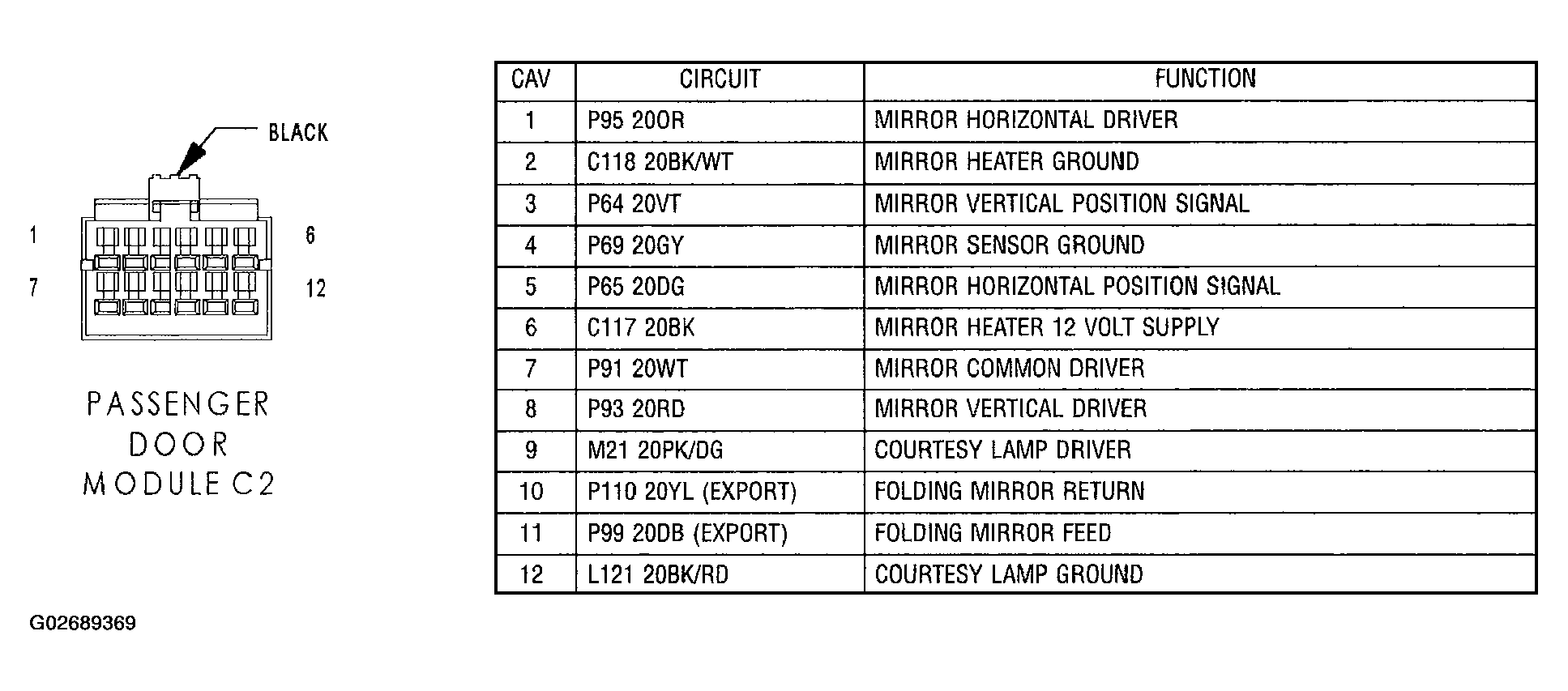

Fig 124: Identifying Passenger Door Module C2 Connector Pinouts

G02689369

Courtesy of DAIMLERCHRYSLER CORP.

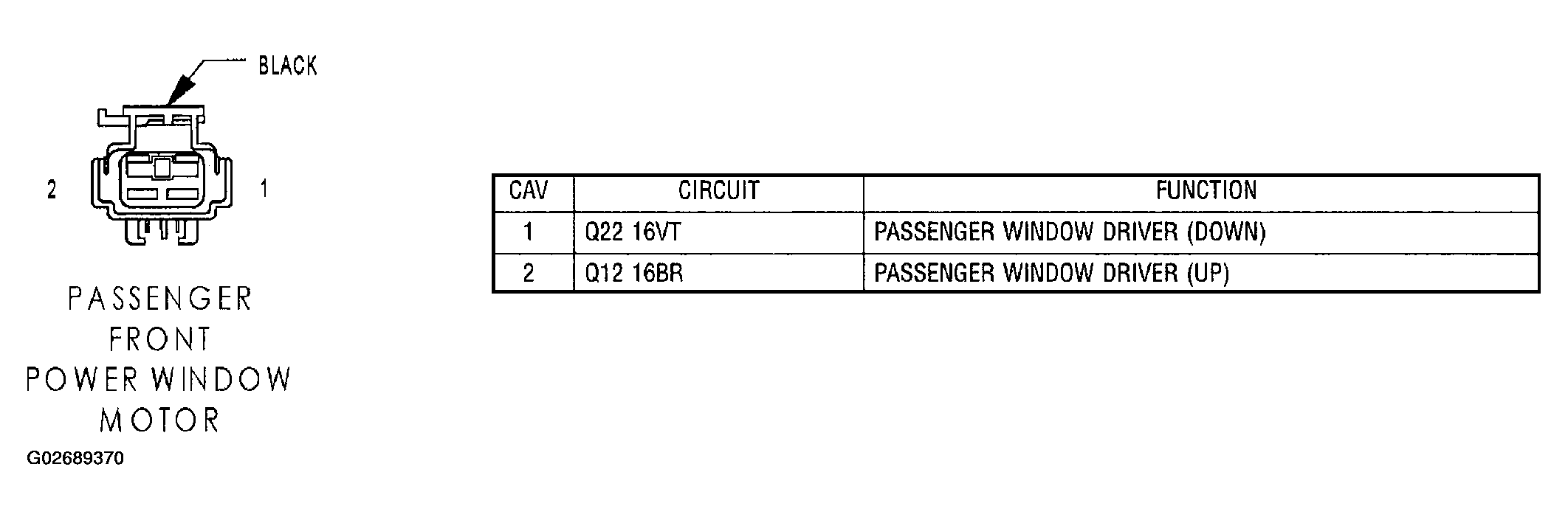

Fig 125: Identifying Passenger Front Power Window Motor Connector Pinouts

G02689370

Courtesy of DAIMLERCHRYSLER CORP.

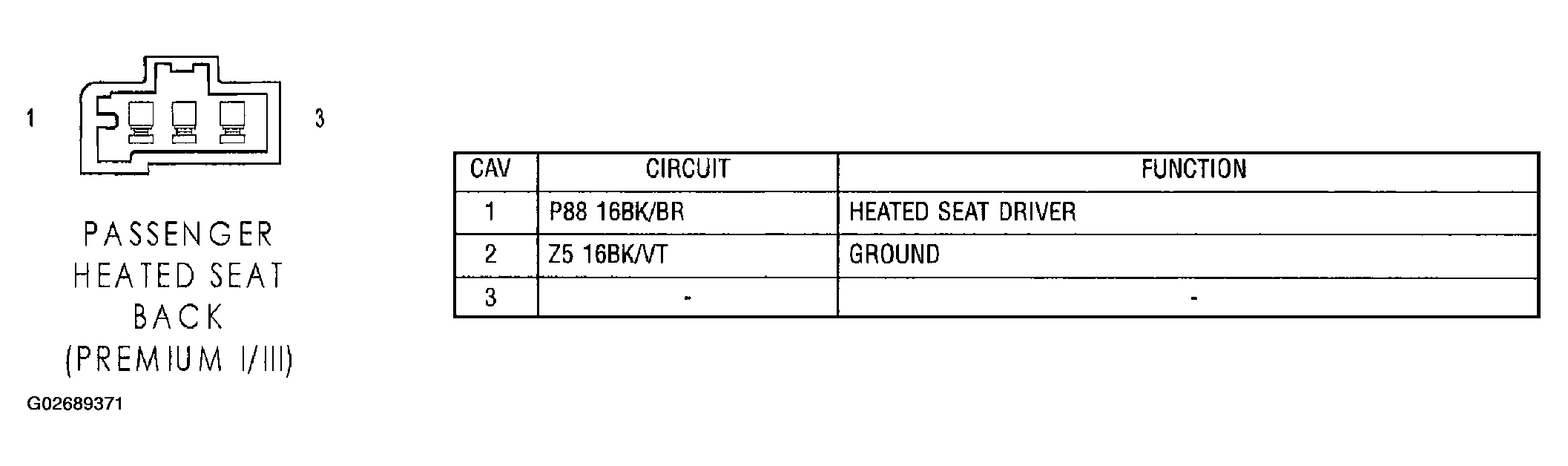

Fig 126: Identifying Passenger Heated Seat Back (Premium I/III) Connector Pinouts

G02689371

Courtesy of DAIMLERCHRYSLER CORP.

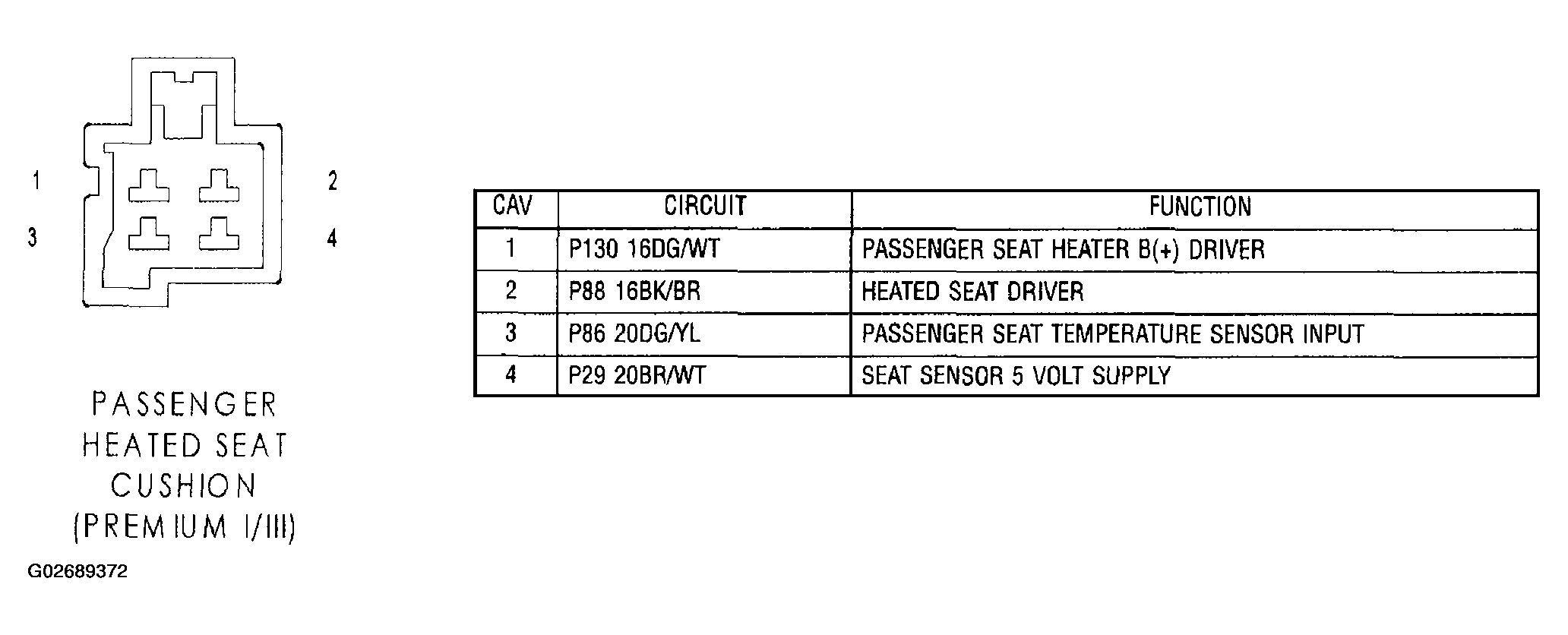

Fig 127: Identifying Passenger Heated Seat Cushion (Premium I/III) Connector Pinouts

G02689372

Courtesy of DAIMLERCHRYSLER CORP.

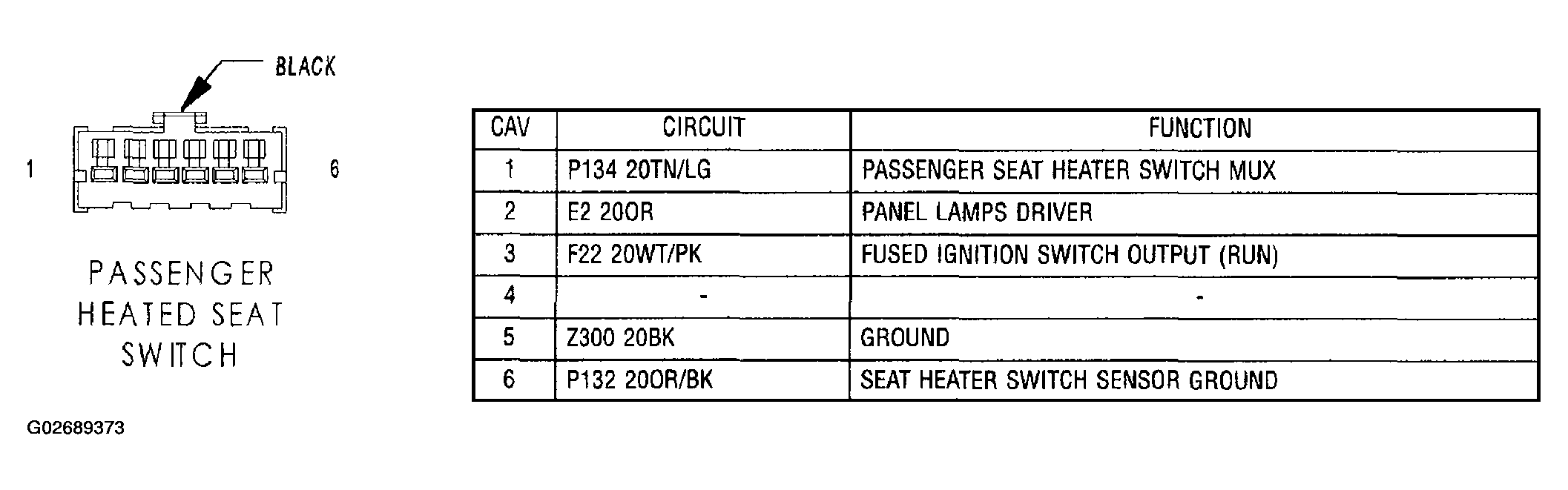

Fig 128: Identifying Passenger Heated Seat Switch Connector Pinouts

G02689373

Courtesy of DAIMLERCHRYSLER CORP.

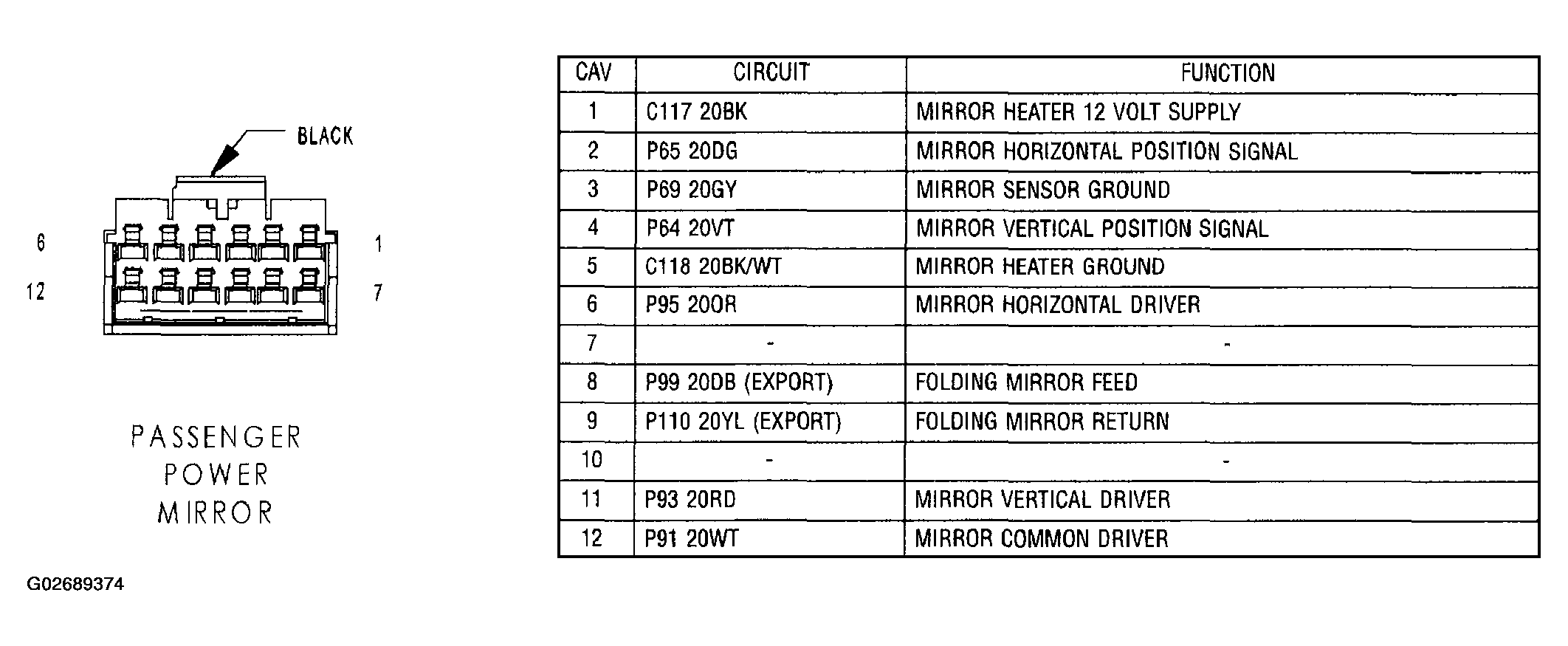

Fig 129: Identifying Passenger Power Mirror Connector Pinouts

G02689374

Courtesy of DAIMLERCHRYSLER CORP.

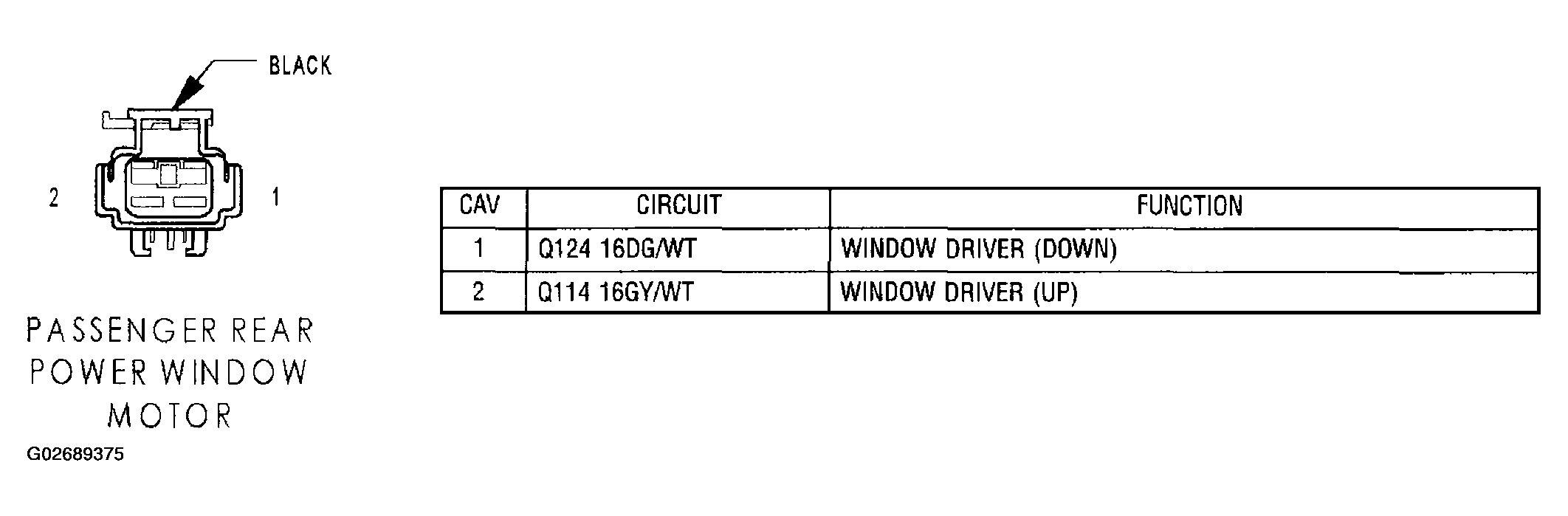

Fig 130: Identifying Passenger Rear Power Window Motor Connector Pinouts

G02689375

Courtesy of DAIMLERCHRYSLER CORP.

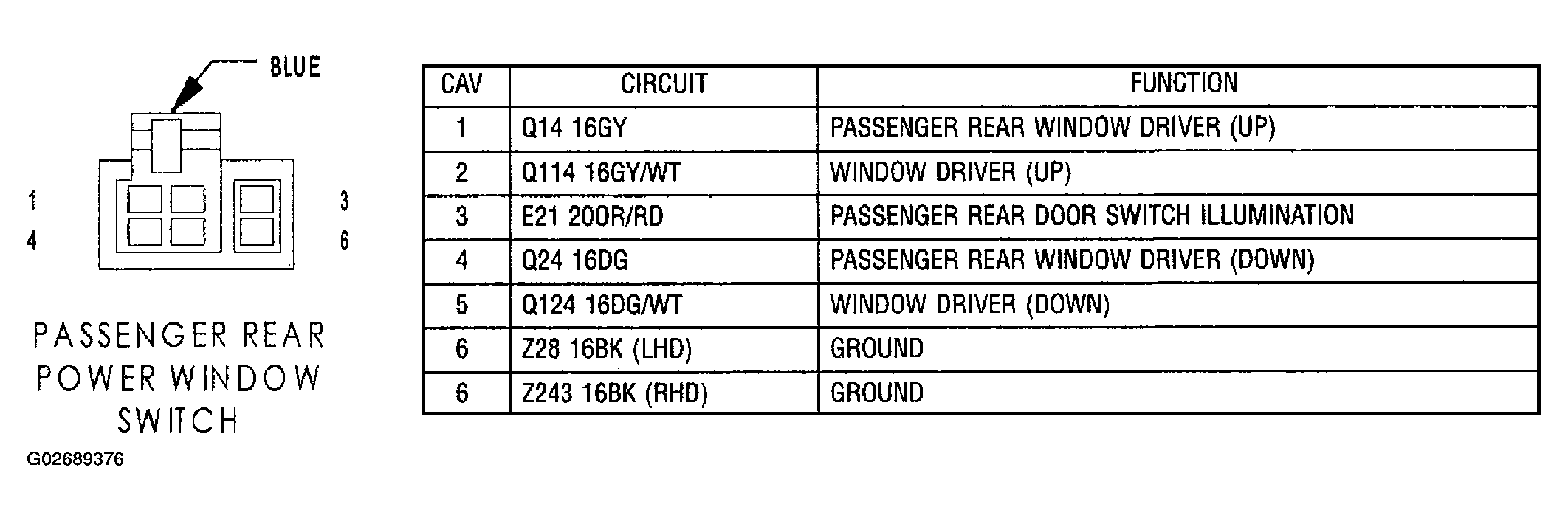

Fig 131: Identifying Passenger Rear Power Window Switch Connector Pinouts

G02689376

Courtesy of DAIMLERCHRYSLER CORP.

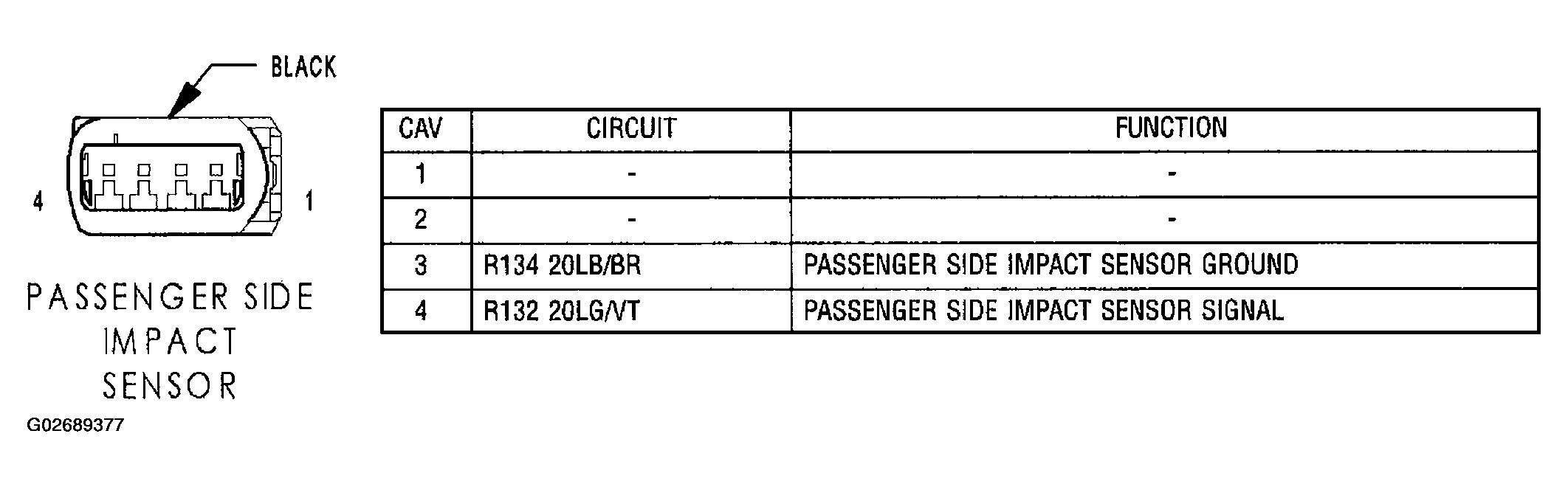

Fig 132: Identifying Passenger Side Impact Sensor Connector Pinouts

G02689377

Courtesy of DAIMLERCHRYSLER CORP.

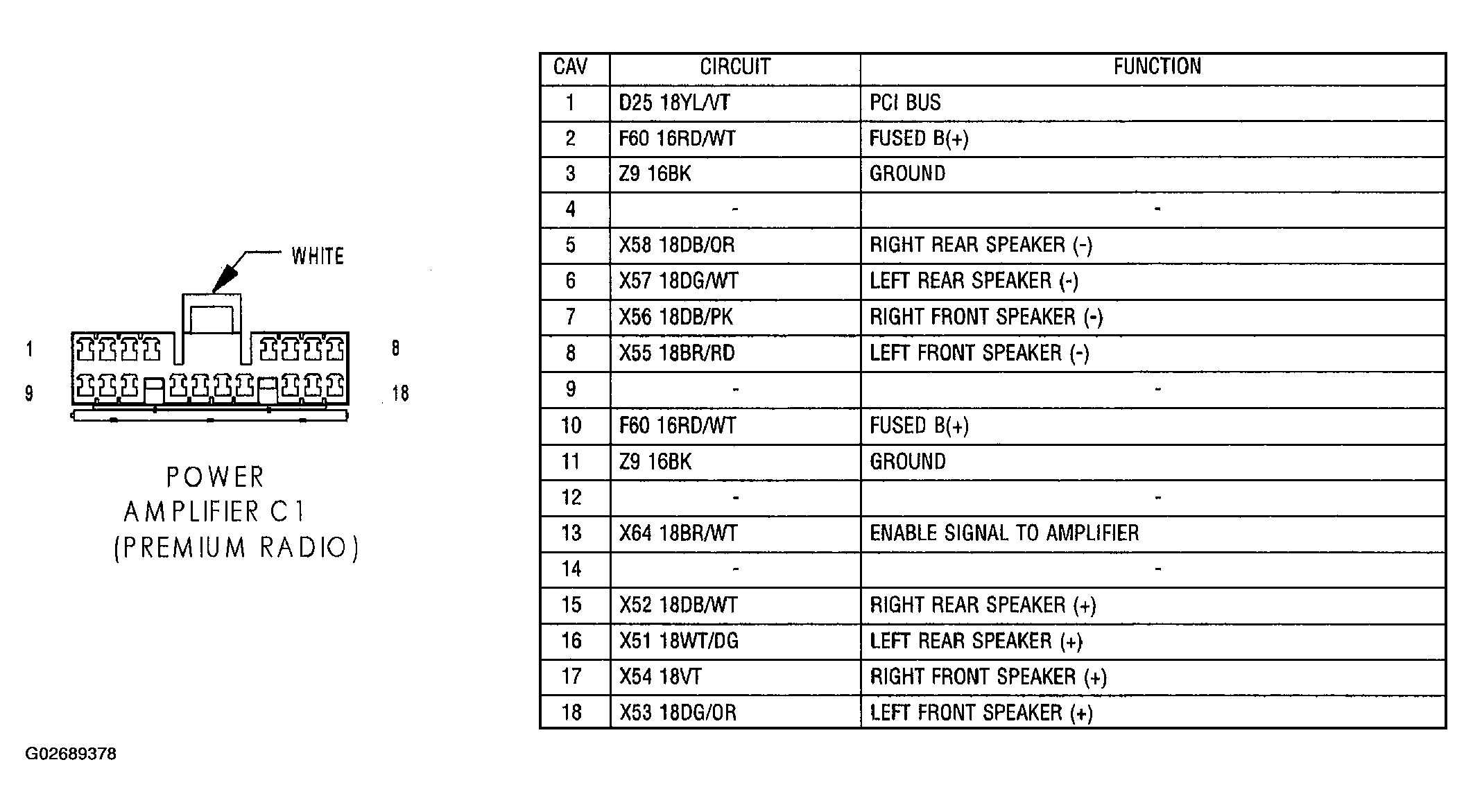

Fig 133: Identifying Power Amplifier C1 (Premium Radio) Connector Pinouts

G02689378

Courtesy of DAIMLERCHRYSLER CORP.

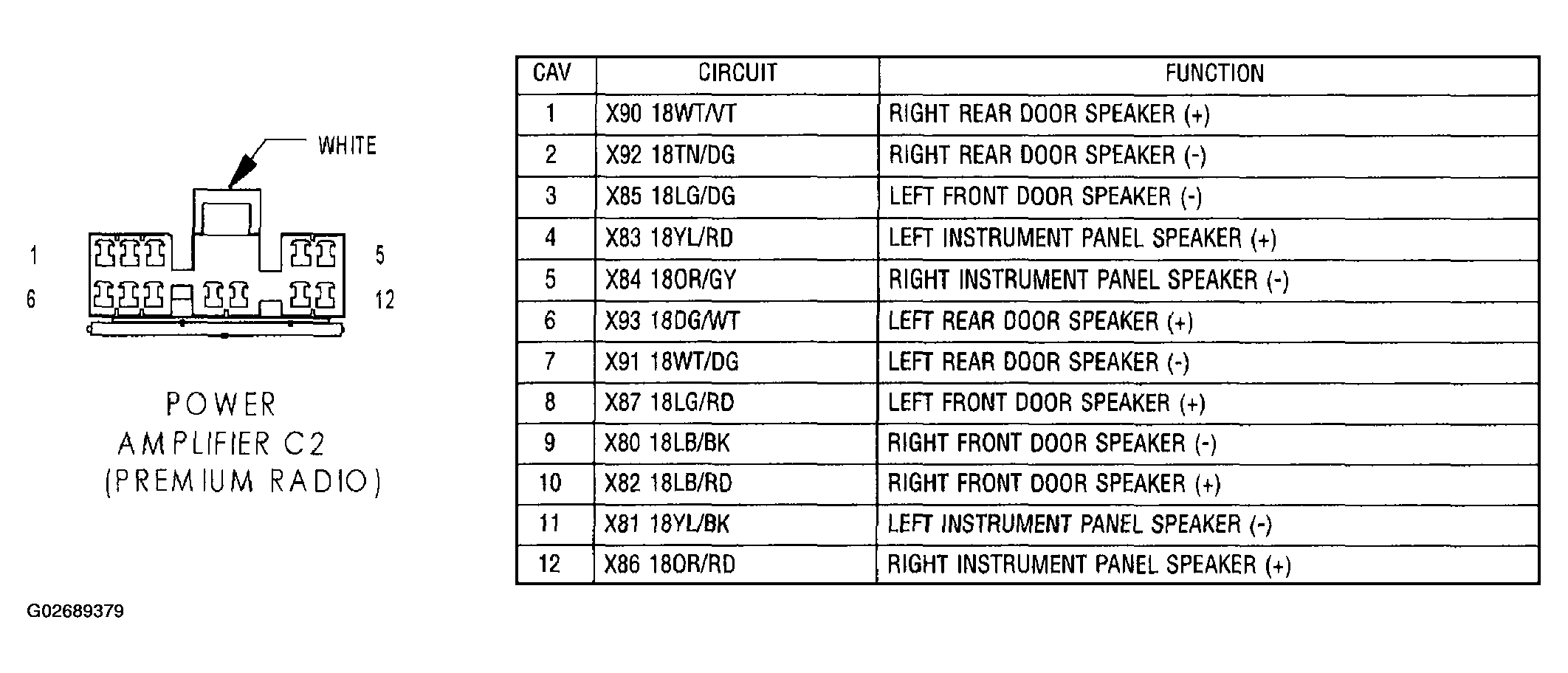

Fig 134: Identifying Power Amplifier C2 (Premium Radio) Connector Pinouts

G02689379

Courtesy of DAIMLERCHRYSLER CORP.

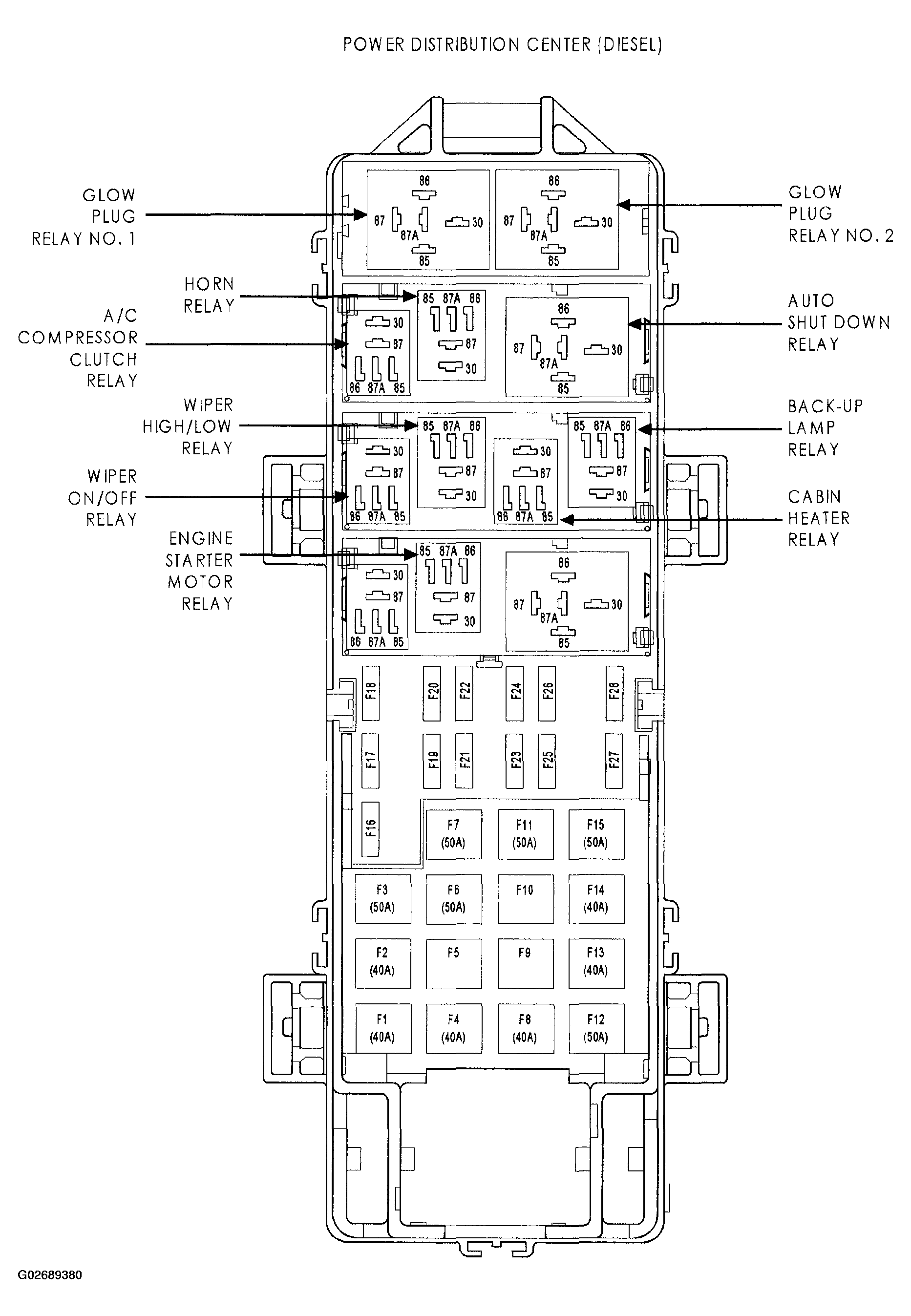

Fig 135: Identifying Power Distribution Center (Diesel) Connector Pinouts

G02689380

Courtesy of DAIMLERCHRYSLER CORP.

Fig 136: Identifying Fuses (Diesel) Connector Pinouts Function Reference

G02689381

Courtesy of DAIMLERCHRYSLER CORP.

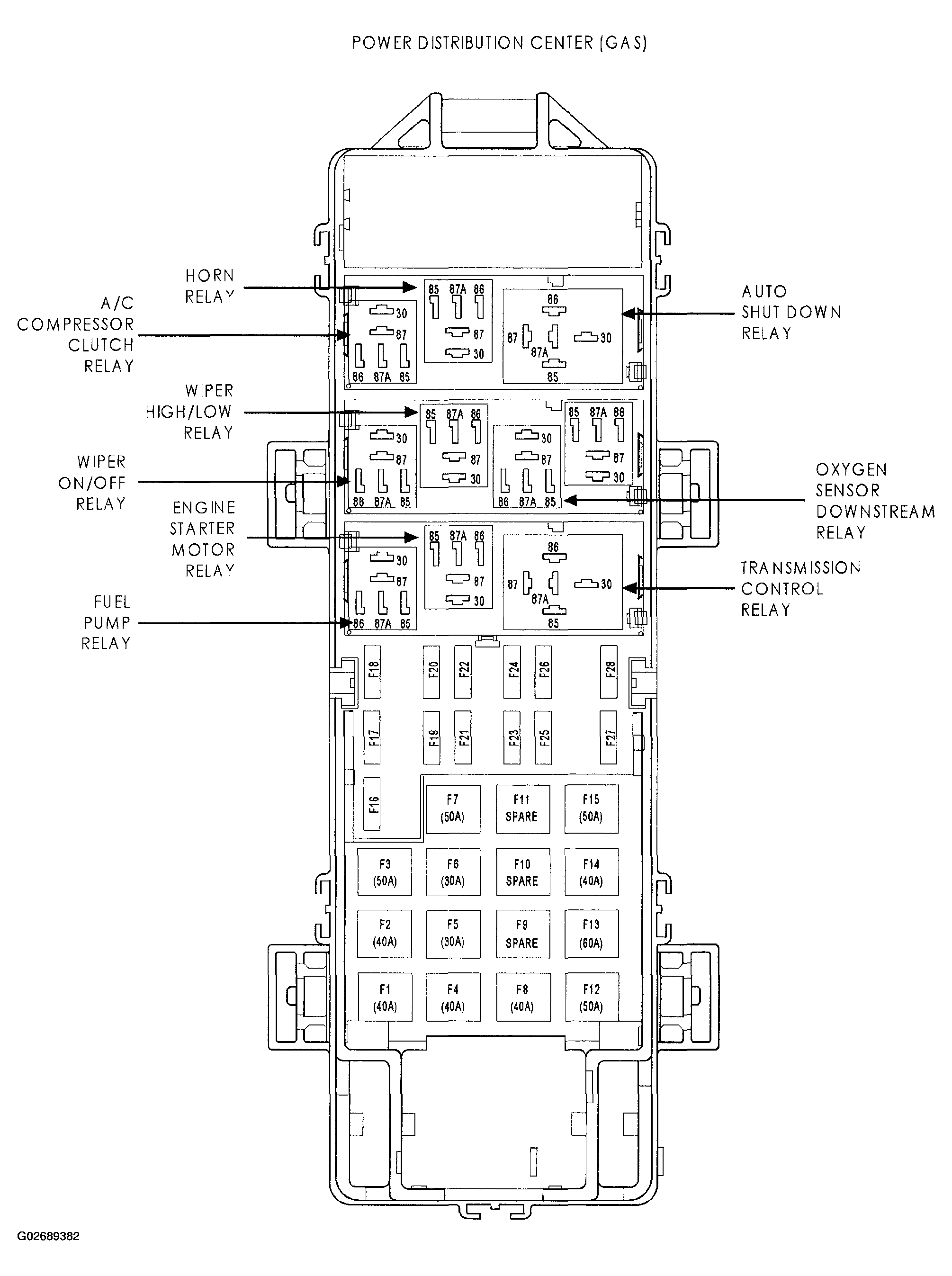

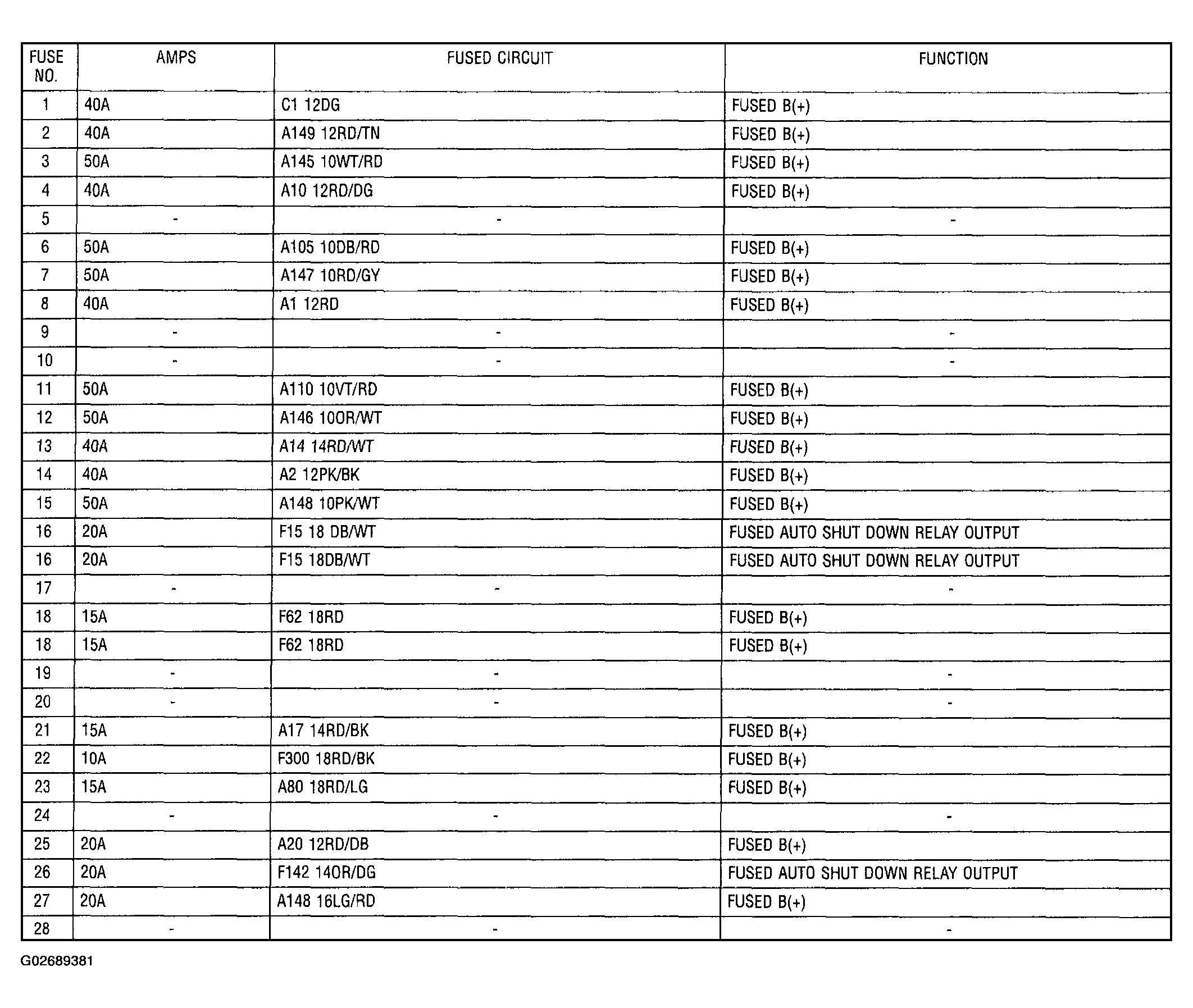

Fig 137: Identifying Power Distribution Center (GAS) Connector Pinouts Function Reference

G02689382

Courtesy of DAIMLERCHRYSLER CORP.

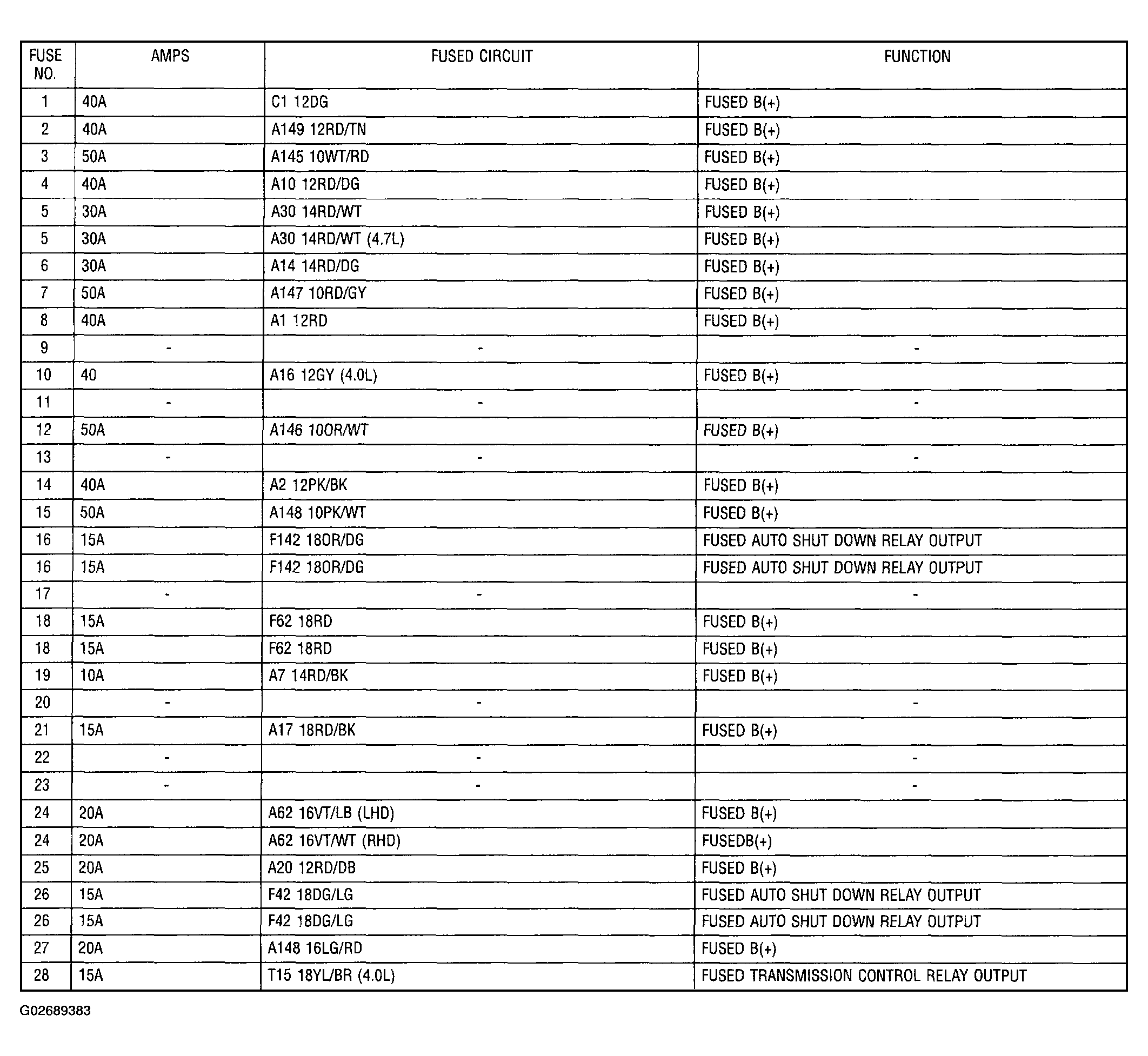

Fig 138: Identifying Fuses (GAS) Connector Pinouts Function Reference

G02689383

Courtesy of DAIMLERCHRYSLER CORP.

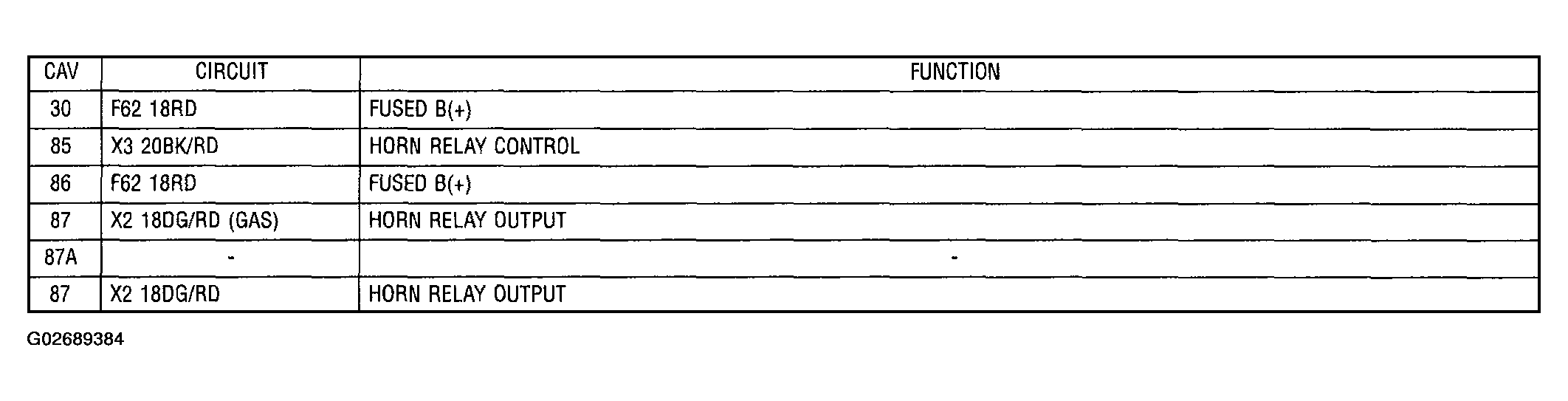

Fig 139: Identifying Horn Relay Connector Pinouts Function Reference

G02689384

Courtesy of DAIMLERCHRYSLER CORP.

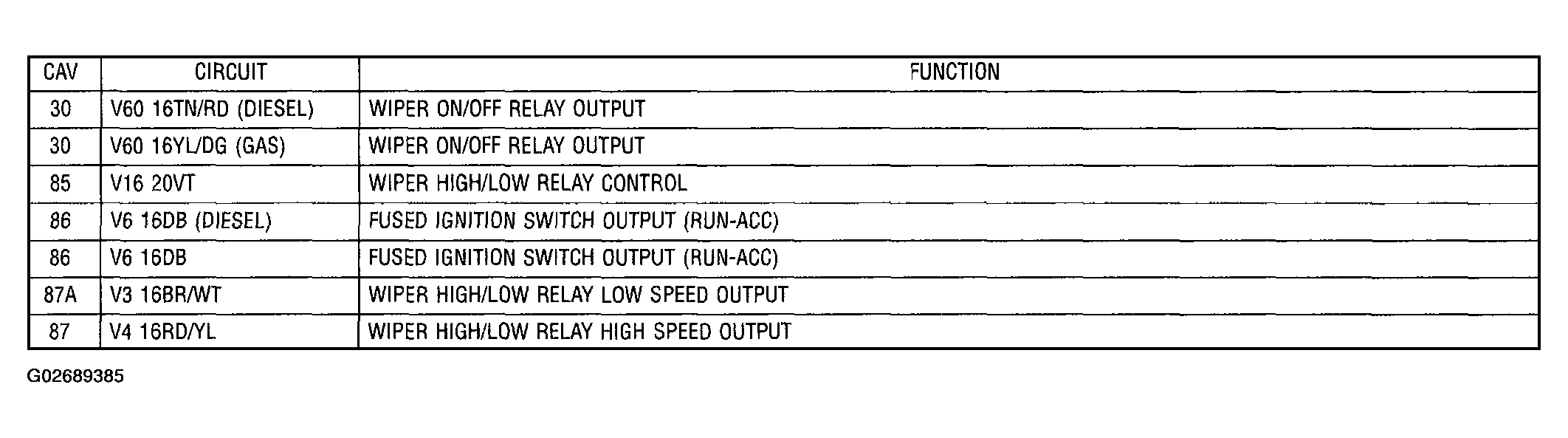

Fig 140: Identifying Wiper High/Low Relay Connector Pinouts Function Reference

G02689385

Courtesy of DAIMLERCHRYSLER CORP.

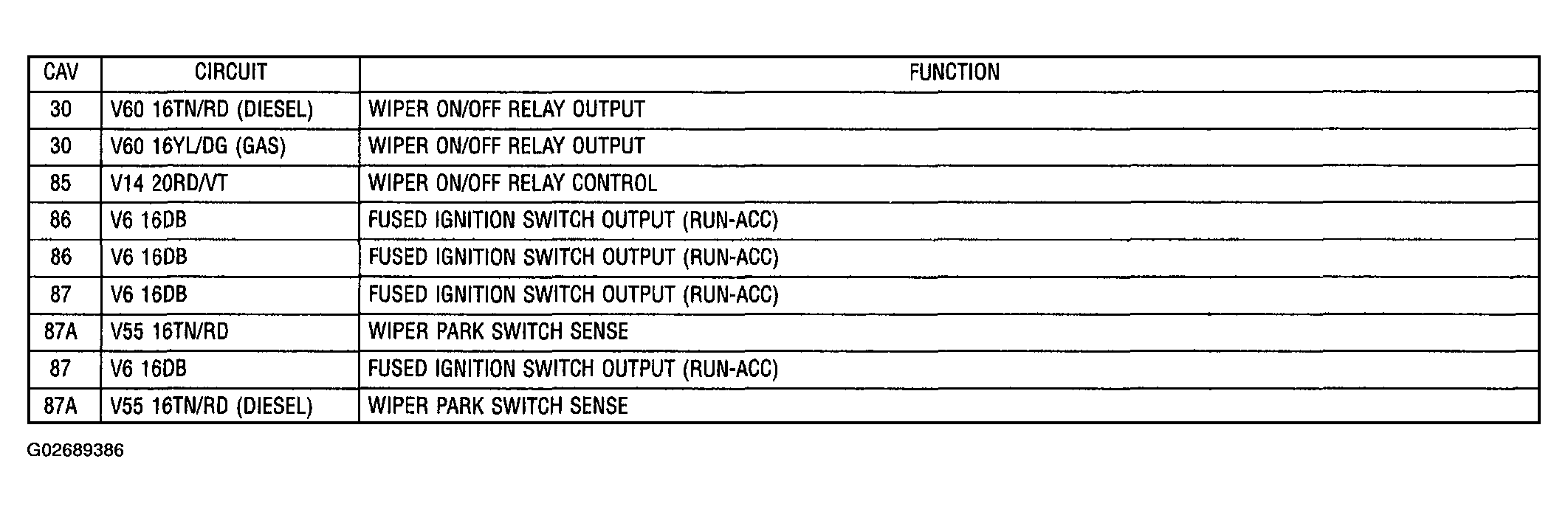

Fig 141: Identifying Wiper On/Off Relay Connector Pinouts Function Reference

G02689386

Courtesy of DAIMLERCHRYSLER CORP.

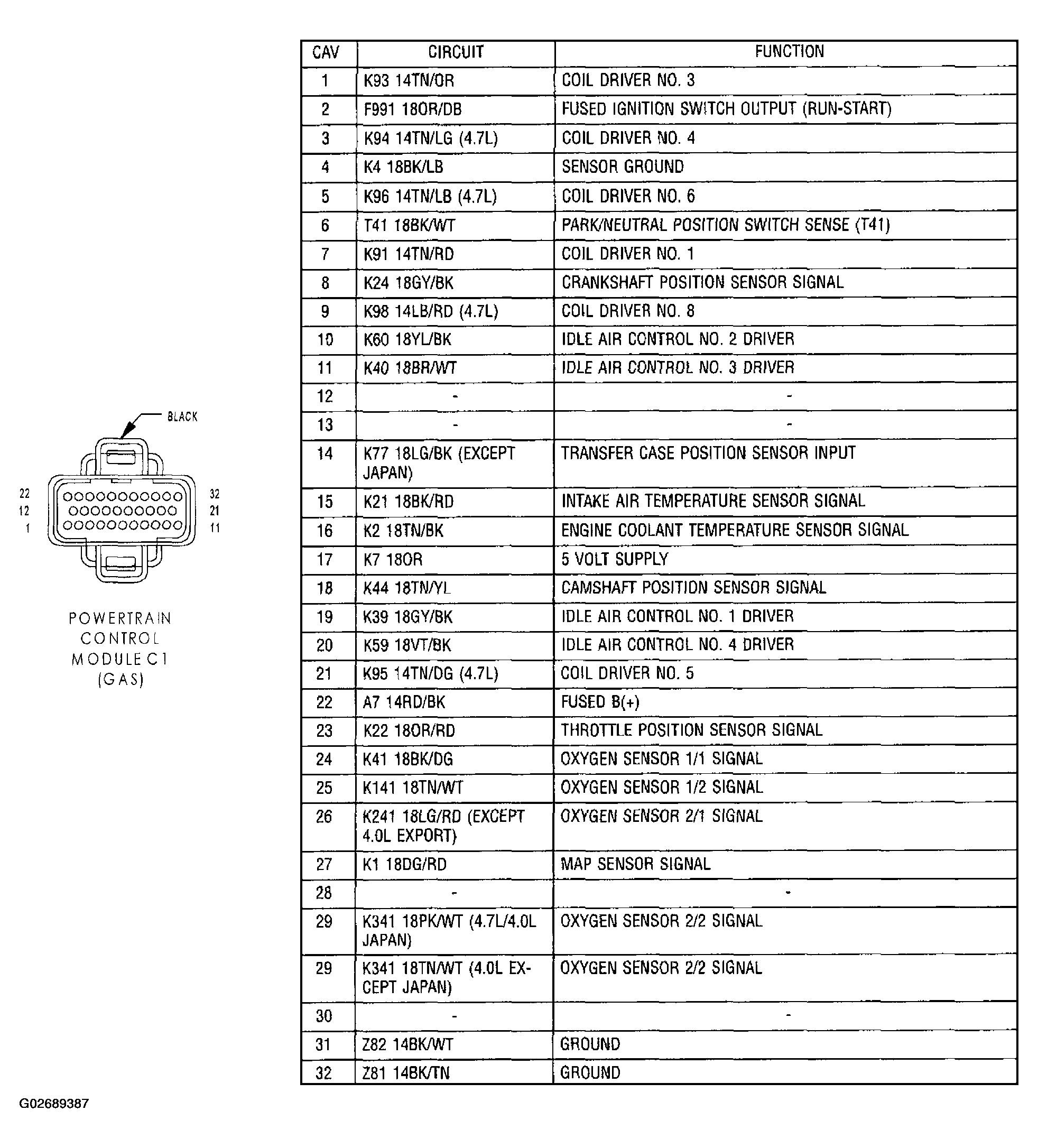

Fig 142: Identifying Powertrain Control Module C1 (GAS) Connector Pinouts

G02689387

Courtesy of DAIMLERCHRYSLER CORP.

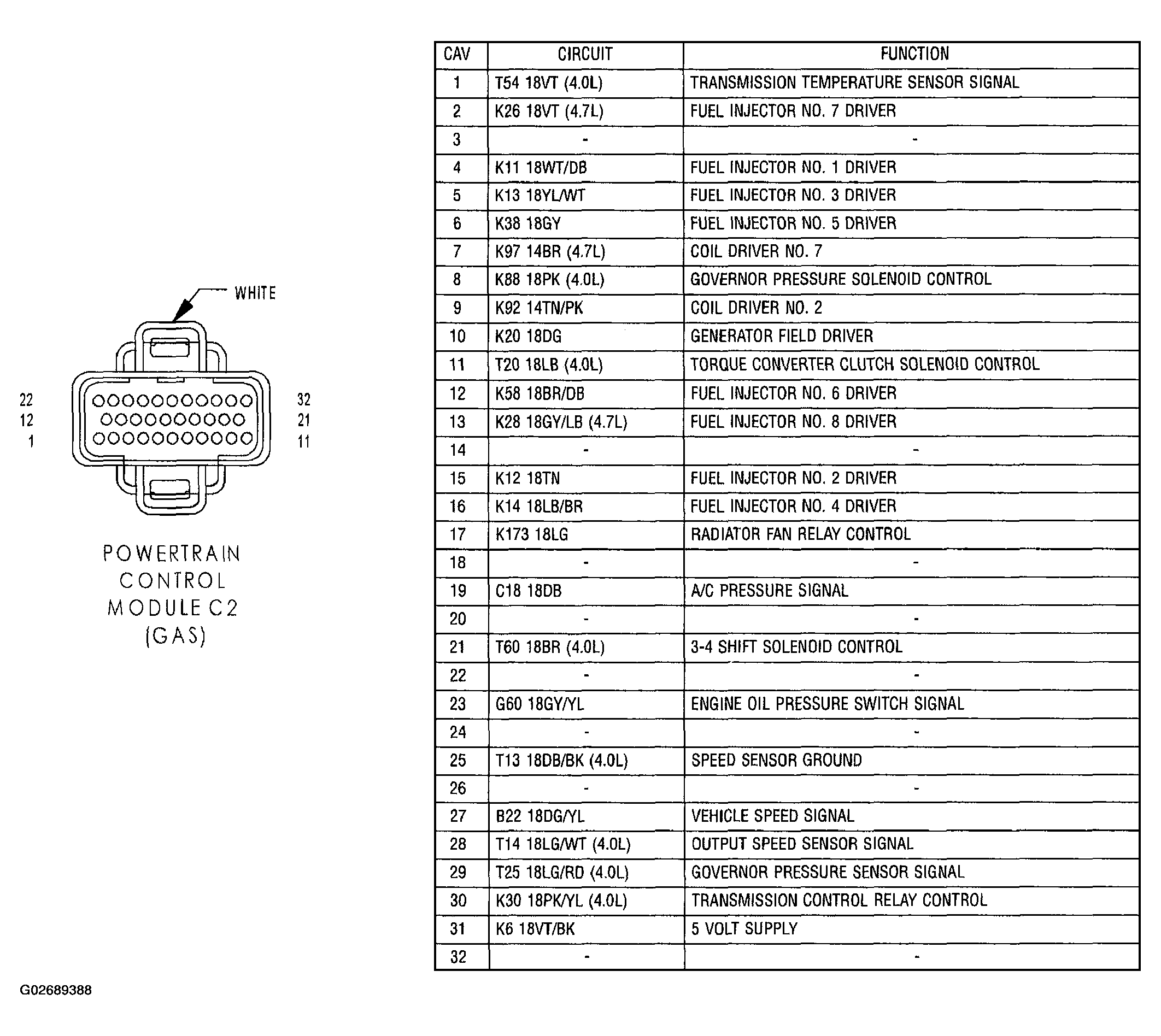

Fig 143: Identifying Powertrain Control Module C2 (GAS) Connector Pinouts

G02689388

Courtesy of DAIMLERCHRYSLER CORP.

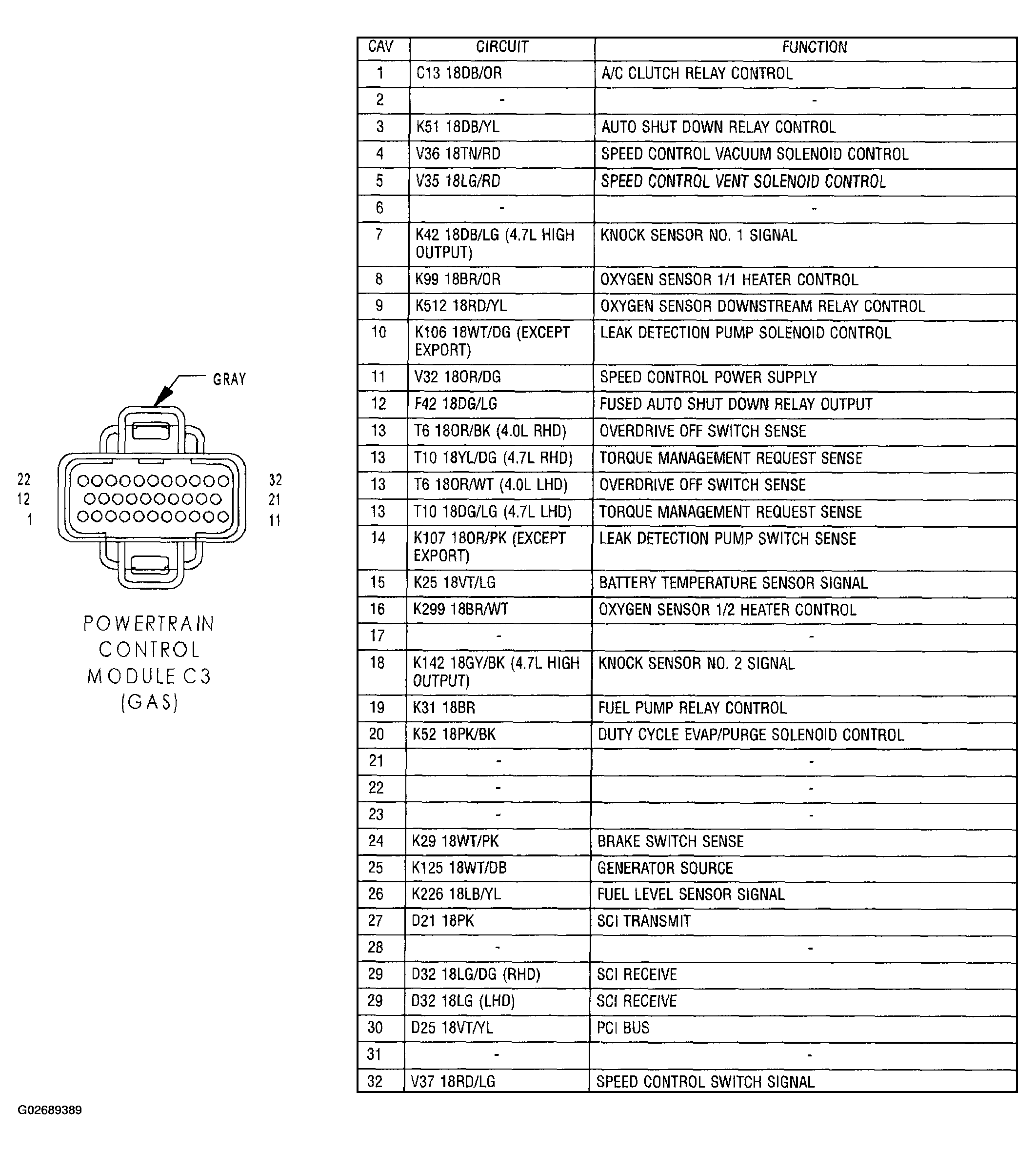

Fig 144: Identifying Powertrain Control Module C3 (GAS) Connector Pinouts

G02689389

Courtesy of DAIMLERCHRYSLER CORP.

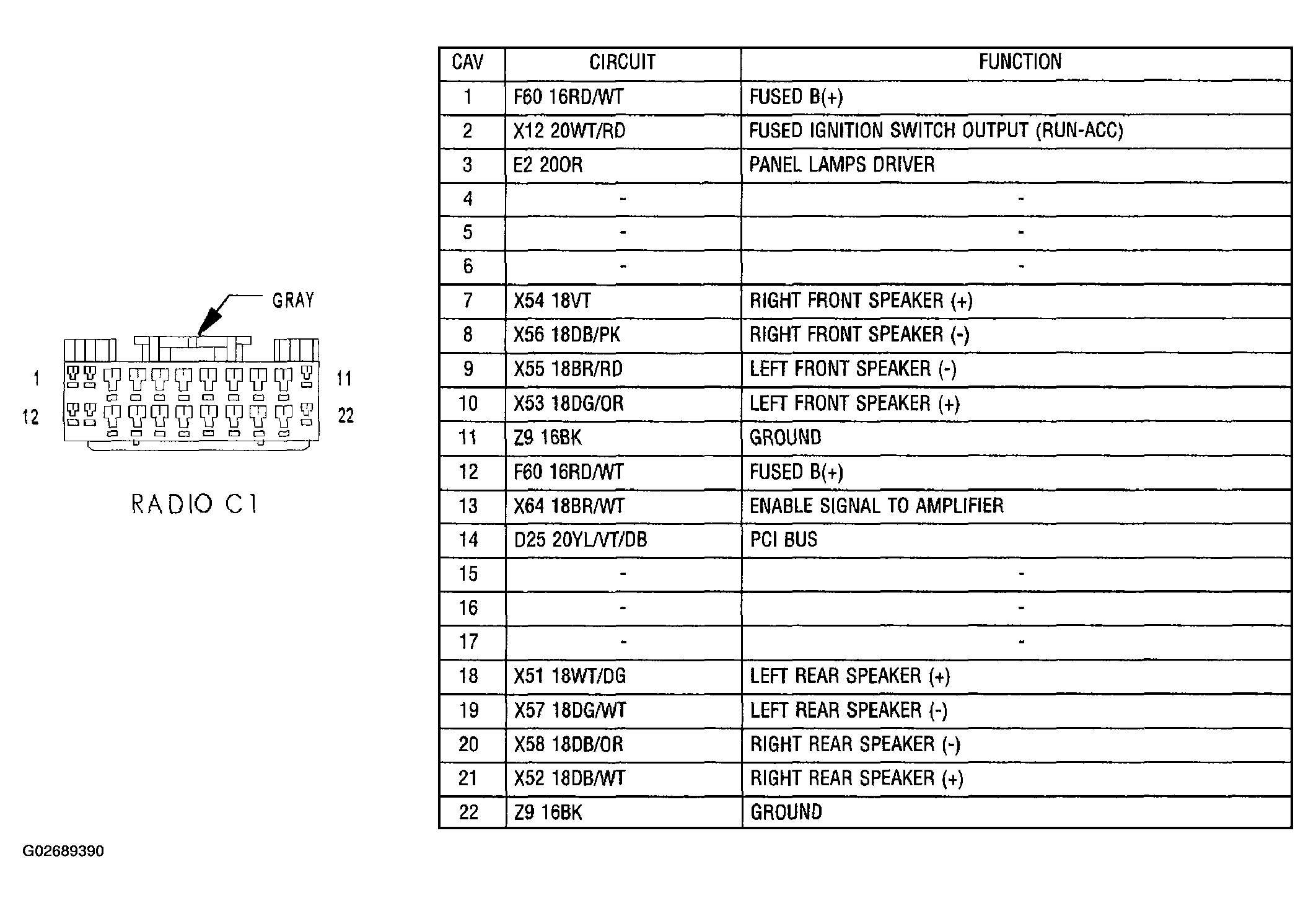

Fig 145: Identifying Radio C1 Connector Pinouts

G02689390

Courtesy of DAIMLERCHRYSLER CORP.

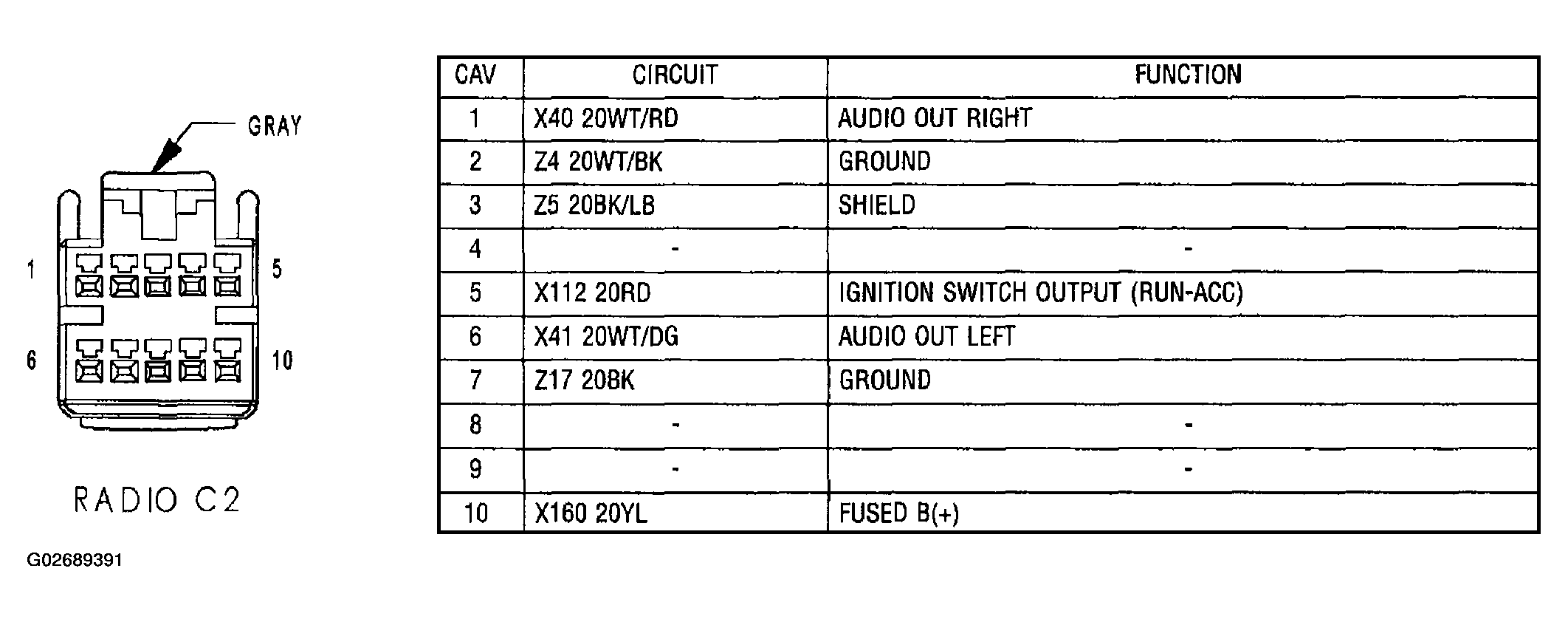

Fig 146: Identifying Radio C2 Connector Pinouts

G02689391

Courtesy of DAIMLERCHRYSLER CORP.

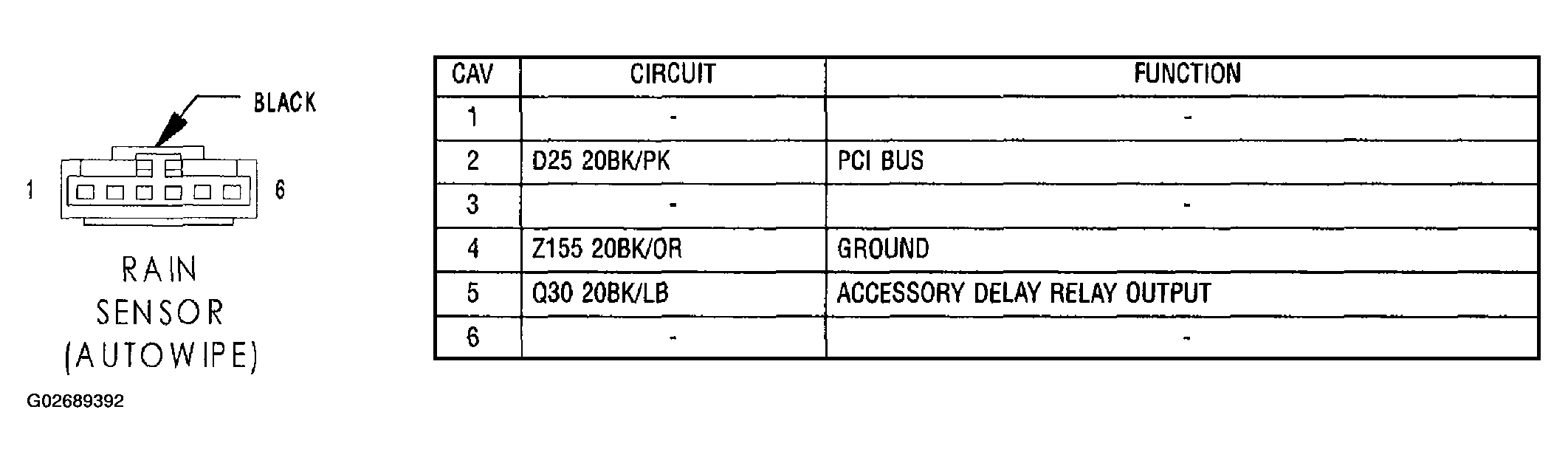

Fig 147: Identifying Rain Sensor (Autowipe) Connector Pinouts

G02689392

Courtesy of DAIMLERCHRYSLER CORP.

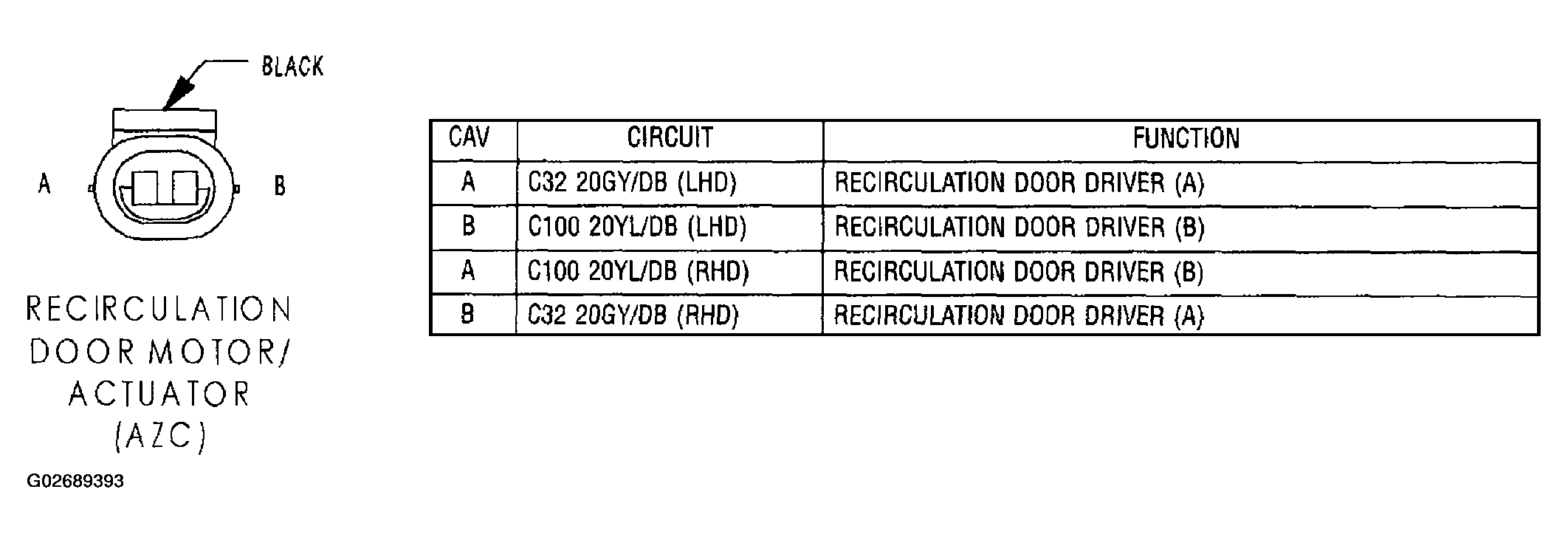

Fig 148: Identifying Recirculation Door Motor/Actuator (AZC) Connector Pinouts

G02689393

Courtesy of DAIMLERCHRYSLER CORP.

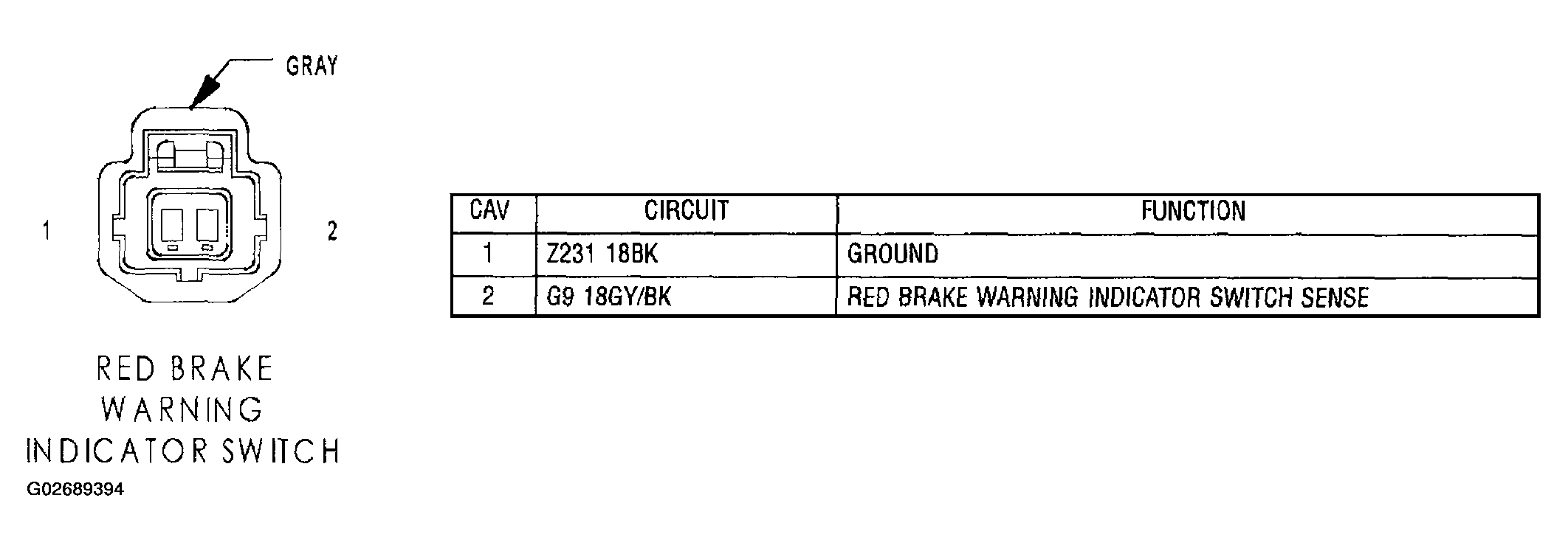

Fig 149: Identifying Red Brake Warning Indicator Switch Connector Pinouts

G02689394

Courtesy of DAIMLERCHRYSLER CORP.

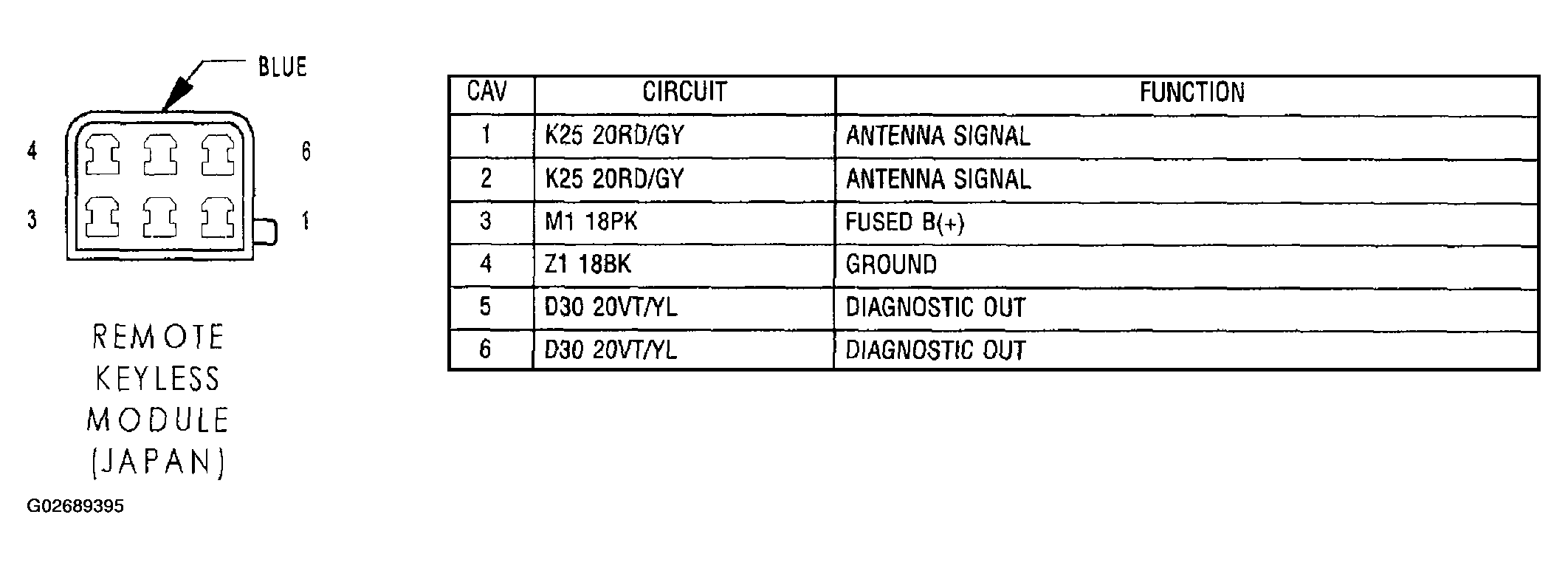

Fig 150: Identifying Remote Keyless Module (Japan) Connector Pinouts

G02689395

Courtesy of DAIMLERCHRYSLER CORP.

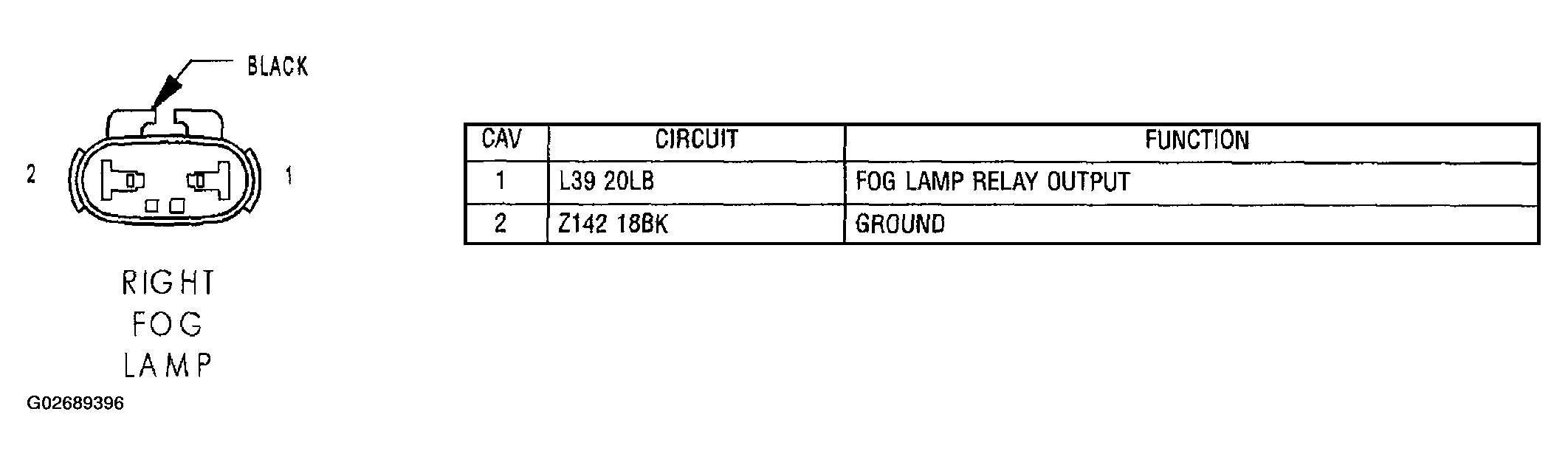

Fig 151: Identifying Right Fog Lamp Connector Pinouts

G02689396

Courtesy of DAIMLERCHRYSLER CORP.

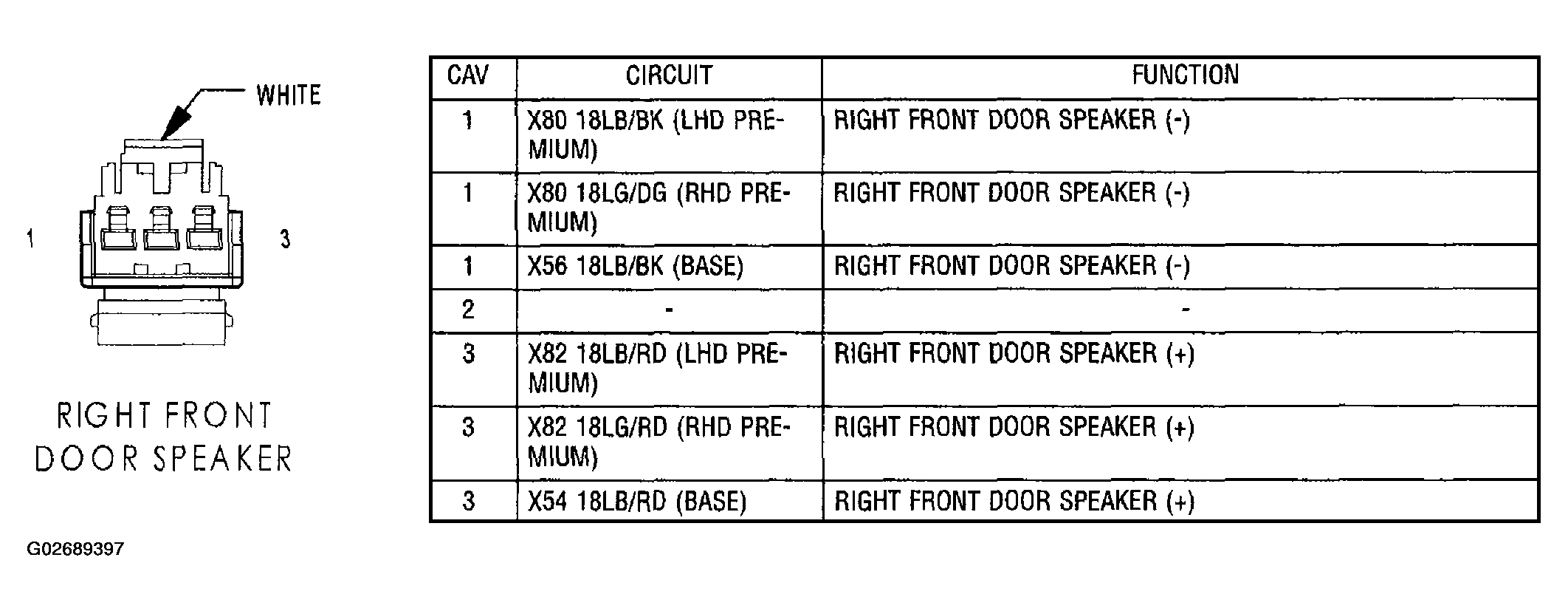

Fig 152: Identifying Right Front Door Speaker Connector Pinouts

G02689397

Courtesy of DAIMLERCHRYSLER CORP.

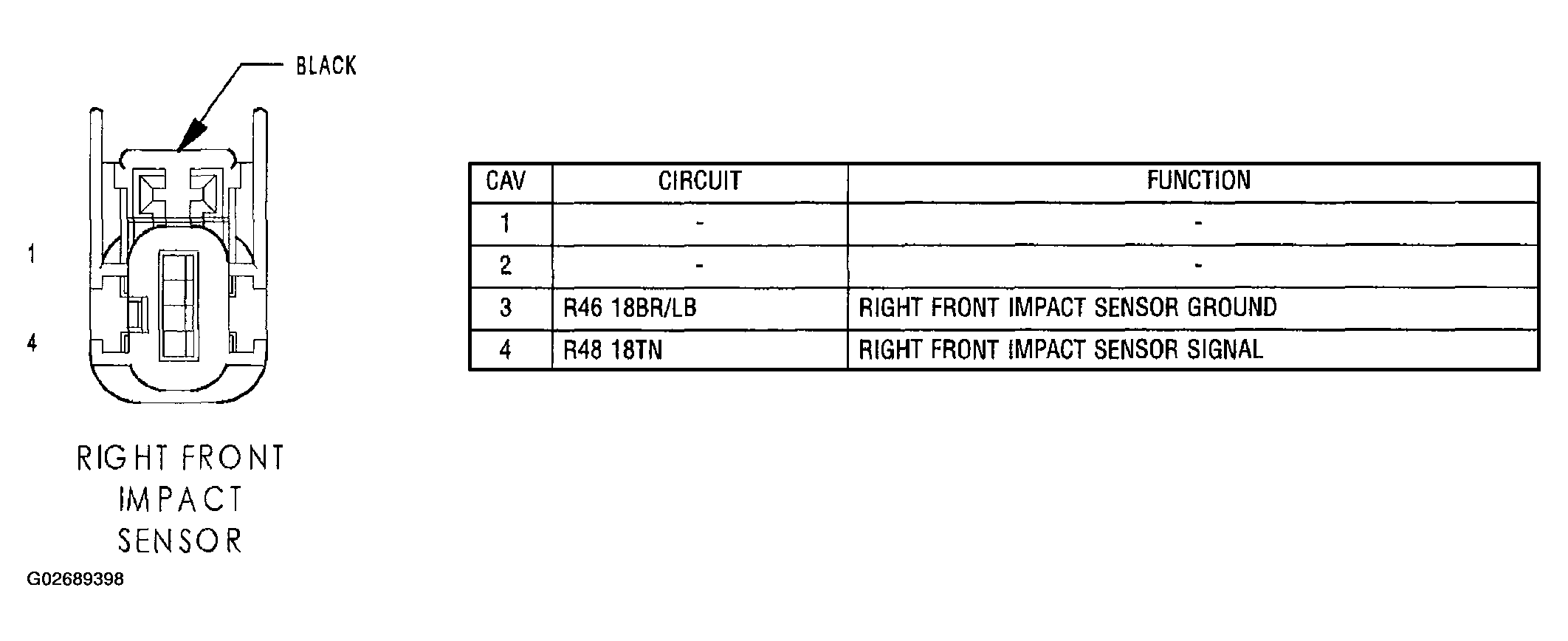

Fig 153: Identifying Right Front Impact Sensor Connector Pinouts

G02689398

Courtesy of DAIMLERCHRYSLER CORP.

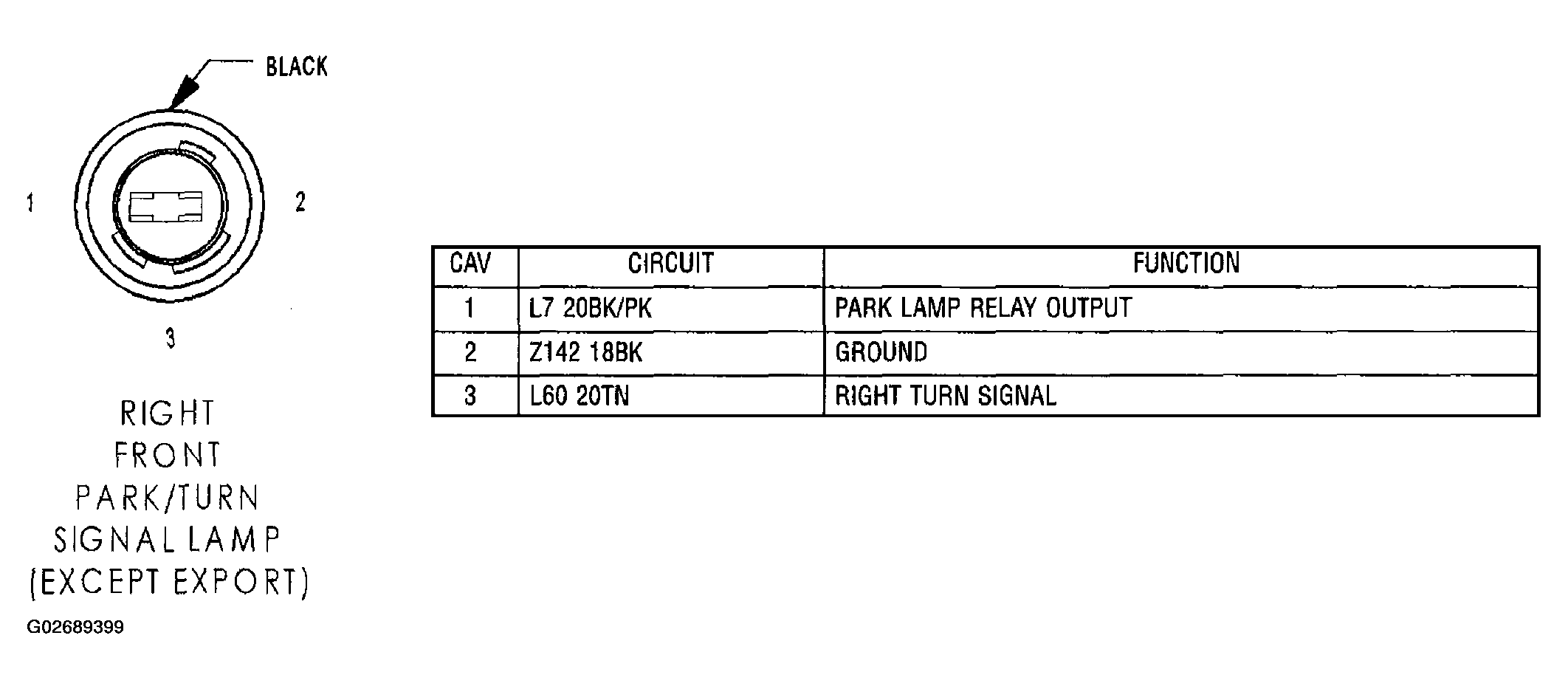

Fig 154: Identifying Right Front Park/Turn Signal Lamp (Except Export) Connector Pinouts

G02689399

Courtesy of DAIMLERCHRYSLER CORP.

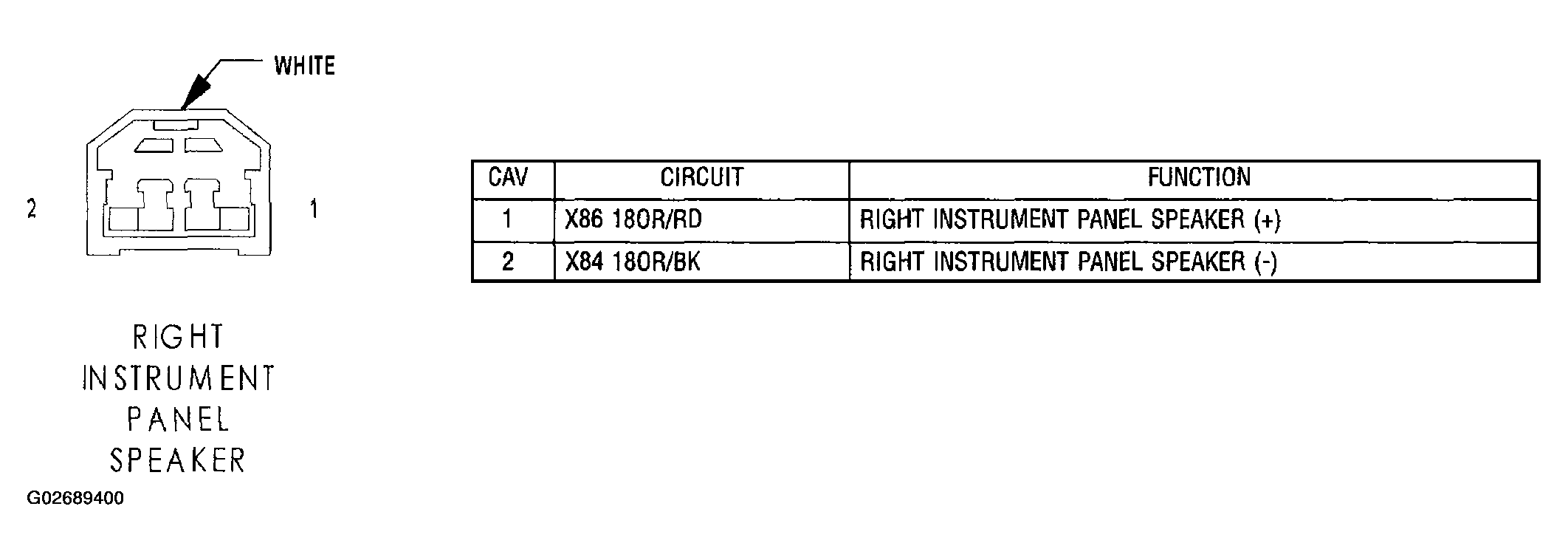

Fig 155: Identifying Right Instrument Panel Speaker Connector Pinouts

G02689400

Courtesy of DAIMLERCHRYSLER CORP.

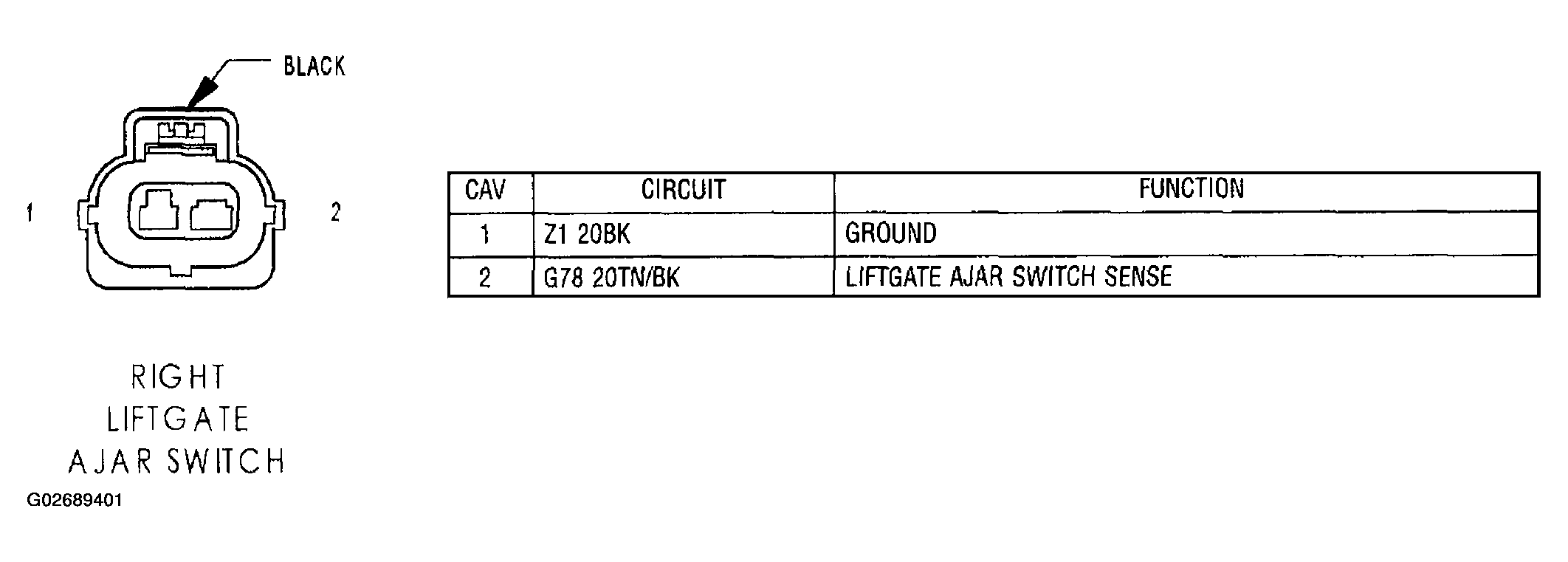

Fig 156: Identifying Right Liftgate Ajar Switch Connector Pinouts

G02689401

Courtesy of DAIMLERCHRYSLER CORP.

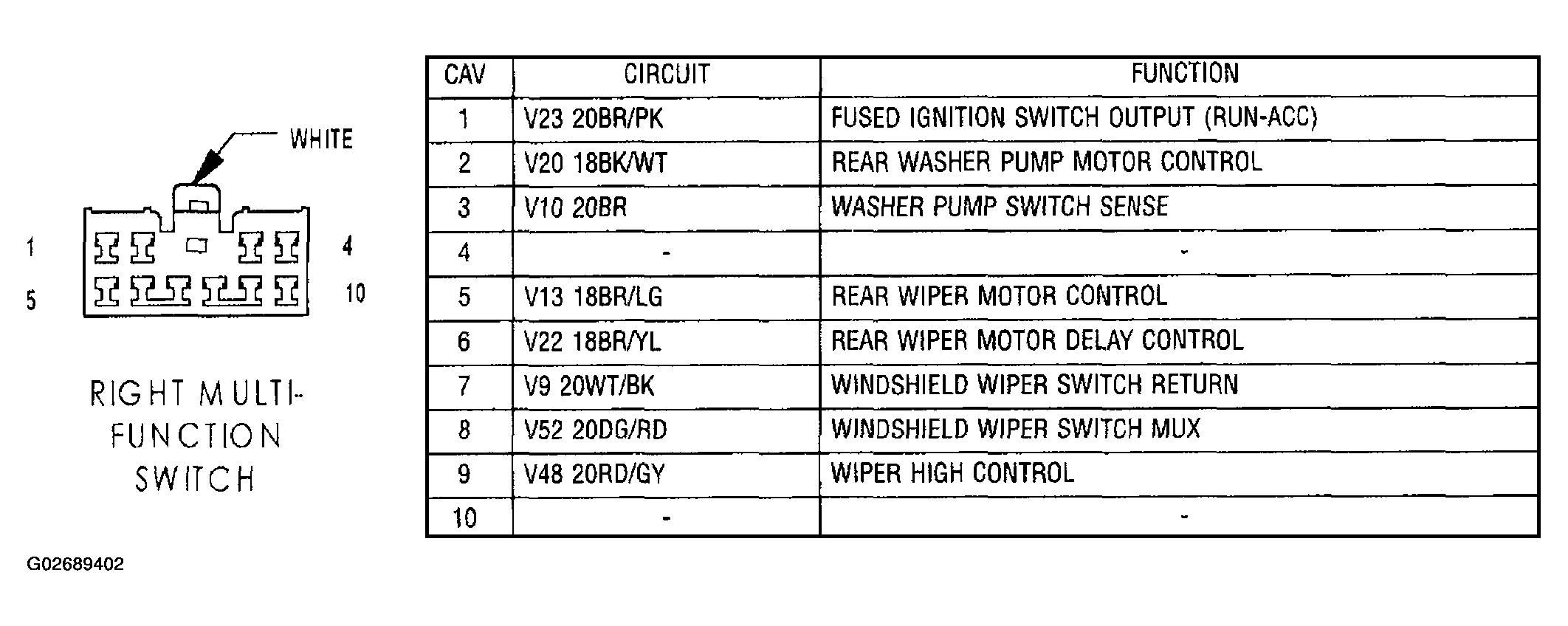

Fig 157: Identifying Right Multi-Function Switch Connector Pinouts

G02689402

Courtesy of DAIMLERCHRYSLER CORP.

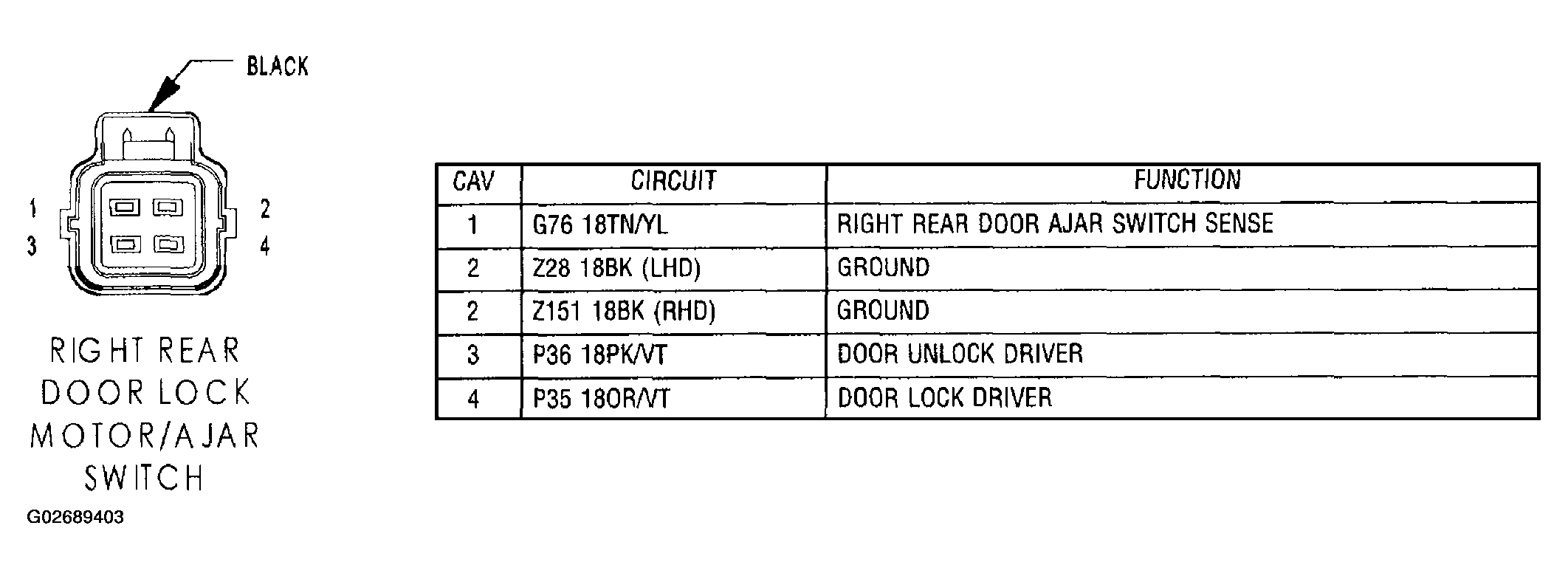

Fig 158: Identifying Right Rear Door Lock Motor/Ajar Switch Connector Pinouts

G02689403

Courtesy of DAIMLERCHRYSLER CORP.

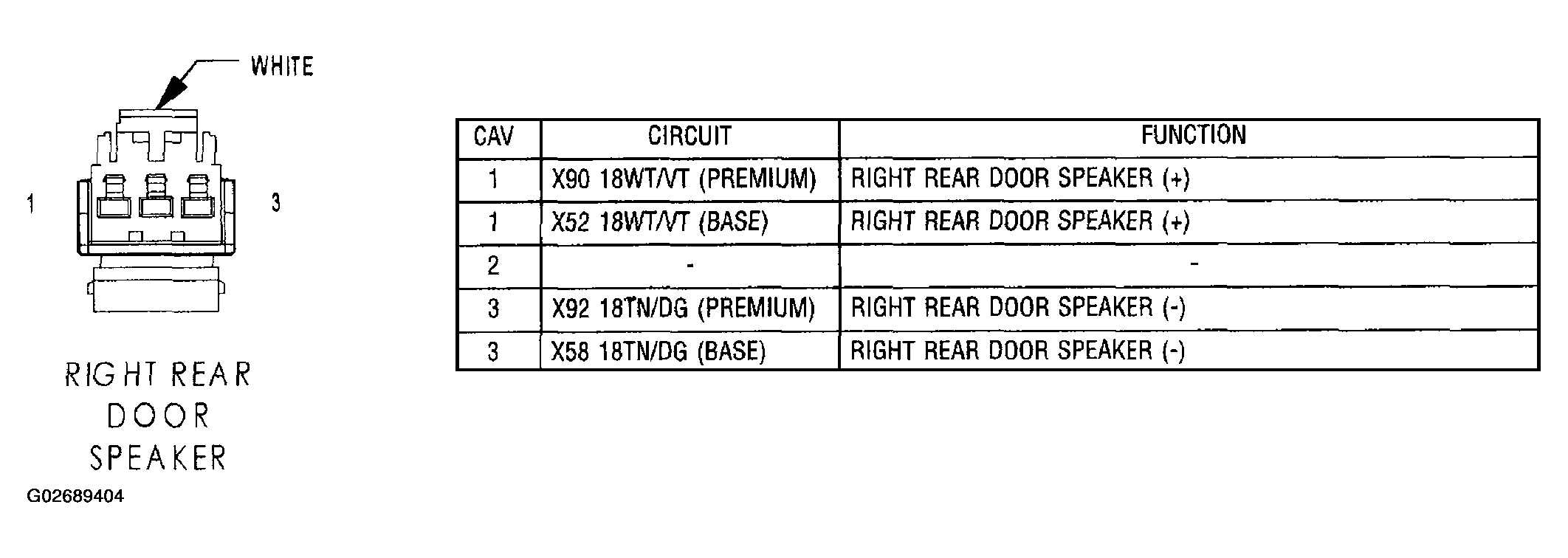

Fig 159: Identifying Right Rear Door Speaker Connector Pinouts

G02689404

Courtesy of DAIMLERCHRYSLER CORP.

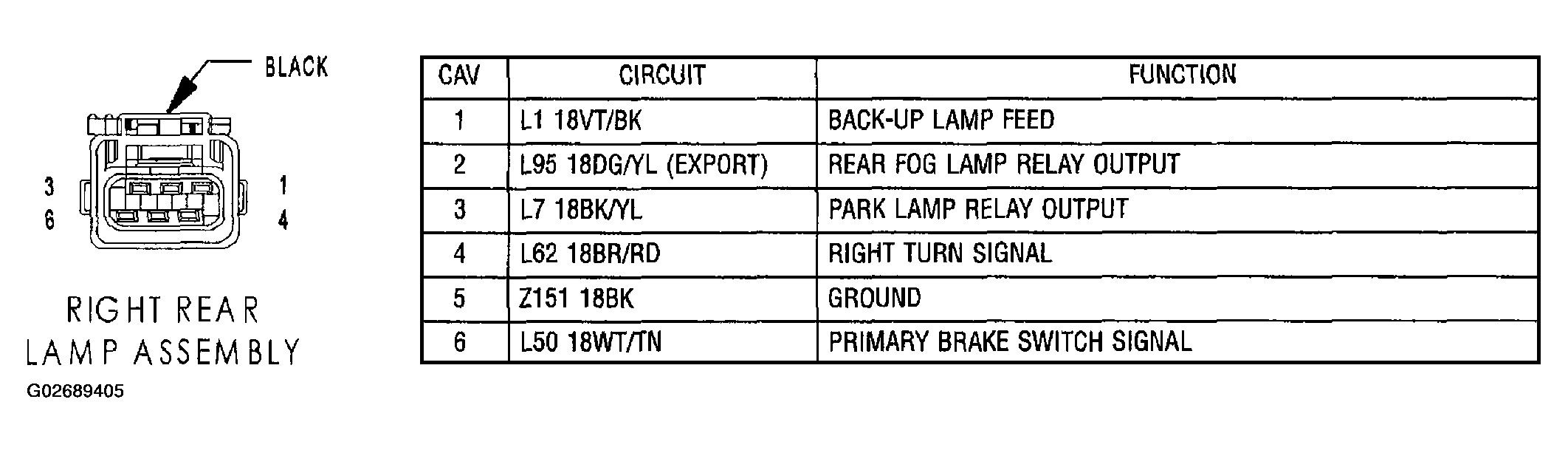

Fig 160: Identifying Right Rear Lamp Assembly Connector Pinouts

G02689405

Courtesy of DAIMLERCHRYSLER CORP.

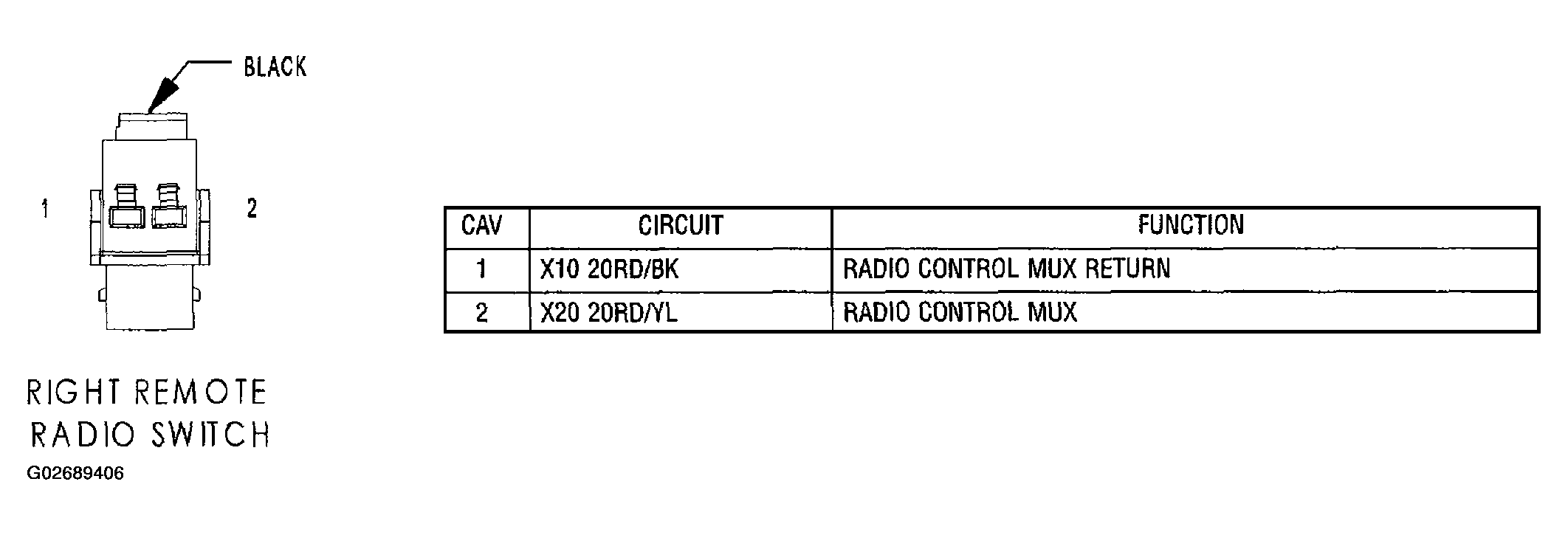

Fig 161: Identifying Right Remote Radio Switch Connector Pinouts

G02689406

Courtesy of DAIMLERCHRYSLER CORP.

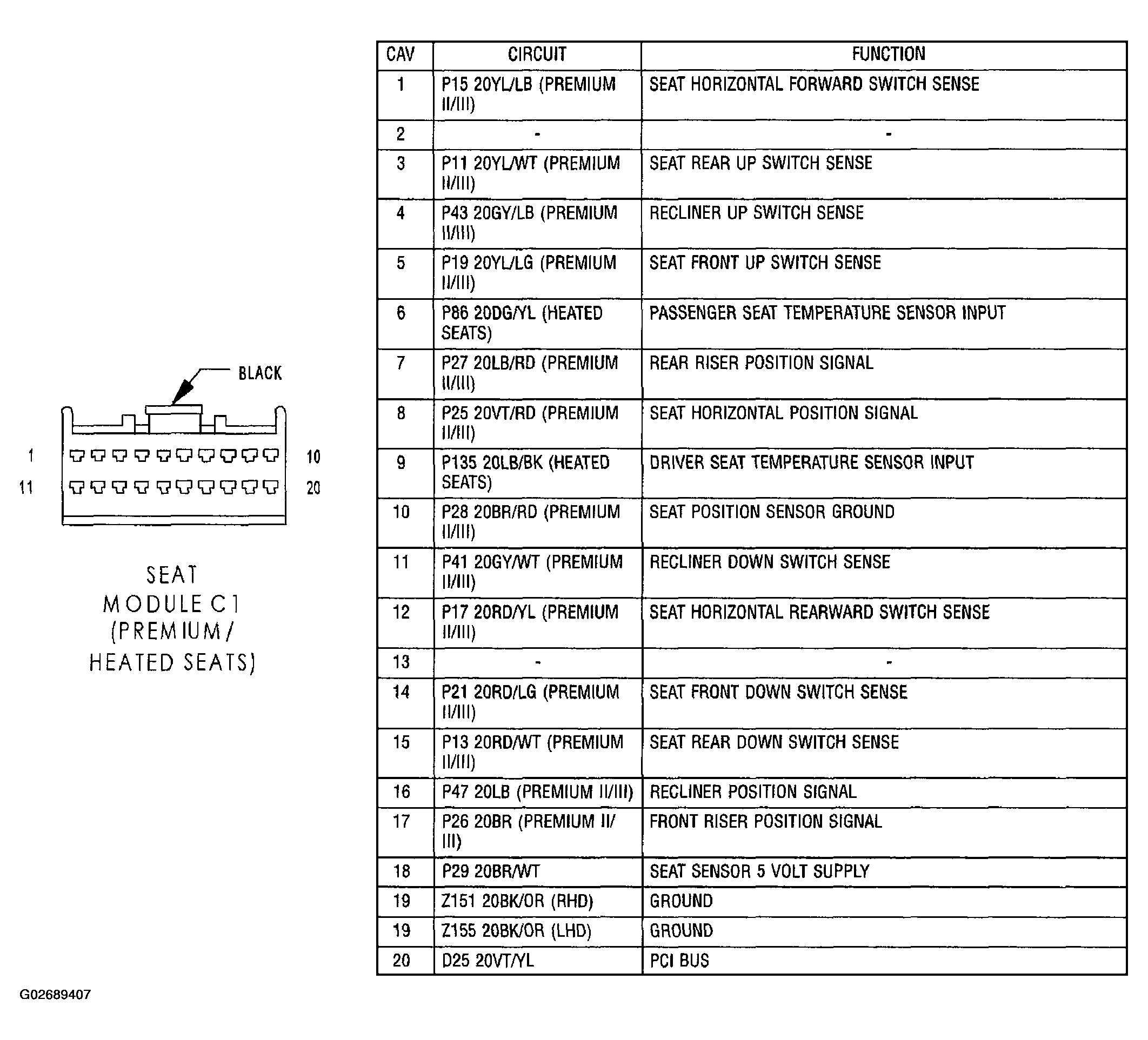

Fig 162: Identifying Seat Module C1 (Premium/Heated Seats) Connector Pinouts

G02689407

Courtesy of DAIMLERCHRYSLER CORP.

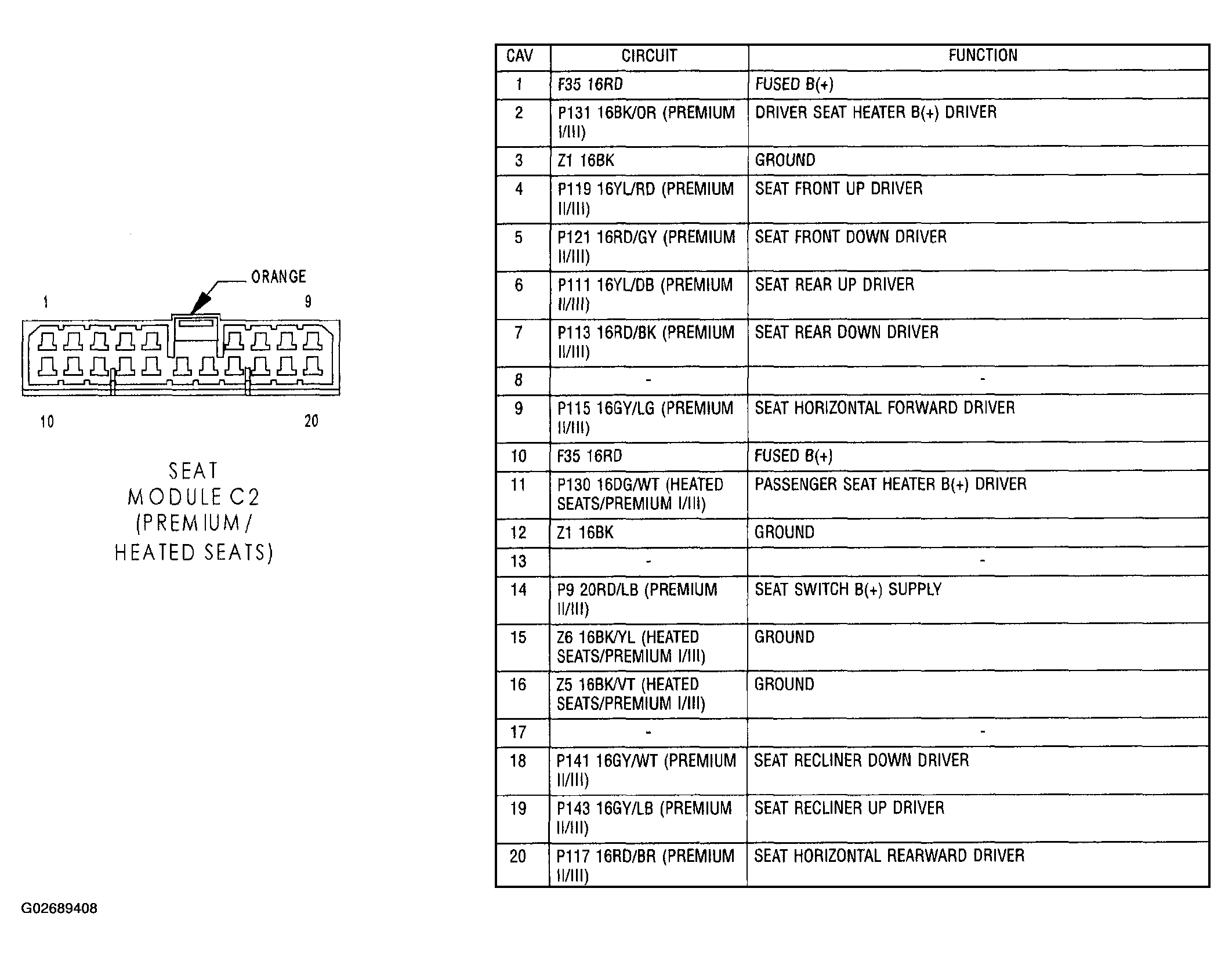

Fig 163: Identifying Seat Module C2 (Premium/Heated Seats) Connector Pinouts

G02689408

Courtesy of DAIMLERCHRYSLER CORP.

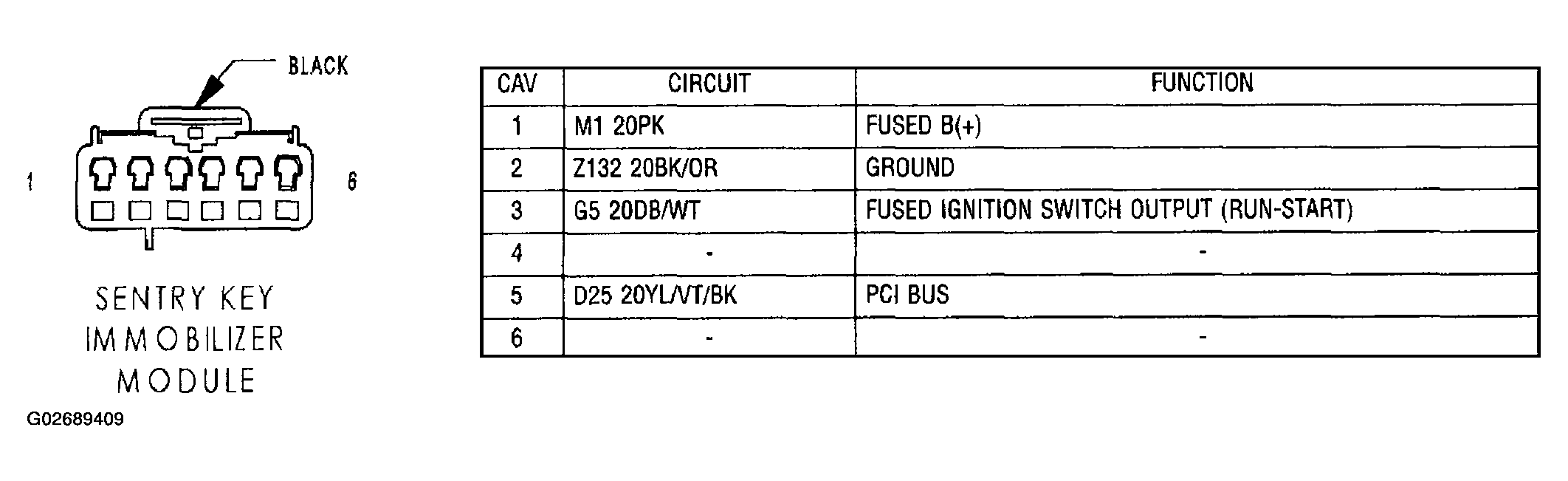

Fig 164: Identifying Sentry Key Immobilizer Module Connector Pinouts

G02689409

Courtesy of DAIMLERCHRYSLER CORP.

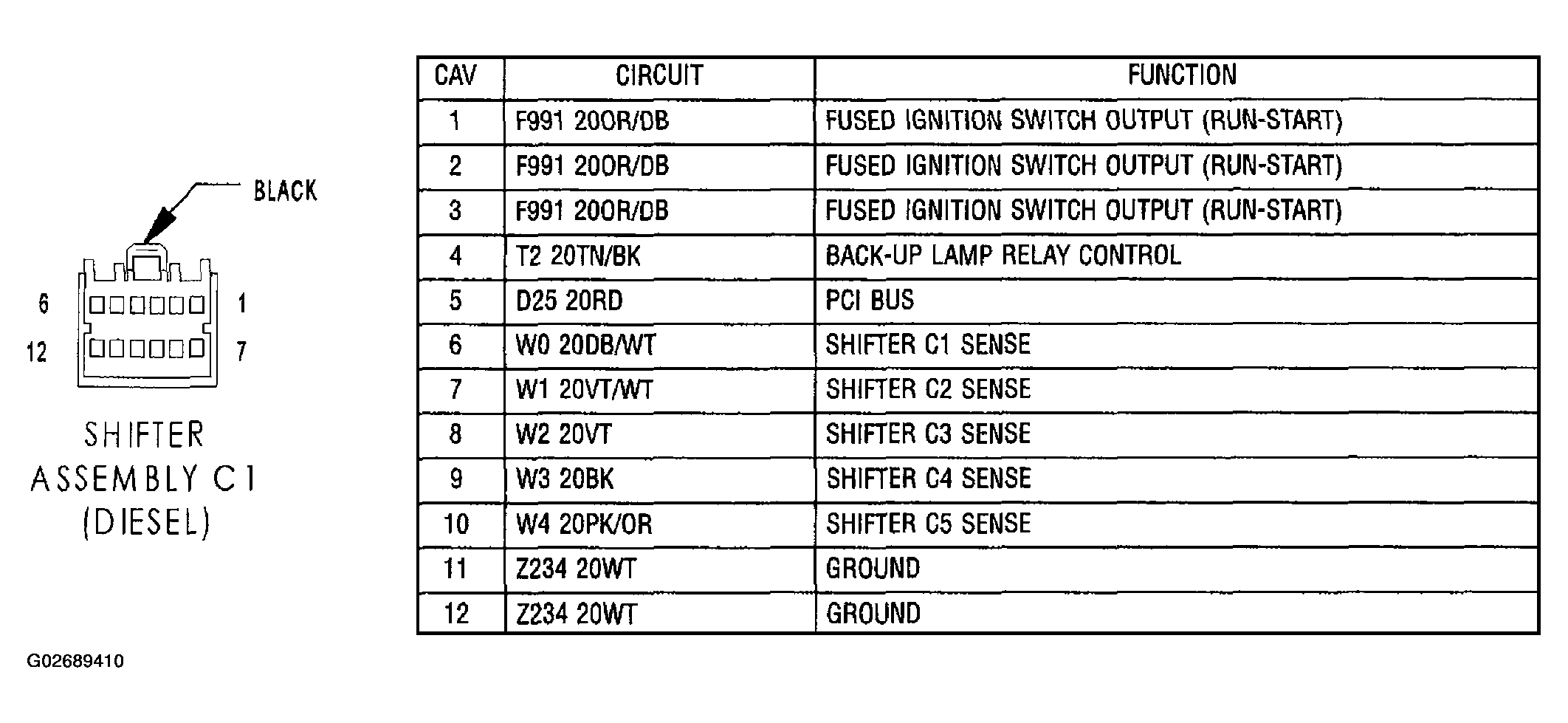

Fig 165: Identifying Shifter Assembly C1 (Diesel) Connector Pinouts

G02689410

Courtesy of DAIMLERCHRYSLER CORP.

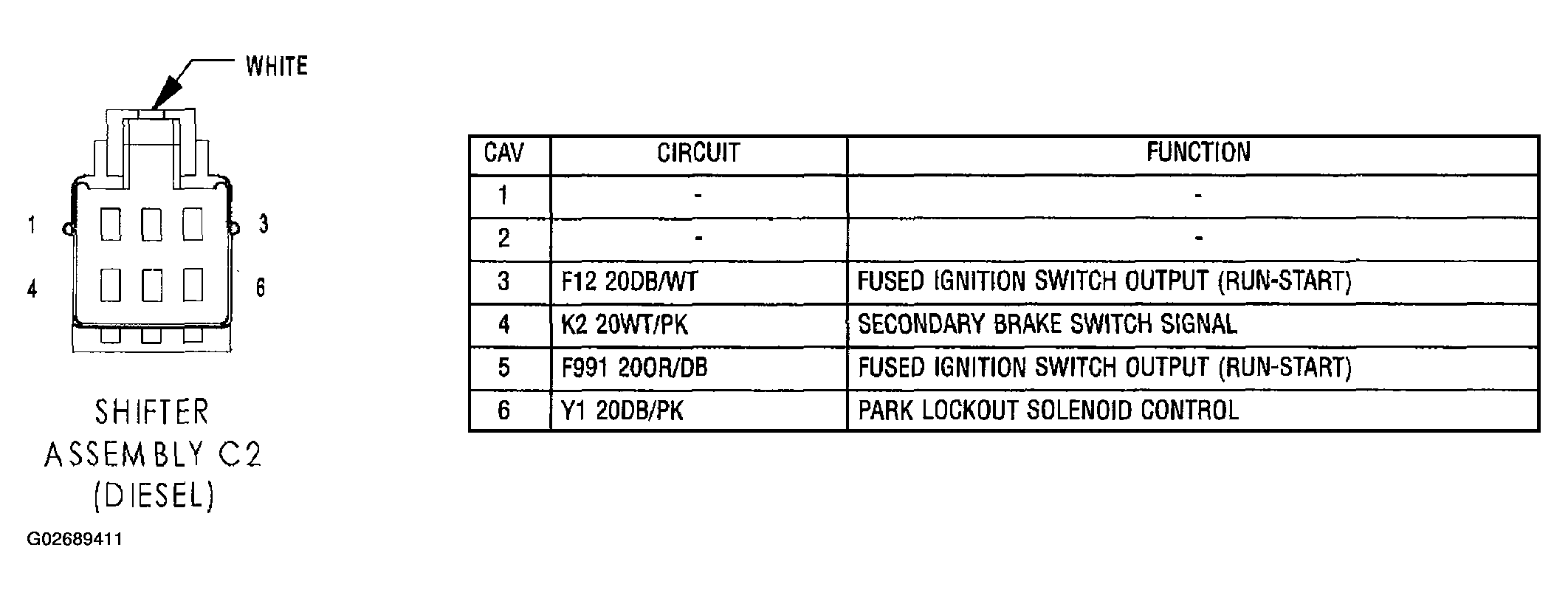

Fig 166: Identifying Shifter Assembly C2 I Connector Pinouts

G02689411

Courtesy of DAIMLERCHRYSLER CORP.

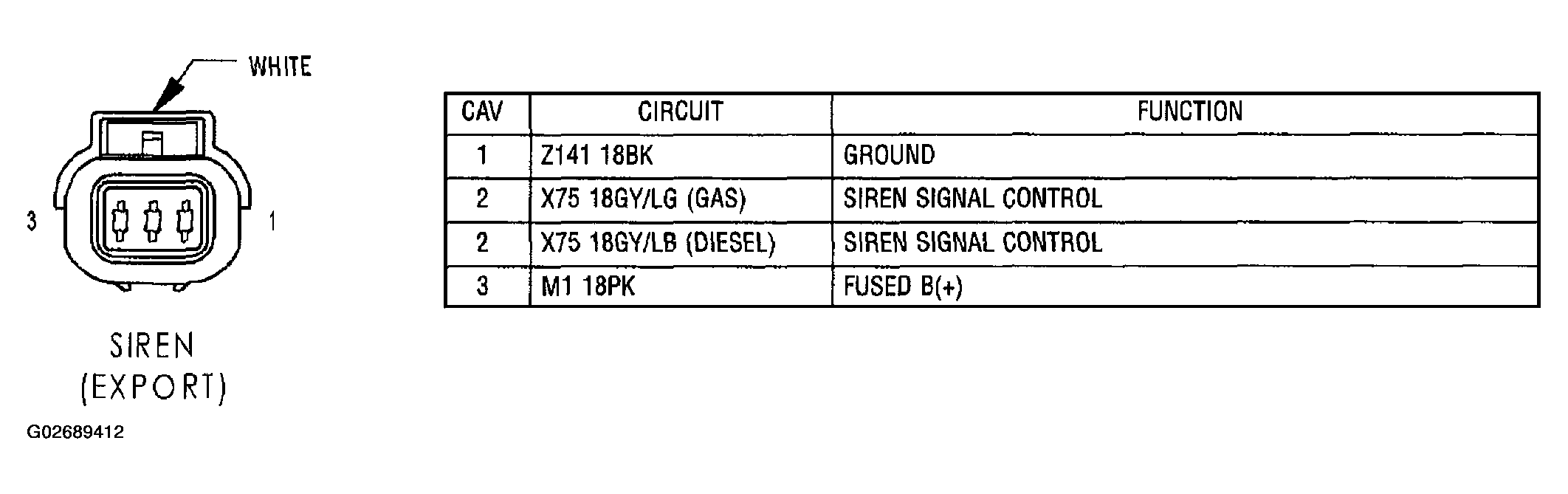

Fig 167: Identifying Siren (Export) Connector Pinouts

G02689412

Courtesy of DAIMLERCHRYSLER CORP.

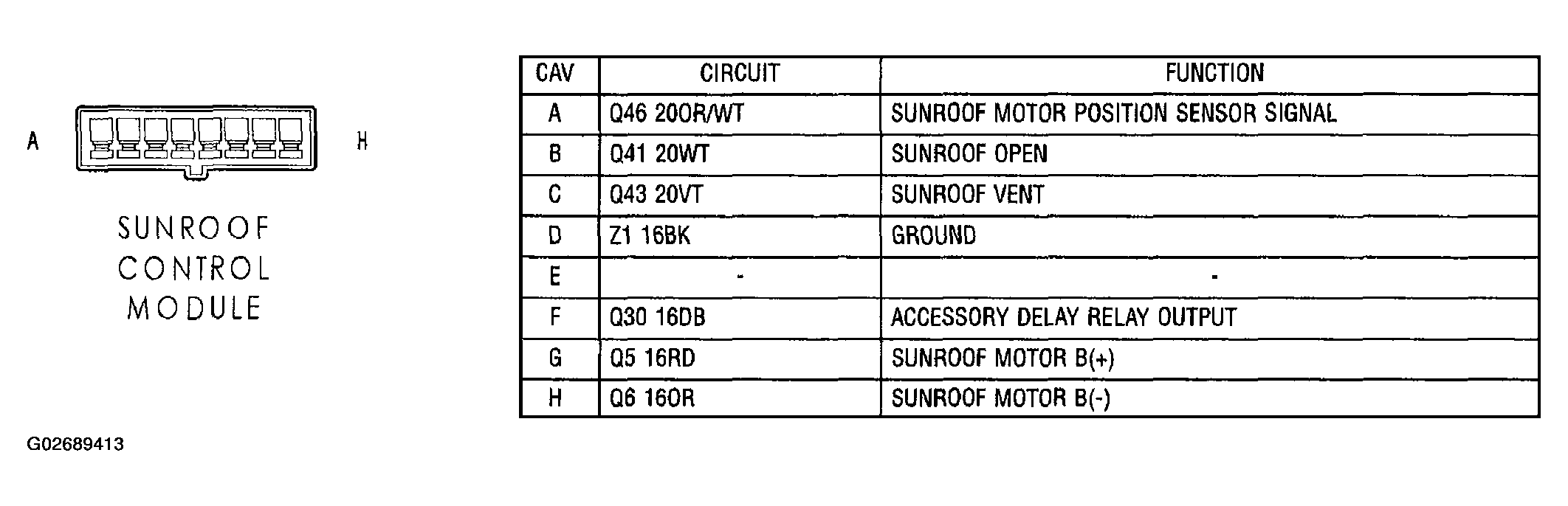

Fig 168: Identifying Sunroof Control Module Connector Pinouts

G02689413

Courtesy of DAIMLERCHRYSLER CORP.

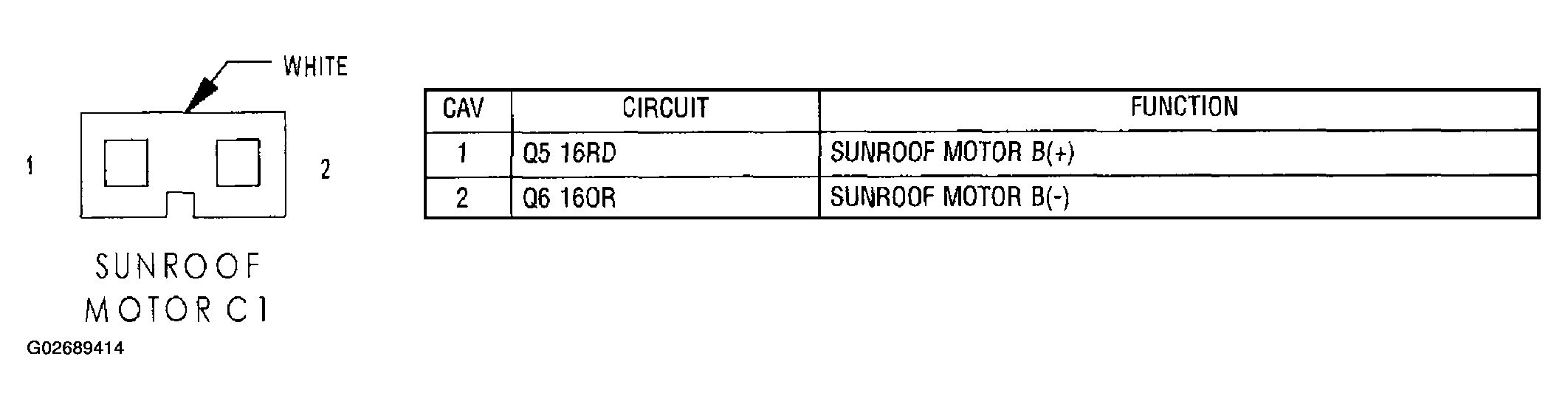

Fig 169: Identifying Sunroof Motor C1 Connector Pinouts

G02689414

Courtesy of DAIMLERCHRYSLER CORP.

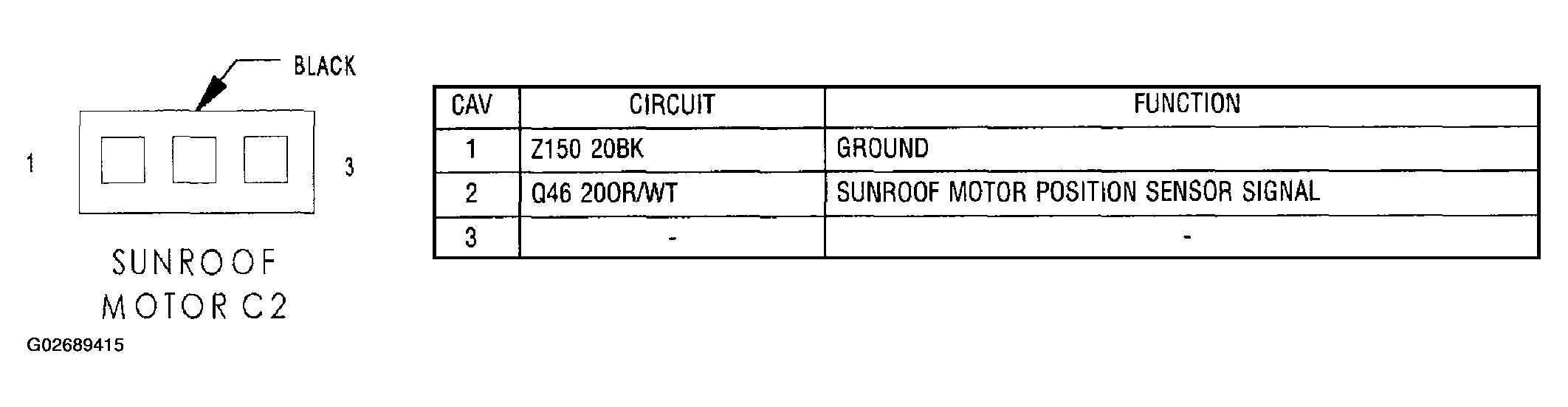

Fig 170: Identifying Sunroof Motor C2 Connector Pinouts

G02689415

Courtesy of DAIMLERCHRYSLER CORP.

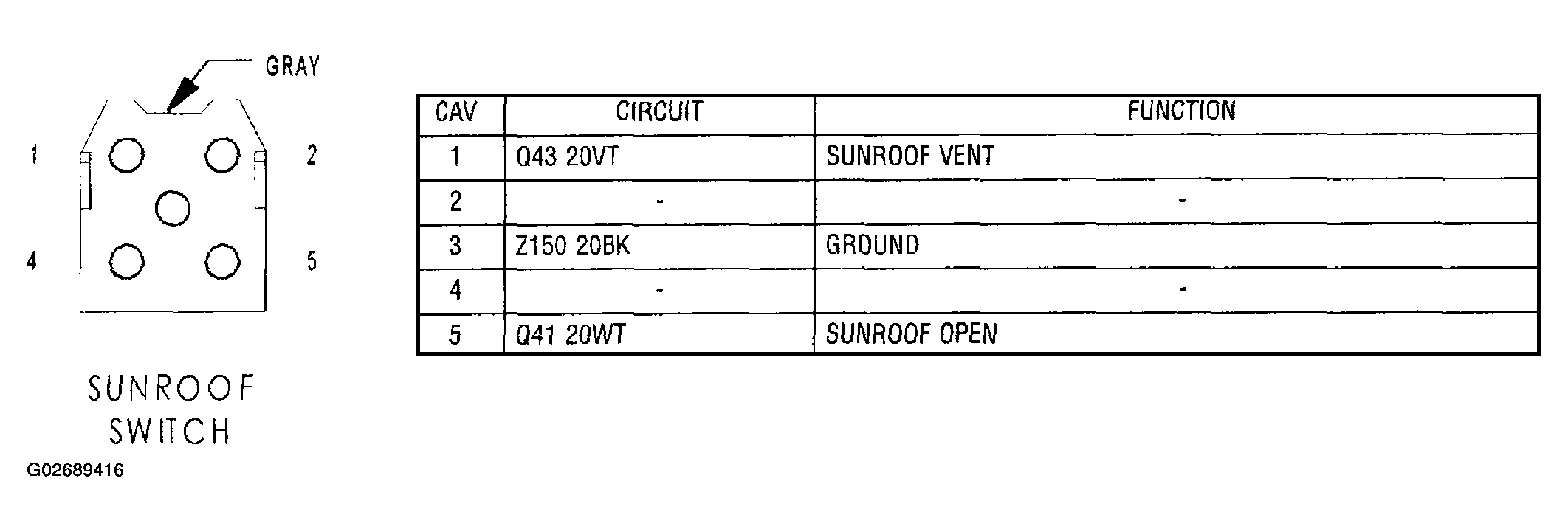

Fig 171: Identifying Sunroof Switch Connector Pinouts

G02689416

Courtesy of DAIMLERCHRYSLER CORP.

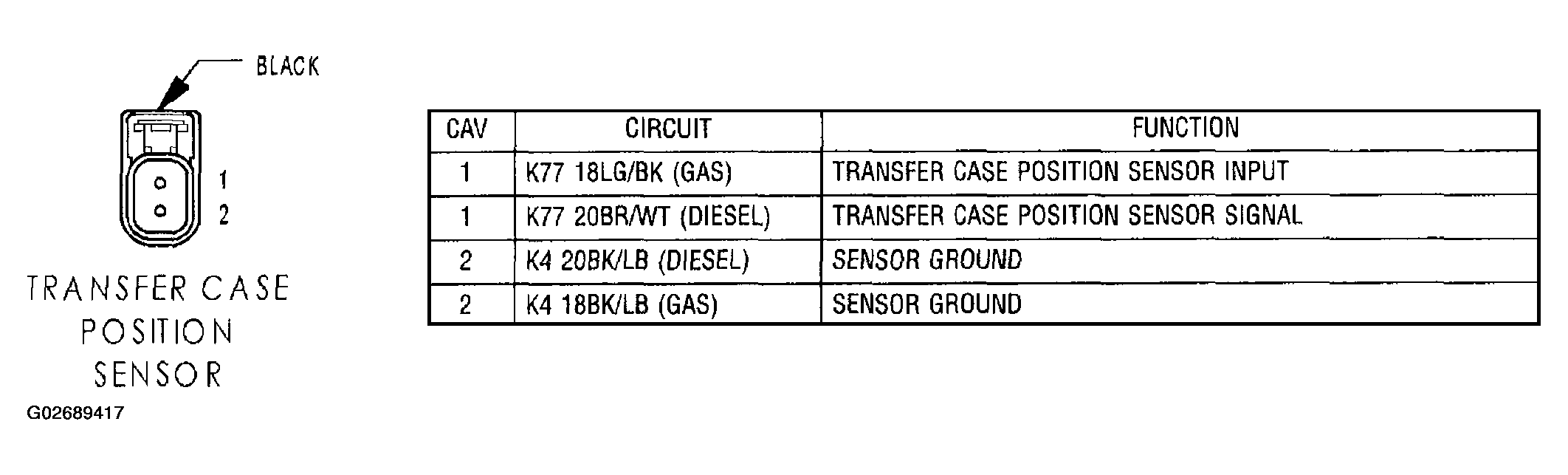

Fig 172: Identifying Transfer Case Position Sensor Connector Pinouts

G02689417

Courtesy of DAIMLERCHRYSLER CORP.

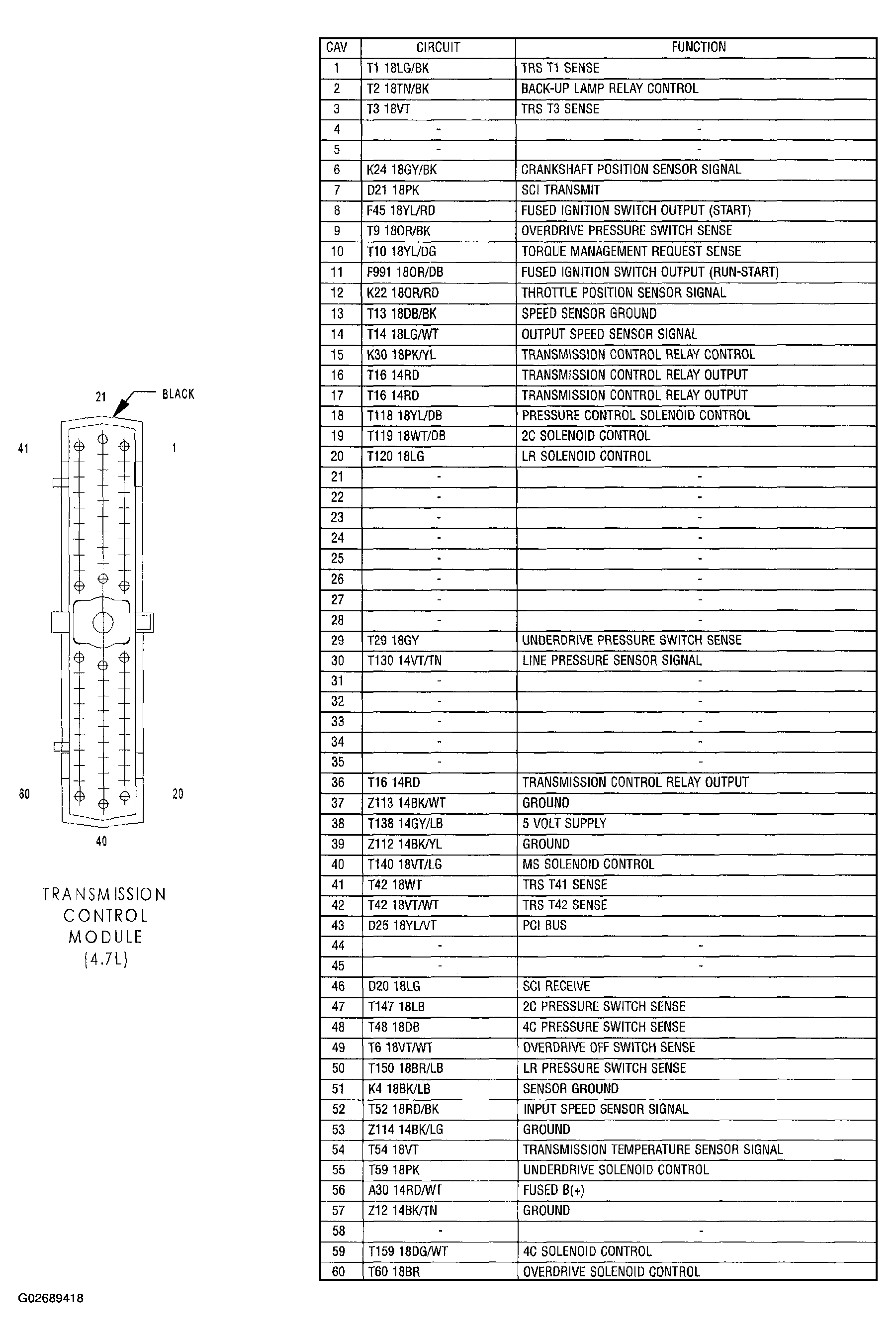

Fig 173: Identifying Transmission Control Module (4.7L) Connector Pinouts

G02689418

Courtesy of DAIMLERCHRYSLER CORP.

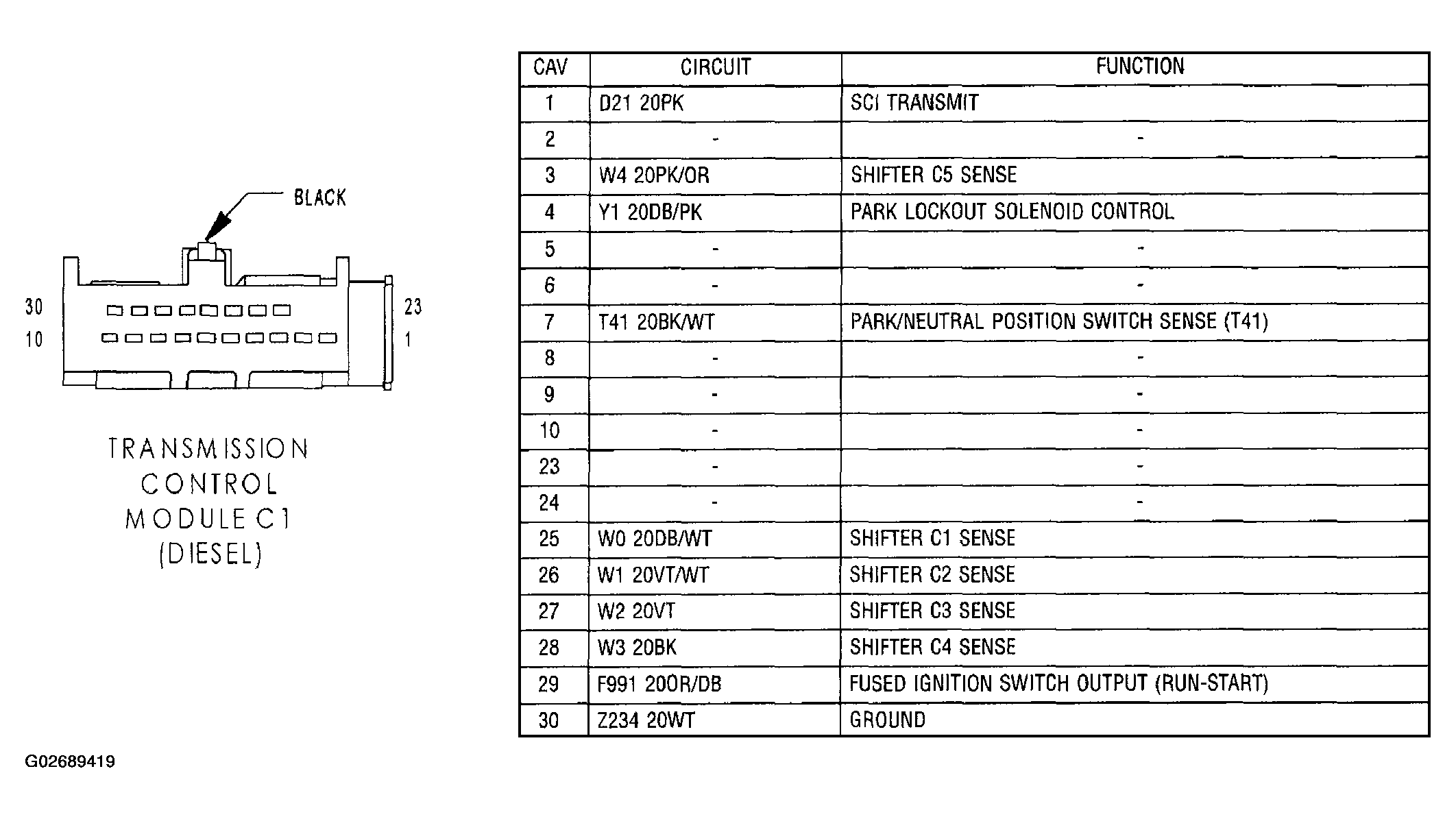

Fig 174: Identifying Transmission Control Module C1 (Diesel) Connector Pinouts

G02689419

Courtesy of DAIMLERCHRYSLER CORP.

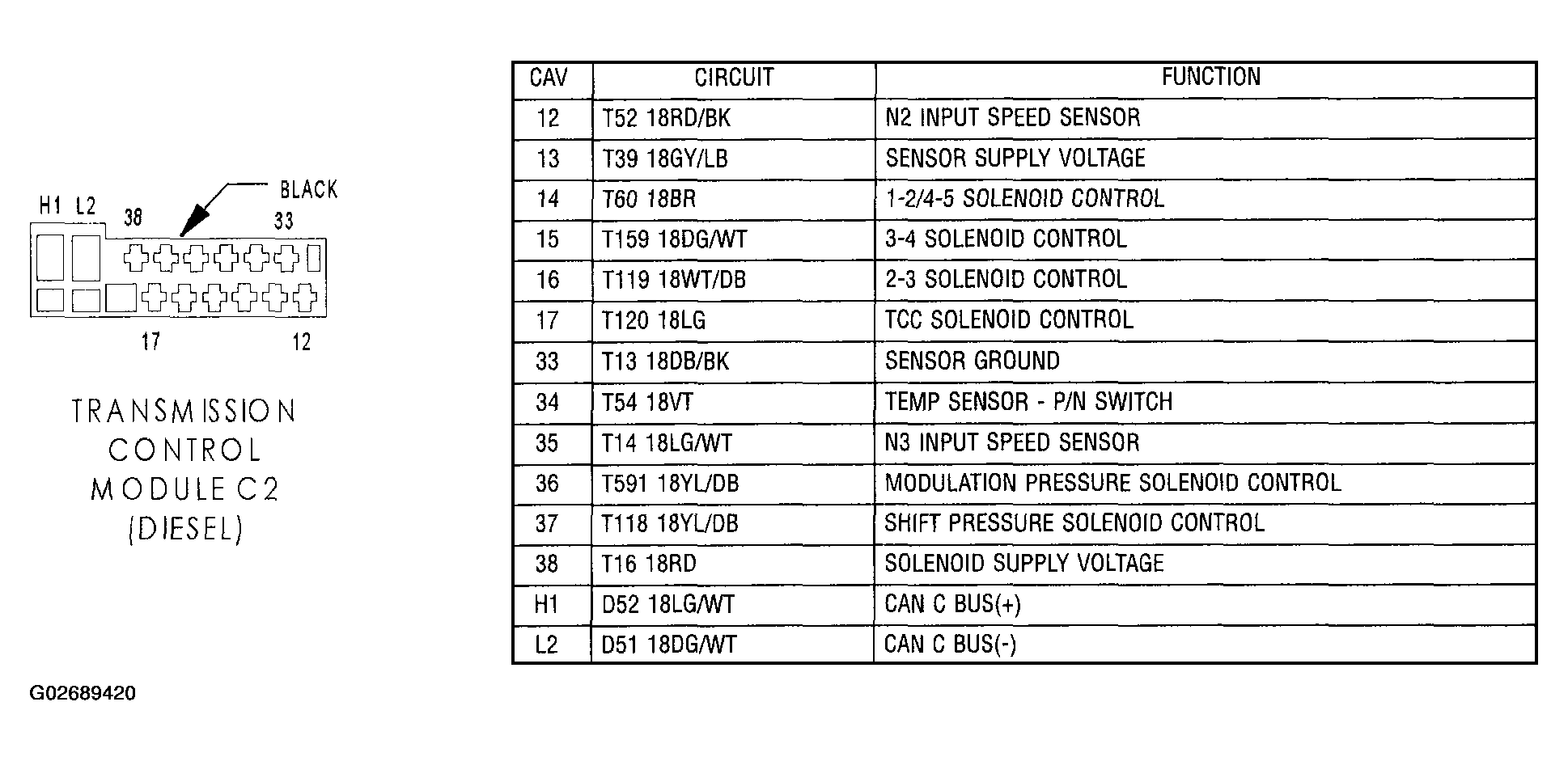

Fig 175: Identifying Transmission Control Module C2 (Diesel) Connector Pinouts

G02689420

Courtesy of DAIMLERCHRYSLER CORP.

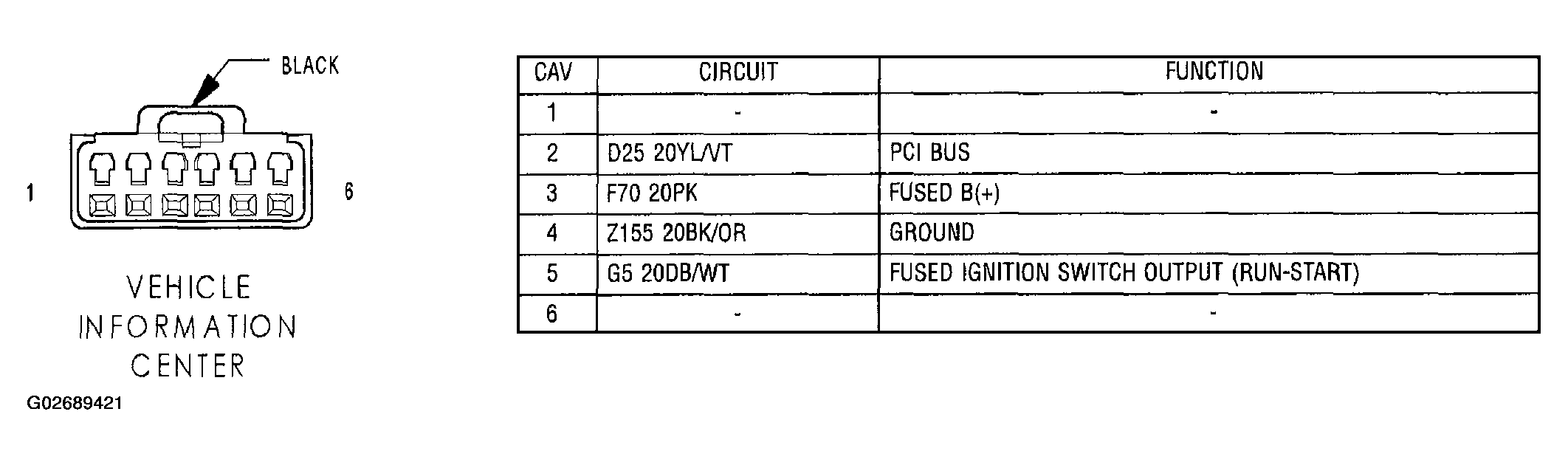

Fig 176: Identifying Vehicle Information Center Connector Pinouts

G02689421

Courtesy of DAIMLERCHRYSLER CORP.

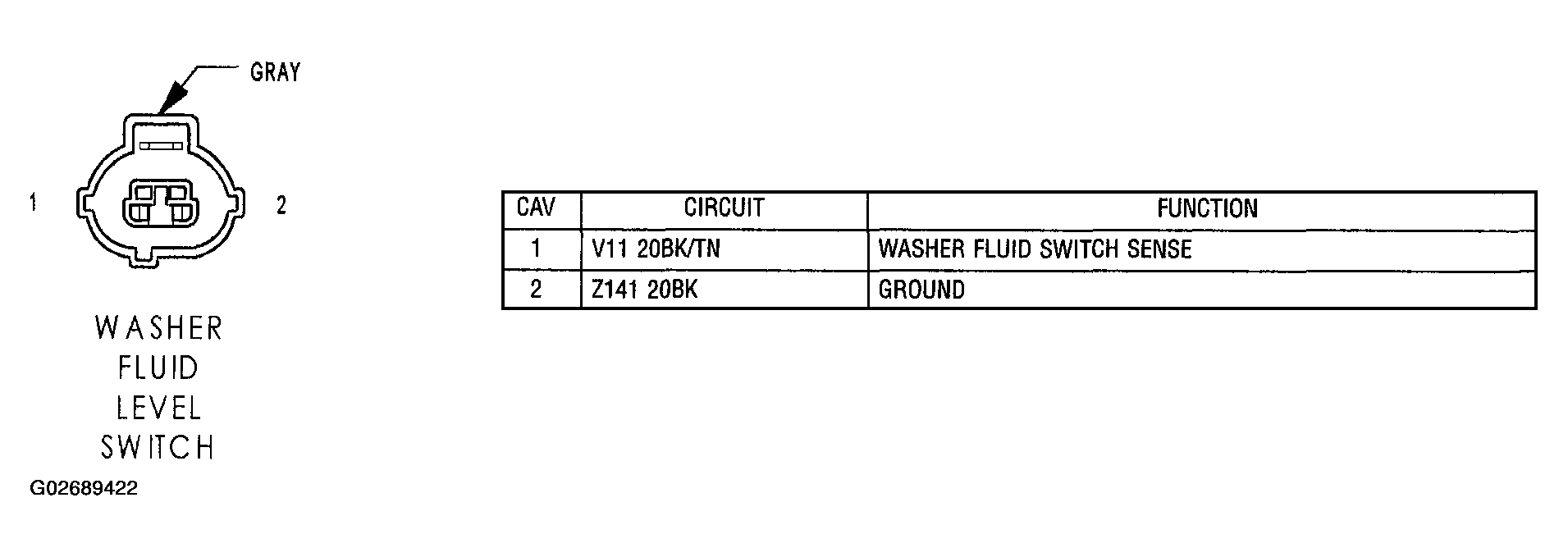

Fig 177: Identifying Washer Fluid Level Switch Connector Pinouts

G02689422

Courtesy of DAIMLERCHRYSLER CORP.

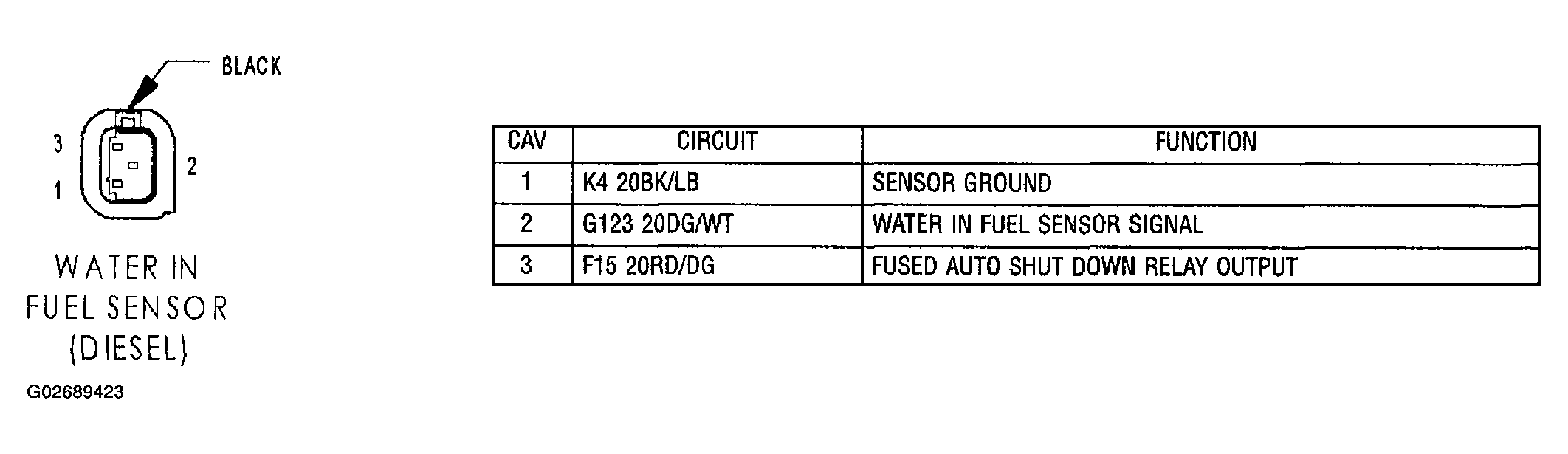

Fig 178: Identifying Water In Fuel Sensor (Diesel) Connector Pinouts

G02689423

Courtesy of DAIMLERCHRYSLER CORP.
