Shift Cable
- Check adjustment by starting engine in Park and Neutral. Adjustment is correct if engine starts ONLY in these positions. Adjustment is incorrect if engine starts in one but not both positions. If engine starts in any position other than Park or Neutral, or if engine will not start at all, check for faulty park/neutral position switch or transmission range sensor.

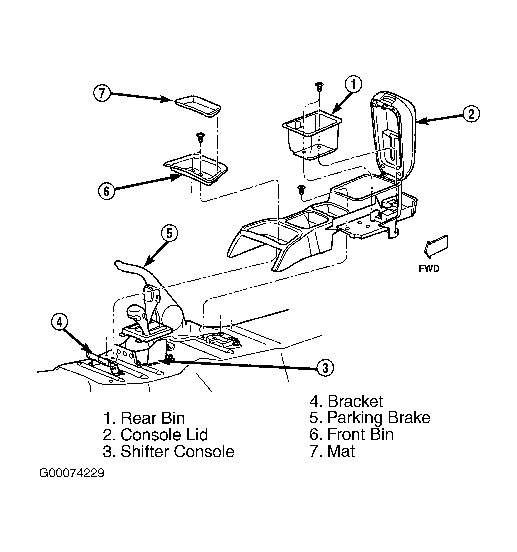

- Shift transmission into Park. Set parking brake. Place transmission gearshift lever and transfer case lever (if equipped) in full rearward position. Remove mat from front bin, and remove screws attaching front of console to floor. See Fig 1
. Remove screws attaching rear bin to console, and remove rear bin.

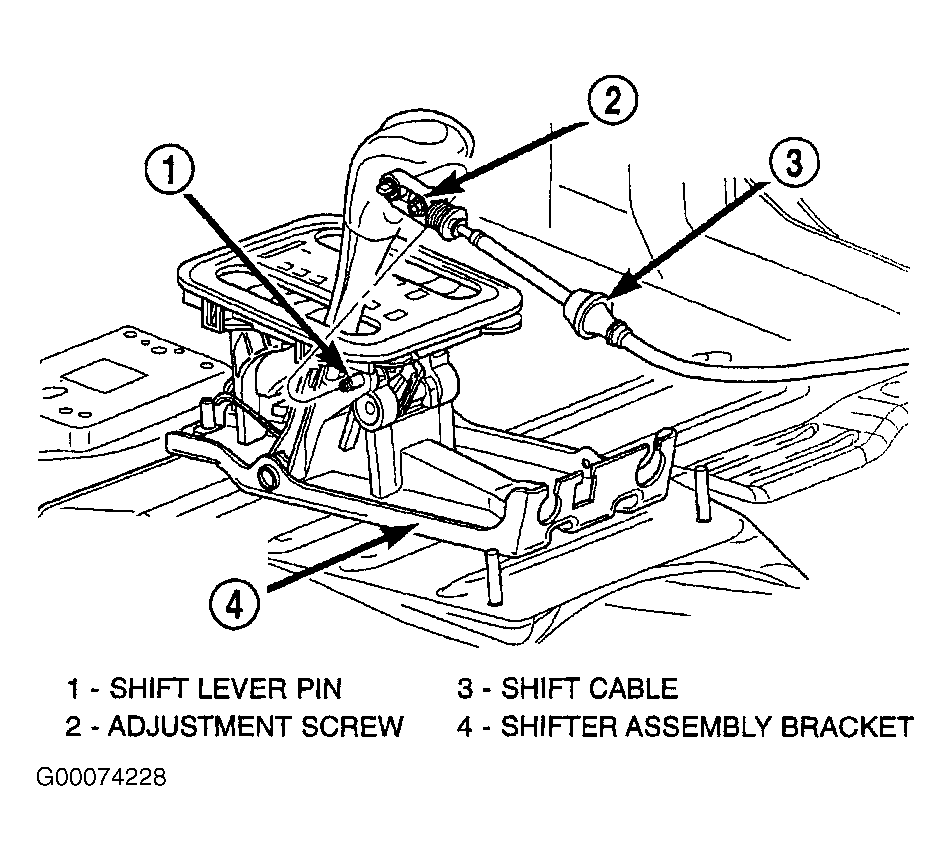

- Pull rear passenger cup holder outward to access screws. Remove screws attaching rear of console to floor. Lift console up and rearward, and remove from vehicle. Loosen shift cable adjustment screw. See Fig 2
. Raise vehicle.
- Unsnap gearshift cable eyelet from transmission manual shift lever at transmission. See Fig 3
. Verify transmission manual shift lever is in Park detent by moving lever fully rearward. Verify positive engagement of transmission park lock by attempting to rotate driveshaft. Driveshaft will not rotate when park lock is engaged.
- Snap cable eyelet onto transmission manual shift lever. Lower vehicle. Tighten shift cable adjustment screw to 65 INCH lbs. (7.3 N.m). Verify adjustment by attempting to start engine in Park and Neutral. Adjustment is okay if engine starts in Park and Neutral, and does not start in any other gear position. Install floor console by reversing removal procedure.
Courtesy of DAIMLERCHRYSLER CORPORATION
Courtesy of DAIMLERCHRYSLER CORPORATION
Courtesy of DAIMLERCHRYSLER CORPORATION
