Drive Belts: Adjustment

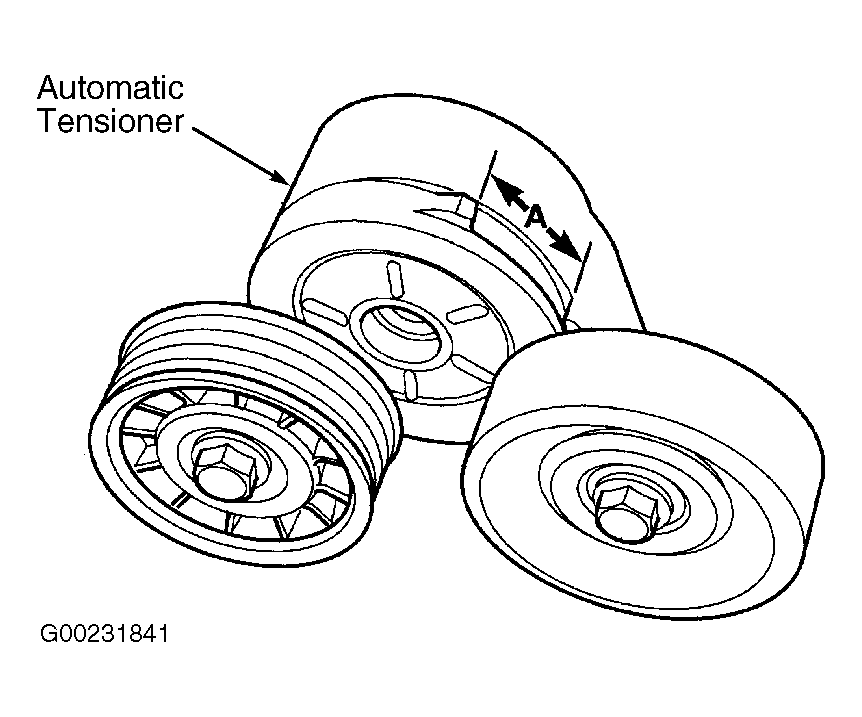

Belt tension is controlled by an automatic belt tensioner and is not adjustable. After belt is installed, inspect belt wear indicator. Gap between tang and housing stop (measurement "A") must not exceed .94" (24 mm). See Fig 1. If gap exceeds specification, replace belt.
