Sunroof Control Module - 8 Way Connector End View

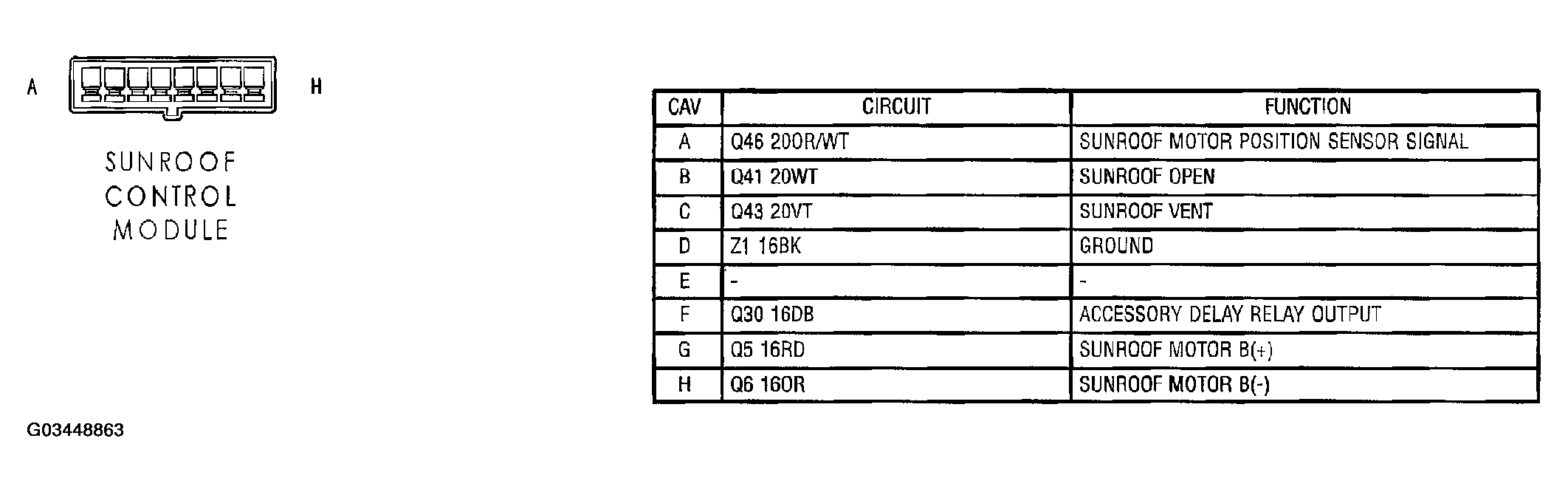

Fig 1: Sunroof Control Module Connector End View

G03448863

Courtesy of DAIMLERCHRYSLER CORP.
