Front Wheel Speed Sensor: Removal

Raise and support the vehicle.
Remove the front wheel sensor mounting bolt (Fig 1 ).

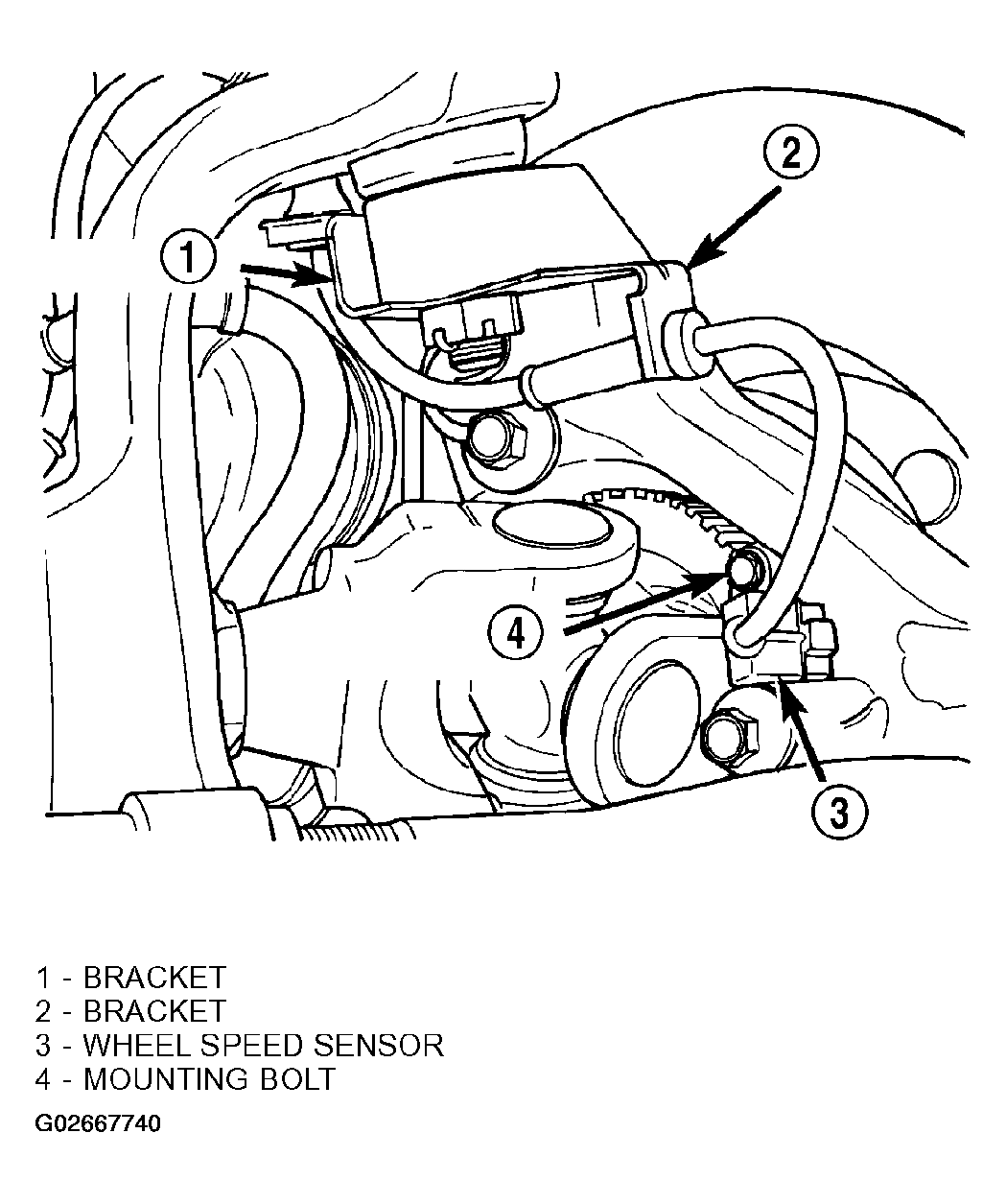

Fig 1: Locating Front Wheel Speed Sensor
Courtesy of DAIMLERCHRYSLER CORP.
Remove the sensor from the steering knuckle.
Disengage the sensor wire from the brackets (Fig 1 ) on the steering knuckle.
Disconnect the sensor from the sensor harness (Fig 2 and Fig 3 ).
Remove the sensor and wire.

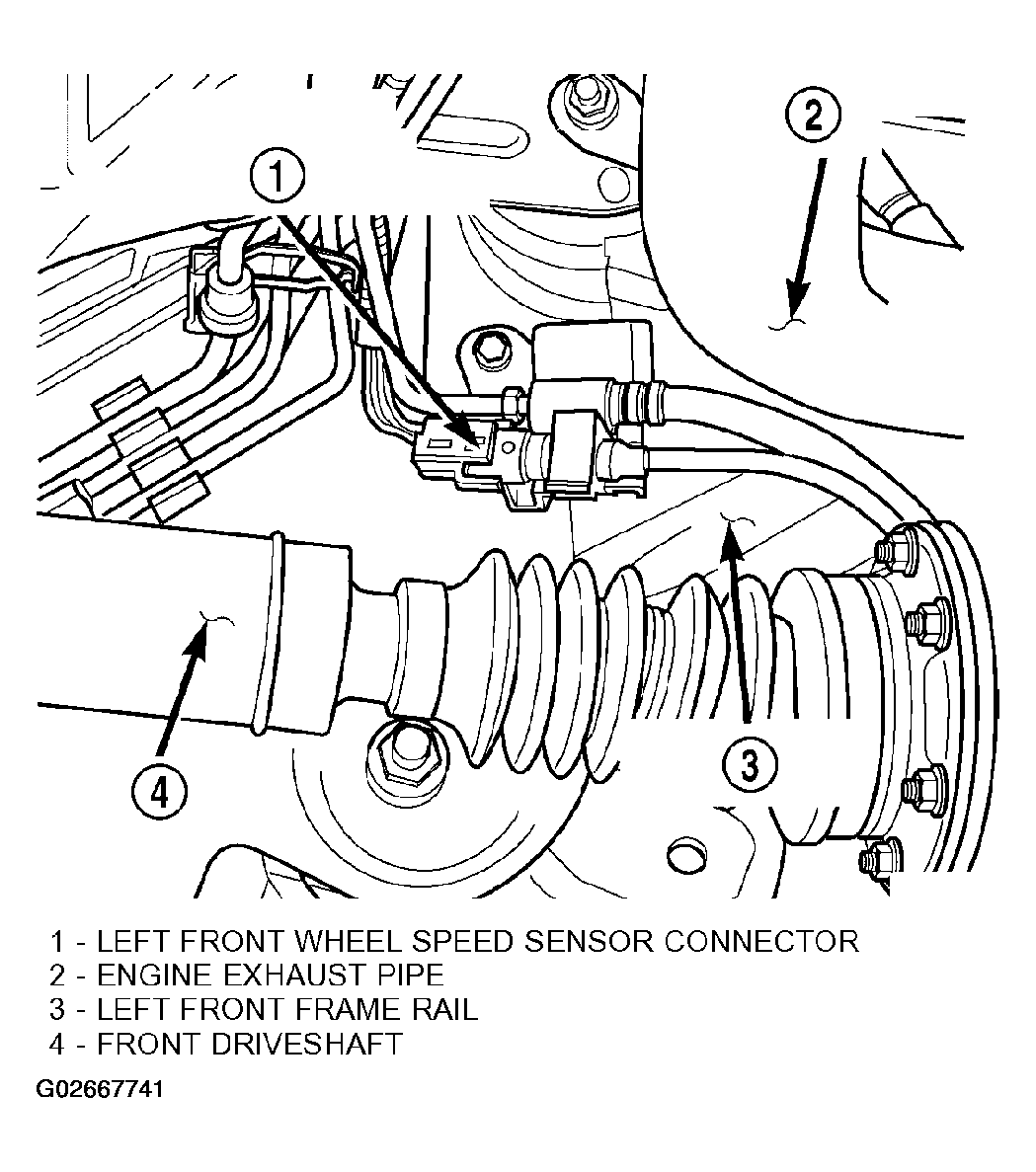

Fig 2: Identifying Left Front Wheel Speed Sensor Connector
Courtesy of DAIMLERCHRYSLER CORP.

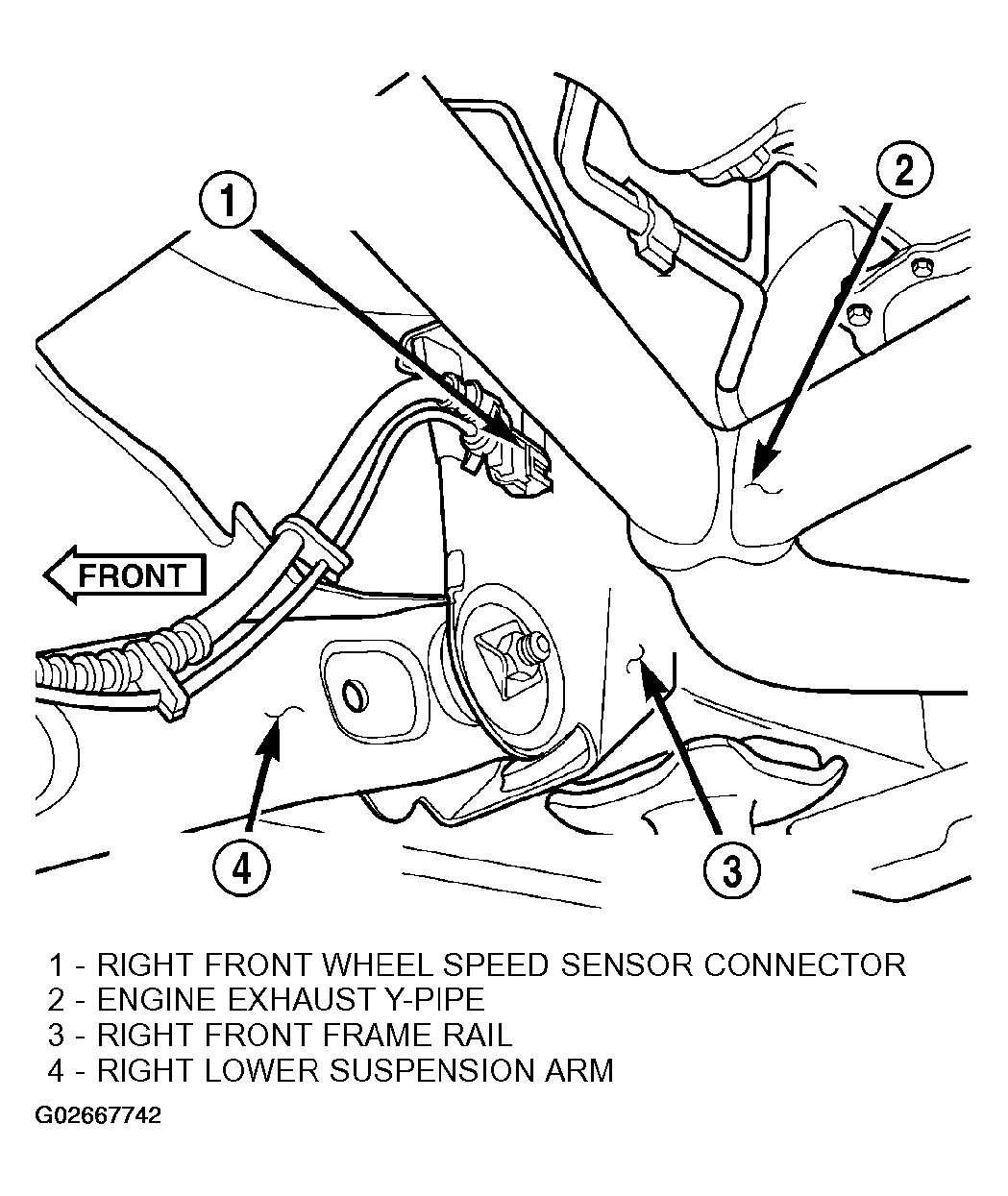

Fig 3: Identifying Right Front Wheel Speed Sensor Connector
Courtesy of DAIMLERCHRYSLER CORP.
