Adjustable Pedal Assembly: Removal

NOTE: If possible put the pedals in the full forward position.
  1. Disconnect the negative battery cable.
  2. Remove the cluster bezel. See CLUSTER BEZEL  .
  3. Remove the steering column opening cover. See STEERING COLUMN OPENING COVER  .
  4. Disconnect the module electrical connector.
  5. Remove the brake light switch.
  6. Disconnect the booster rod clip. See Fig 1 .
  7. Disconnect the accelerator cable from the pedal.
  8. Lock the steering wheel into place.
  9. Remove the lower steering shaft pinch bolt.
  10. Separate the lower shaft coupler and push forward.
  11. Remove the two pedal bracket upper nuts. See Fig 2 .
  12. Remove the brake booster nuts. See Fig 3 .
  13. Remove the accelerator pedal nuts.
  14. Remove the Hydraulic Control Unit (HCU) mounting bracket nuts and bolts and move the HCU and booster forward this will allow enough clearance to remove the adjustable pedal bracket from over the booster push rod. See Fig 4 .
  15. Remove the pedals from the vehicle.
  16. Transfer the module, if necessary.

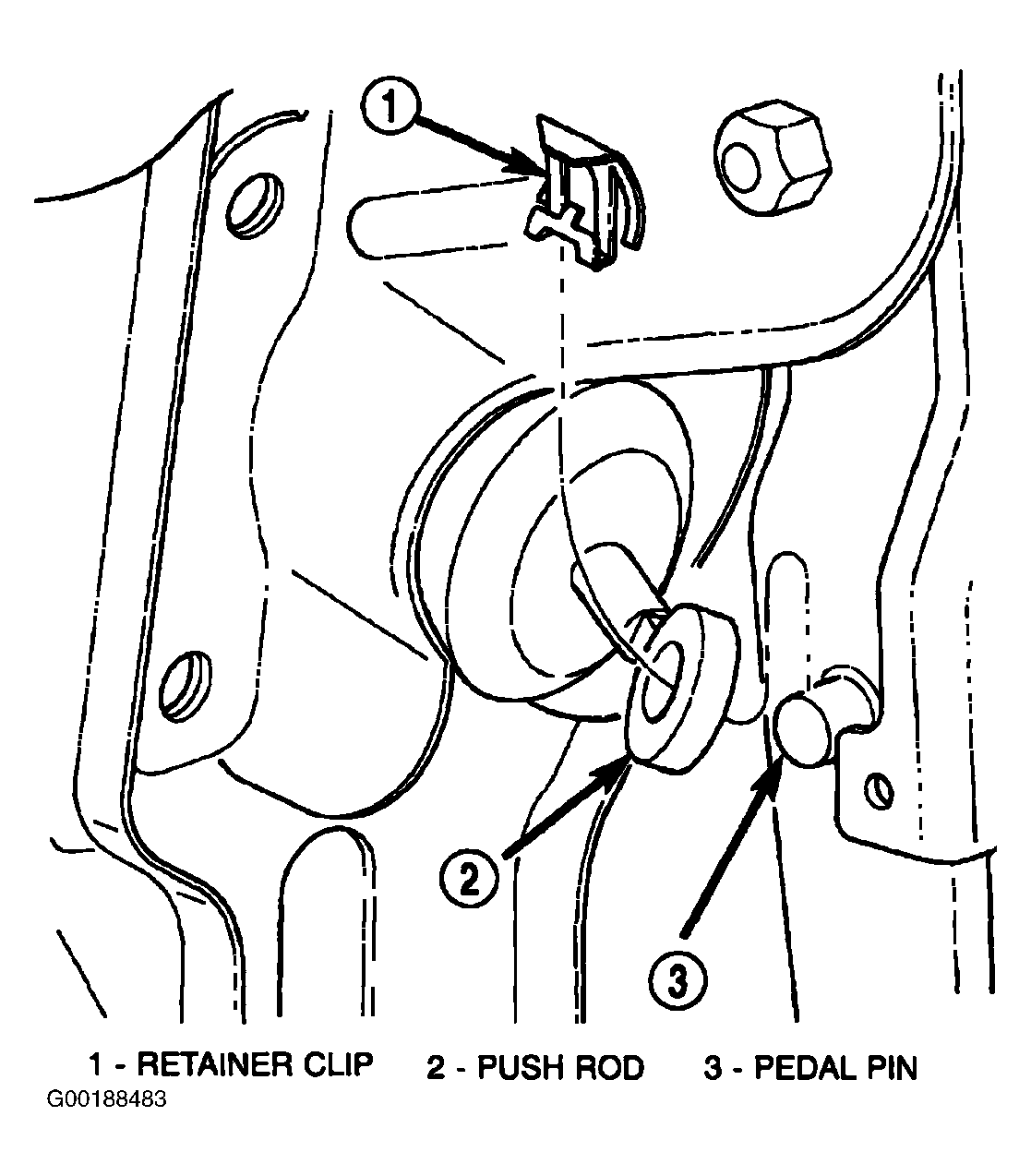

Fig 1: Removing Push Rod Retainer Clip
G00188483Courtesy of DAIMLERCHRYSLER CORPORATION

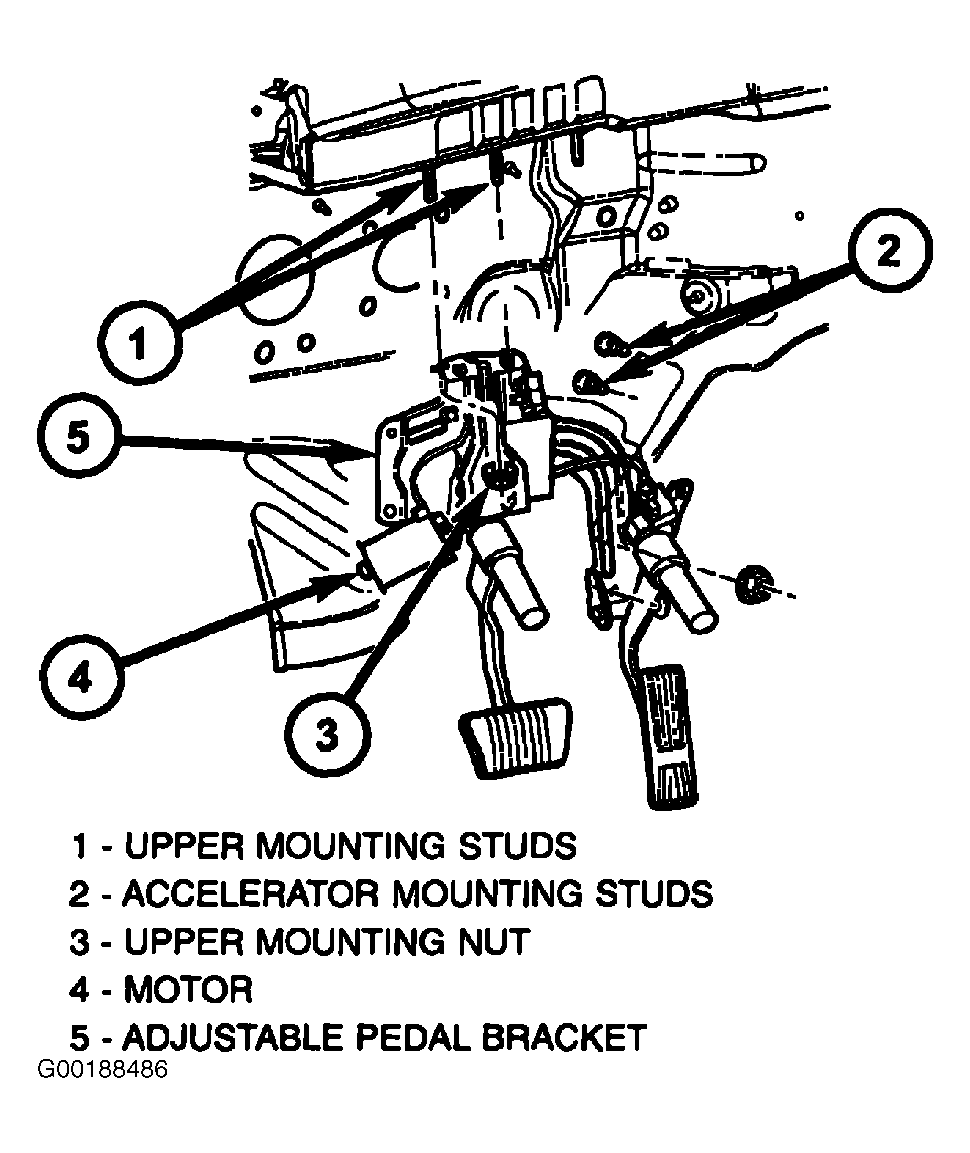

Fig 2: Locating Upper Mounting Bolts
G00188486Courtesy of DAIMLERCHRYSLER CORPORATION

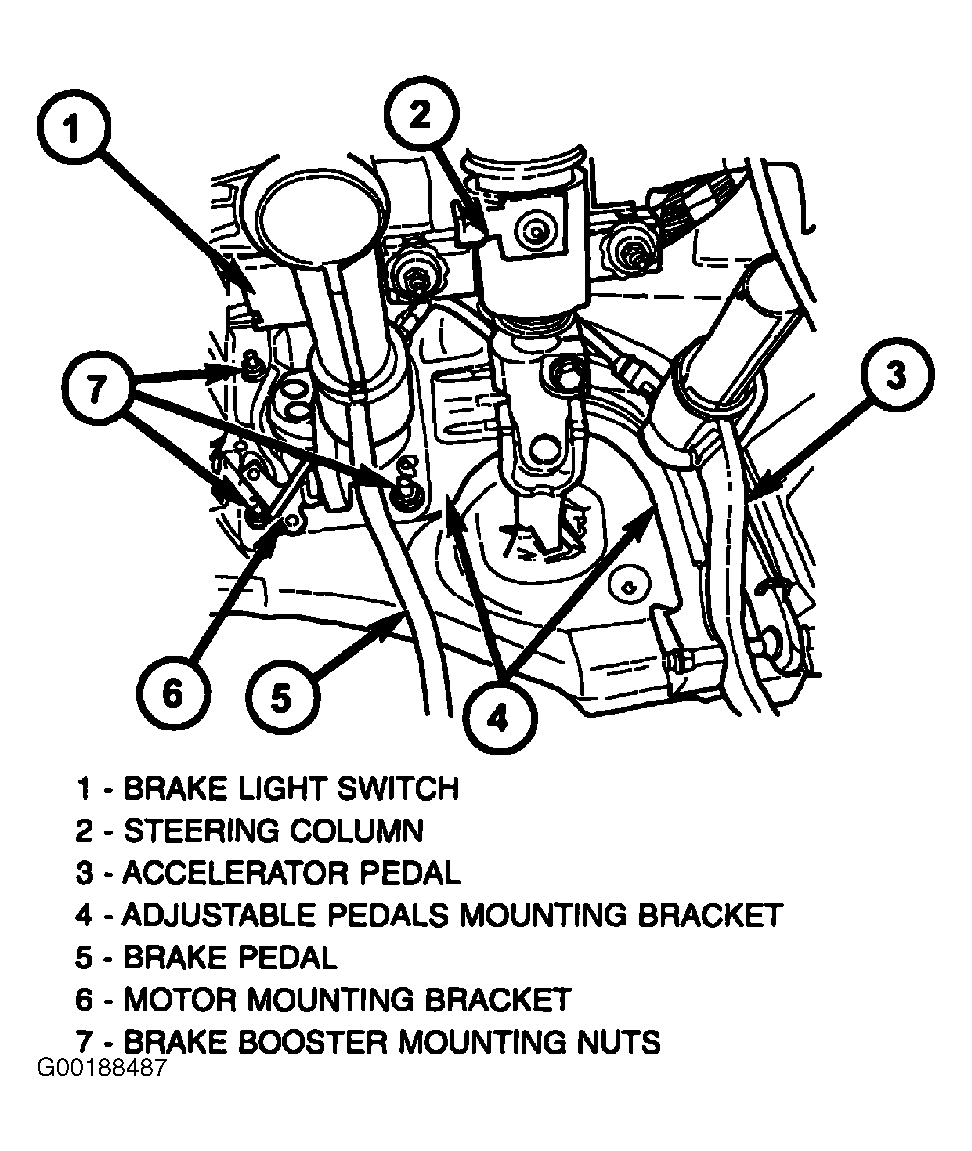

Fig 3: Locating Brake Booster Bolts
G00188487Courtesy of DAIMLERCHRYSLER CORPORATION

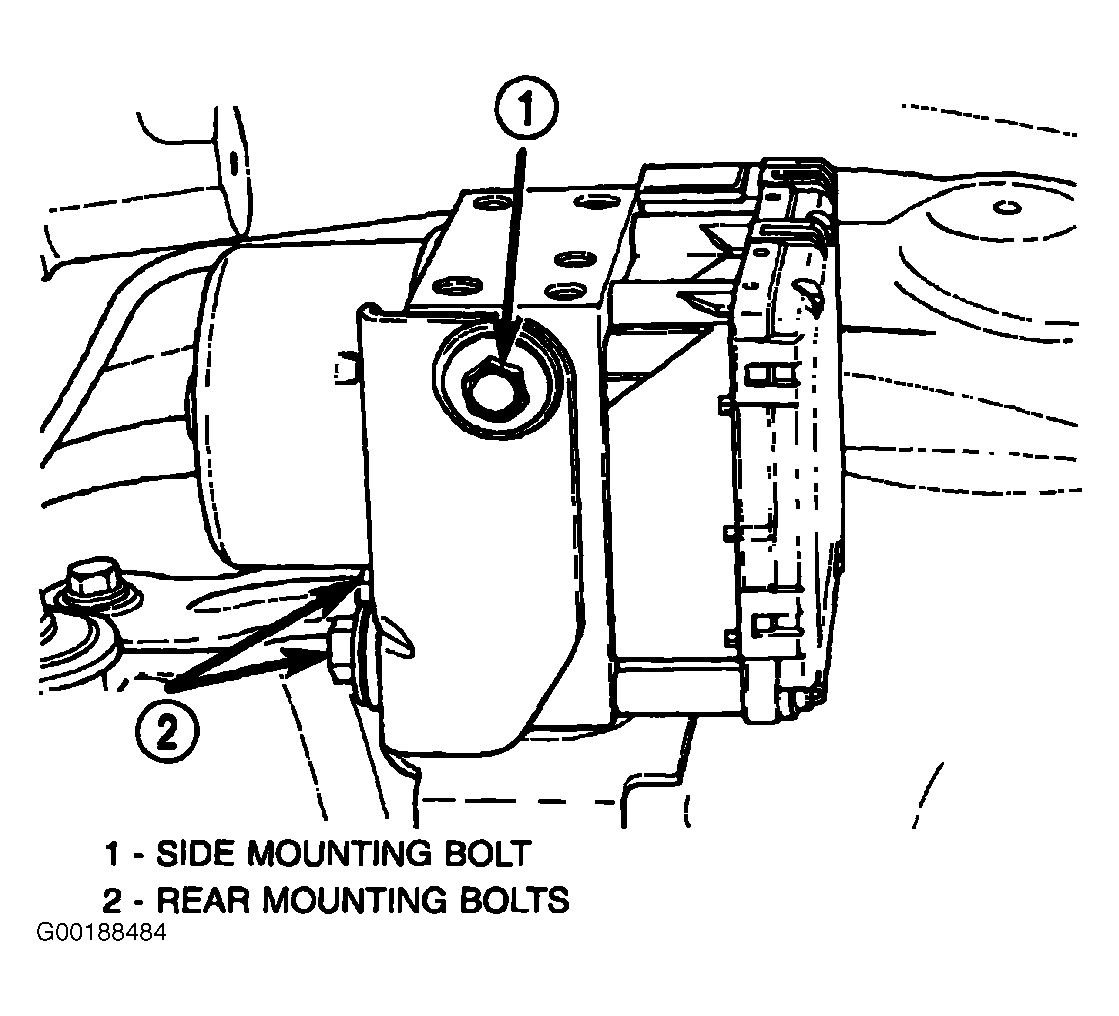

Fig 4: Identifying HCU Mounting Nuts
G00188484Courtesy of DAIMLERCHRYSLER CORPORATION
