Powertrain Control Module C3 Connector End View (Gray 32 Way)

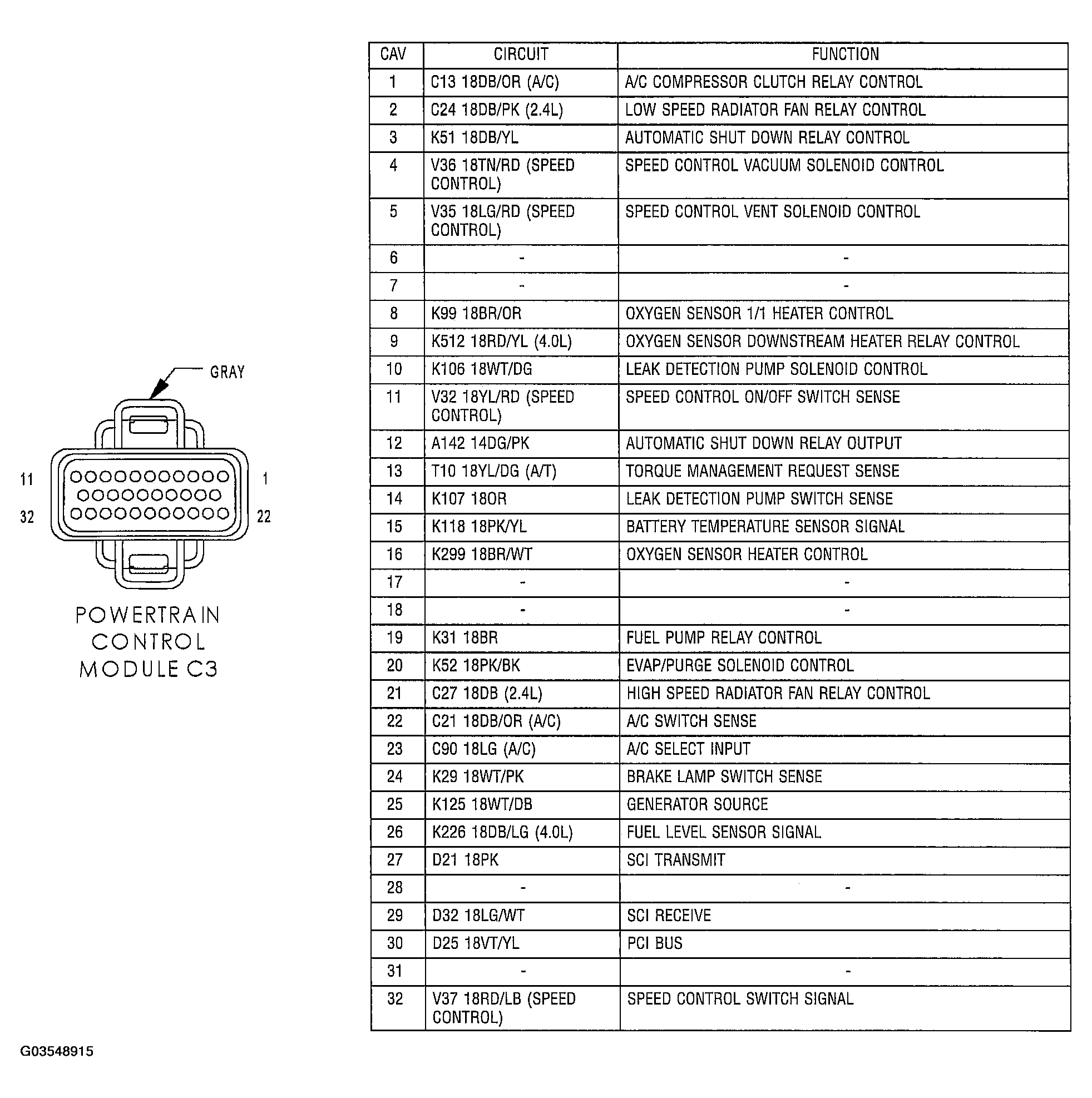

Fig 1: Powertrain Control Module C3 Connector End View (Gray 32 Way)

G03548915

Courtesy of CHRYSLER GROUP, LLC
