Abs Verification Test - VER 1
Abs Verification Test - VER 1

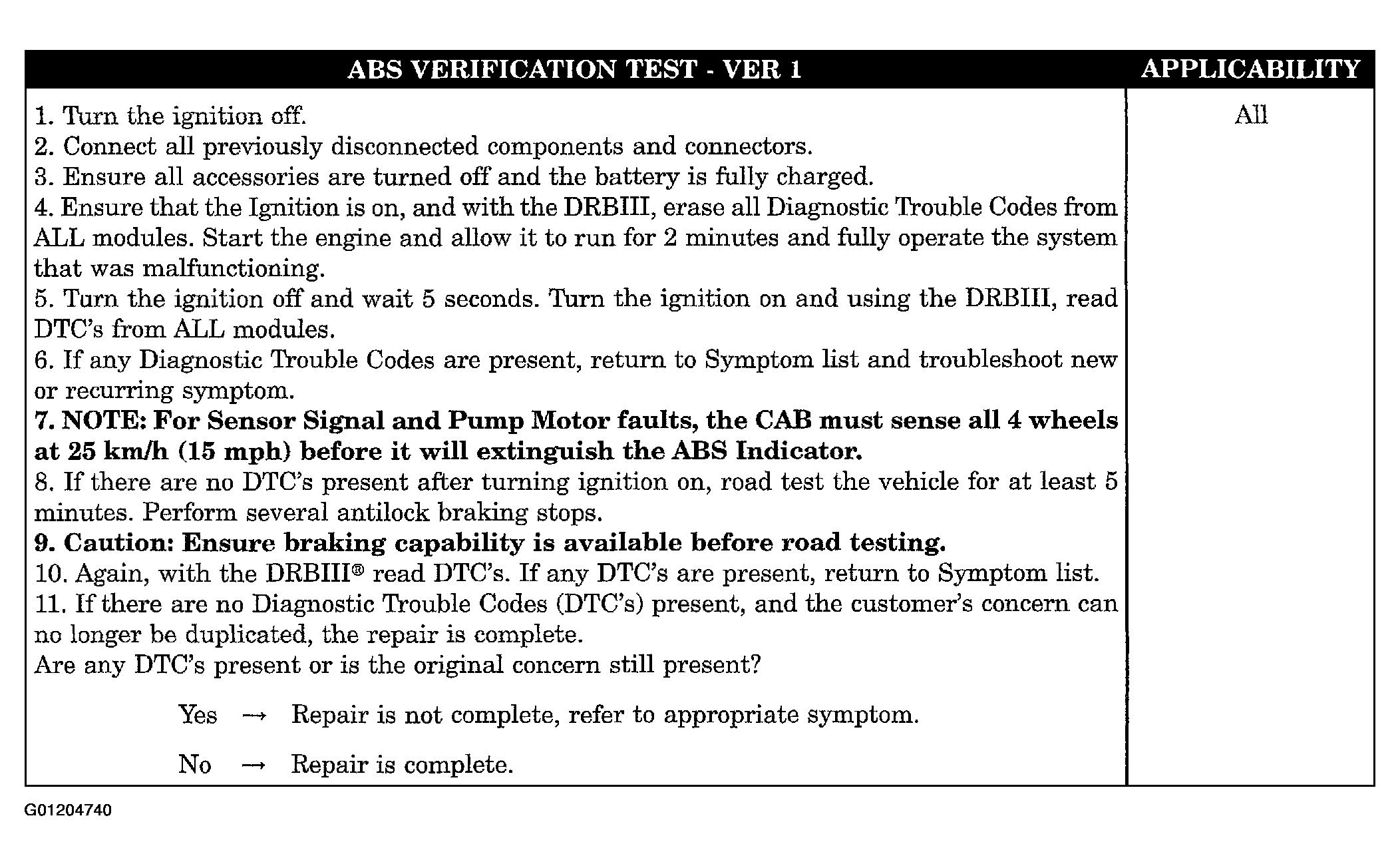

Fig 1: ABS Verification Test - Ver 1
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
