Diagnosis And Testing: Notes

WARNING: This page is about a different variant/trim than selected.

A road test and component inspection is recommended to determine a clutch problem.

During a road test, drive the vehicle at normal speeds. Shift the transmission through all gear ranges and observe clutch action. If the clutch chatters, grabs, slips or does not release properly, remove and inspect the clutch components. If the problem is noise or hard shifting, further diagnosis may be needed as the transmission or another driveline component may be at fault.

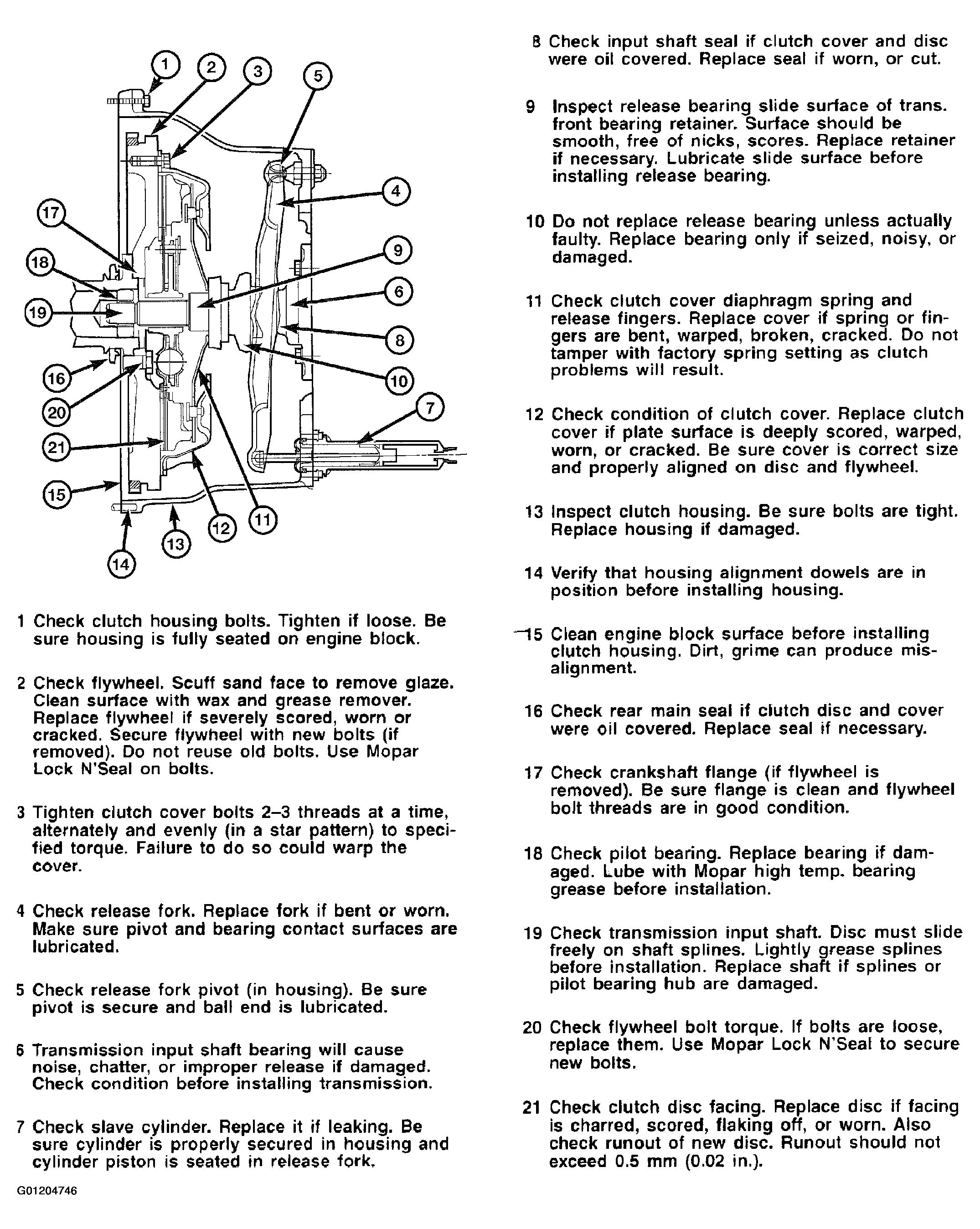

Fig 1: Identifying Clutch Components And Inspection
G01204746Courtesy of DAIMLERCHRYSLER CORP.
