Structural Support: Removal

The engine bending braces are used to add strength to the powertrain and to address some minor NVH concerns.

1. Raise and support vehicle.
   NOTE: Both left and right side bending braces are removed the same way. Only the right side is shown.
   NOTE: The exhaust does not require removal to preform this procedure.
2. Remove the exhaust hanger bracket retaining bolt.
3. Remove lock nut and transmission bending brace bar.

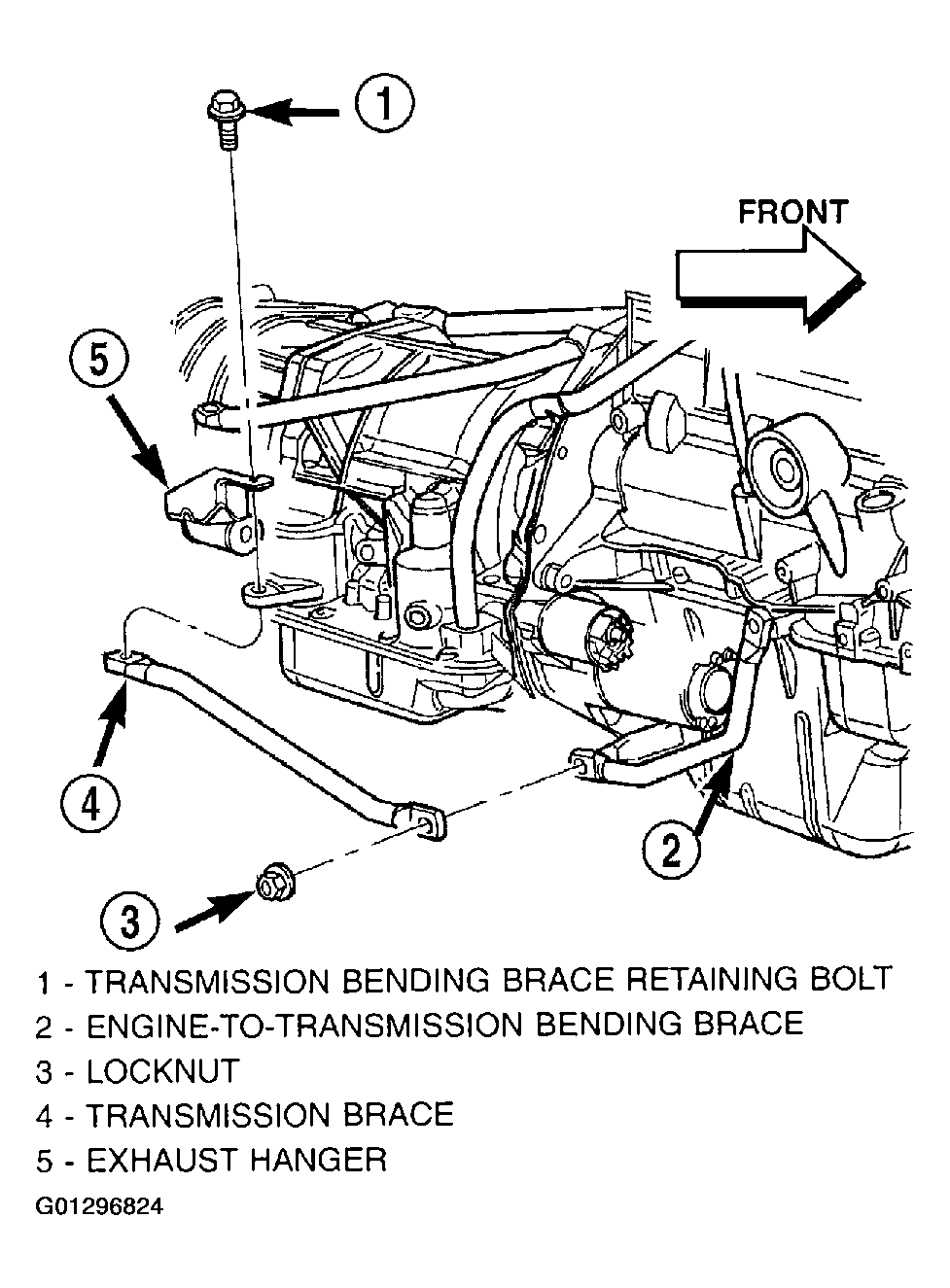

   Fig 1: Removing & Installing Transmission Bending Braces & Exhaust Hanger

   Courtesy of DAIMLERCHRYSLER CORP.
4. Remove engine-to-bending brace retaining bolt, bending brace bar and cross bar.

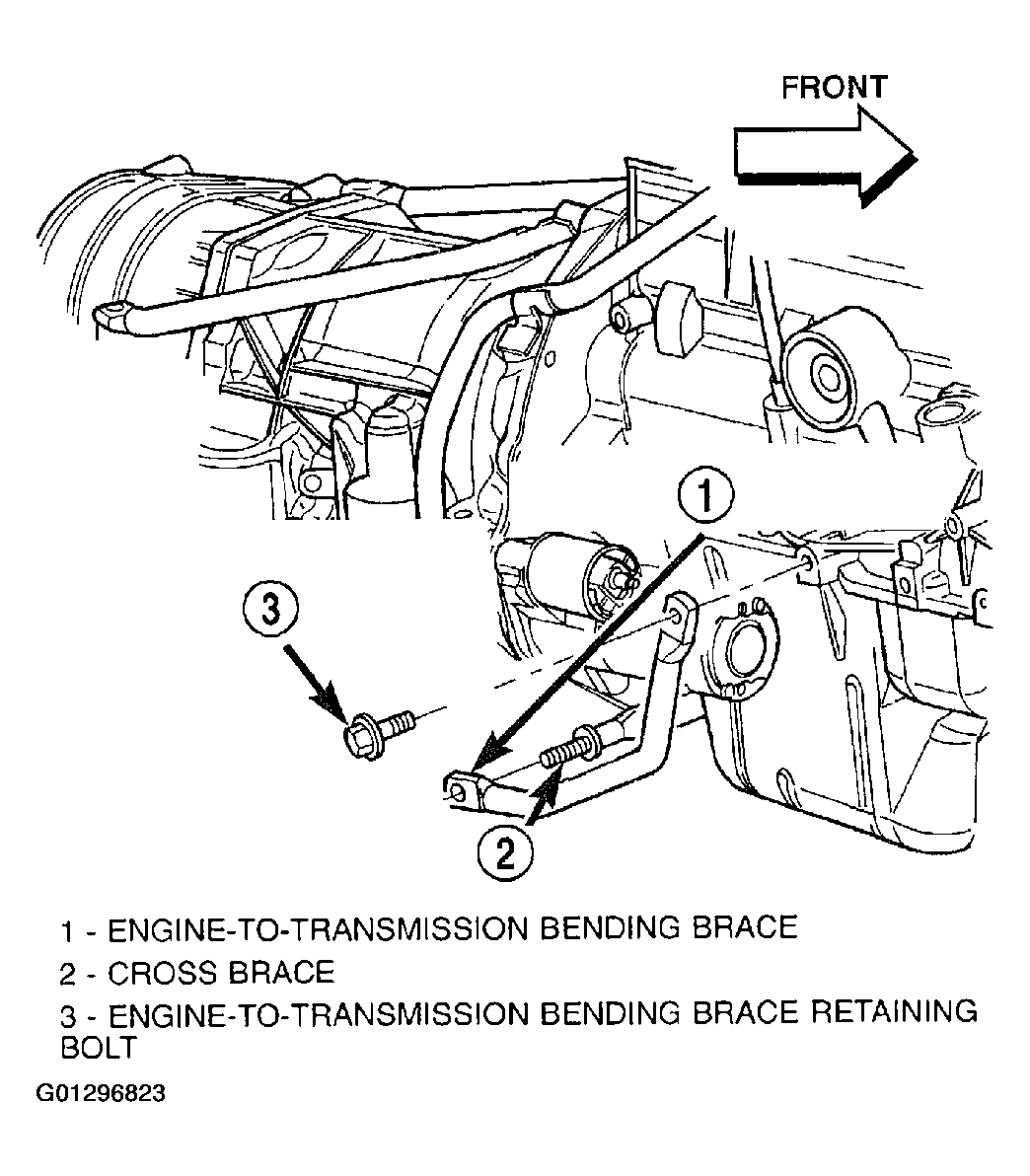

   Fig 2: Removing & Installing Engine-To-Transmission Bending Braces

   Courtesy of DAIMLERCHRYSLER CORP.
