Rocker Arm/Adjuster Assembly: Installation

NOTE: This procedure can be done with the engine in or out of the vehicle.
  1. Lubricate the ball ends of the push rods with Mopar® Engine Oil Supplement, or equivalent and install push rods in their original locations. Ensure that the bottom end of each push rod is centered in the tappet plunger cap seat.
  2. Using Mopar® Engine Oil Supplement, or equivalent, lubricate the area of the rocker arm that the pivot contacts. Install rocker arms, pivots and bridge above each cylinder in their originally position.

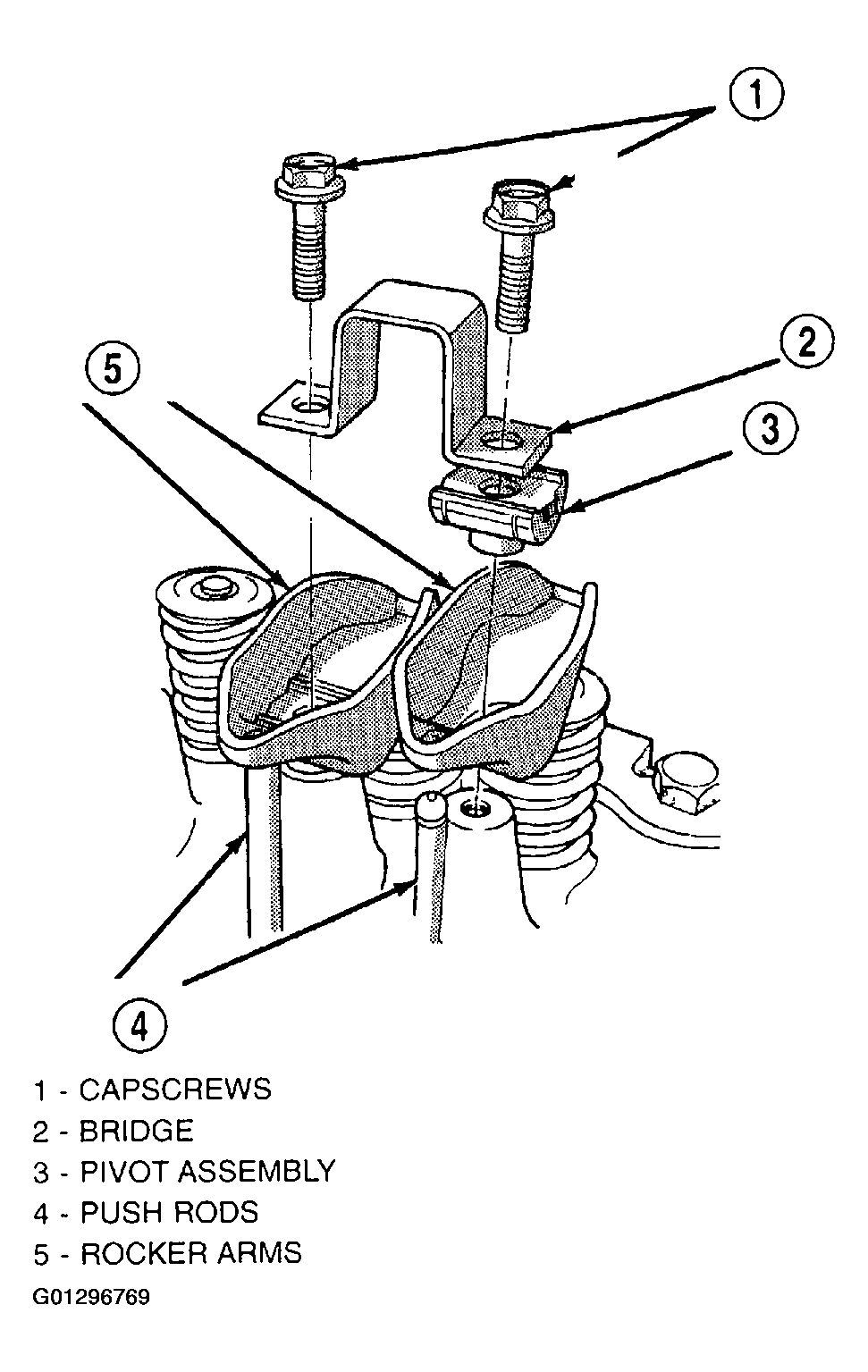

    Fig 1: Installing Rocker Arm
    G01296769Courtesy of DAIMLERCHRYSLER CORP.
  3. Loosely install the cap screws through each bridge.
  4. At each bridge, tighten the cap screws alternately, one turn at a time, to avoid damaging the bridge. Tighten the cap screws to 28 N.m (21 ft. lbs.) torque.
  5. Install the engine cylinder head cover. See CYLINDER HEAD COVER(S) .
