Engine Block

The cylinder block is a cast iron inline six cylinder design. The cylinder block is drilled forming galleries for both oil and coolant.

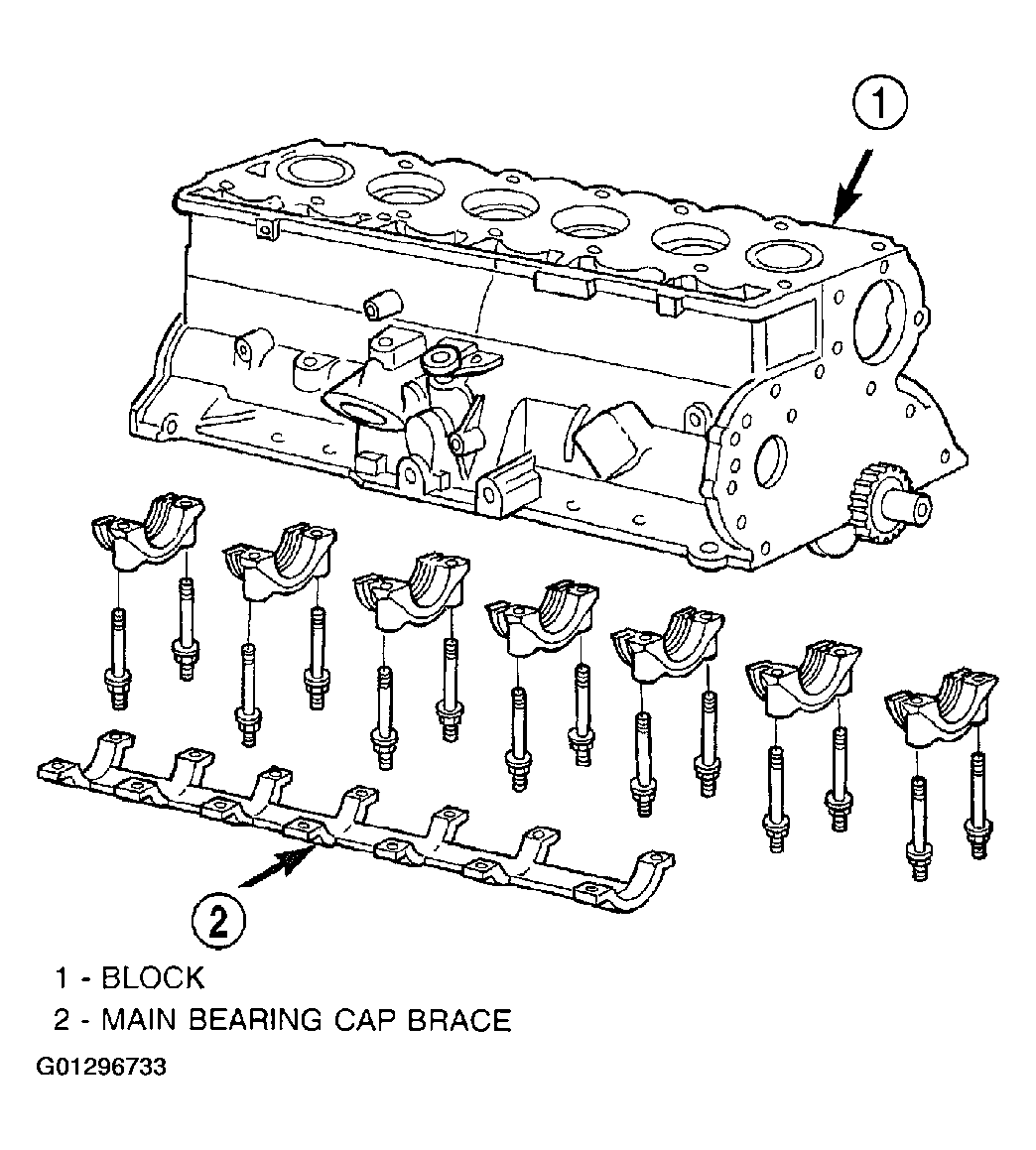

Fig 1: Identifying 4.0L Cylinder Block With Main Bearing Caps & Cap Brace
G01296733Courtesy of DAIMLERCHRYSLER CORP.
