A/C Heater Control Connector End View (C2)

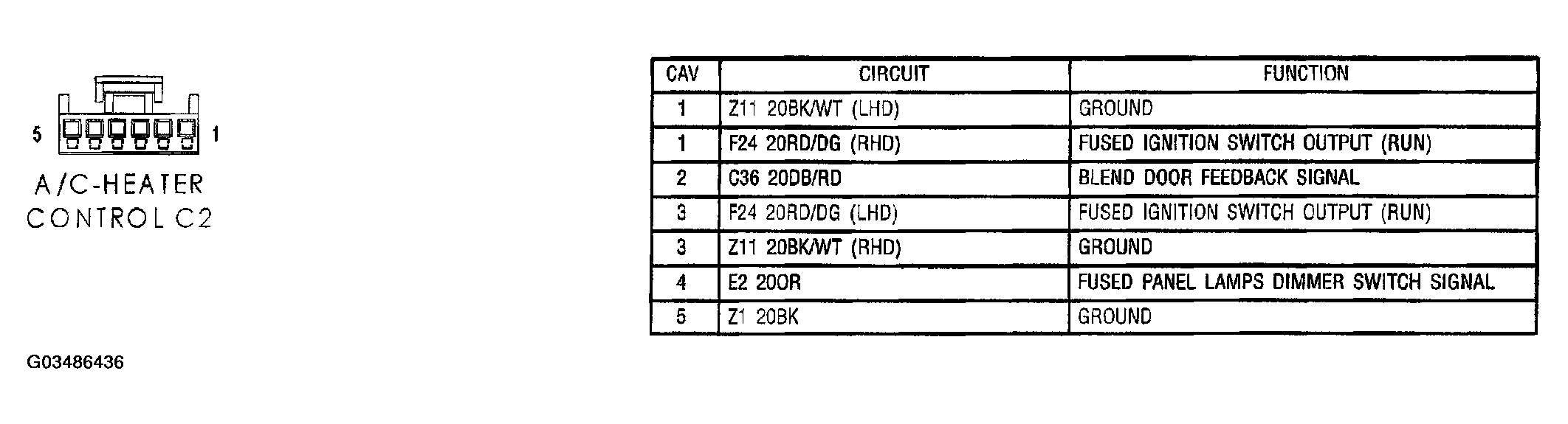

Fig 1: A/C Heater Control Connector End View (C2)

G03486436

Courtesy of CHRYSLER GROUP, LLC
