Oil Pump: Disassembly: Notes

Remove seal ring from housing and reaction shaft support.

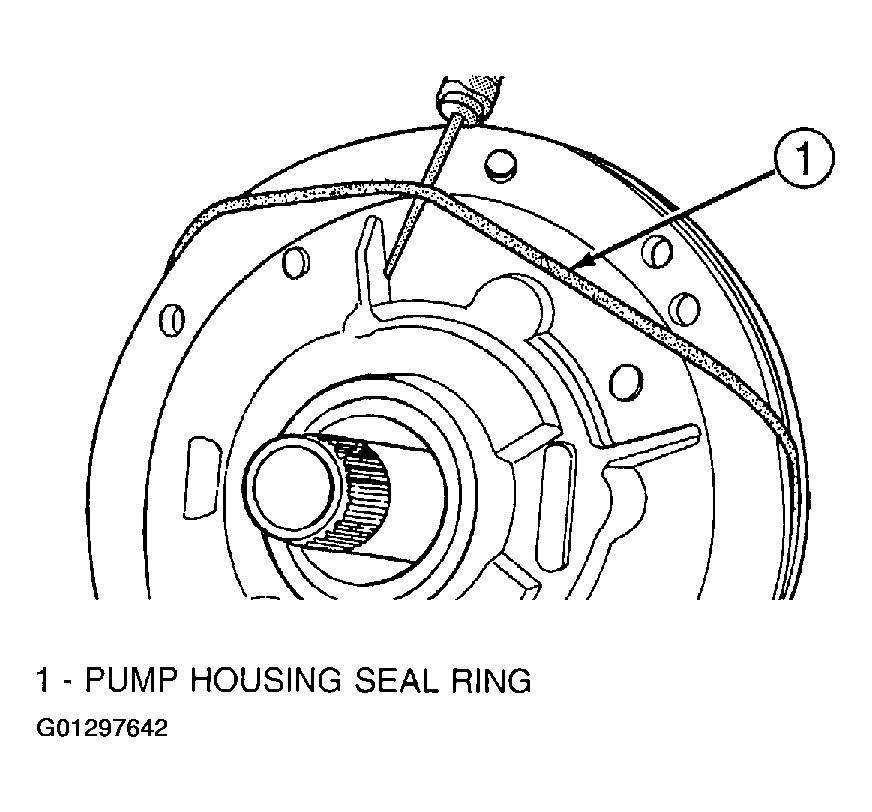

Fig 1: Removing Pump Seal Ring
Courtesy of DAIMLERCHRYSLER CORP.
Mark pump housing and support assembly for alignment reference.
Remove bolts attaching pump body to support.

Fig 2: Removing Pump Support Bolts
Courtesy of DAIMLERCHRYSLER CORP.
Separate support from pump housing.

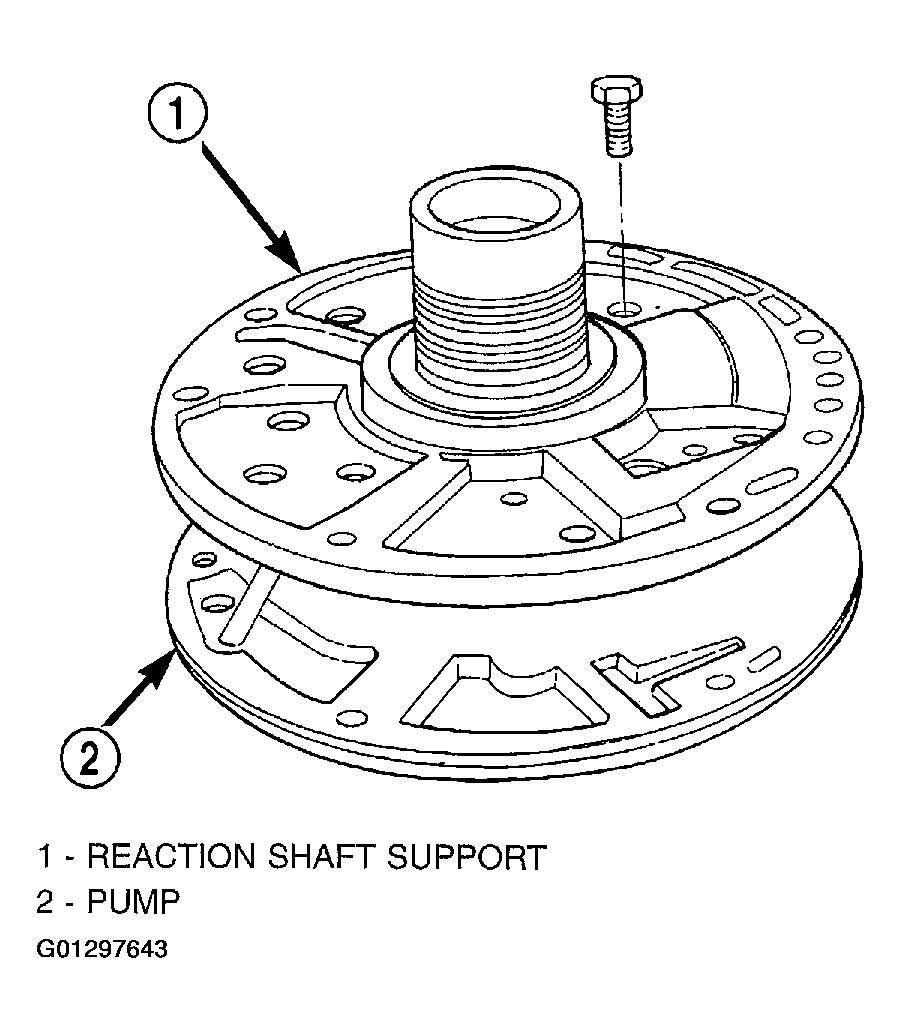

Fig 3: Separating Pump Housing From Reaction Shaft Support
Courtesy of DAIMLERCHRYSLER CORP.
Remove inner and outer gears from reaction shaft support.

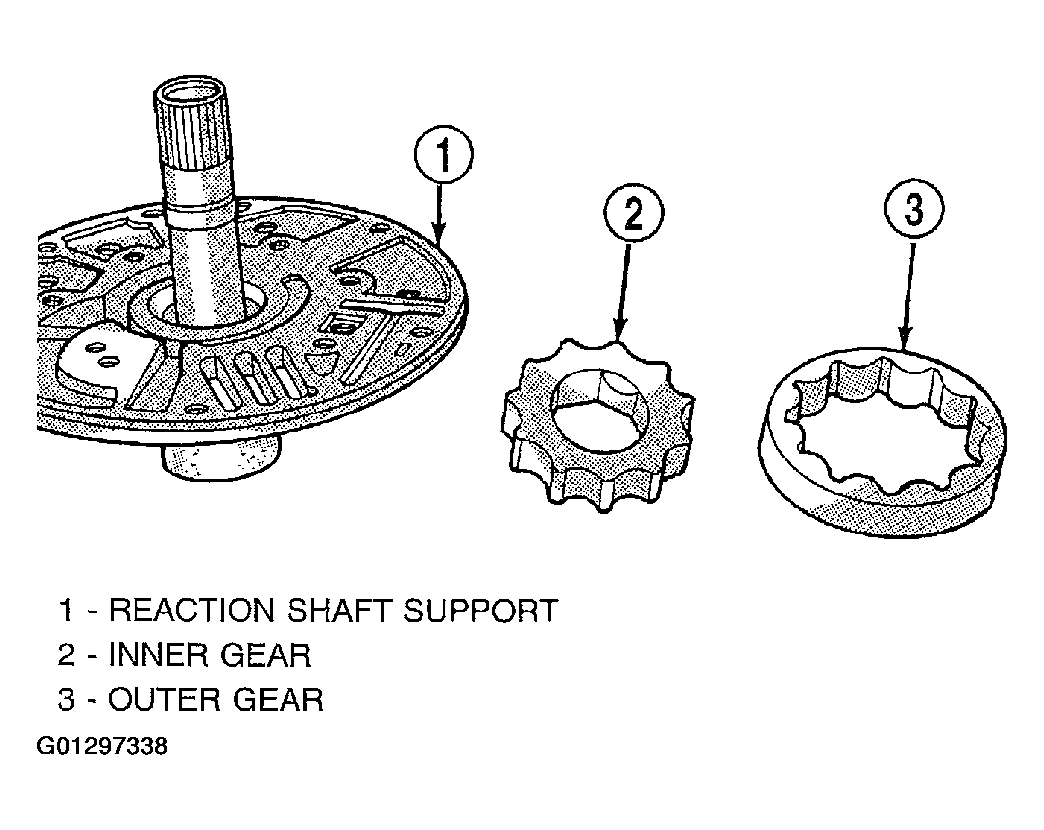

Fig 4: Removing Pump Gear
Courtesy of DAIMLERCHRYSLER CORP.
If pump seal was not removed during transmission disassembly, remove seal with punch and hammer.
Remove front clutch thrust washer from support hub.

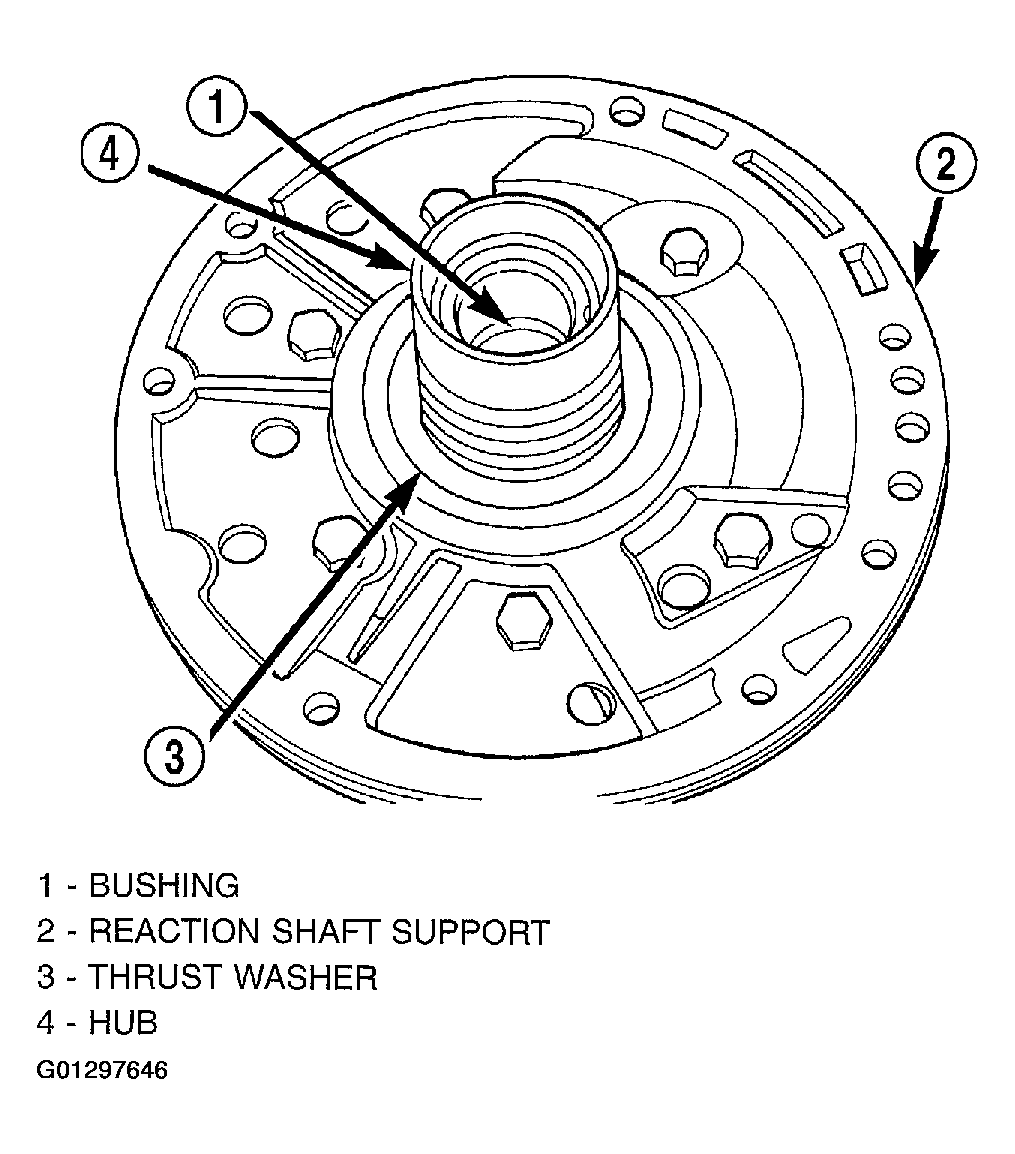

Fig 5: Removing Support Hub Thrust Washer
Courtesy of DAIMLERCHRYSLER CORP.
