A/C Heater Control Connector End View (C3)

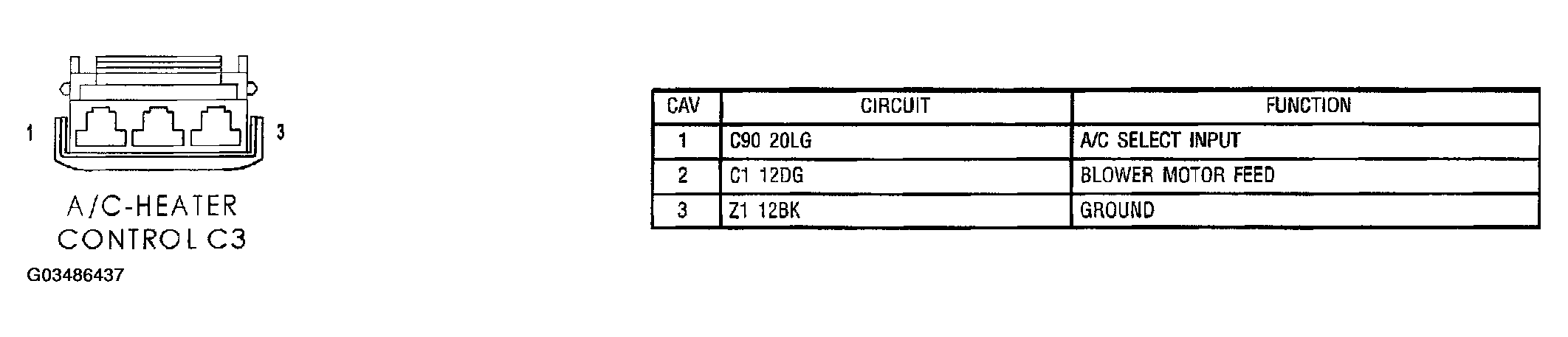

Fig 1: A/C Heater Control Connector End View (C3)

G03486437

Courtesy of CHRYSLER GROUP, LLC
