Starter Motor Relay: Installation

  1. See fuse and relay layout label affixed to underside of PDC cover for proper starter relay location.
  2. Position starter relay in proper receptacle in PDC.
  3. Align starter relay terminals with terminal cavities in PDC receptacle.
  4. Push down firmly on starter relay until terminals are fully seated in terminal cavities in PDC receptacle.
  5. Close and latch PDC cover.
  6. Connect negative battery cable.

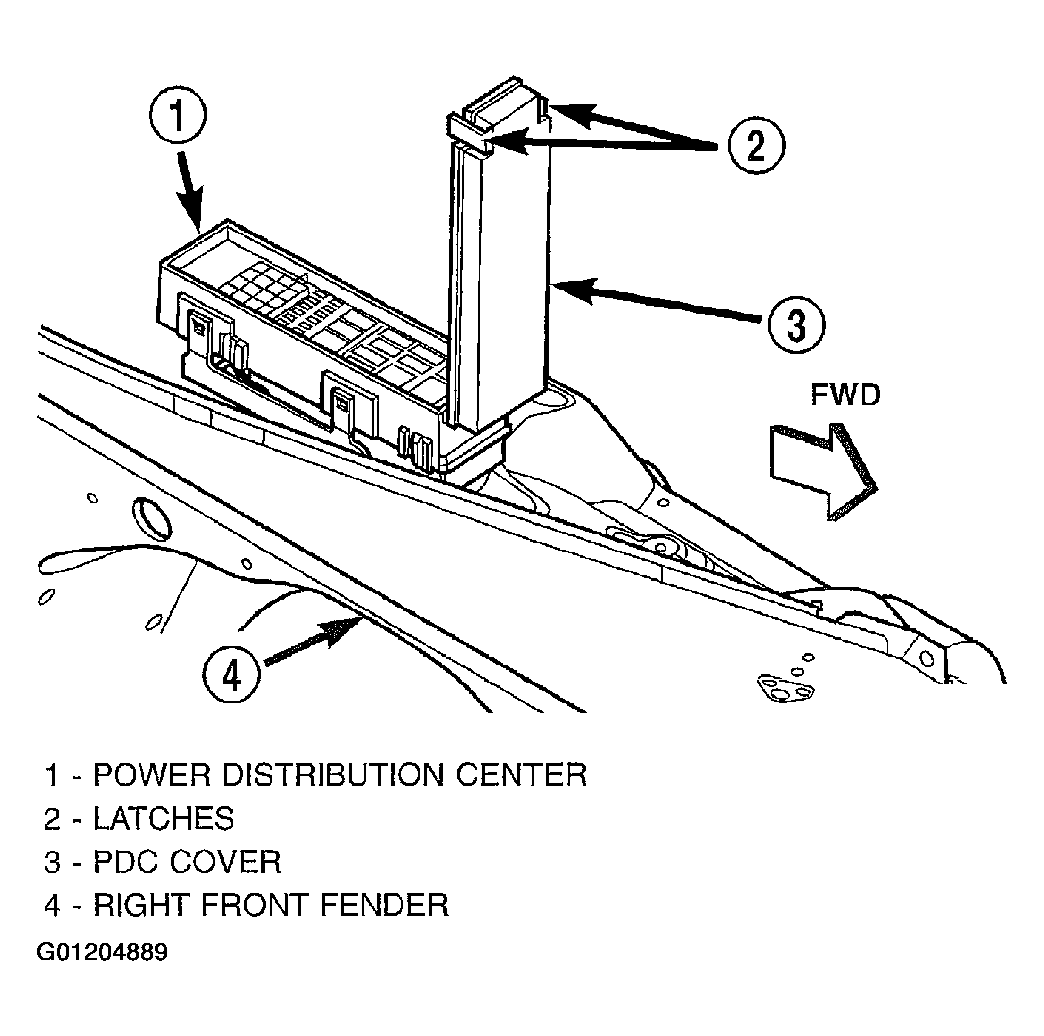

    Fig 1: Locating Power Distribution Center
    G01204889Courtesy of DAIMLERCHRYSLER CORP.
