Battery Tray: Description

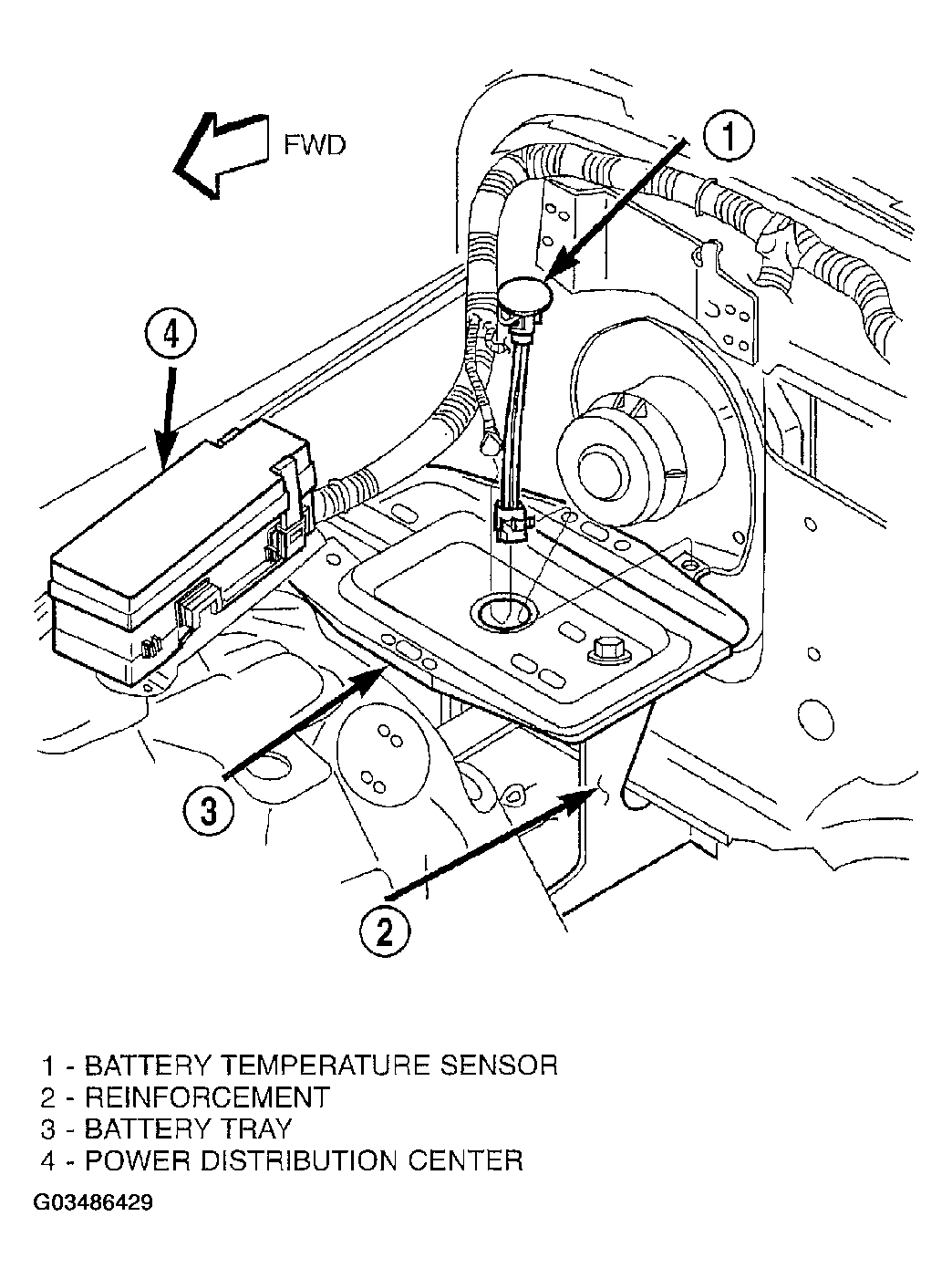

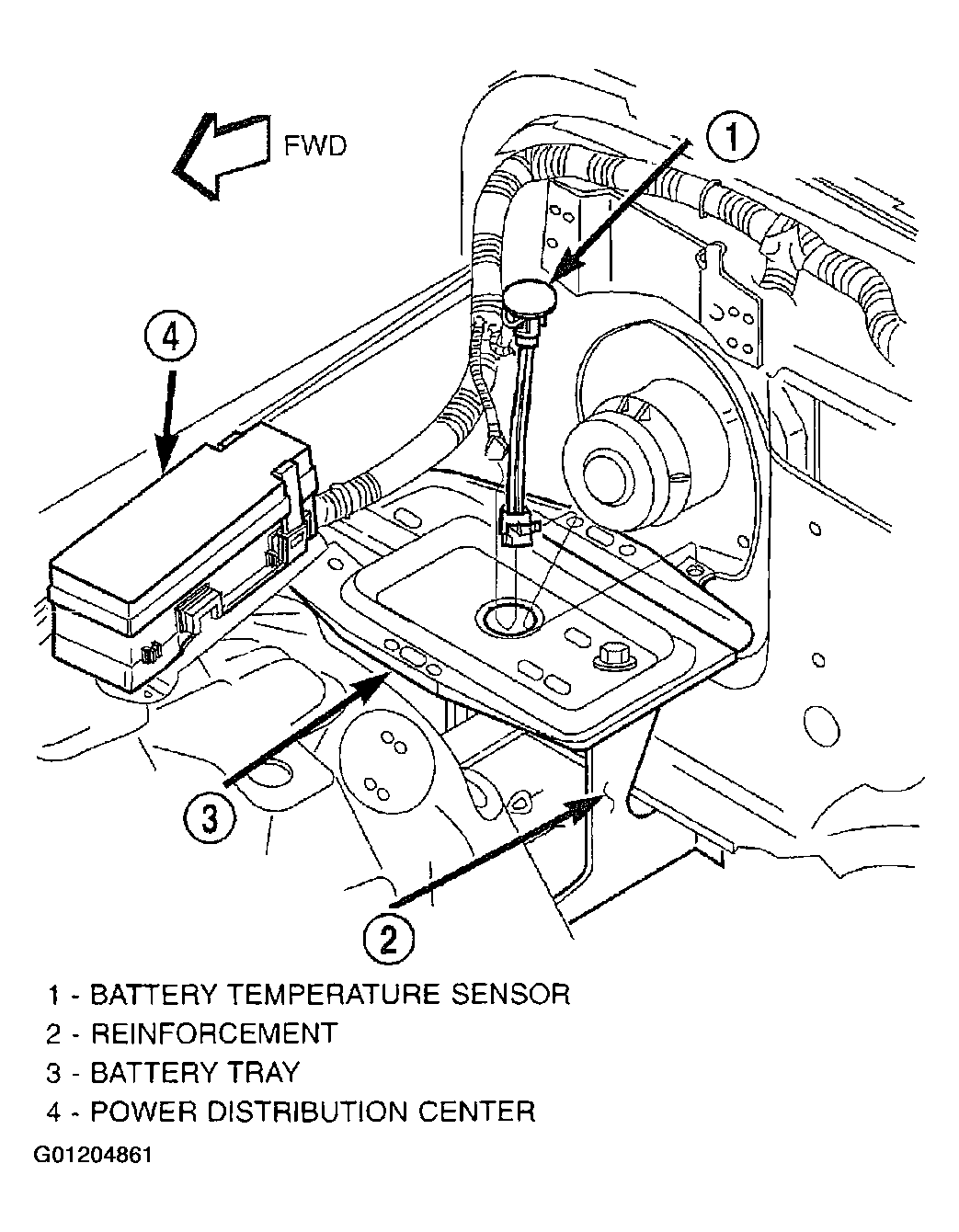

The battery is mounted in a stamped steel tray (Fig 1 ) located in the passenger side rear corner of the engine compartment. The battery tray is secured by four hex screws with washers to the reinforcement located between the engine compartment side of the dash panel and the rear of the front fender wheel house inner panel.
A hole in the bottom of the battery tray is fitted with a battery temperature sensor (Refer to BATTERY TEMPERATURE SENSOR ).
