*Brake Lamp Switch: Testing

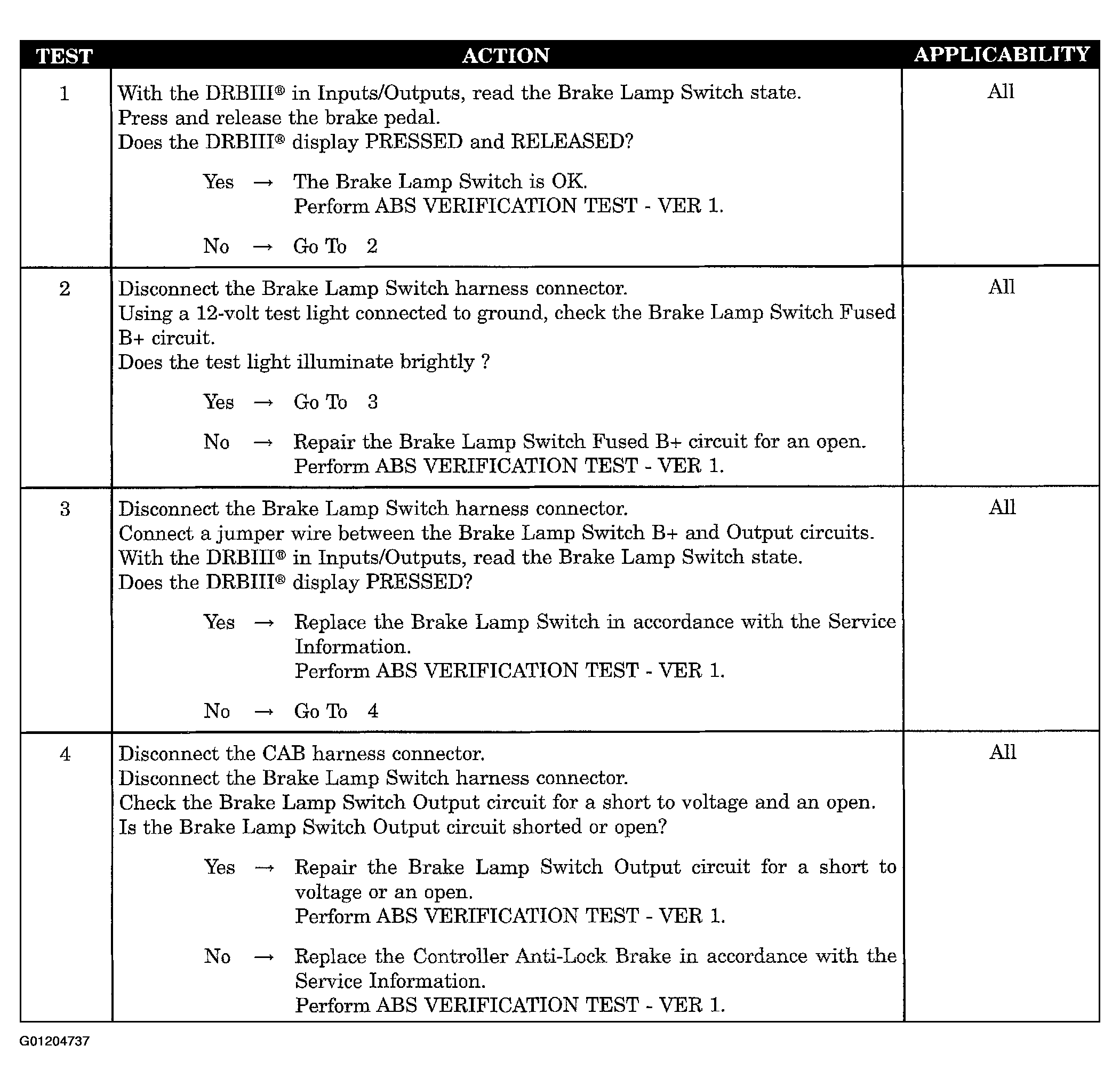

Fig 1: Testing: Brake Lamp Switch
G01204737Courtesy of DAIMLERCHRYSLER CORP.
