Controller Failure: Testing

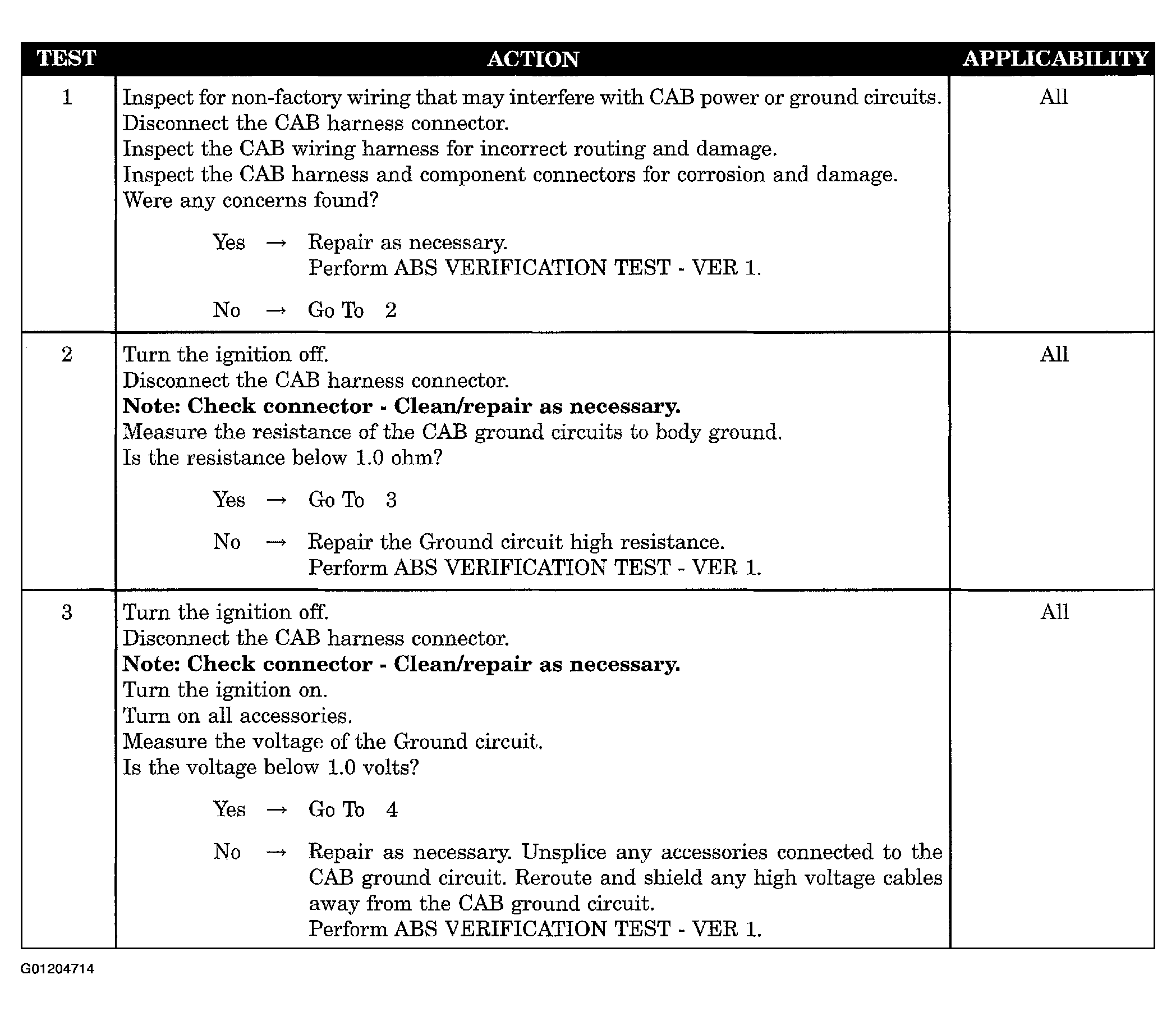

Fig 1: Testing: Controller Failure (1 Of 2)

G01204714

Courtesy of DAIMLERCHRYSLER CORP.

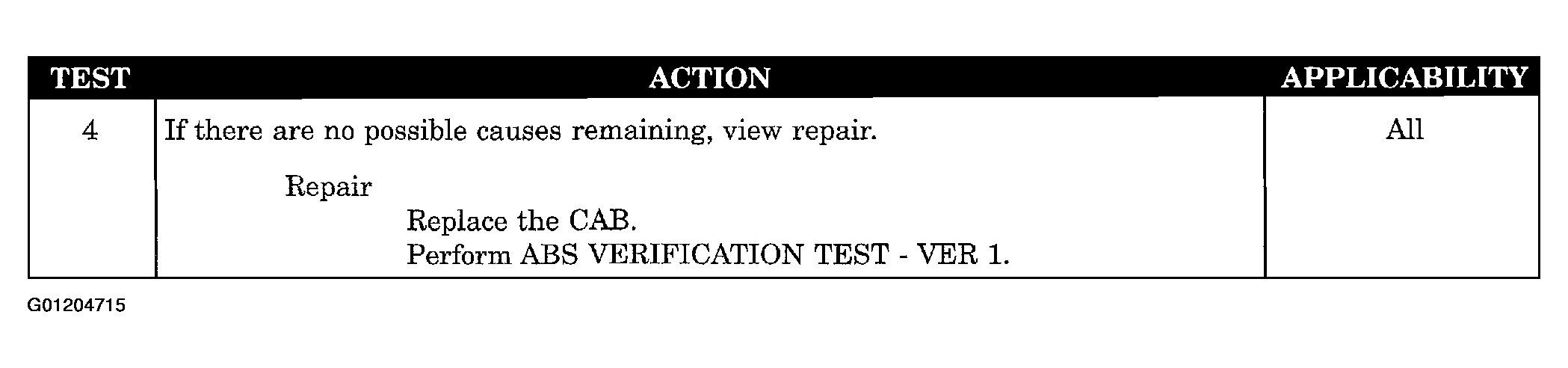

Fig 2: Testing: Controller Failure (2 Of 2)

G01204715

Courtesy of DAIMLERCHRYSLER CORP.
