Shift Lever: Removal

  1. Shift transfer case into 4L.
  2. Raise vehicle.
  3. Loosen adjusting trunnion locknut and slide shift rod out of trunnion. If rod lacks enough travel to come out of trunnion, push trunnion out of torque shaft.

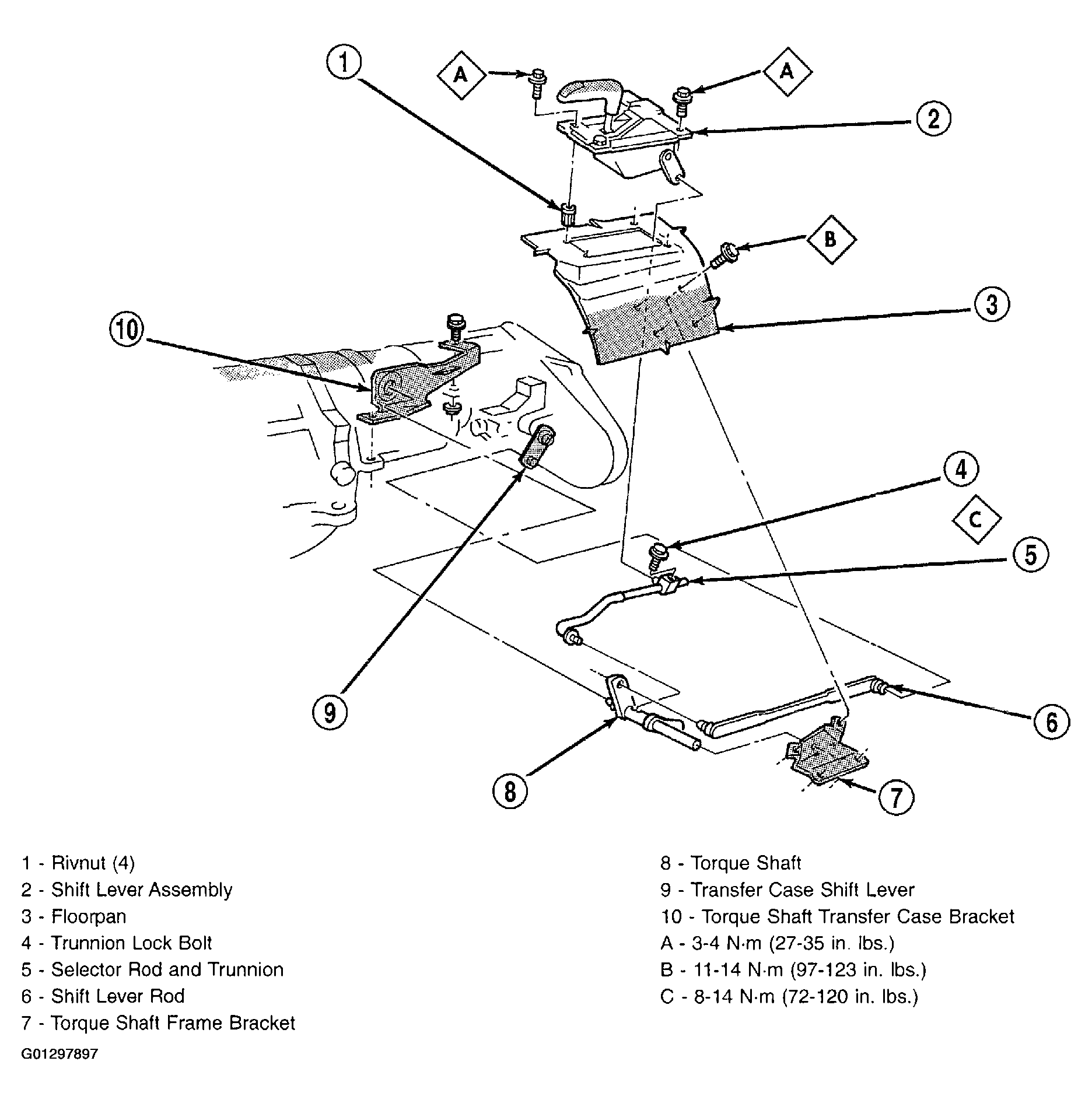

    Fig 1: Removing Shift Linkage
    G01297897Courtesy of DAIMLERCHRYSLER CORP.
  4. Lower vehicle.
  5. Remove console. See CENTER CONSOLE .
  6. Remove screws attaching lever assembly to floorpan and remove assembly and shift rod (if left attached).
