Rear Servo: Assembly

  1. Lubricate piston and guide seals with petroleum jelly. Lubricate other servo parts with Mopar® ATF +4, type 9602, transmission fluid.

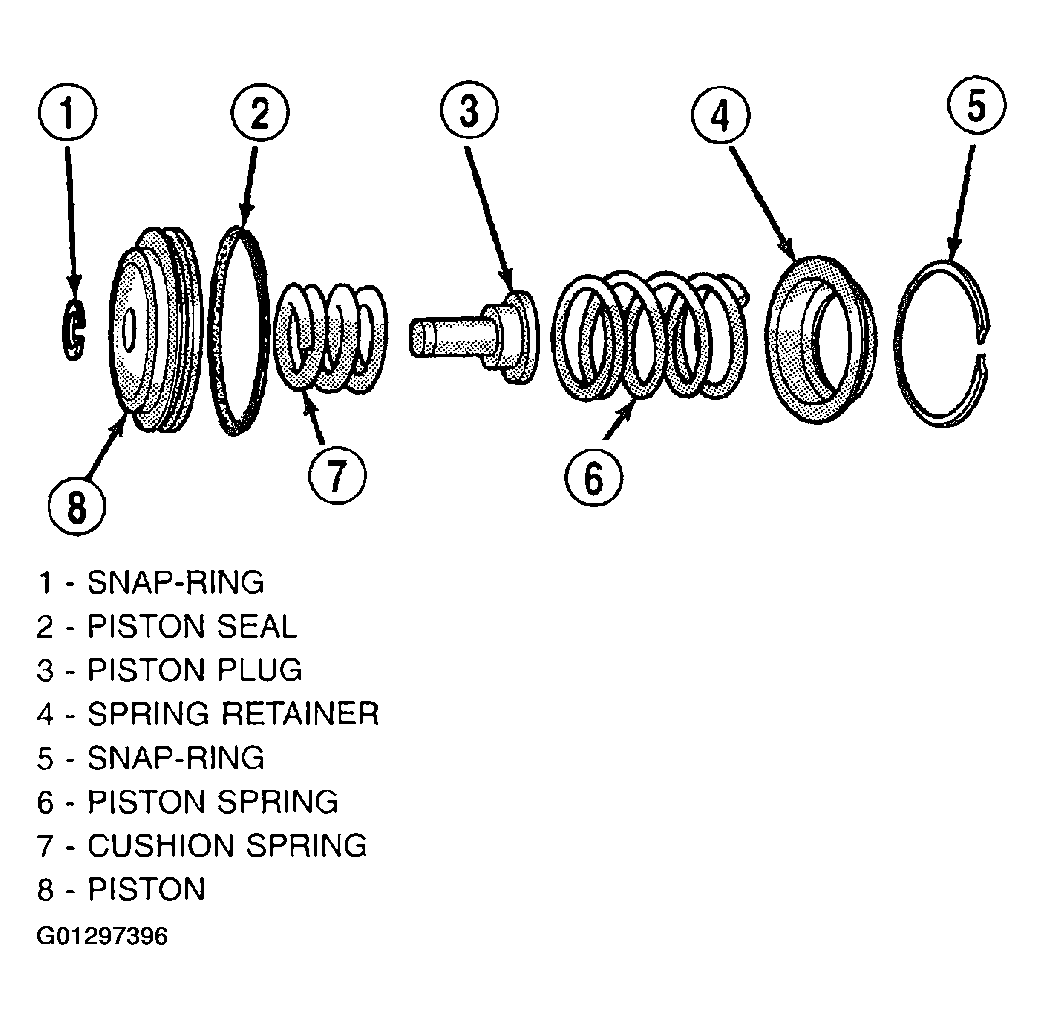

    Fig 1: Installing Rear Servo Components
    G01297396Courtesy of DAIMLERCHRYSLER CORP.
  2. Install new seal ring on servo piston.
  3. Assemble piston, plug, spring and new snap-ring.
  4. Lubricate piston seal lip with petroleum jelly.
