Park/Neutral Position Switch: Installation

  1. Move shift lever to PARK and NEUTRAL position. Verify that switch operating lever fingers are centered in switch opening in case.

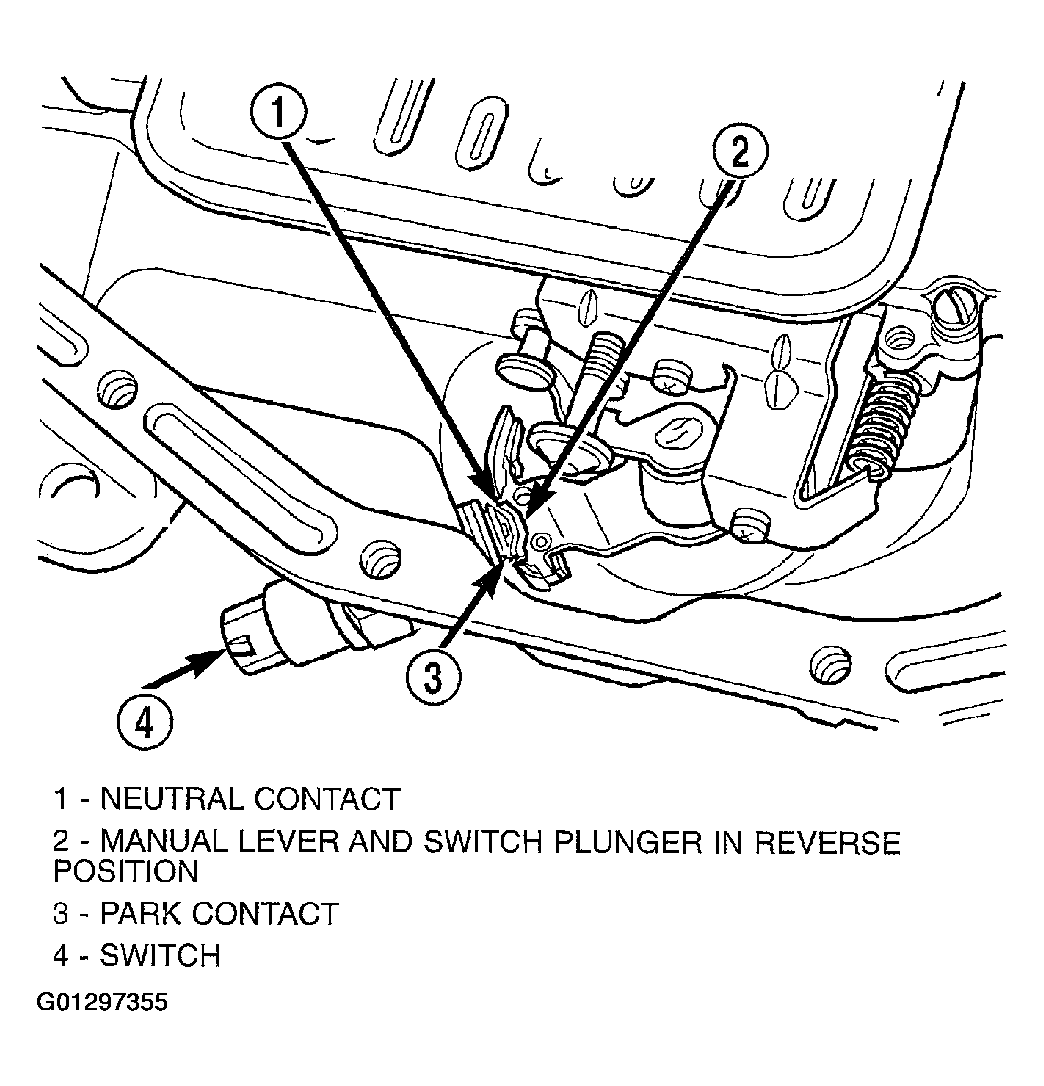

    Fig 1: Installing Park/Neutral Position Switch
    G01297355Courtesy of DAIMLERCHRYSLER CORP.
  2. Install new seal on switch and install switch in case. Tighten switch to 34 N.m (25 ft. lbs.) torque.
  3. Test continuity of new switch with 12V test lamp.
  4. Connect switch wires and lower vehicle.
  5. Top off transmission fluid level.
