Front Servo: Inspection

Inspect the servo components. Replace the springs if collapsed, distorted or broken. Replace the guide, rod and piston if cracked, bent, or worn. Discard the servo snap-ring if distorted or warped.

Check the servo piston bore for wear. If the bore is severely scored, or damaged, it will be necessary to replace the case.

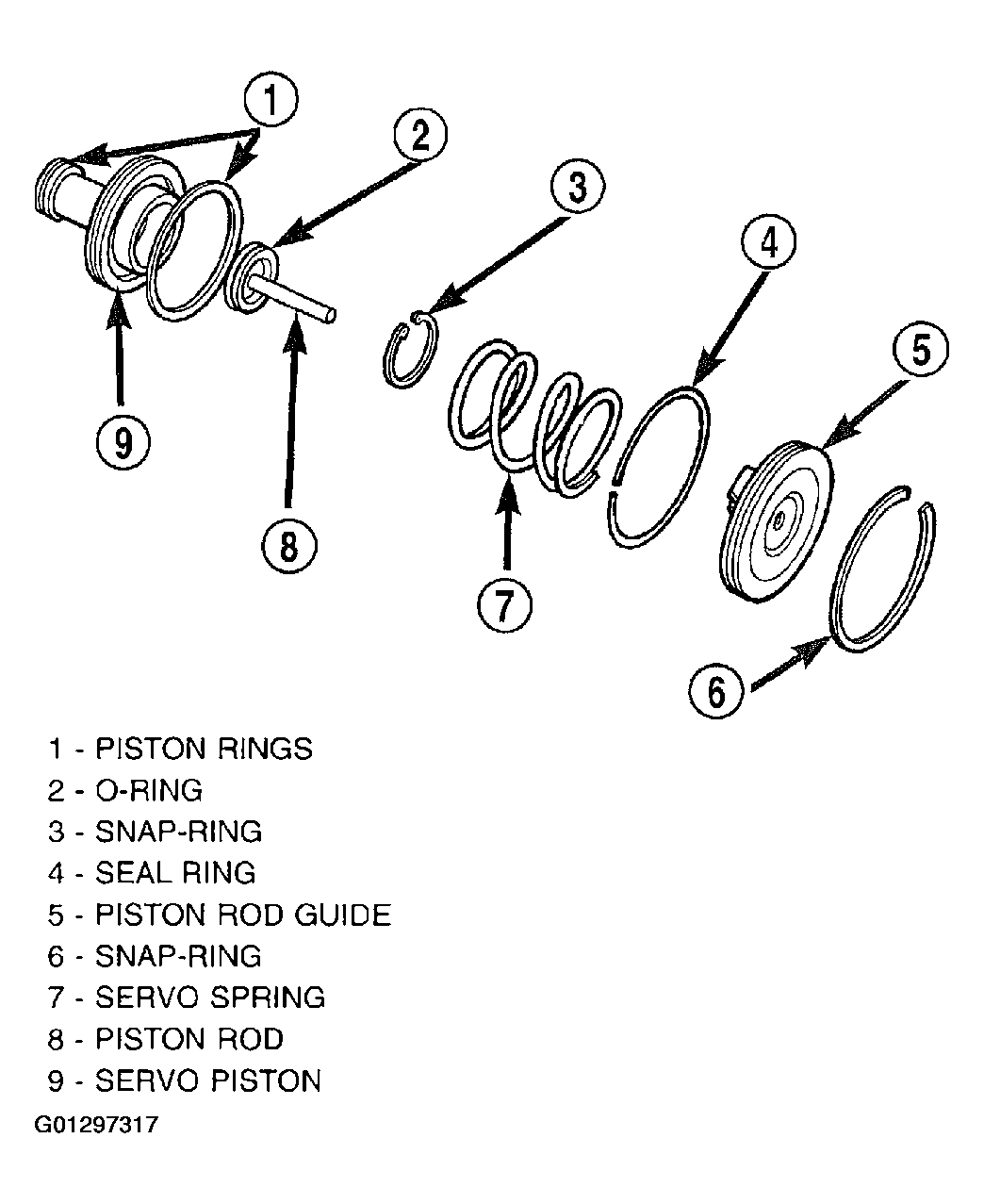

Fig 1: Inspecting Front Servo Piston

Courtesy of DAIMLERCHRYSLER CORP.
