Front Servo: Disassembly

  1. Remove seal ring from rod guide.

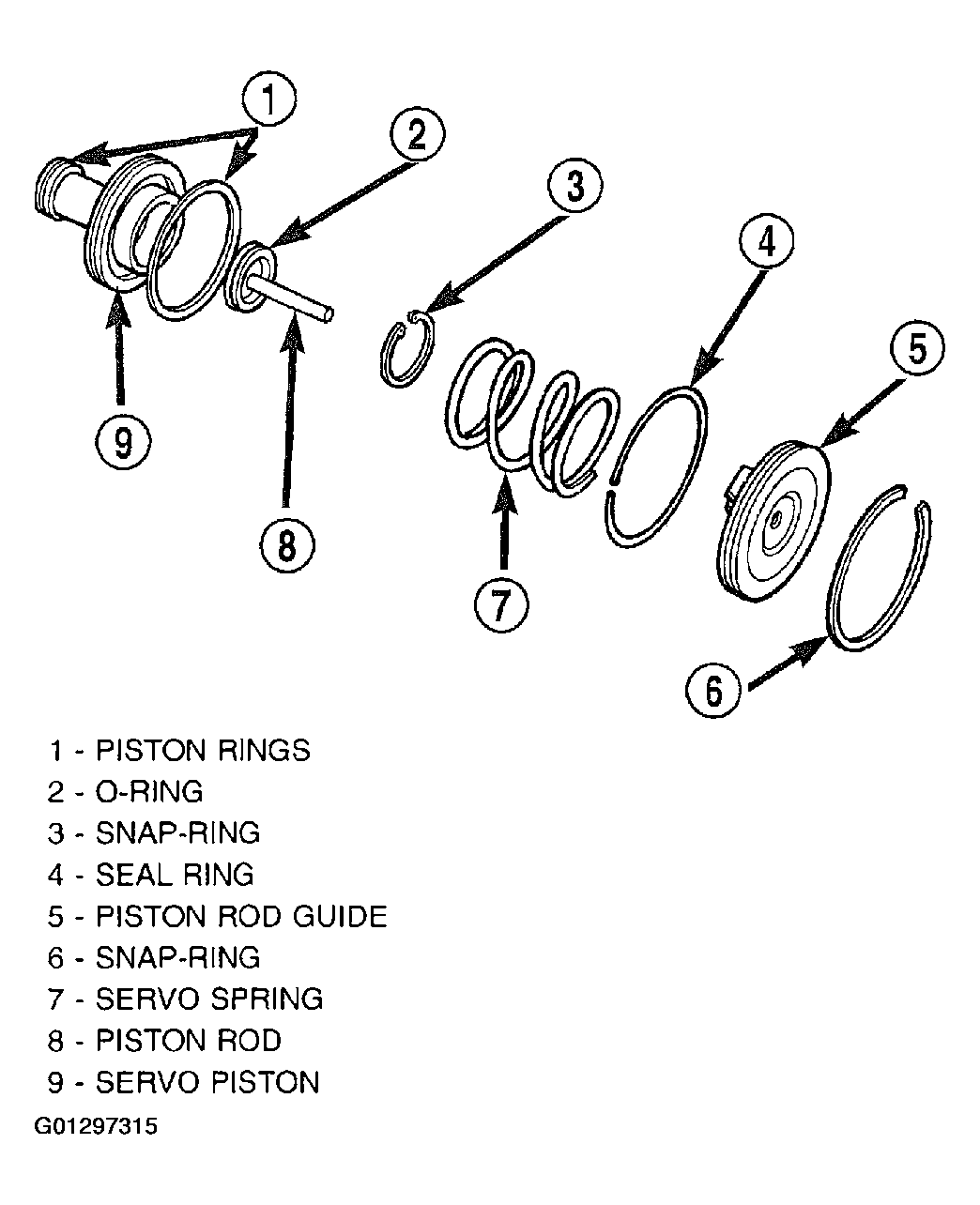

    Fig 1: Removing Front Servo Piston
    G01297315Courtesy of DAIMLERCHRYSLER CORP.
  2. Remove small snap-ring from servo piston rod. Then remove piston rod, spring and washer from piston.
  3. Remove and discard servo component O-ring and seal rings.
