Front Servo: Cleaning

Clean the servo piston components with solvent and dry them with compressed air. Wipe the band clean with lint free shop towels.

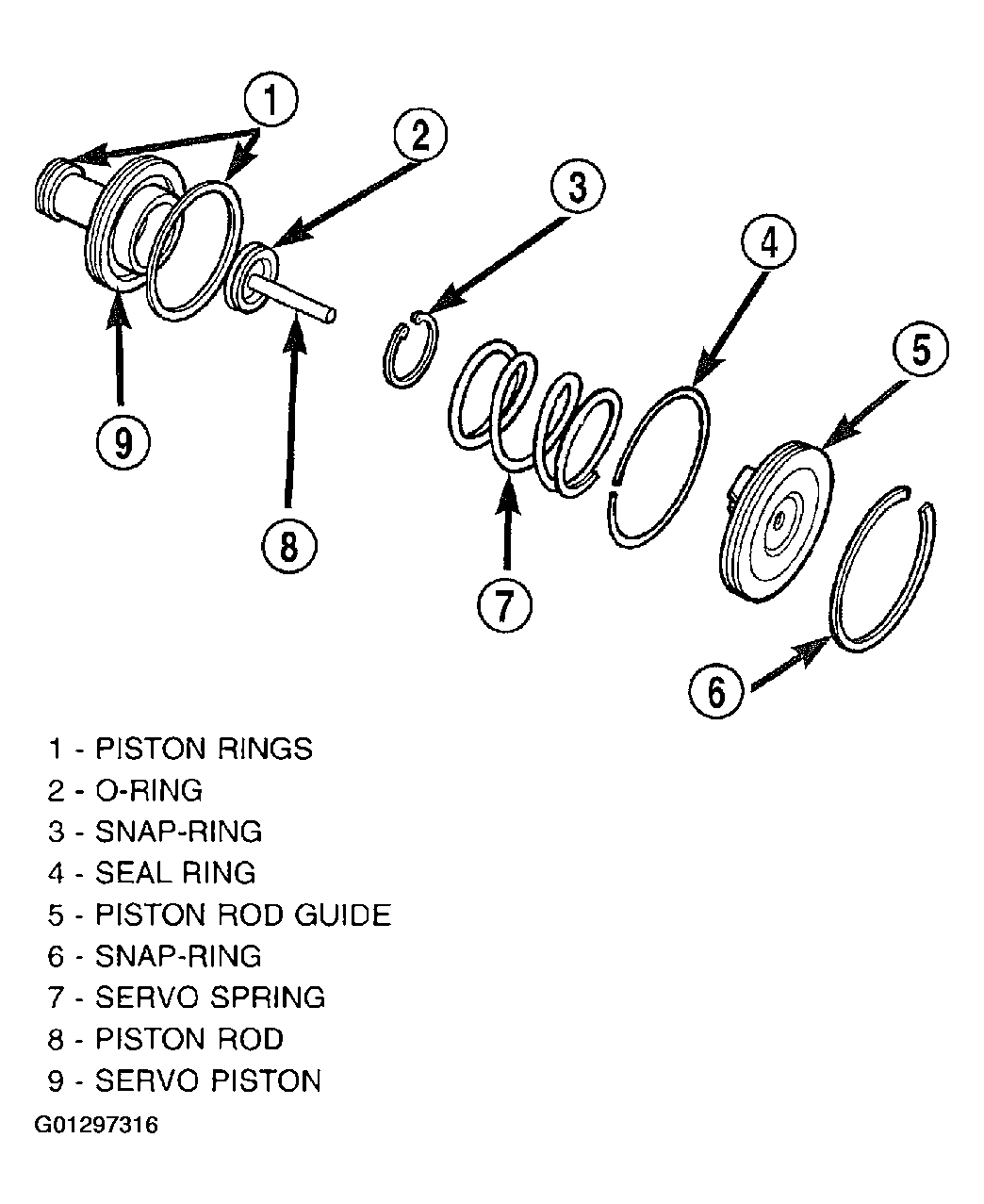

Fig 1: Cleaning Front Servo Piston
G01297316Courtesy of DAIMLERCHRYSLER CORP.

Replace the front band if distorted, lining is burned, flaking off, or worn to the point where the grooves in the lining material are no longer visible.

Replace any servo component if doubt exists about condition. Do not reuse suspect parts.
