Front Servo: Assembly

  1. Lubricate new O-ring and seal rings with petroleum jelly and install them on piston, guide and rod.
  2. Install rod in piston. Install spring and washer on rod. Compress spring and install snap-ring.

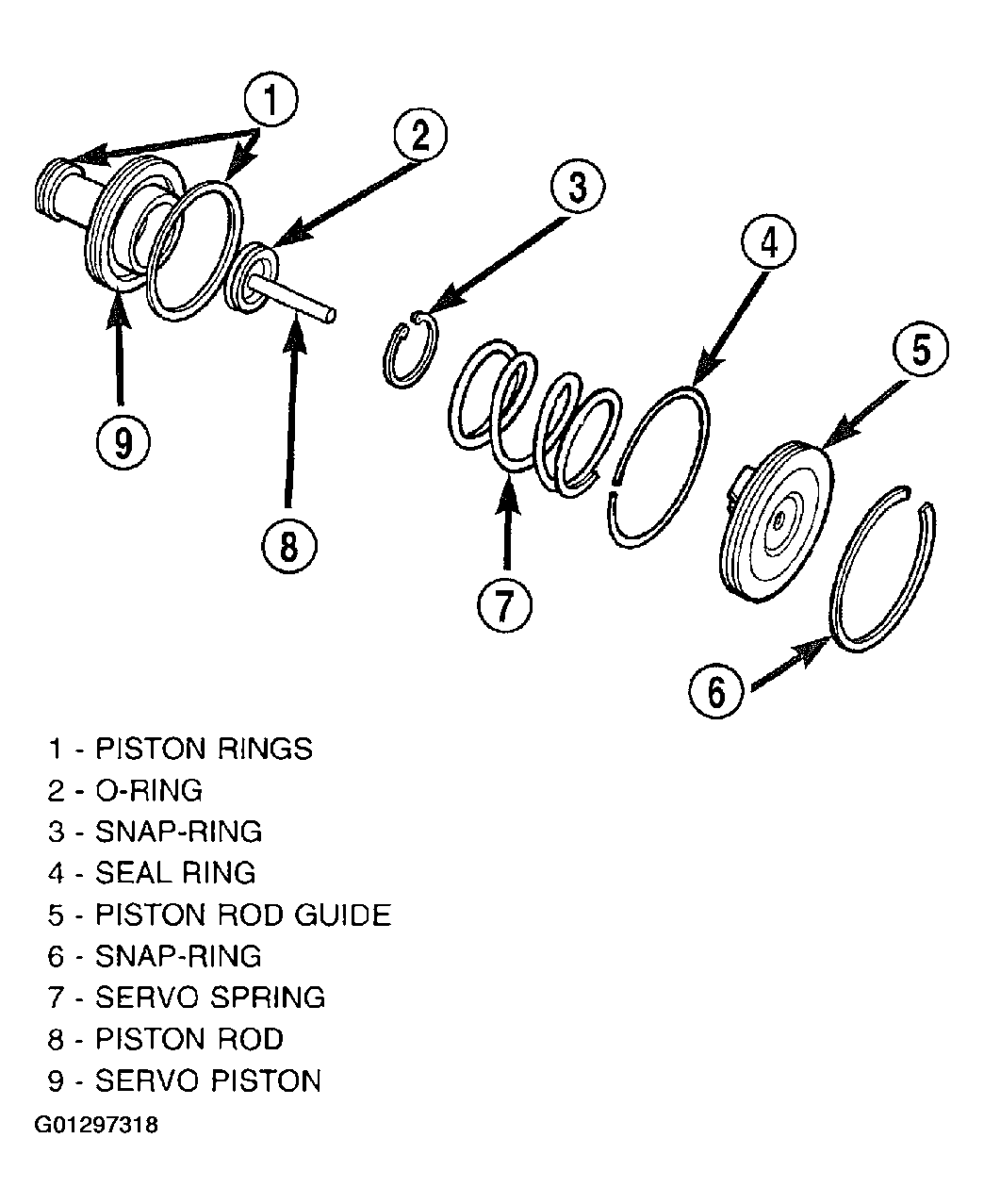

    Fig 1: Installing Front Servo Piston
    G01297318Courtesy of DAIMLERCHRYSLER CORP.
  3. Set servo components aside for installation during transmission reassembly.
