Brake Transmission Shift Interlock Mechanism: Installation

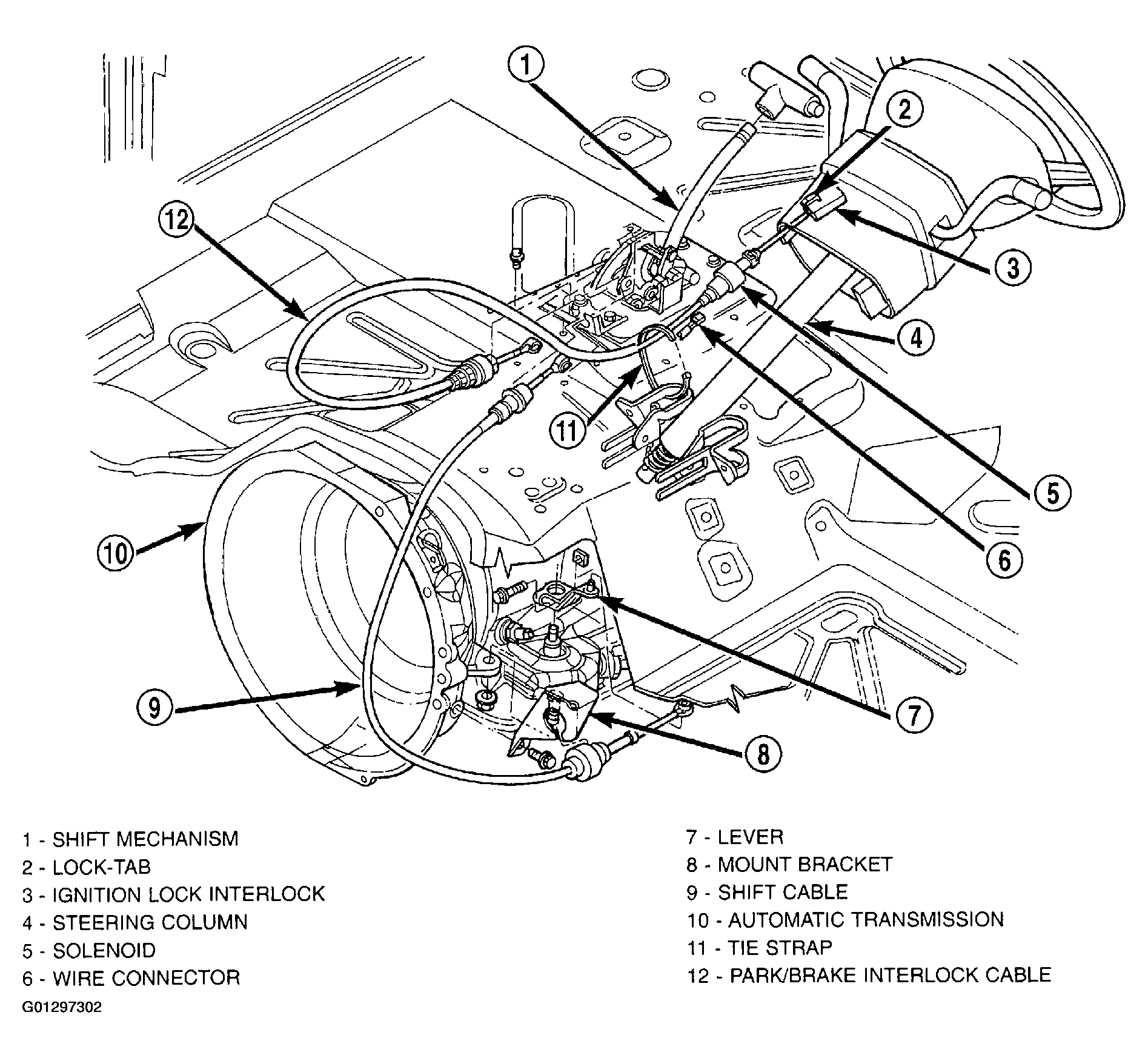

  1. Route replacement cable behind instrument panel and under floor console area to shift mechanism. See Figure.
  2. Insert cable end into opening in steering column hub under ignition lock. Push cable inward until lock tab engages.
  3. Connect the cable end eyelet onto shifter bellcrank pin.
  4. Place gear selector in PARK.
  5. Push the spring-loaded cable adjuster forward and snap cable into bracket.
  6. Adjust the brake transmission shifter interlock cable.
  7. Verify that the cable adjuster lock clamp is pushed downward to the locked position.
  8. Test the park-lock cable operation.
  9. Install the floor console and related trim.
  10. Install tie strap to hold cable to base of steering column.
  11. Install lower steering column shroud and ignition lock.
  12. Install lower steering column cover.
