Description & Operation: Notes
CAUTION:
Suspension components with rubber/urethane bushings (except stabilizer bar) should be tightened with the vehicle at normal ride height. It is important to have the springs supporting the weight of the vehicle when the fasteners are torqued. This will maintain vehicle ride comfort and prevent premature bushing wear.

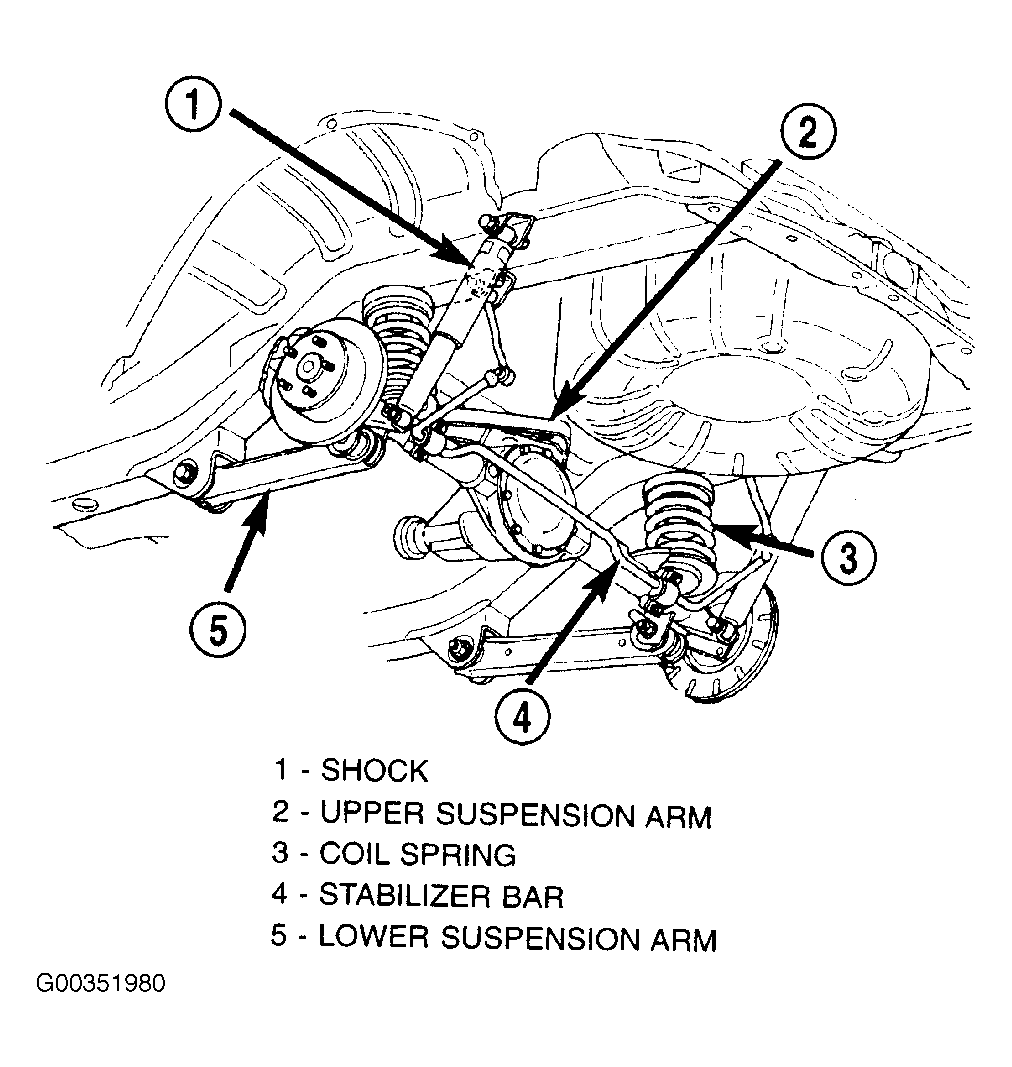

The rear suspension is comprised of: Shock absorbers, coil springs, track bar, lower suspension arms, upper suspension arm and stabilizer bar. See Fig 1 .
