Torque Chart

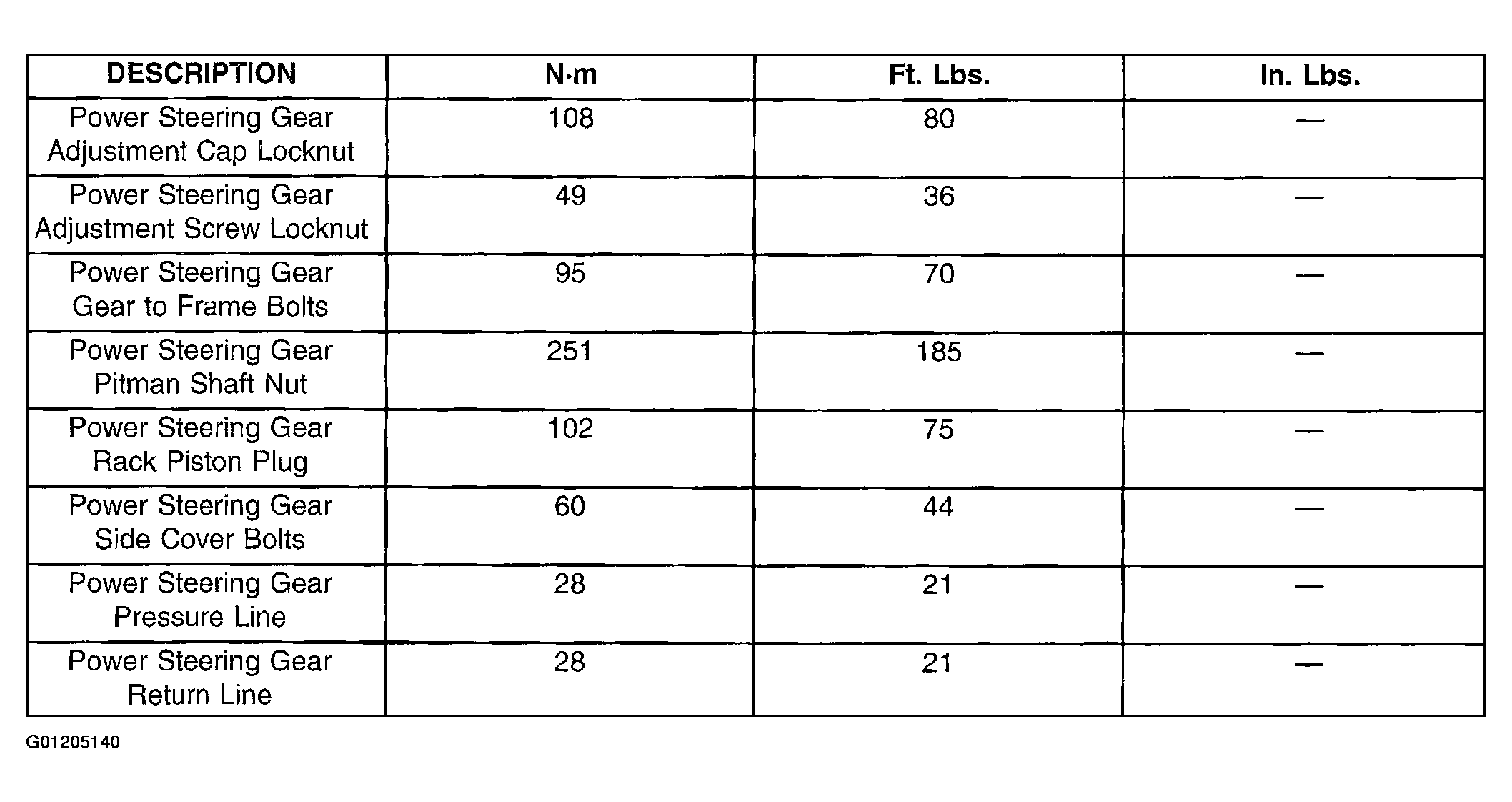

Fig 1: Power Steering Gear Torque Specifications

G01205140

Courtesy of DAIMLERCHRYSLER CORP.
