Sentry Key Immobilizer Module - Black 6 Way Connector End View

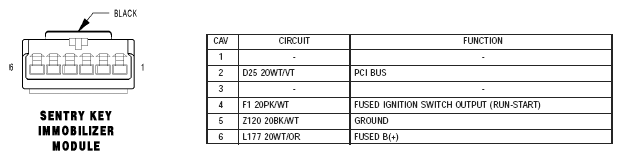

Fig 1: Sentry Key Immobilizer Module - Black 6 Way Connector End View

G04764111

Courtesy of CHRYSLER GROUP, LLC
