Left Front Wheel Speed Sensor - 2 Way Connector End View

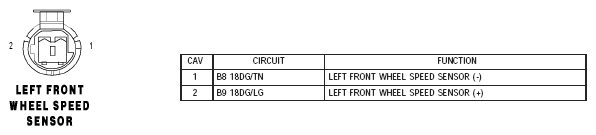

Fig 1: Left Front Wheel Speed Sensor - 2 Way Connector End View

G04764152

Courtesy of CHRYSLER GROUP, LLC
