Left Courtesy Lamp Connector End View

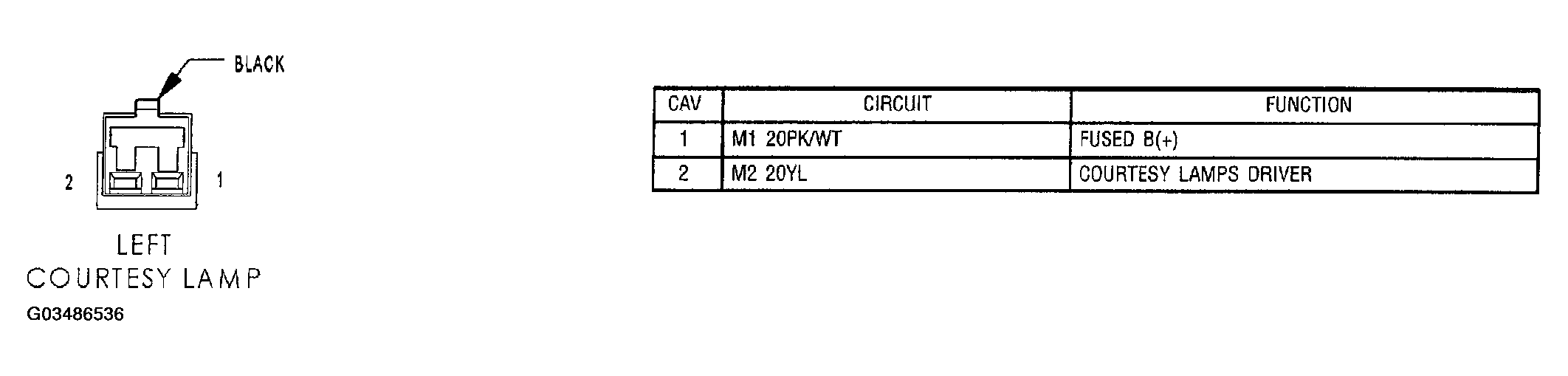

Fig 1: Left Courtesy Lamp Connector End View

G03486536

Courtesy of CHRYSLER GROUP, LLC
