Ignition Switch - 10 Way Connector End View

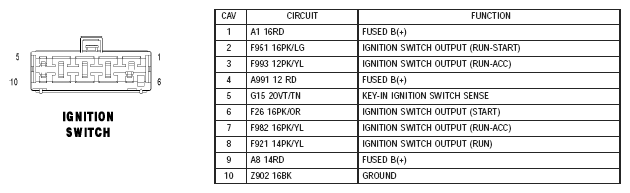

Fig 1: Ignition Switch - 10 Way Connector End View

G04764085

Courtesy of CHRYSLER GROUP, LLC
