Receiver-Satellite C1 - 12 Way Connector End View

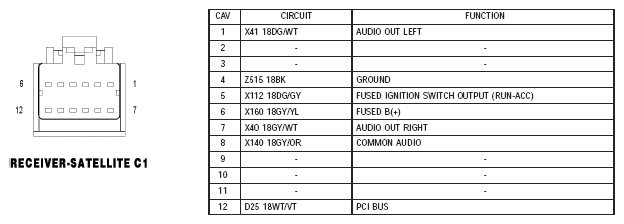

Fig 1: Receiver-Satellite C1 - 12 Way Connector End View

G04764104

Courtesy of CHRYSLER GROUP, LLC
