C110 Dash Side Inline Connector End View

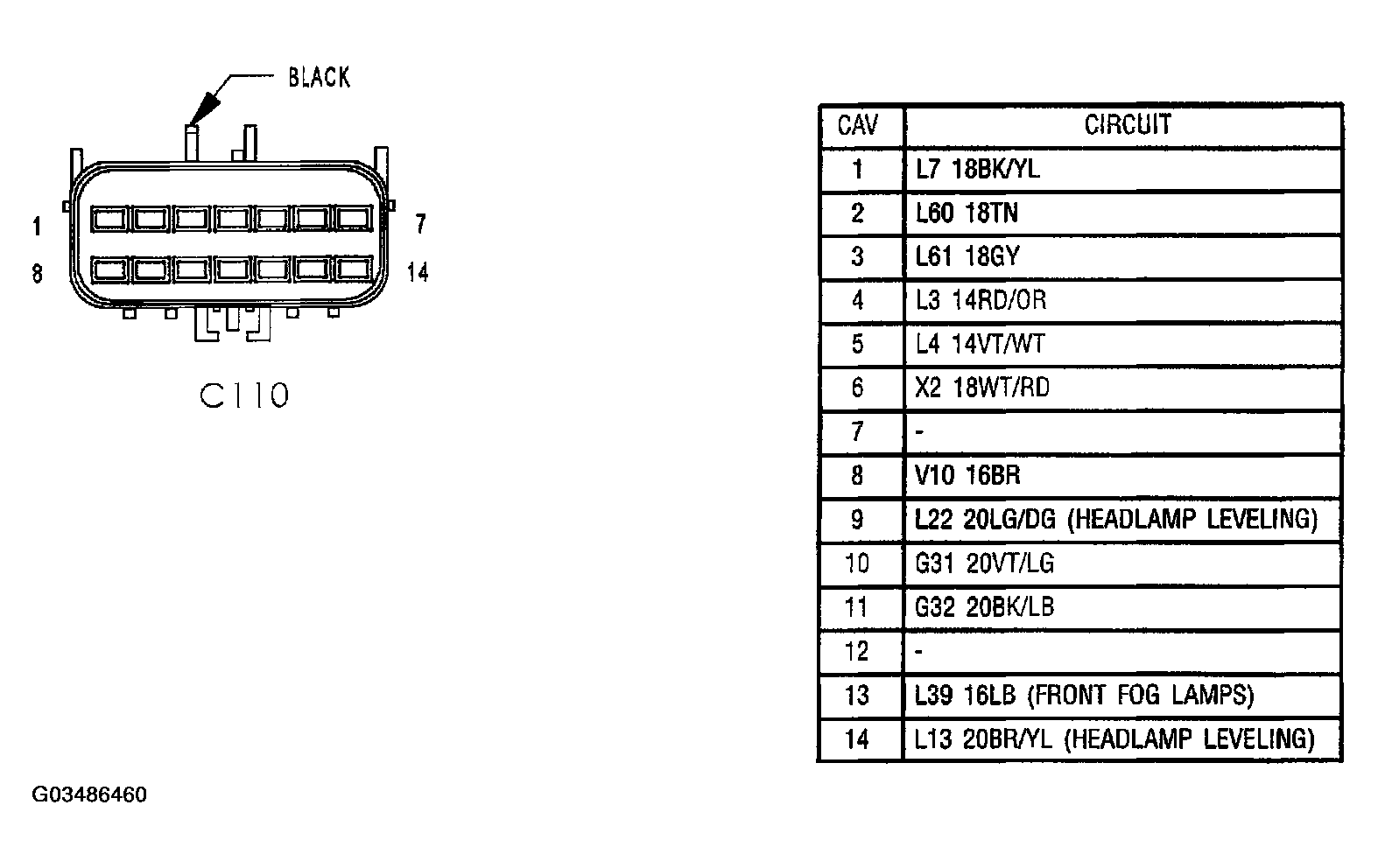

Fig 1: C110 Dash Side Inline Connector End View

G03486460

Courtesy of CHRYSLER GROUP, LLC
