C103 Dash Side Inline Connector End View

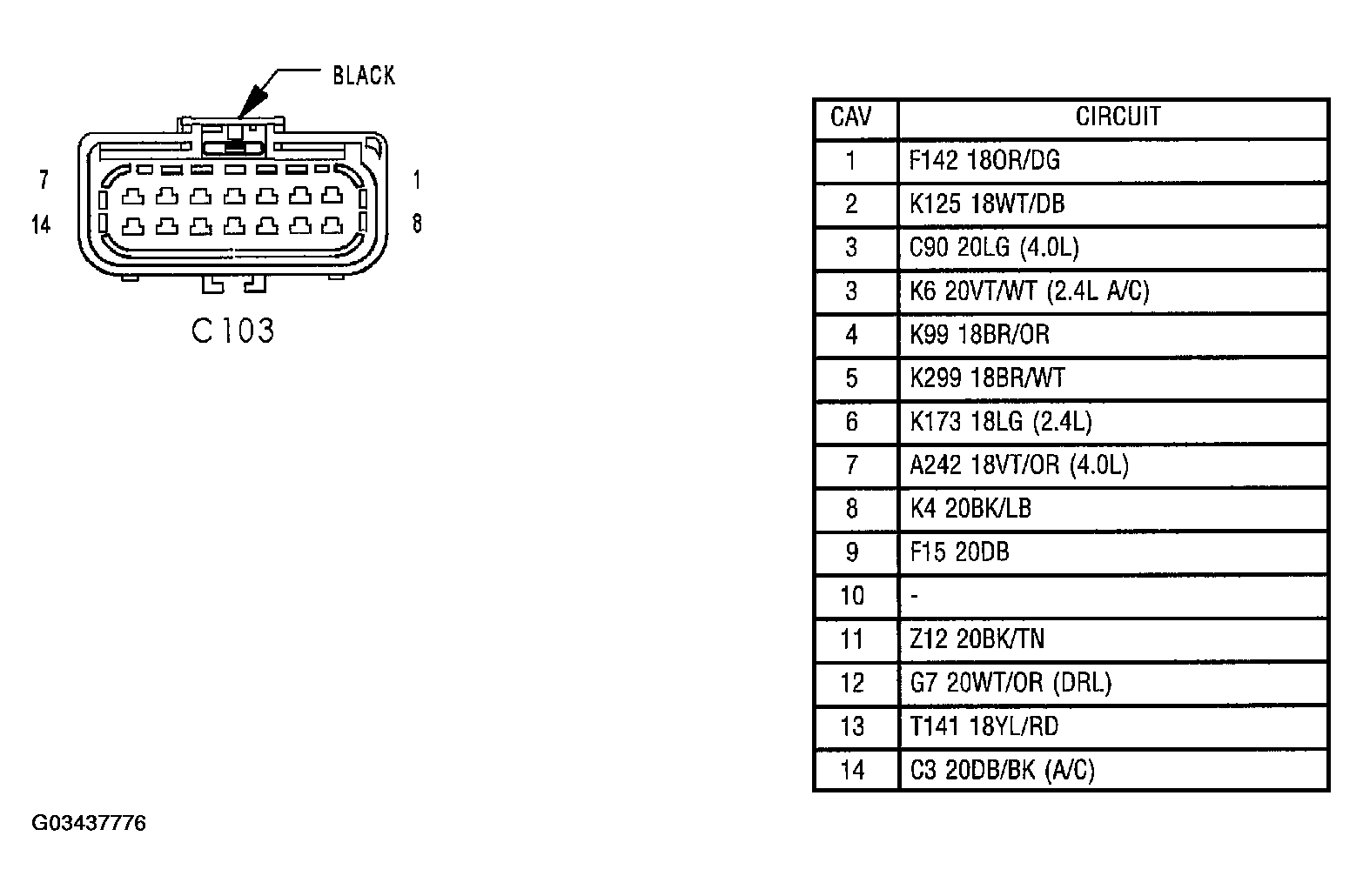

Fig 1: C103 Dash Side Inline Connector End View

G03437776

Courtesy of CHRYSLER GROUP, LLC
