C103 (Engine Side) Connector End View

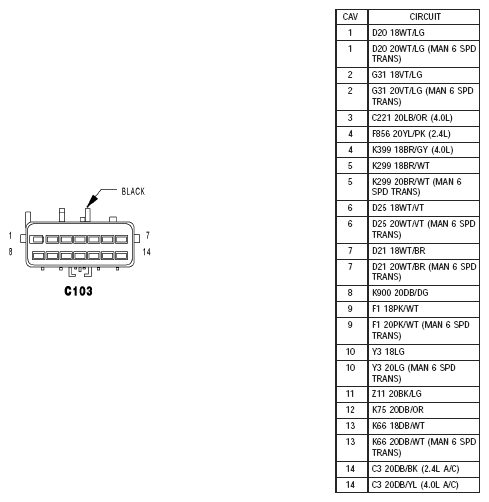

Fig 1: C103 (Engine Side) Connector End View

G04763997

Courtesy of CHRYSLER GROUP, LLC
