Back Up Lamp Switch (M/T) Connector End View

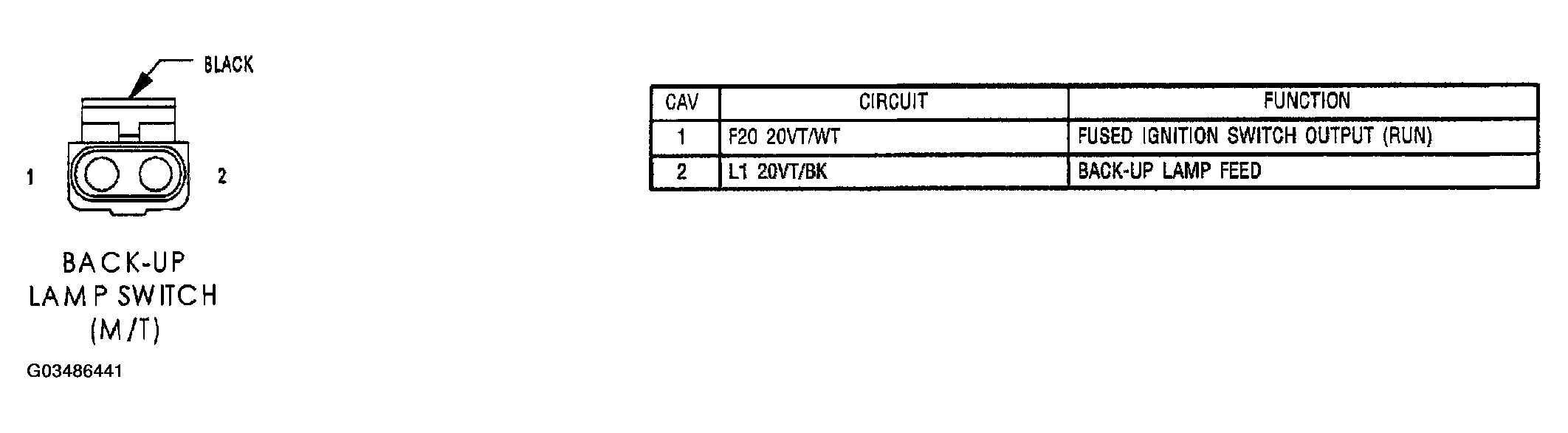

Fig 1: Back Up Lamp Switch (M/T) Connector End View

G03486441

Courtesy of CHRYSLER GROUP, LLC
