Ambient Temperature Sensor (Compass/Temperature Mirror) Connector End View
Ambient Temperature Sensor (Compass/Temperature Mirror) Connector End View

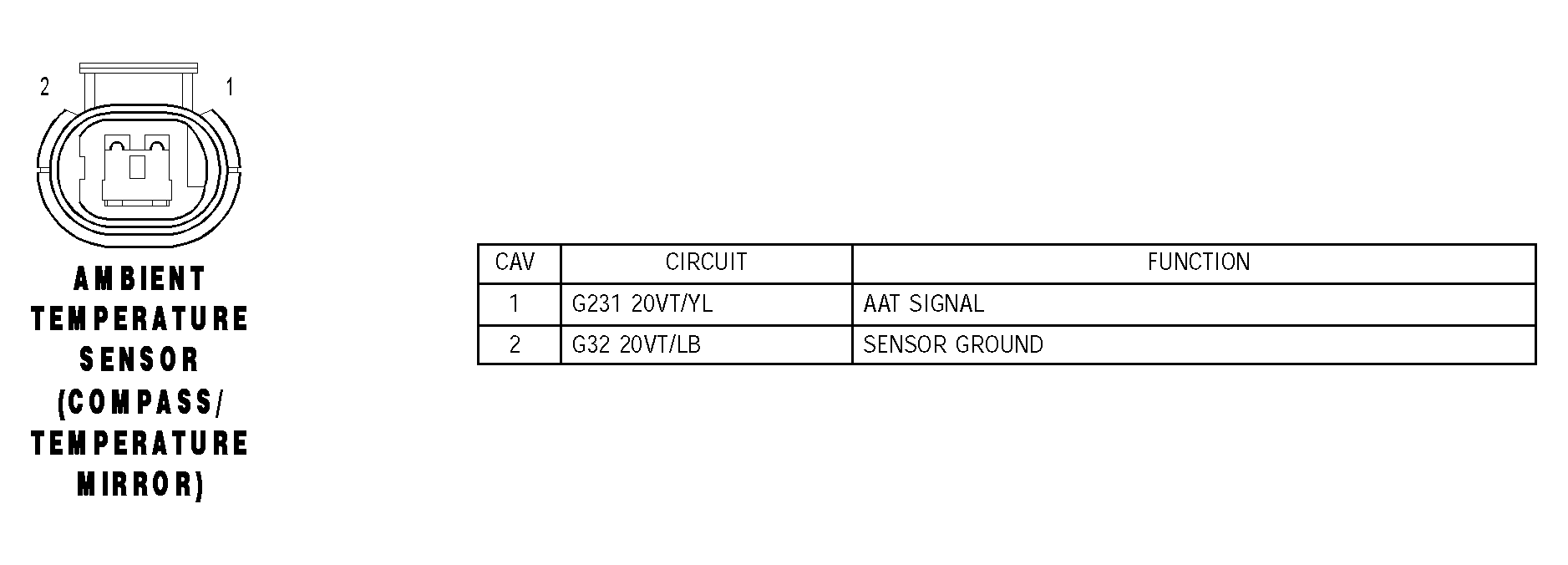

Fig 1: Ambient Temperature Sensor (Compass/Temperature Mirror) Connector End View
Courtesy of CHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLC
