A/C Heater Control Connector End View (C1)

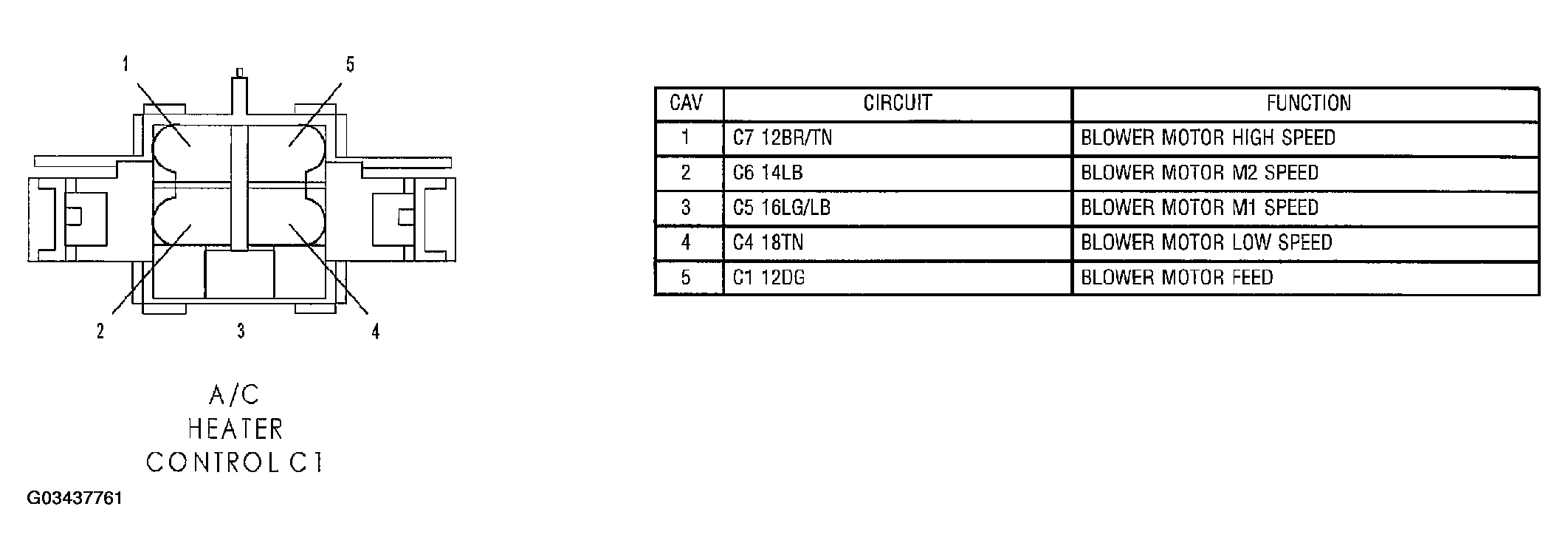

Fig 1: A/C Heater Control Connector End View (C1)

G03437761

Courtesy of CHRYSLER GROUP, LLC
