Cab Power Feed Circuit: Testing

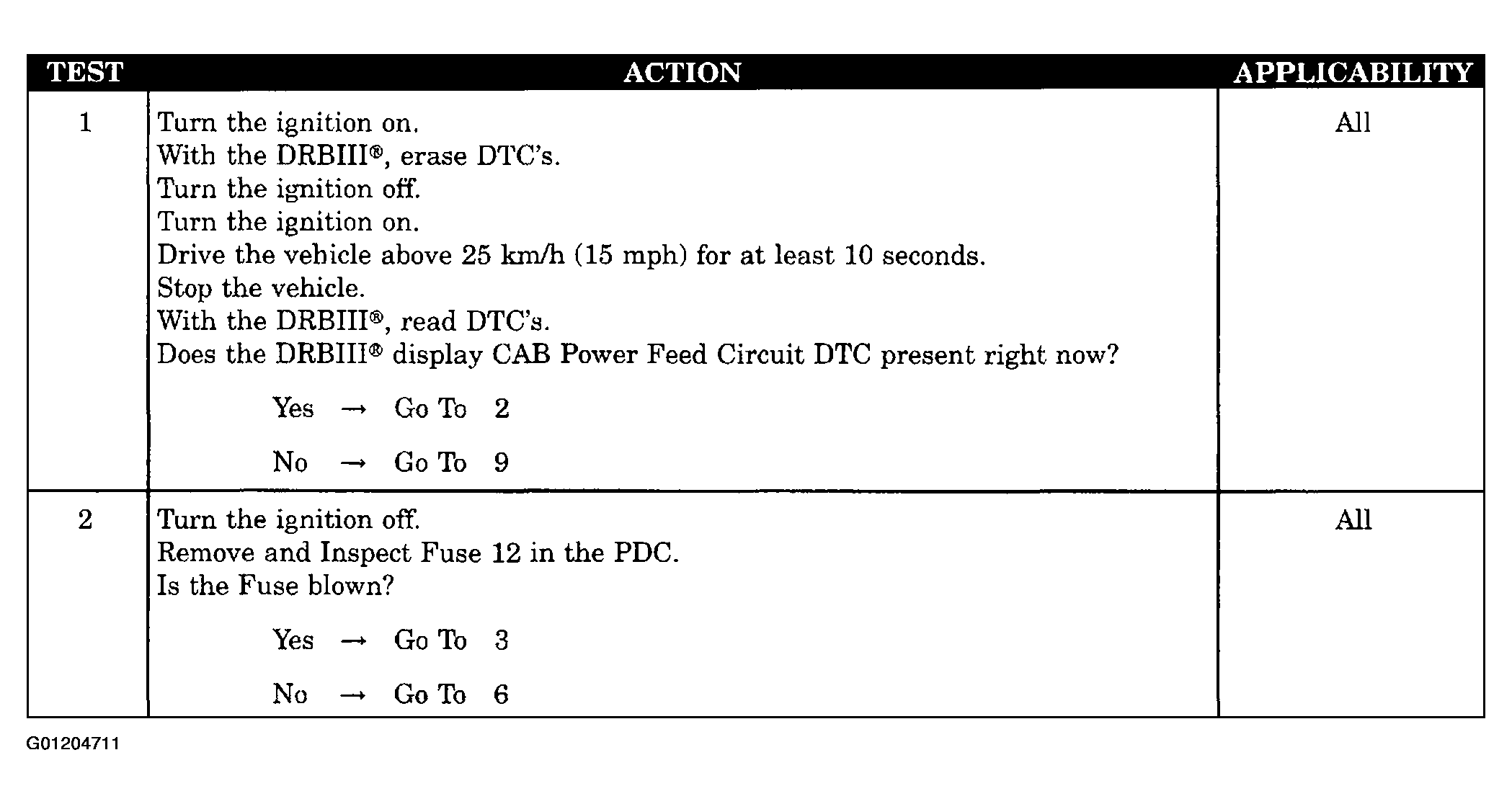

Fig 1: Testing CAB Power Feed Circuit (Steps 1 & 2)
G01204711Courtesy of DAIMLERCHRYSLER CORP.

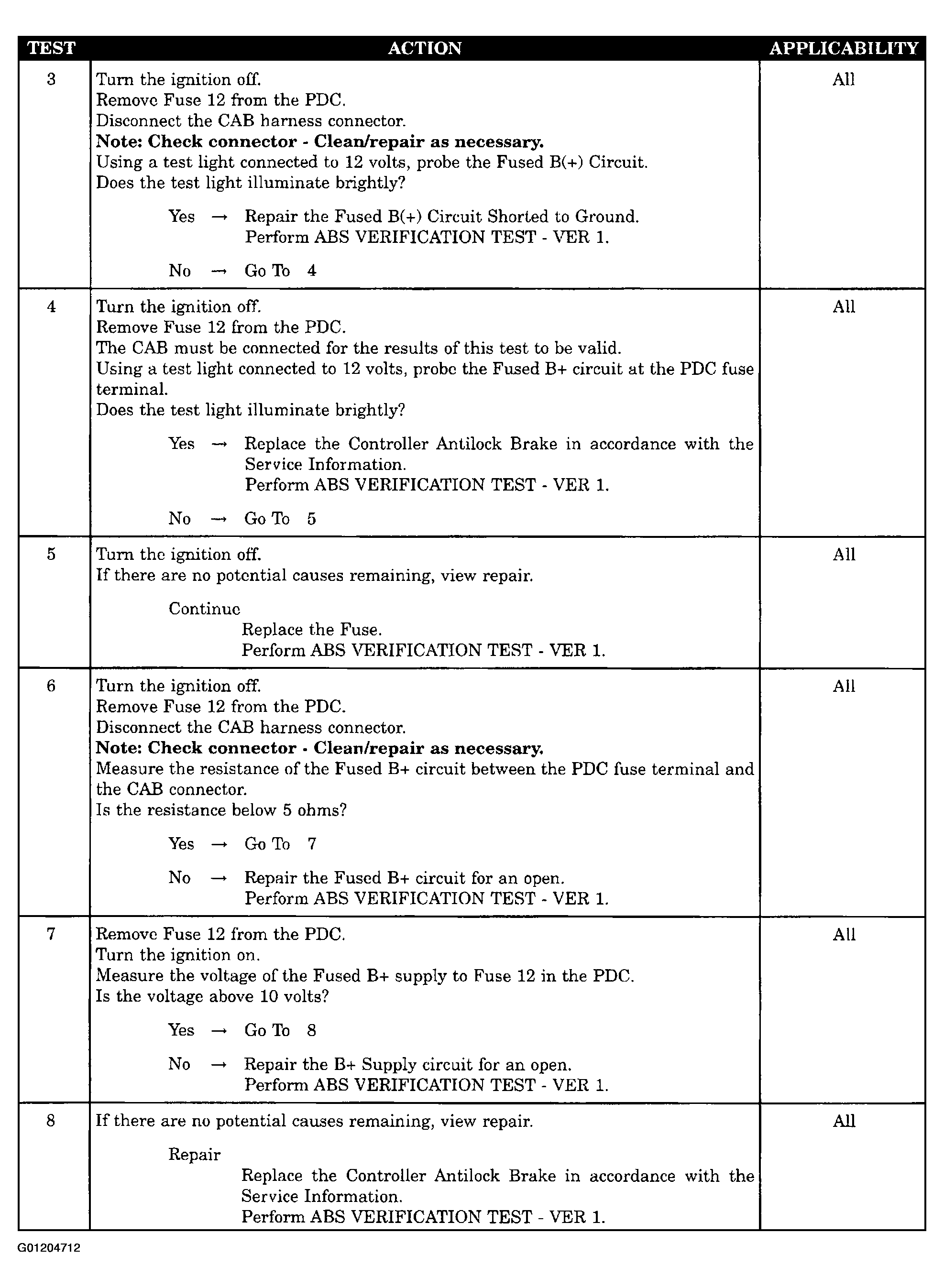

Fig 2: Testing: CAB Power Feed Circuit (1 Of 2)
G01204712Courtesy of DAIMLERCHRYSLER CORP.

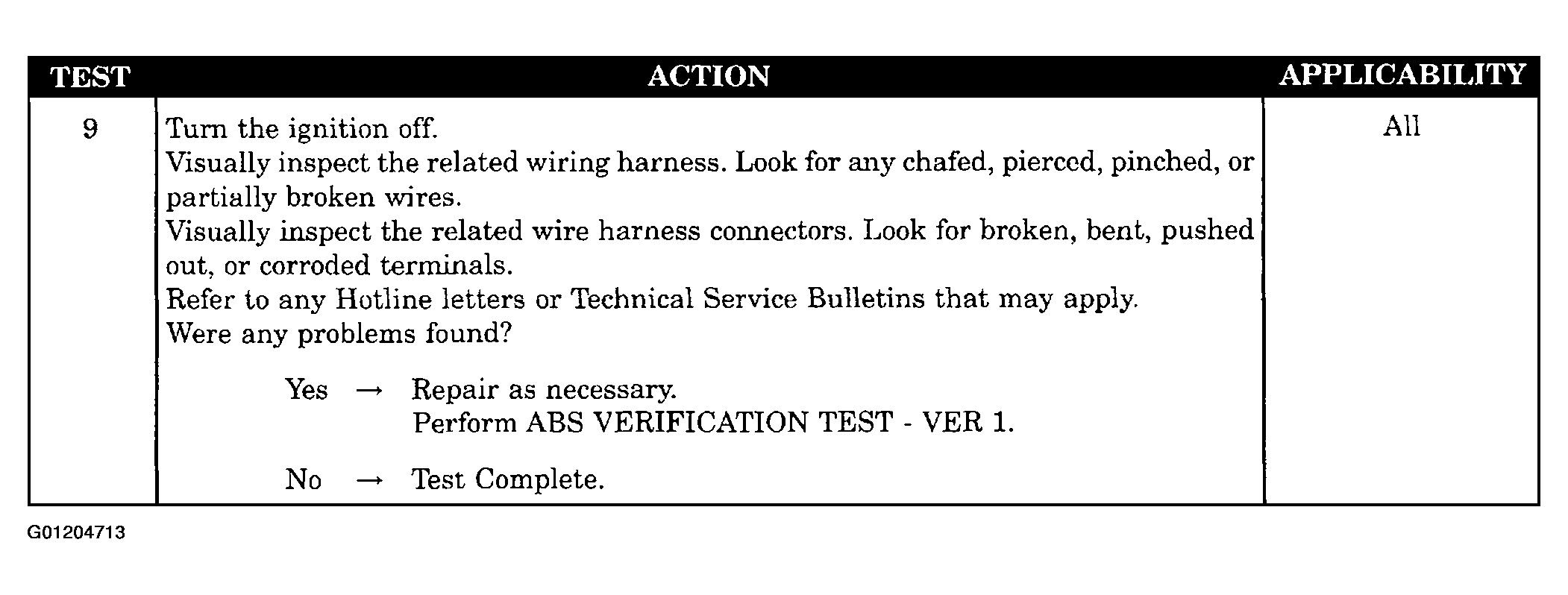

Fig 3: Testing: CAB Power Feed Circuit (2 Of 2)
G01204713Courtesy of DAIMLERCHRYSLER CORP.
