Liberty Renegade, 2.4 1
>>
Repair and Diagnosis
>>
Transmission
>>
Clutch
>>
Torque Specifications
Torque Specifications

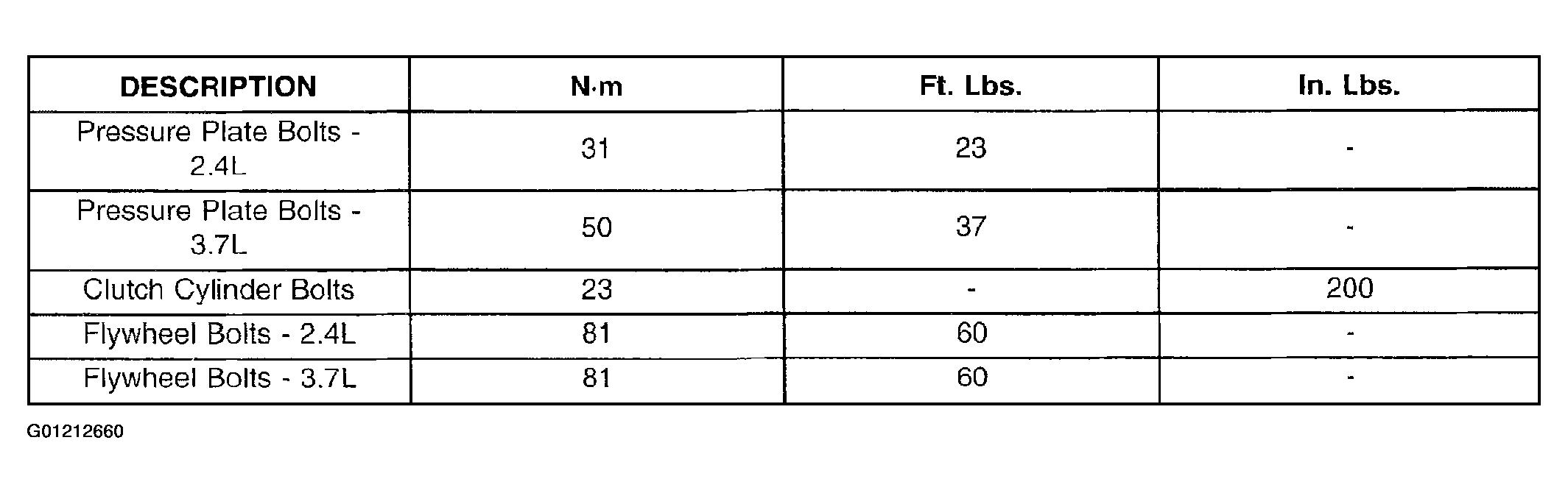

Fig 1: Clutch Torque Specifications
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
