Side View Mirror

  1. Remove the trim panel. See TRIM PANEL  removal.
  2. Disconnect the electrical connector. See Fig 1 .
  3. Remove the 3 nuts and remove the mirror assembly.
  4. To install, reverse the removal procedure. See TORQUE SPECIFICATIONS  .

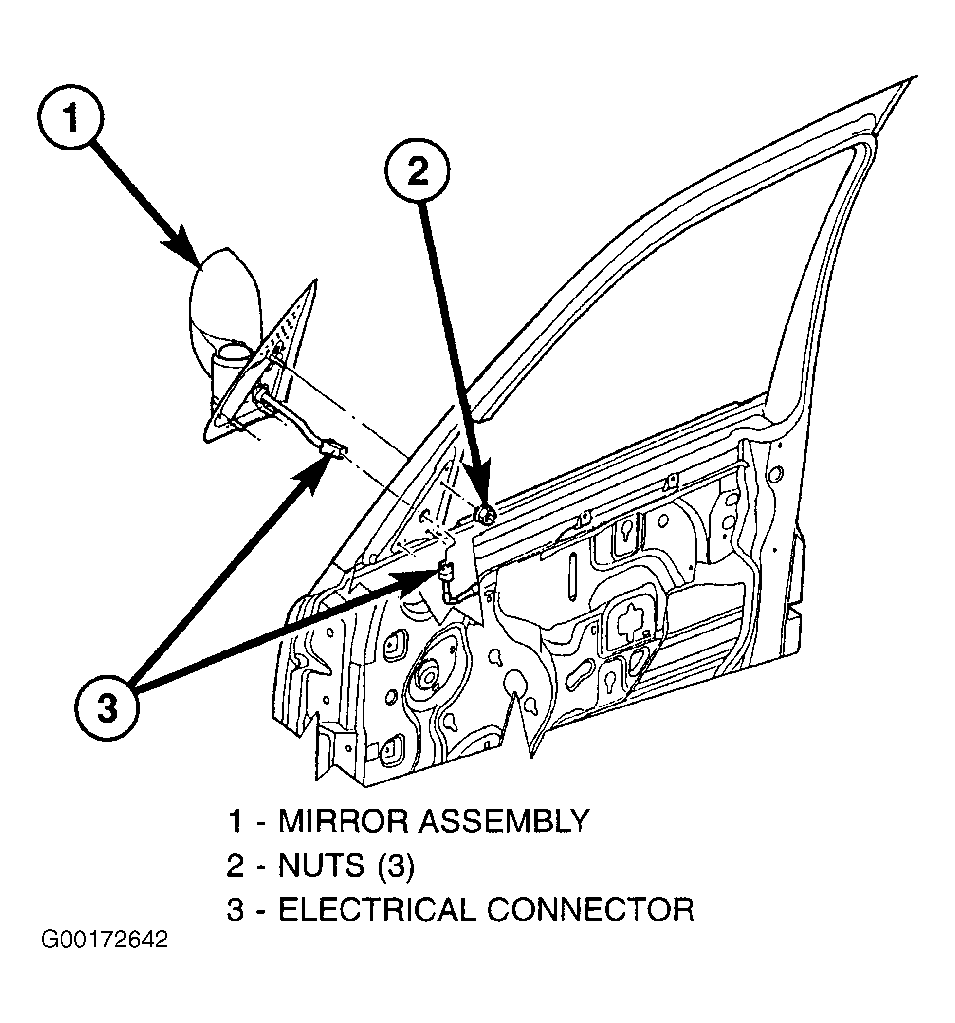

Fig 1: Removing Side View Mirror
G00172642Courtesy of CHRYSLER CORP.
