Special Tools

For special tools, see Fig 1 -Fig 7 .

Fig 1: Special Tools

Courtesy of CHRYSLER CORP.

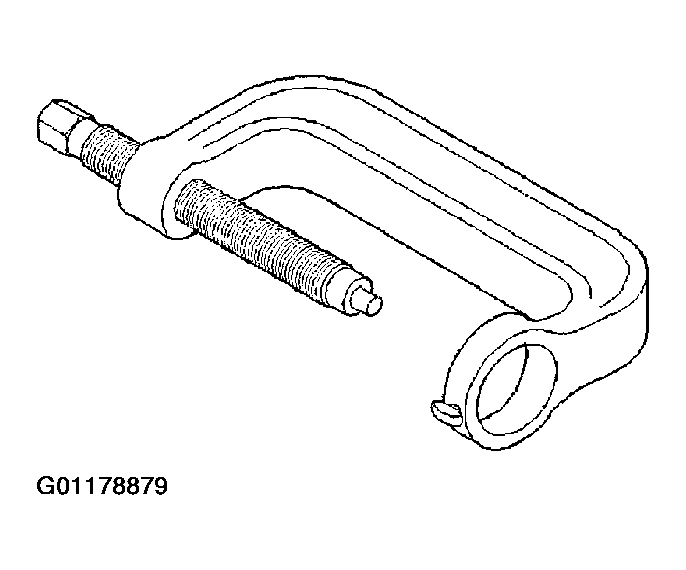

Fig 2: Ball Joint Press - C-4212F

Courtesy of DAIMLERCHRYSLER CORP.

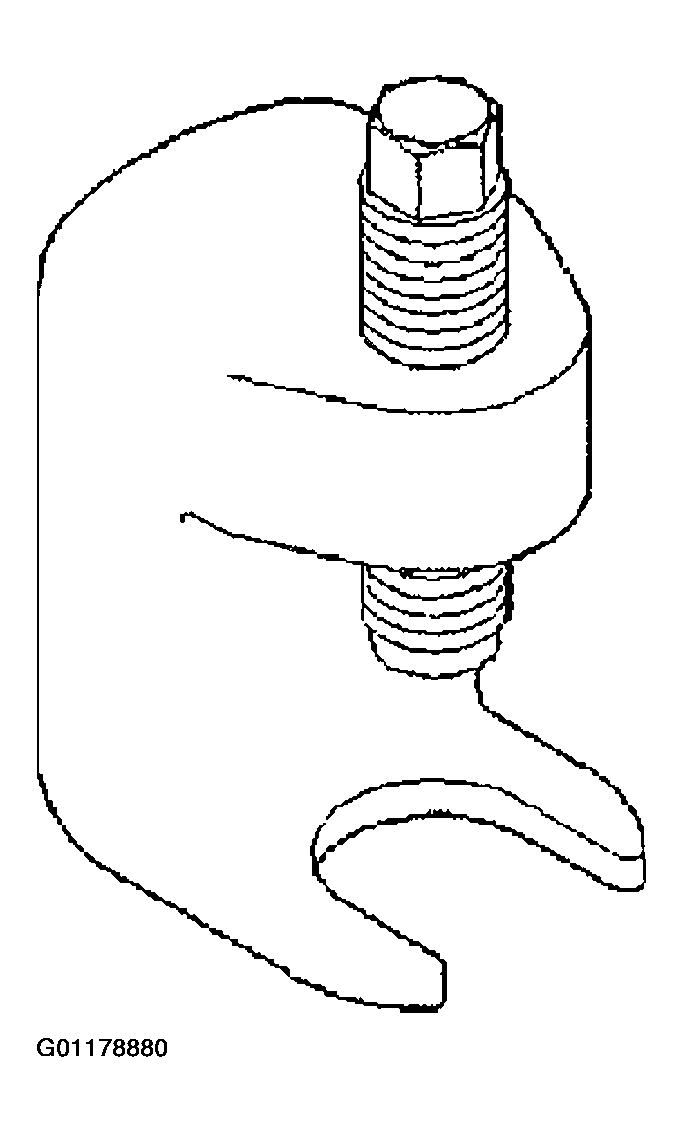

Fig 3: Remover C-4150A

Courtesy of DAIMLERCHRYSLER CORP.

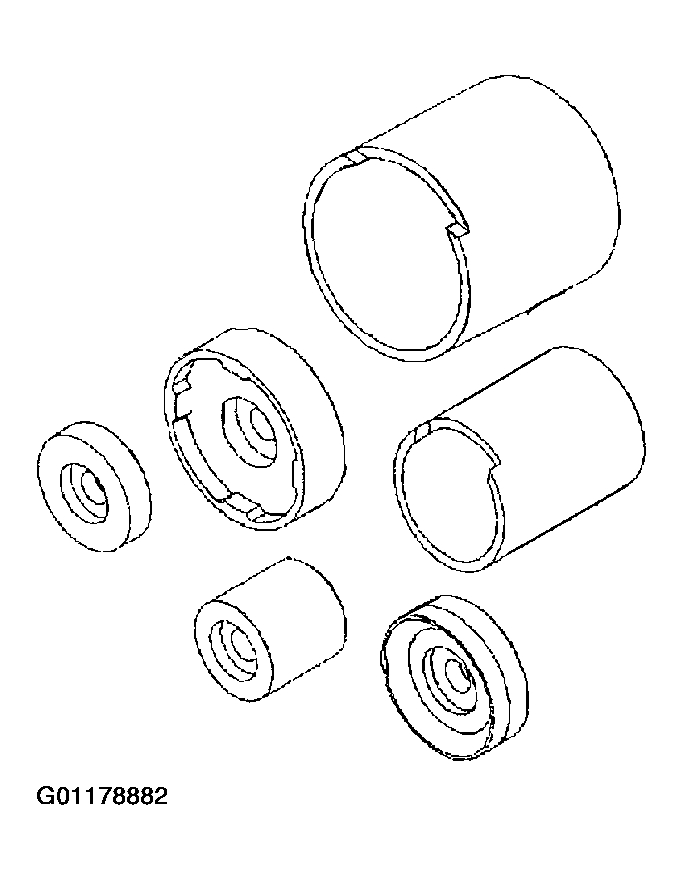

Fig 4: Front Lower Ball Joint Remover/Installer - 8859

Courtesy of DAIMLERCHRYSLER CORP.

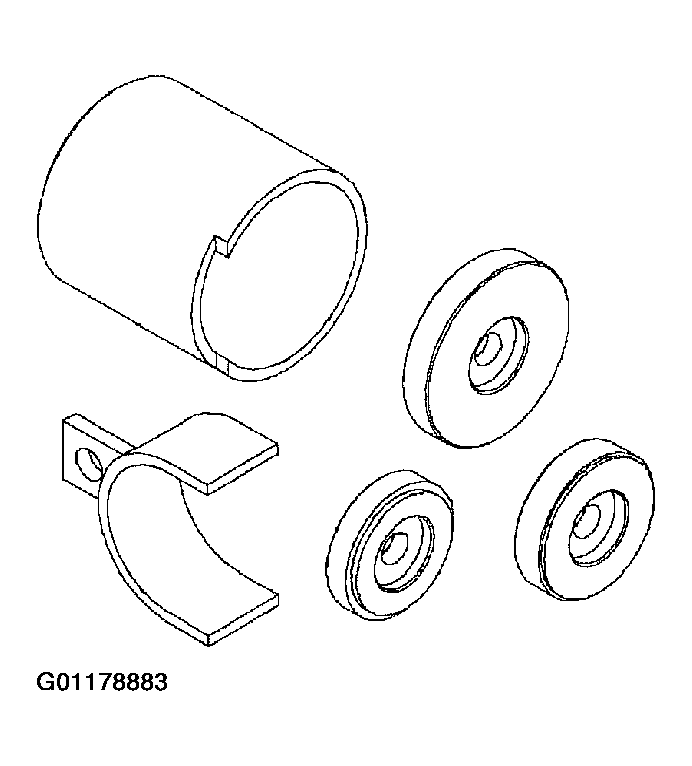

Fig 5: Front Lower Control Arm & Clevis Bushing Remover/Installer - 8858

Courtesy of DAIMLERCHRYSLER CORP.

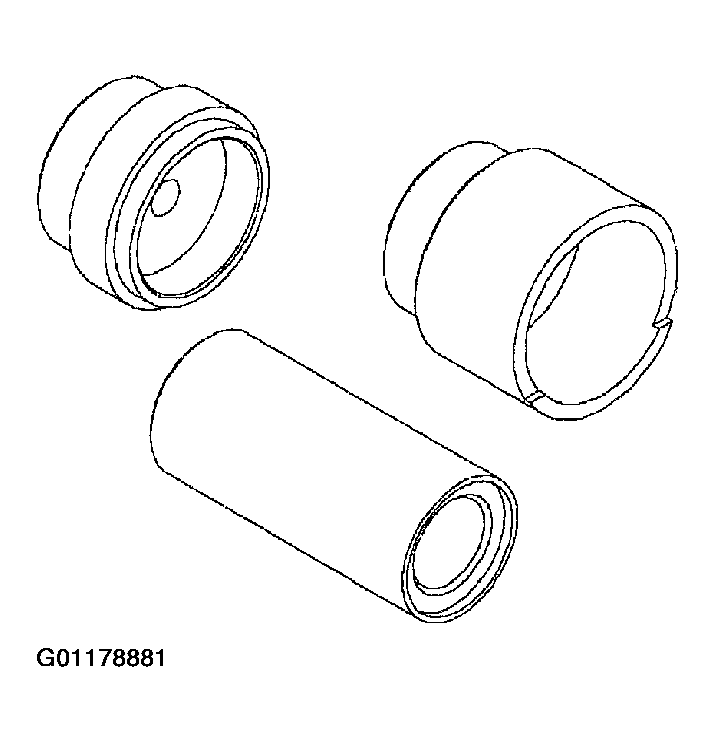

Fig 6: Front Lower Control Arm Bushing Remover/Installer - 8830

Courtesy of DAIMLERCHRYSLER CORP.

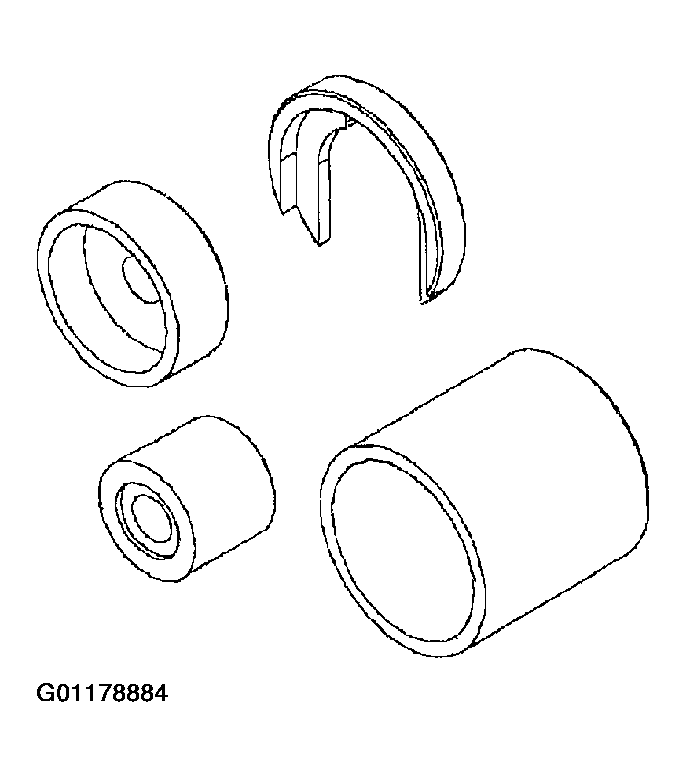

Fig 7: Rear Lower Control Arm Bushing Remover/Installer - 8862

Courtesy of DAIMLERCHRYSLER CORP.
