Engine Coolant Temperature Sensor: Removal: 2.4L
WARNING: This page is about a different variant/trim than selected.

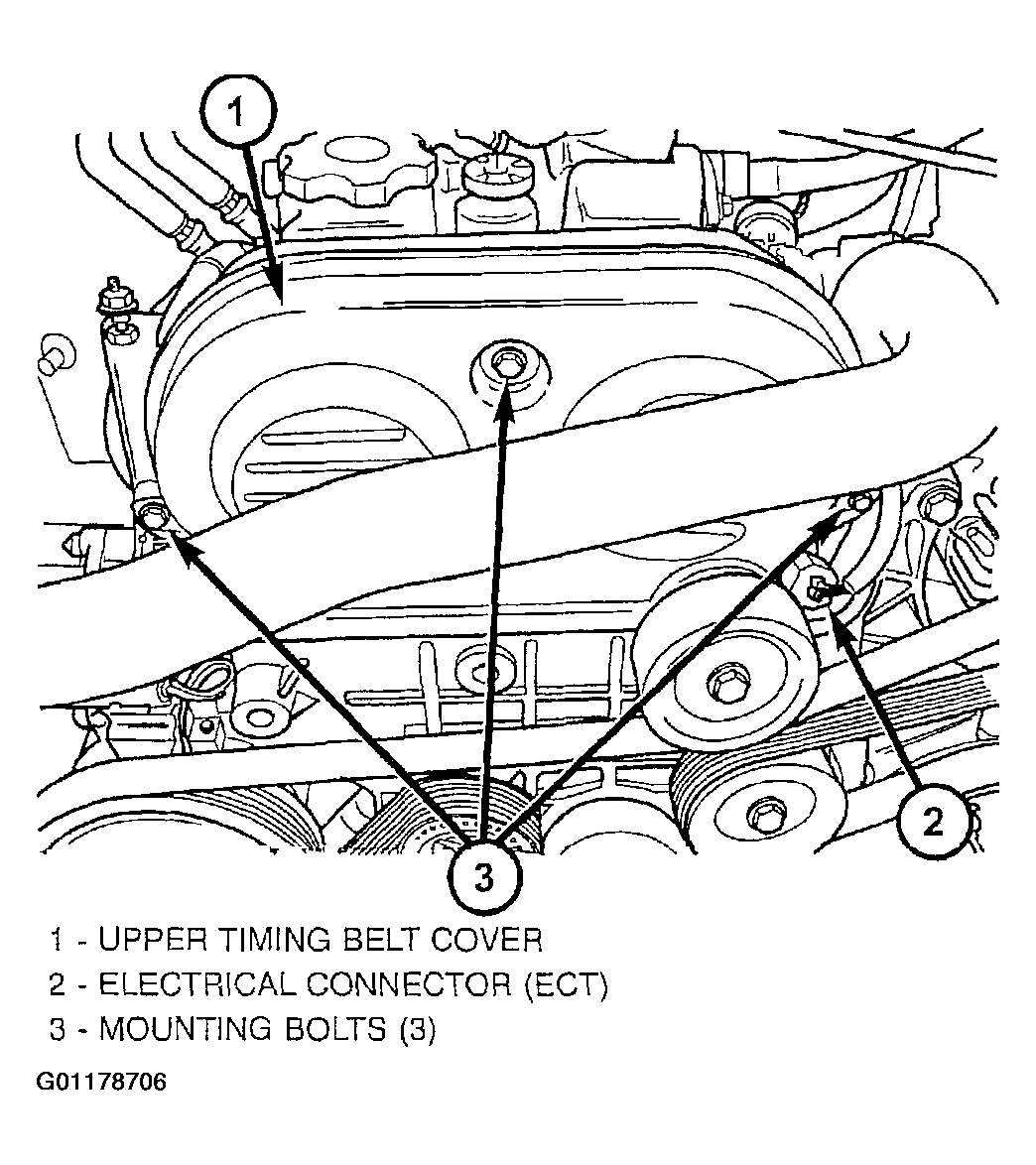

The Engine Coolant Temperature (ECT) sensor is installed into a water jacket at left front of cylinder head. See Fig 1.
WARNING:
HOT, PRESSURIZED COOLANT CAN CAUSE INJURY BY SCALDING. COOLING SYSTEM MUST BE PARTIALLY DRAINED BEFORE REMOVING THE COOLANT TEMPERATURE SENSOR.
- Partially drain cooling system.
- Disconnect electrical connector from sensor.
- Remove sensor from cylinder head.
