Oil Pressure Sensor/Switch: Removal

  1. Disconnect the negative cable from the battery.
  2. Raise vehicle on hoist.
  3. Remove front splash shield.
  4. Disconnect oil pressure sensor wire. See Fig 1.
  5. Remove the pressure sensor. See Fig 1.

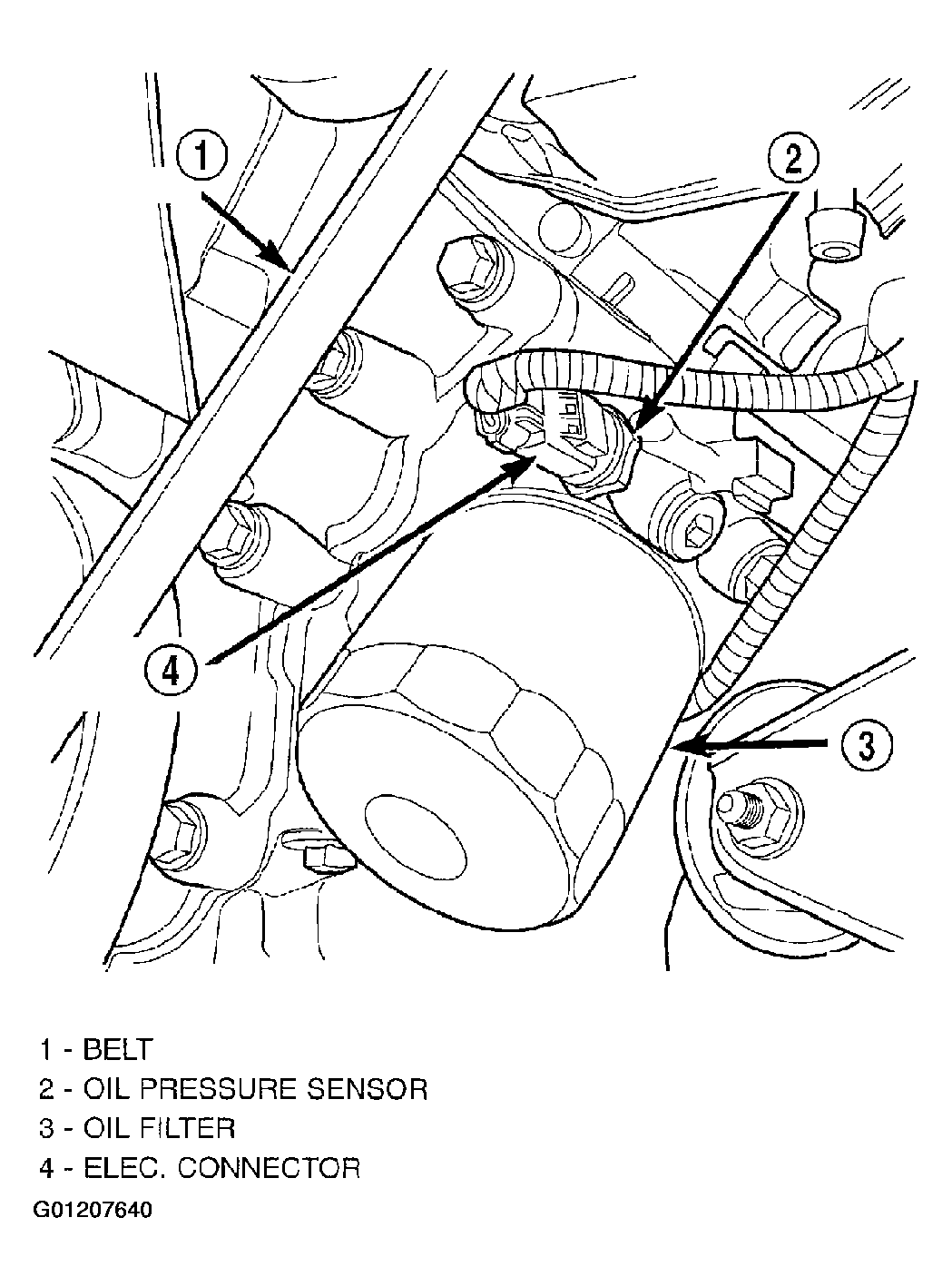

    Fig 1: Locating Oil Pressure Sensor
    G01207640Courtesy of DAIMLERCHRYSLER CORP.
