Flex Plate: Installation

  1. Position the flexplate onto the crankshaft and install the bolts hand tight.
  2. Tighten the flexplate retaining bolts to 95 N.m (70 ft. lbs.) in the sequence shown in illustration. See Fig 1.
  3. Install the transmission. See appropriate TRANSMISSIONS article.

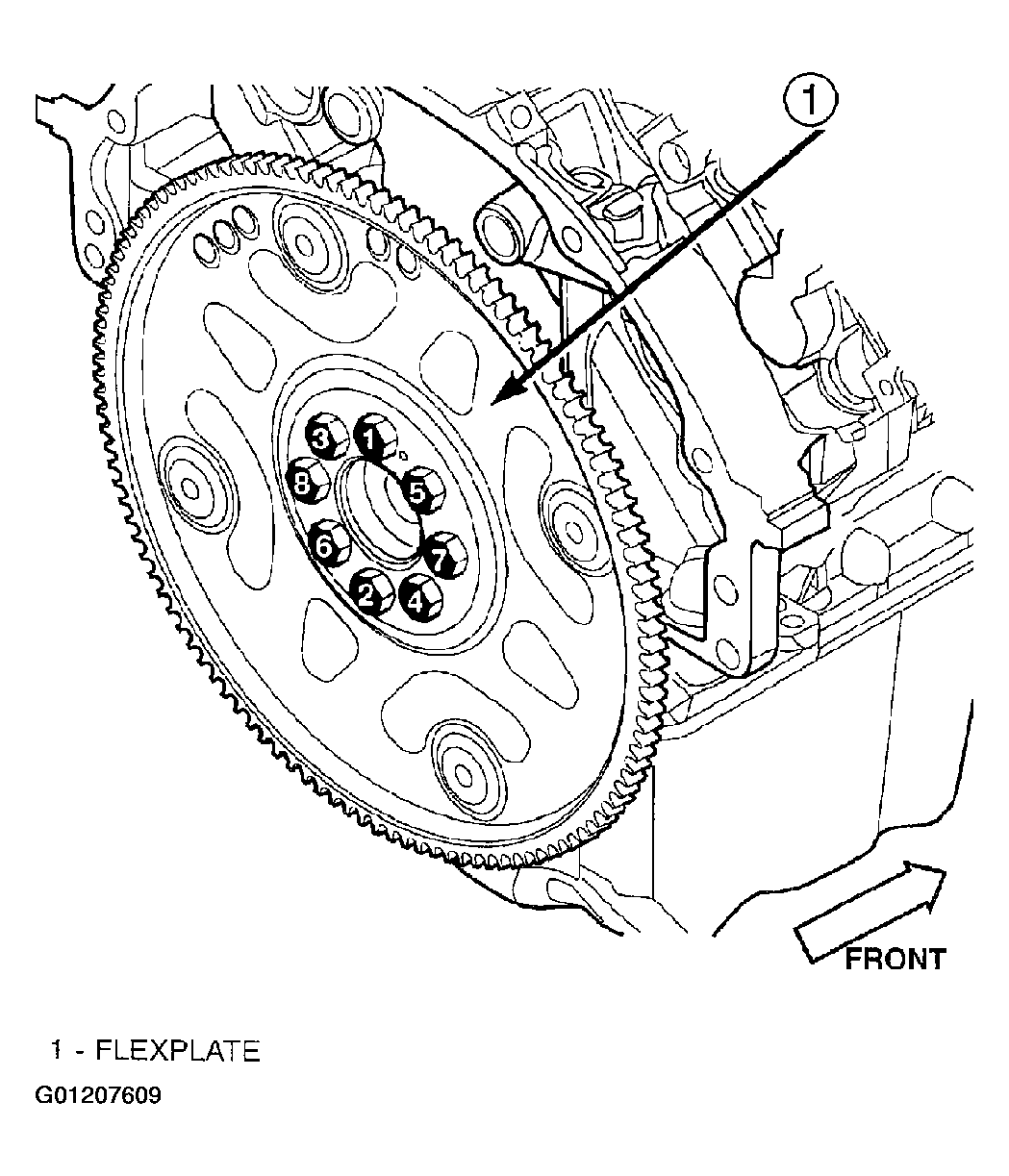

    Fig 1: Identifying Flexplate Bolt Tightening Sequence
    G01207609Courtesy of DAIMLERCHRYSLER CORP.
