Powertrain Control Module C1 (3.7L) Connector End View

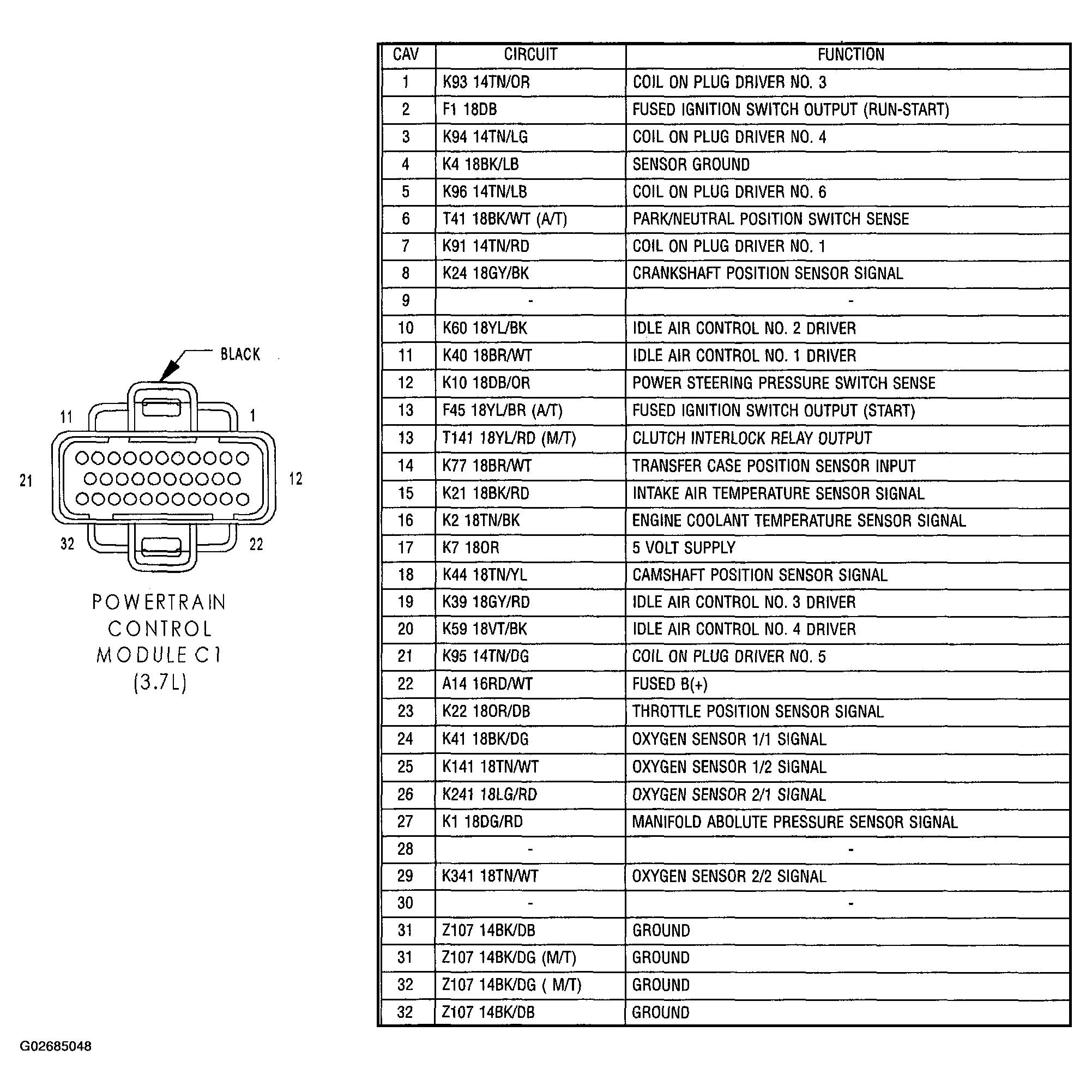

Fig 1: Powertrain Control Module C1 (3.7L) Connector End View

G02685048

Courtesy of CHRYSLER GROUP, LLC
