Multifunction Switch C2 Connector End View

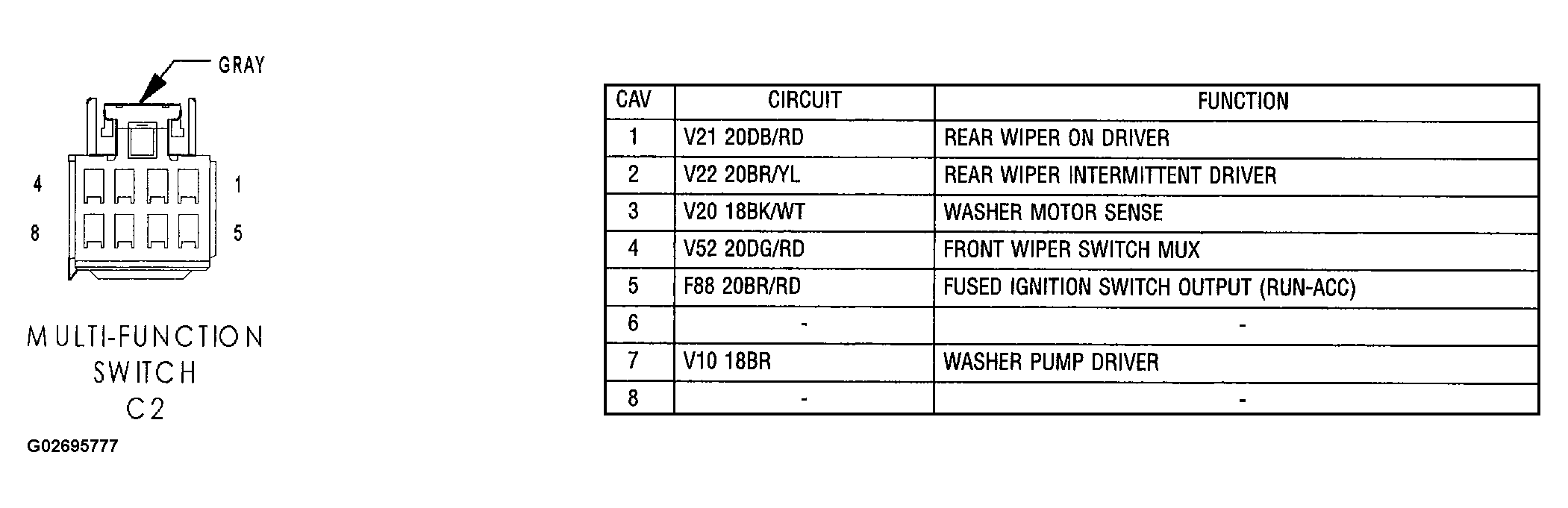

Fig 1: Multifunction Switch C2 Connector End View

G02695777

Courtesy of CHRYSLER GROUP, LLC
